Relay Module
Relay Module

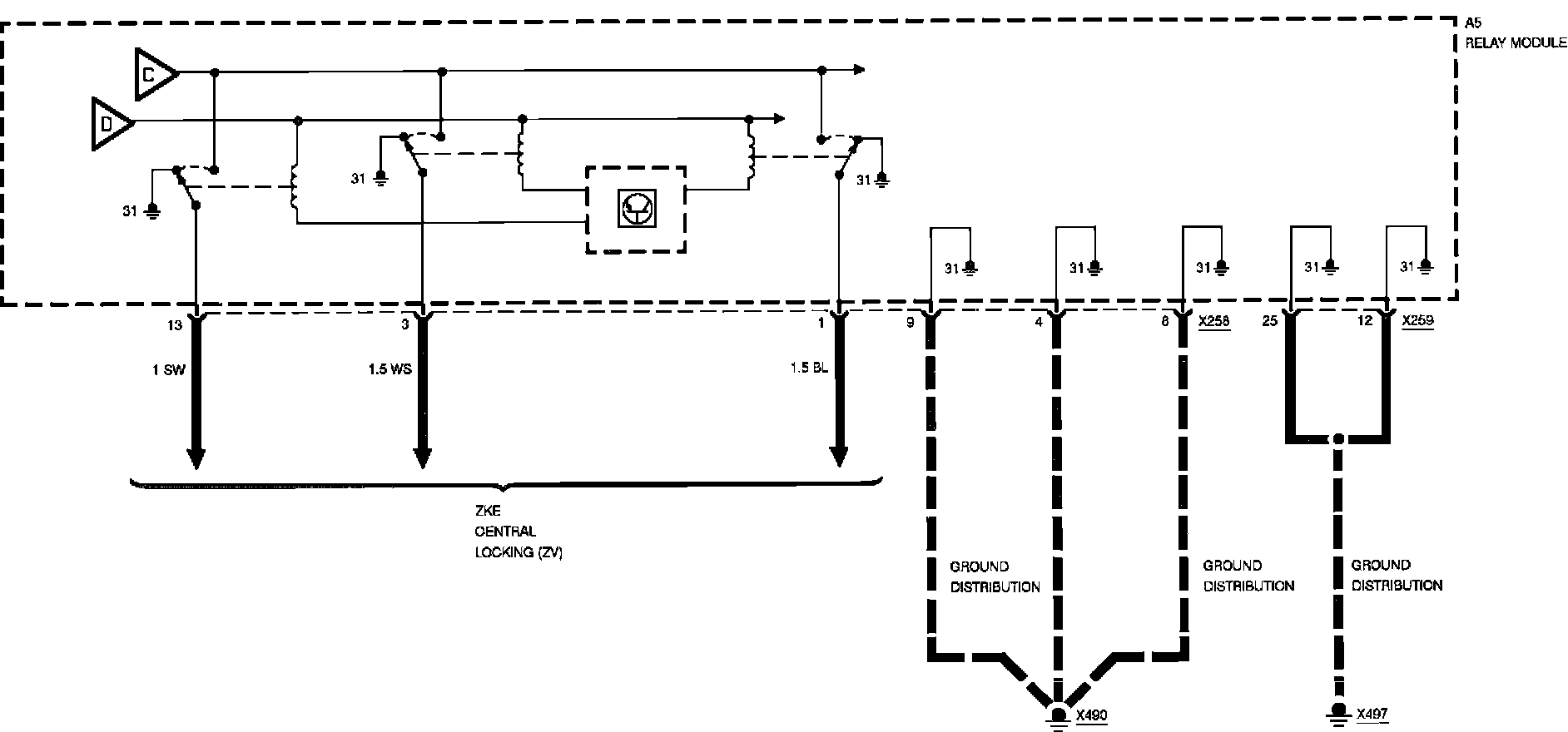

Central Body Electronics (ZKE). Relay Module:

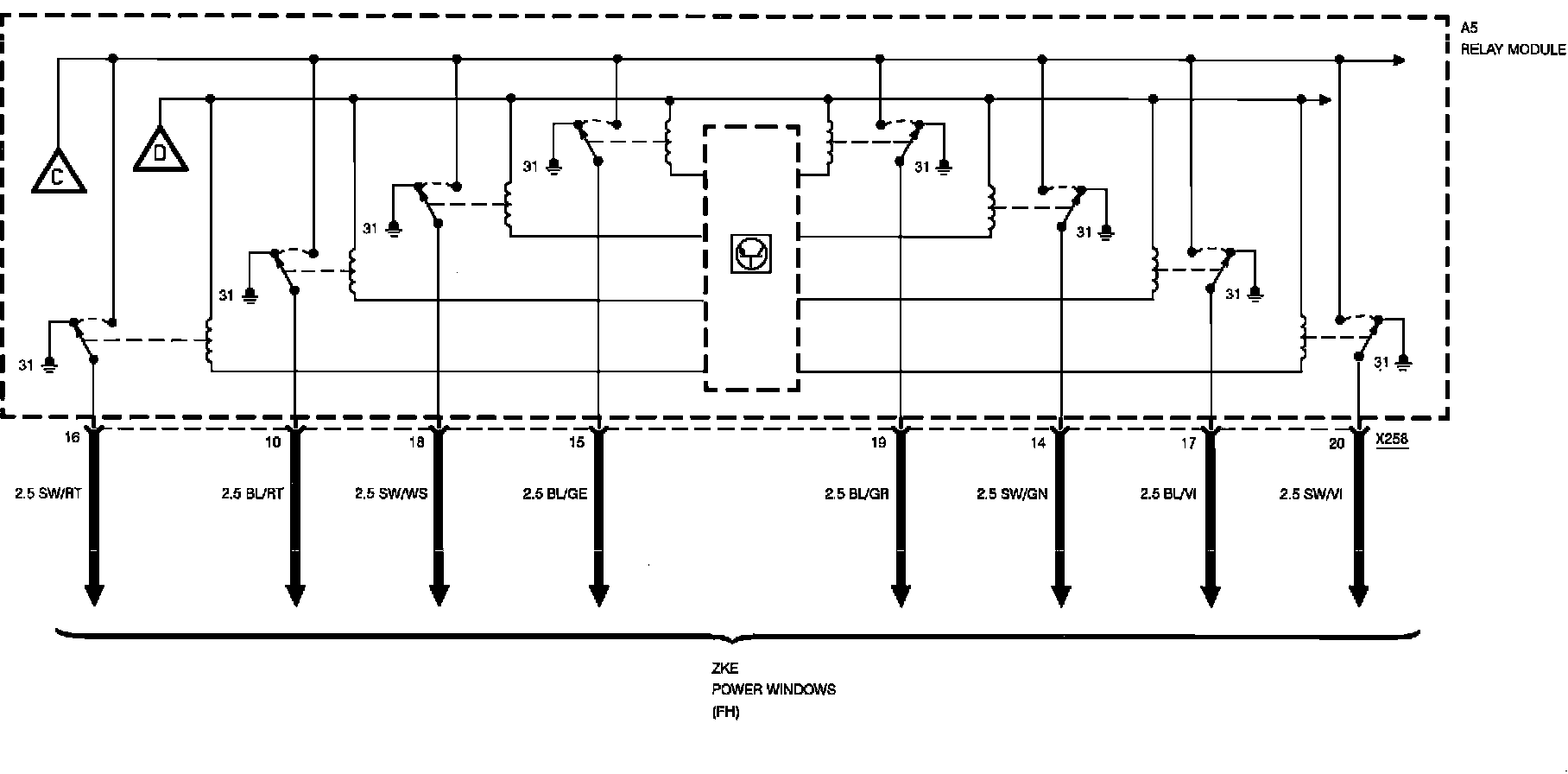

Central Body Electronics (ZKE). Relay Module:
