Central Control Module
>>

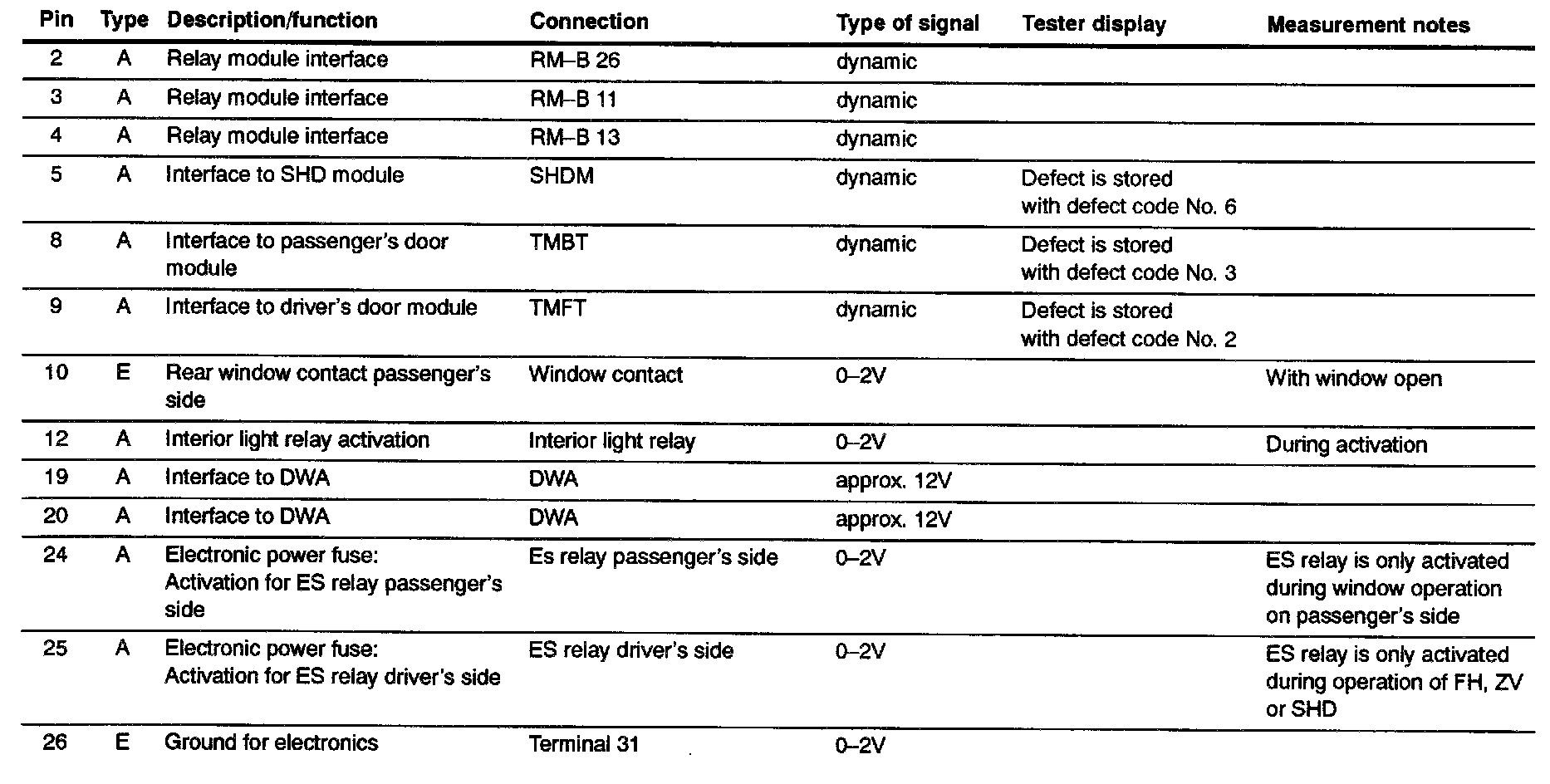

Pin Assignments at Connector GM-C X254
Pin Assignments at Connector GM-C X254
