Central Control Module
>>

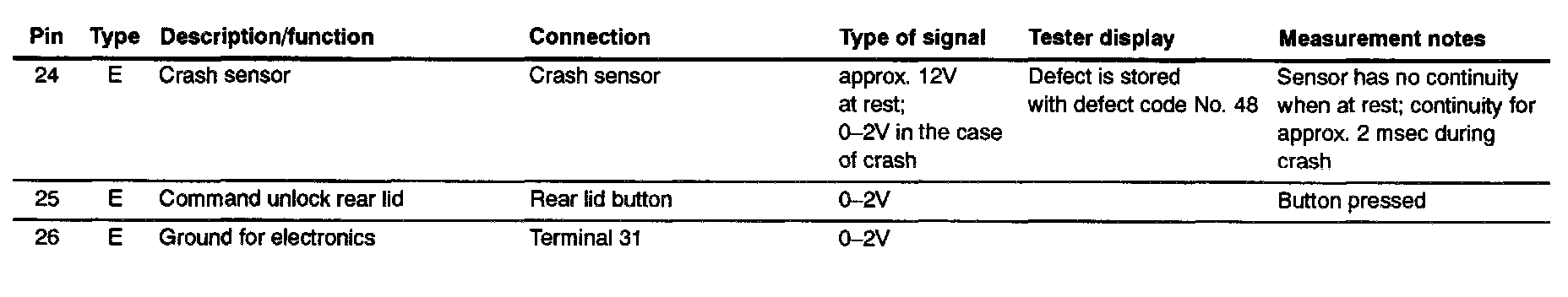

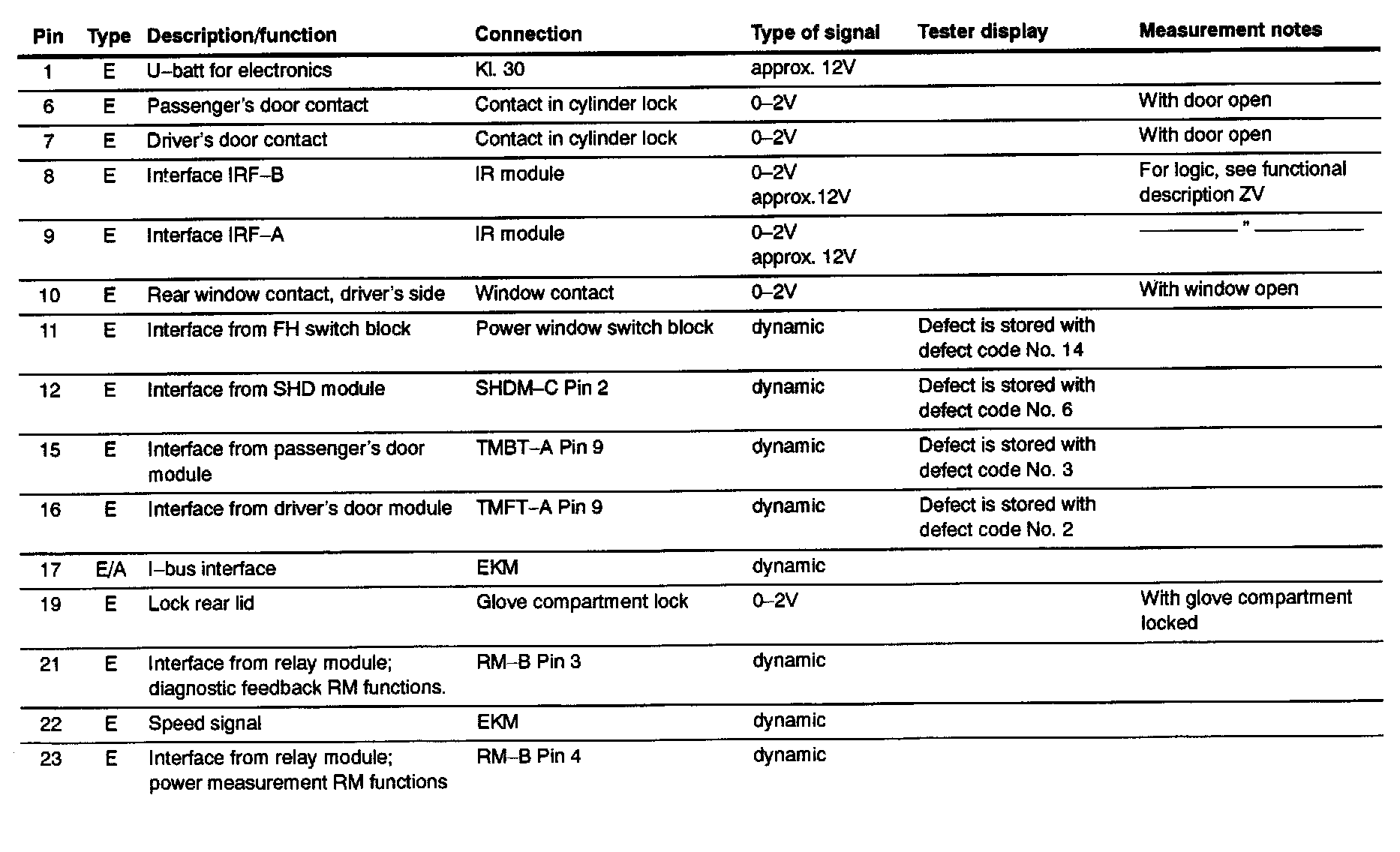

Pin Assignments at Connector GM-A X332
Pin Assignments at Connector GM-A X332
