Electrical Diagrams

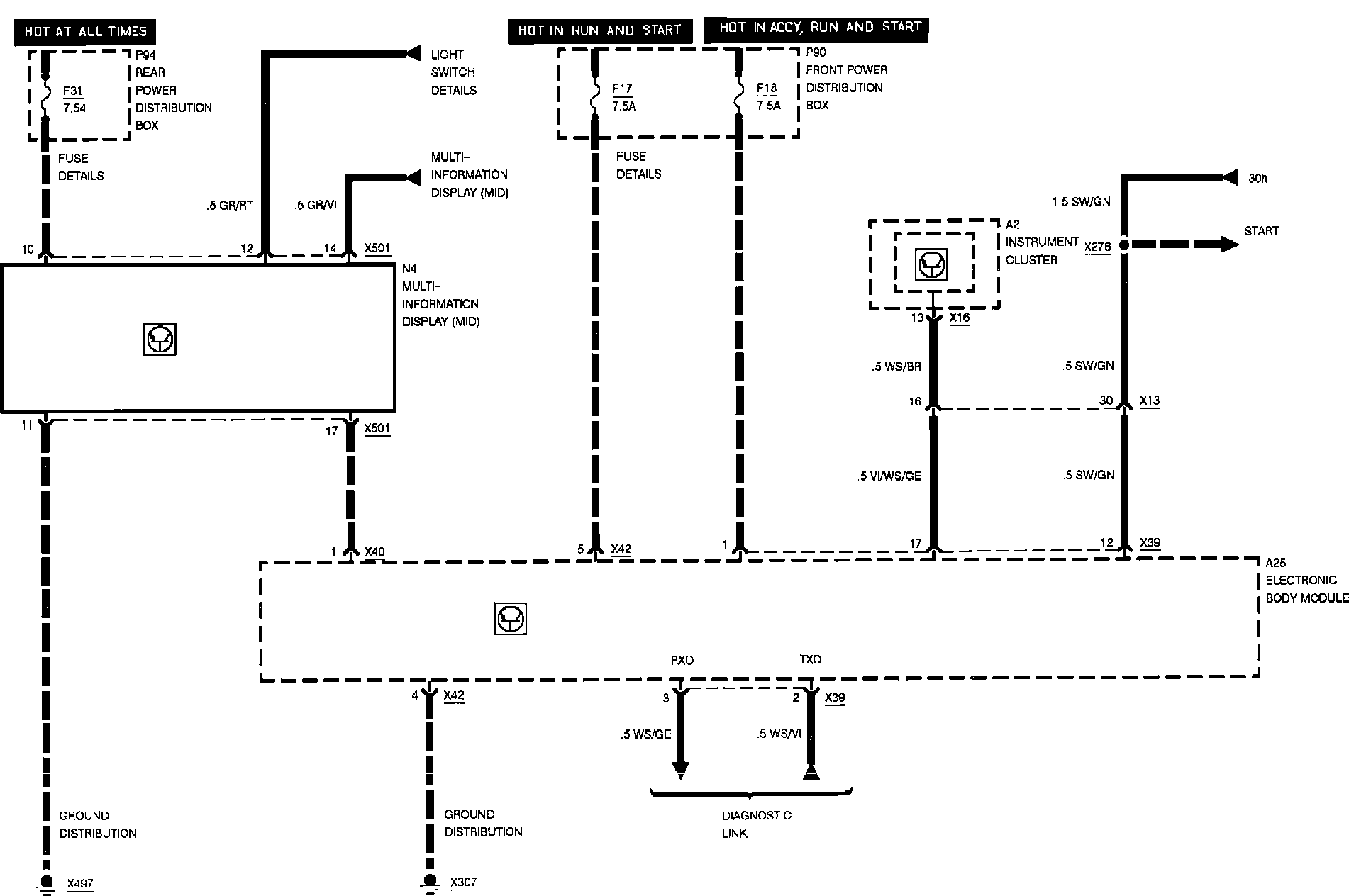

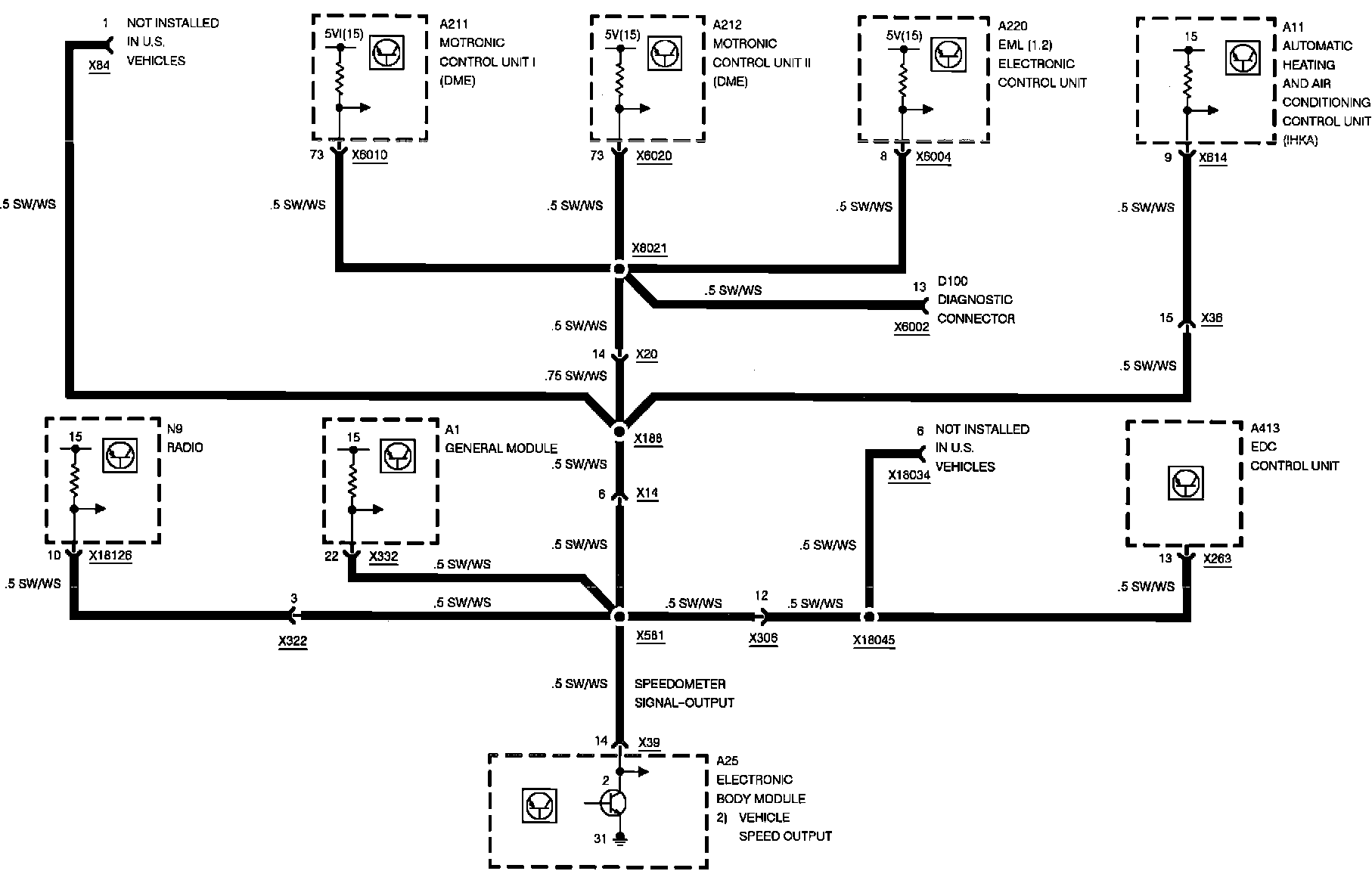

Electronic Body Module (EKM):

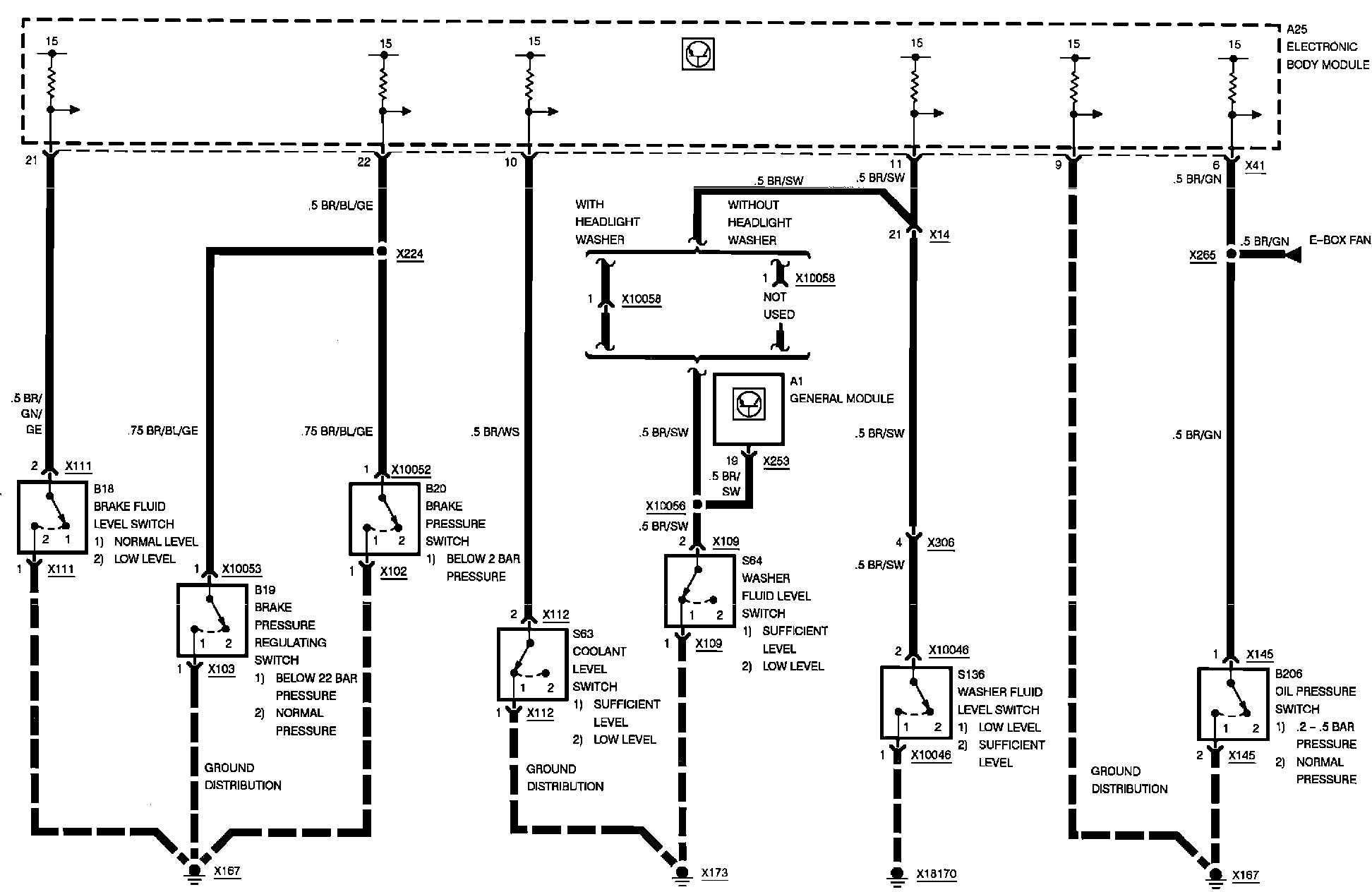

Electronic Body Module (EKM):

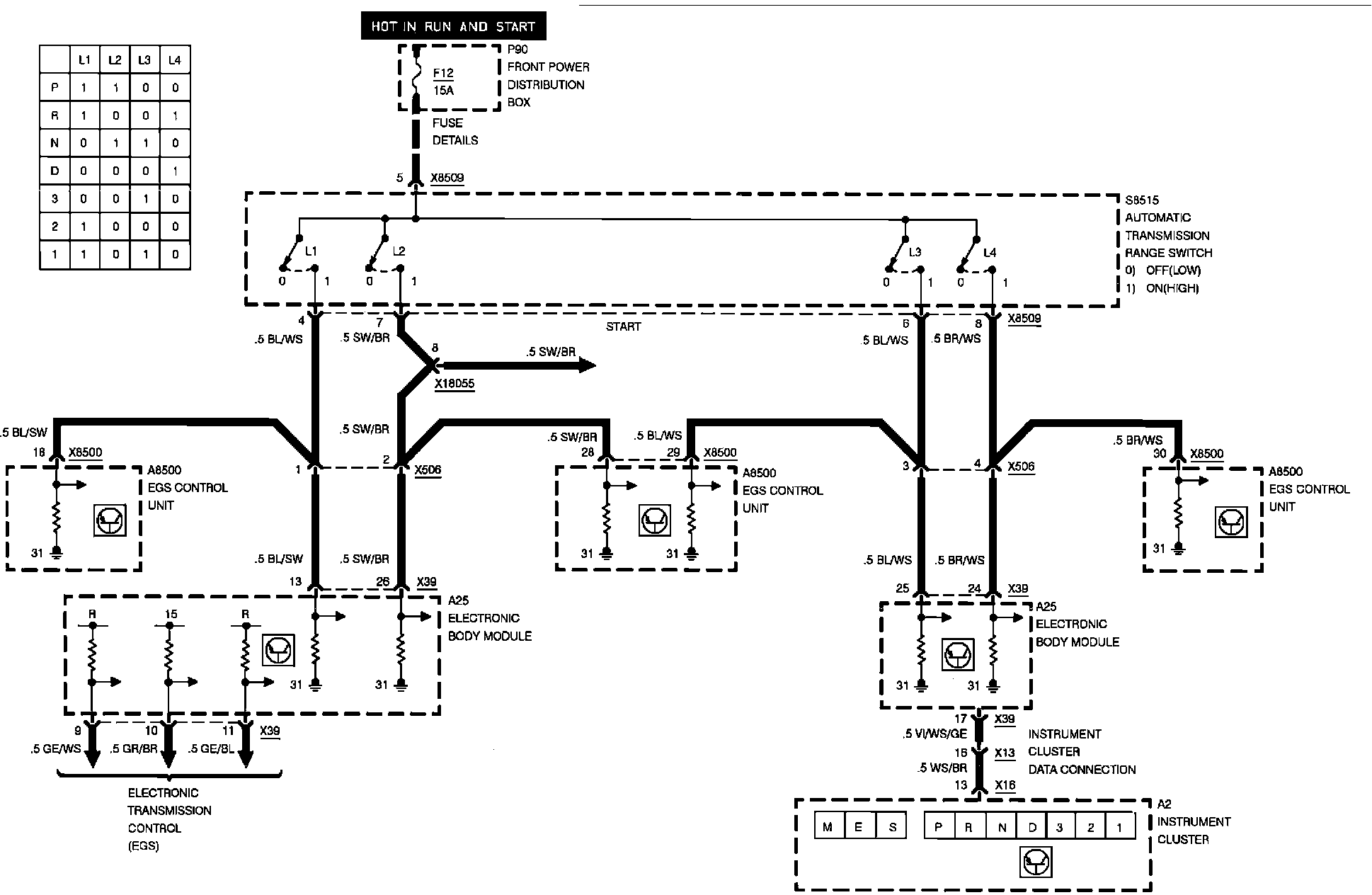

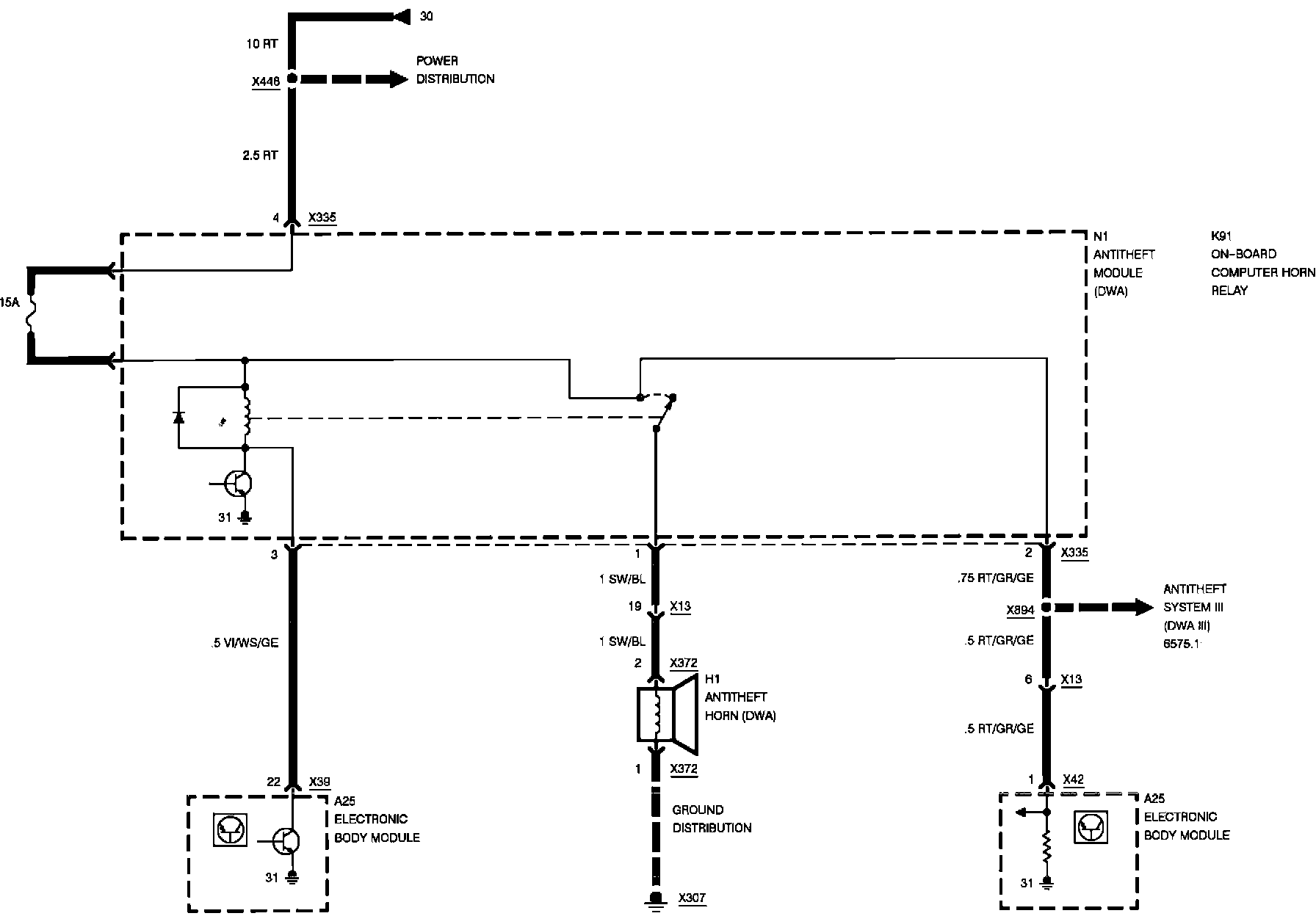

Electronic Body Module (EKM):

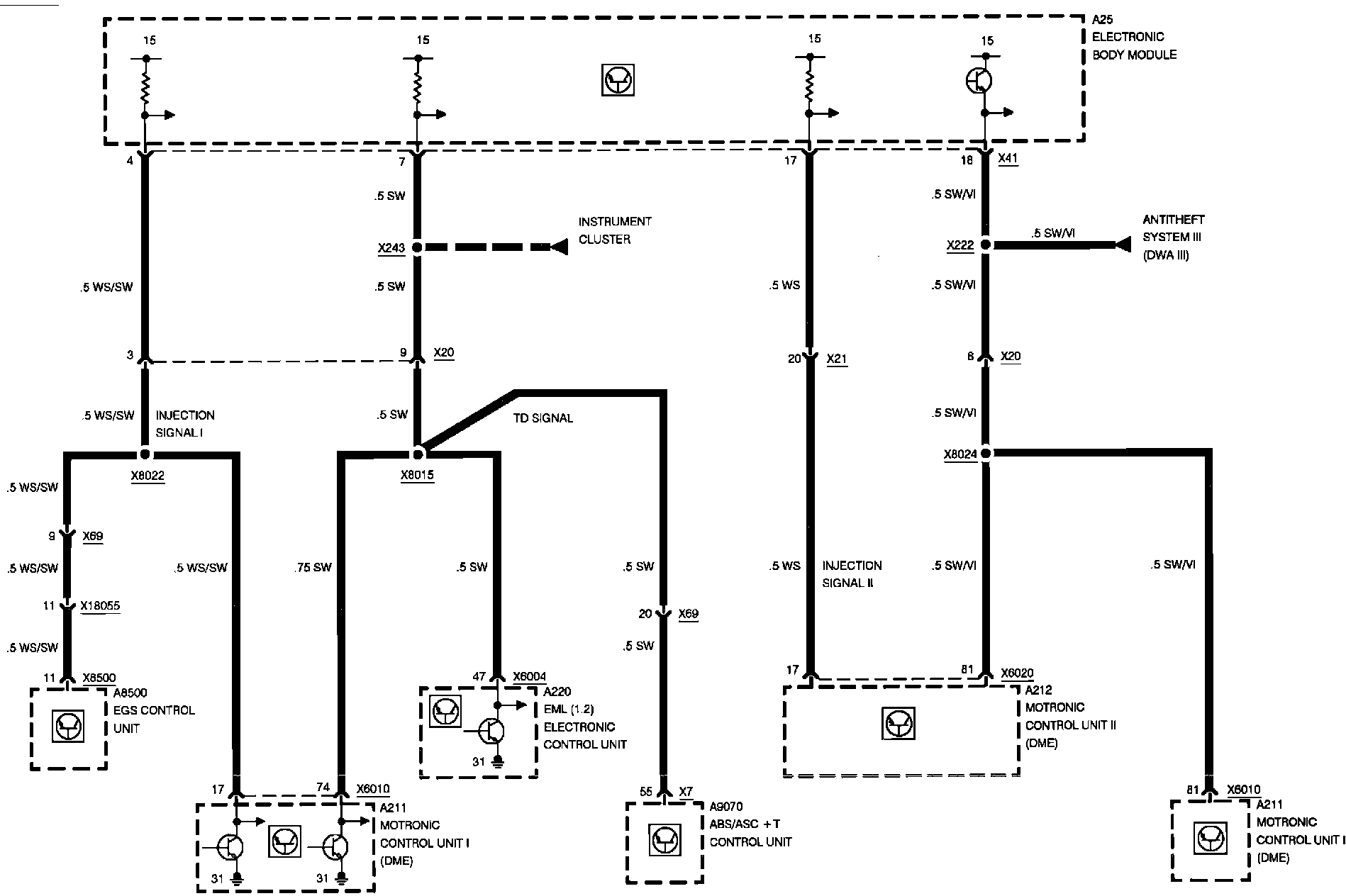

Electronic Body Module (EKM):

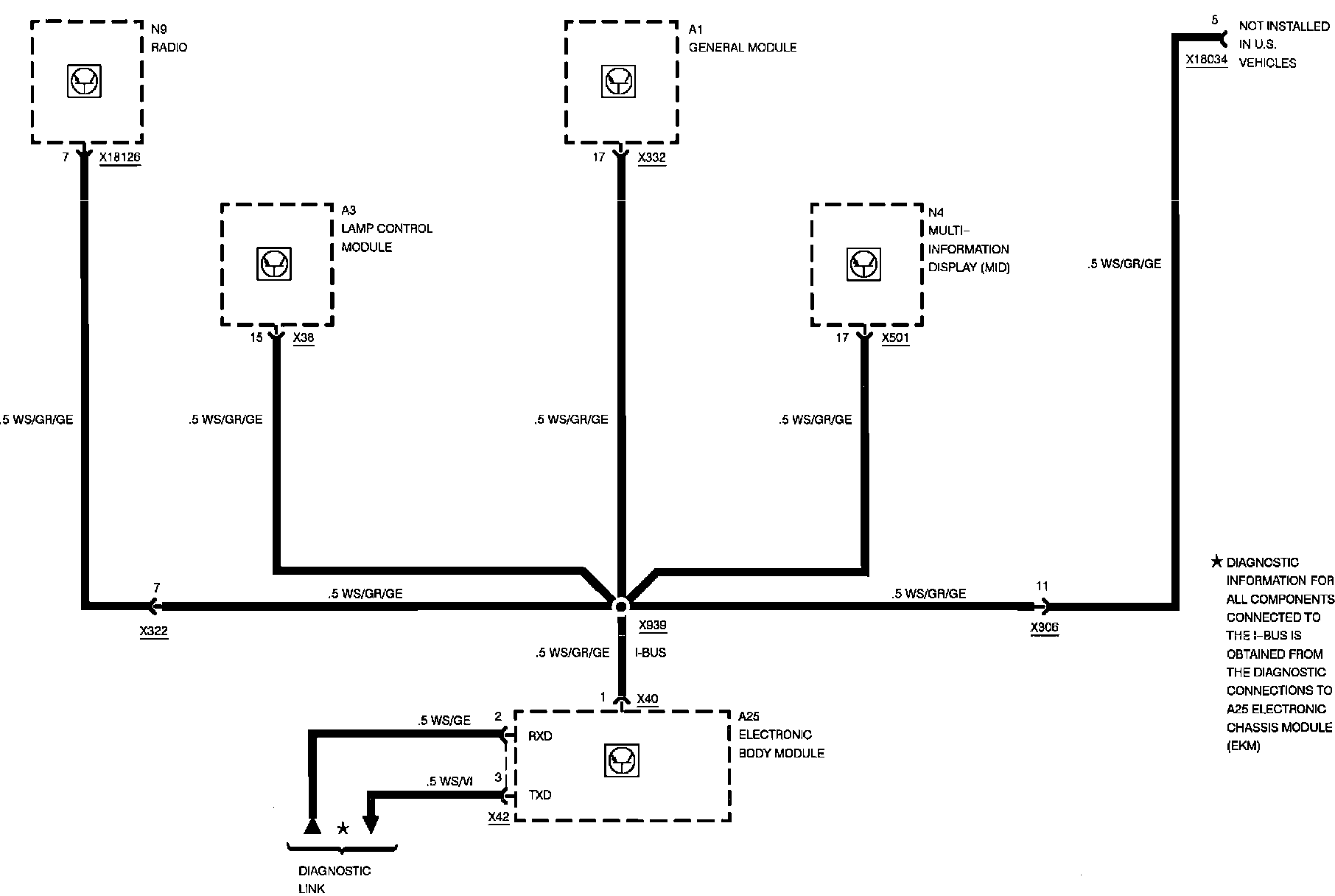

Electronic Body Module (EKM):

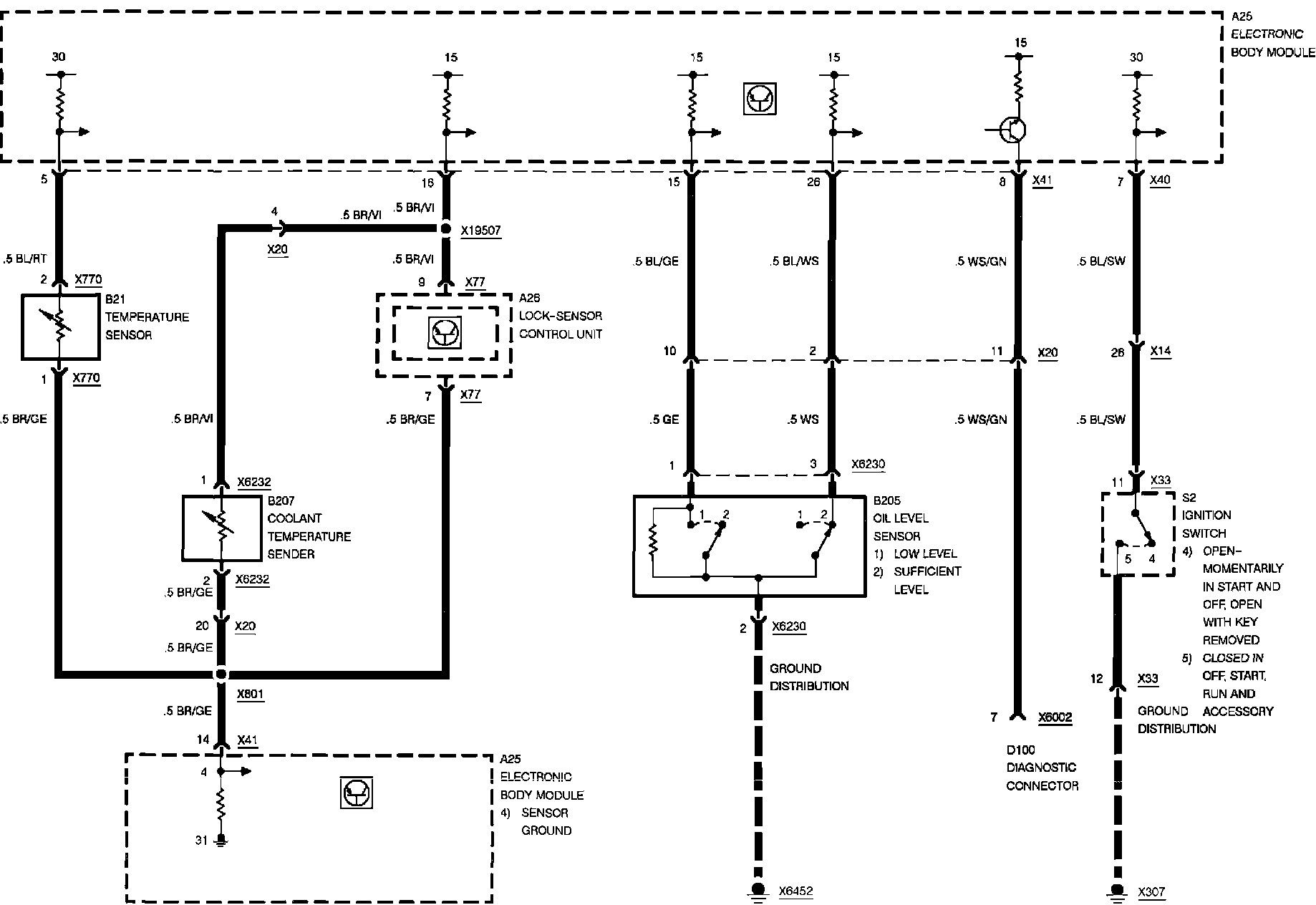

Electronic Body Module (EKM):

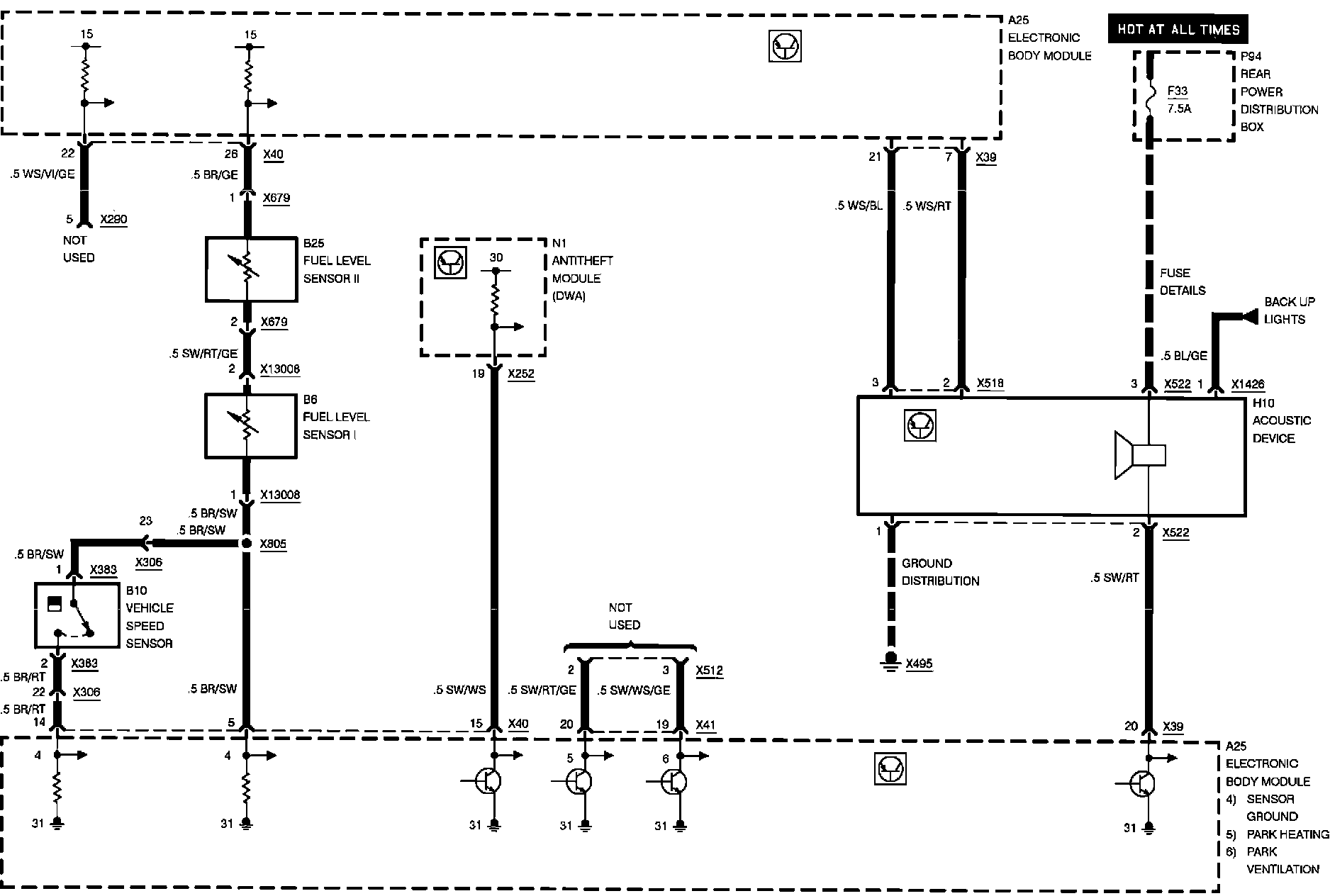

Electronic Body Module (EKM):

Electronic Body Module (EKM):

Electronic Body Module (EKM):

Electronic Body Module (EKM):

Electronic Body Module (EKM):
