Special Tool - Rear Axle Mount Tool Modification
GROUP 04Tools and
Equipment
Bulletin Number
04 10 88 (1616)
Montvale, NJ
March 1988
Technical Dept.
SUBJECT:
Special Tool 88 88 6 333 120 Modification
MODELS:
E-32
Situation:
When replacing the rear axle rubber mounts, as outlined in Repair Manual Fiche No. 2 735i ... 75Oi-E32 (dated 11/87), frame 33-33/1, it is necessary to modify tool 88 88 6 333 123 (part of complete tool 88 88 6 333 120) in order for it to function correctly.

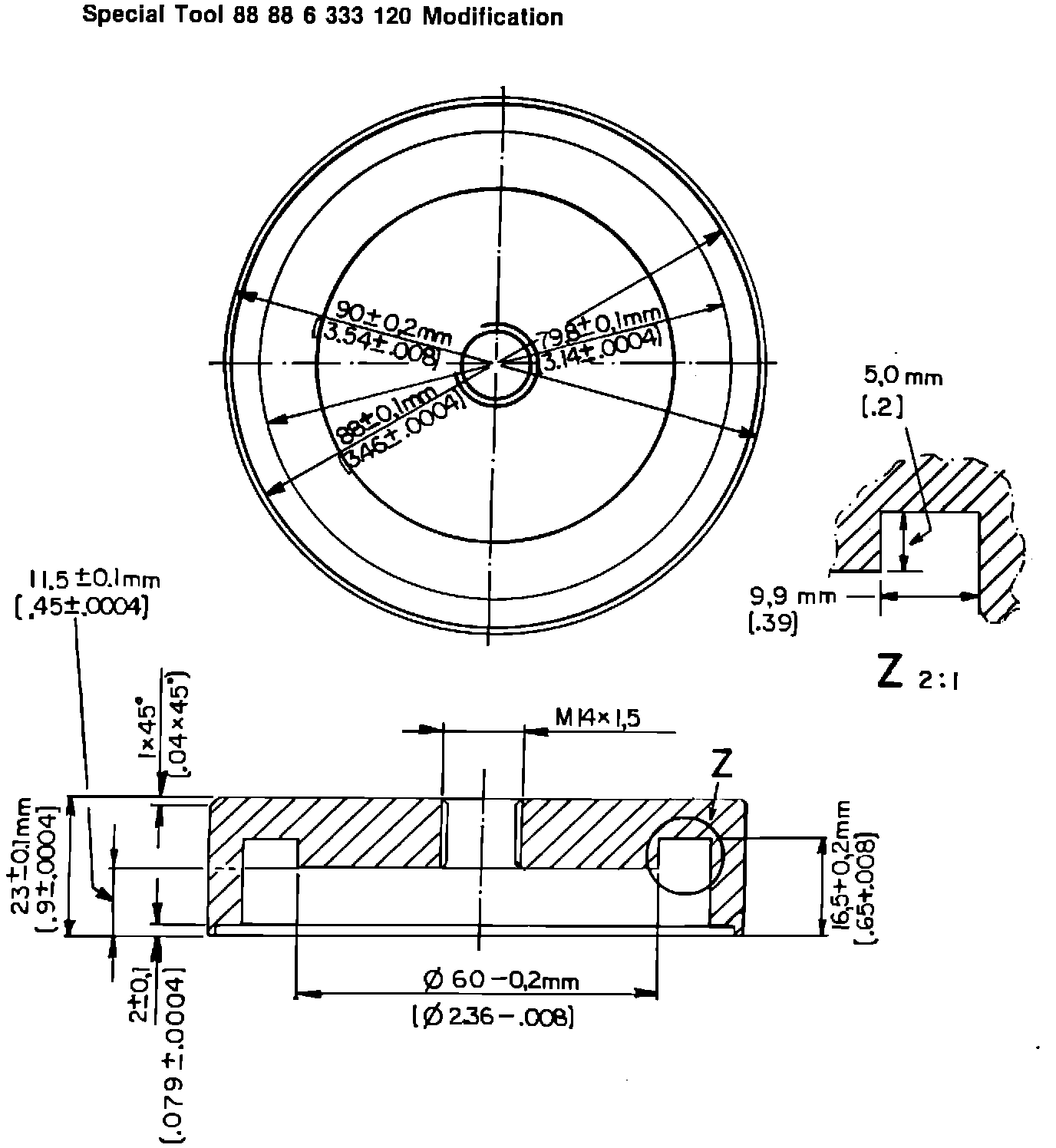

The mechanical drawing is to be given to your local machine shop to facilitate the modification.
