A/C Microfilter - Replacement Interval

91bmw06

Bulletin Number
64 02 91 (3209)


Woodcliff Lake, NJ
April 1991
Service Engineering


Group 64
Heating and
Air Conditioning


SUBJECT: Microfilter for IHKA - Replacement Interval

MODELS: 1991 7 Series (E32) and 8 Series (E31) - All so equipped

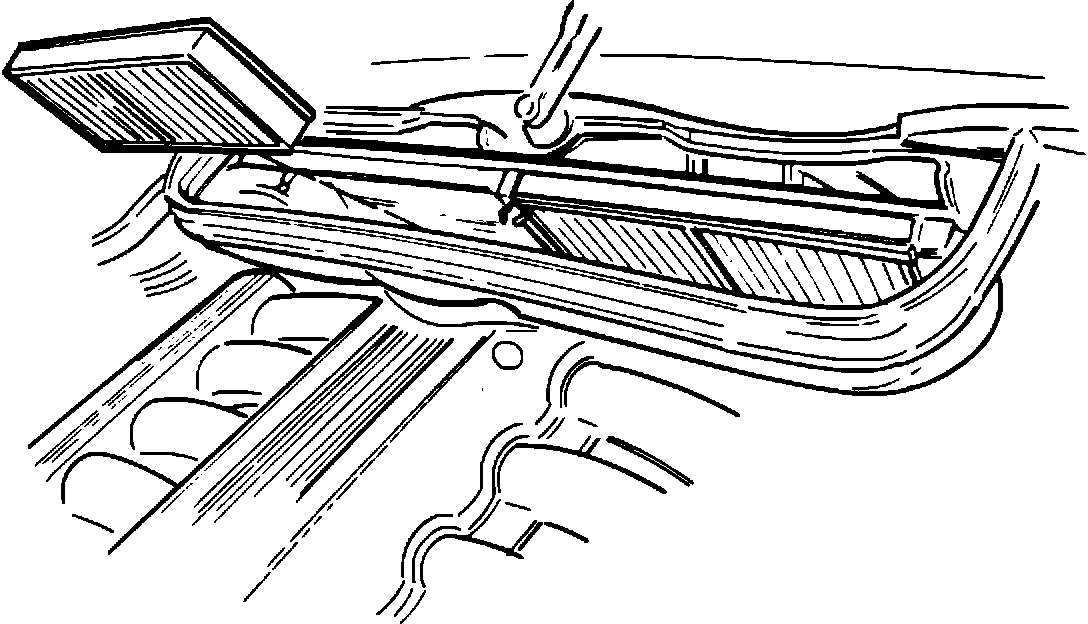

8 Series:

General
Information: The replacement interval for the heating/air conditioning microfilter (P/N 64 31 1 390 836 - 7 Series; P/N 64 31 1 383 212 - 8 Series) is at every Inspection 1.

If extreme conditions are encountered (e.g., large amounts of air-borne dust or pollen), the filter may be changed more frequently.

7 Series:

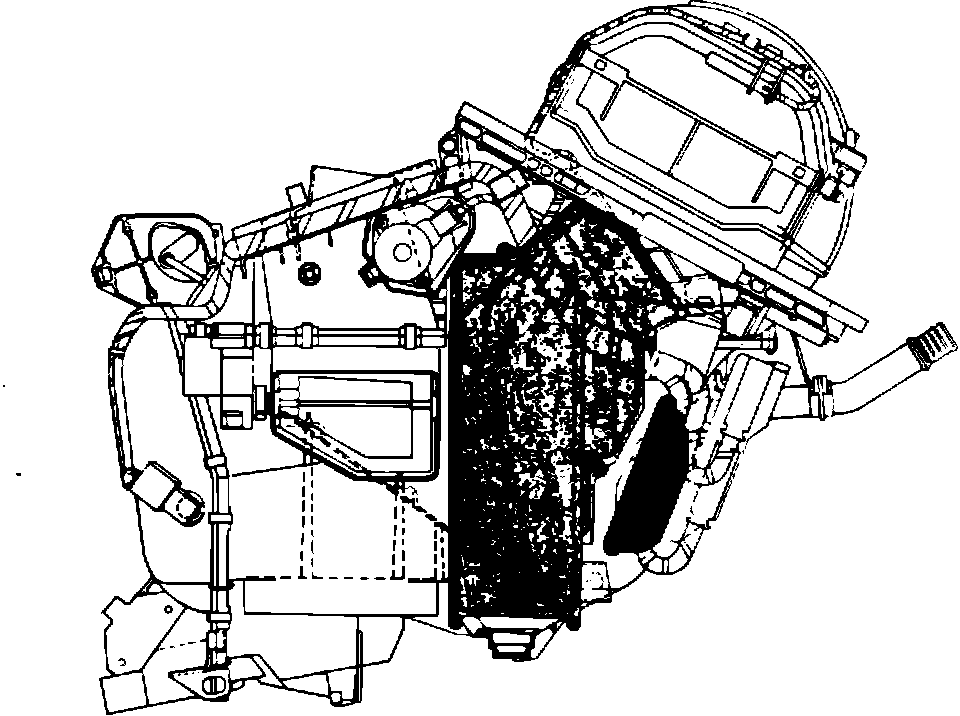

Right-hand side of automatic air conditioning (integrated heating and air conditioning system).

Note: Access to microfilter in E32 vehicles is achieved by removing the filter cover and blower final stage (shaded items in above illustration).


Warranty
Status: For information only.

Labor for replacement of microfilter covered by labor allowance for Inspection 1.

Any questions regarding warranty coverage should be discussed with your District Service Manager.
