Less Electronic Throttle Control (EML)

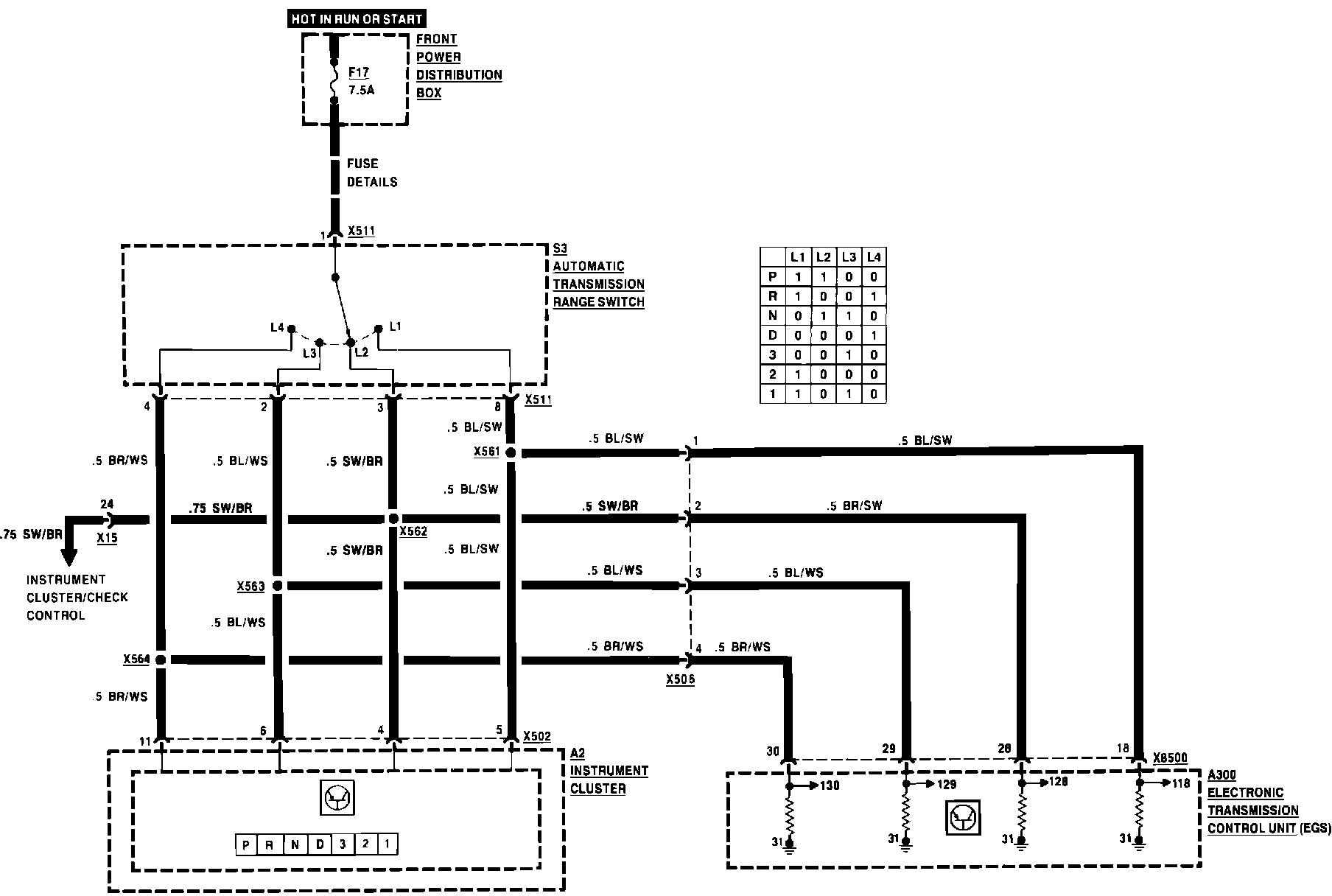

Electronic Transmission Control (EGS):

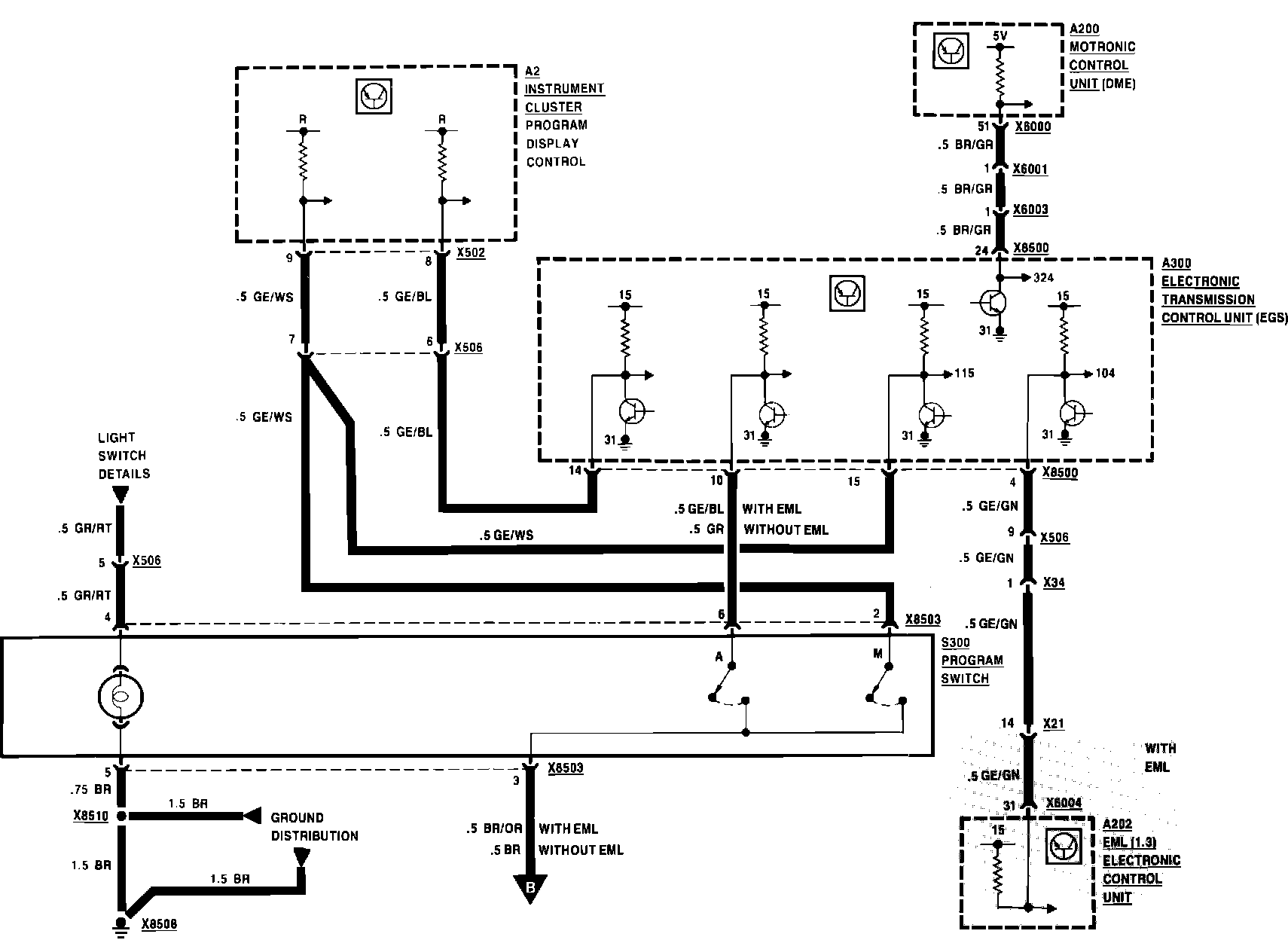

Electronic Transmission Control (EGS):

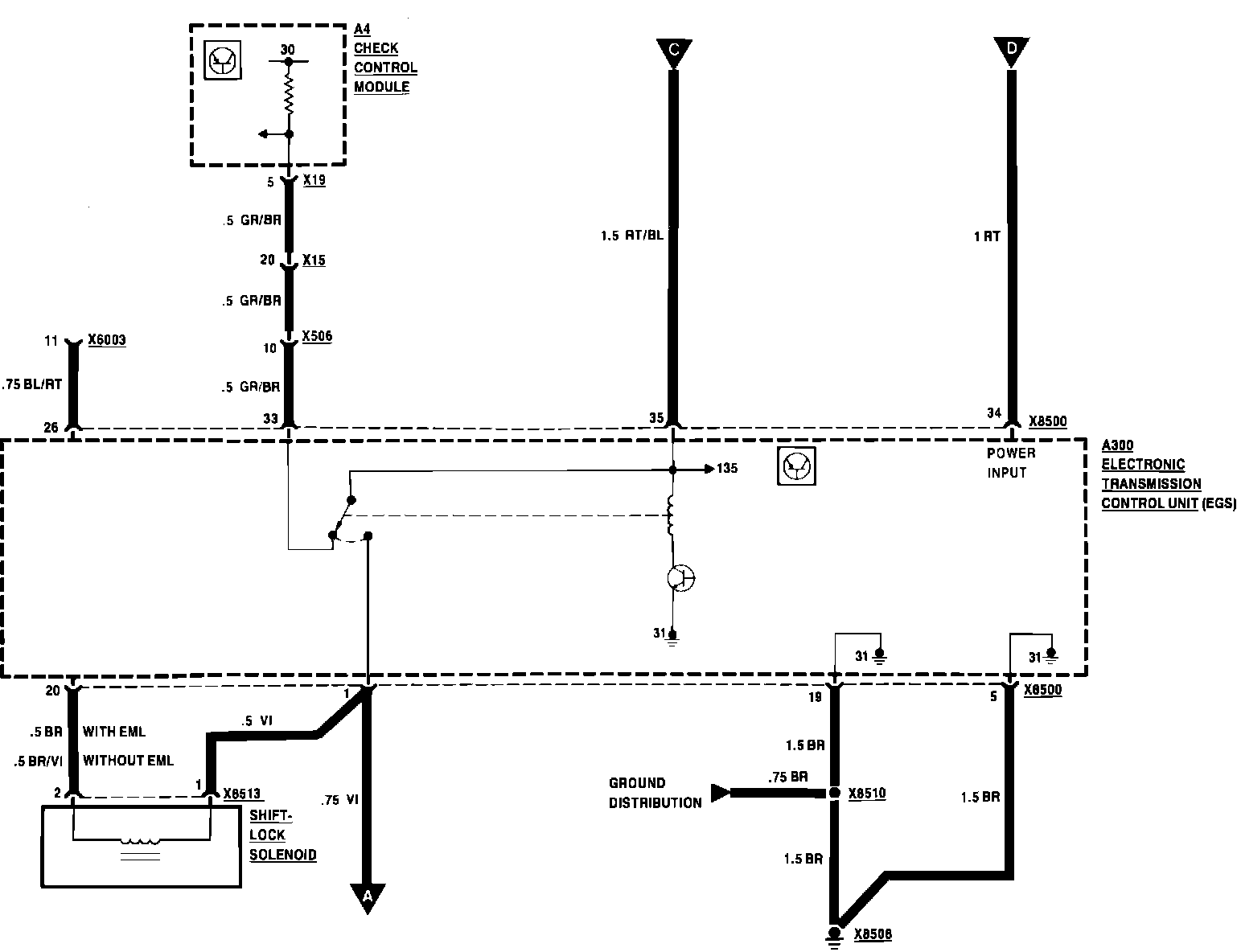

Electronic Transmission Control (EGS):

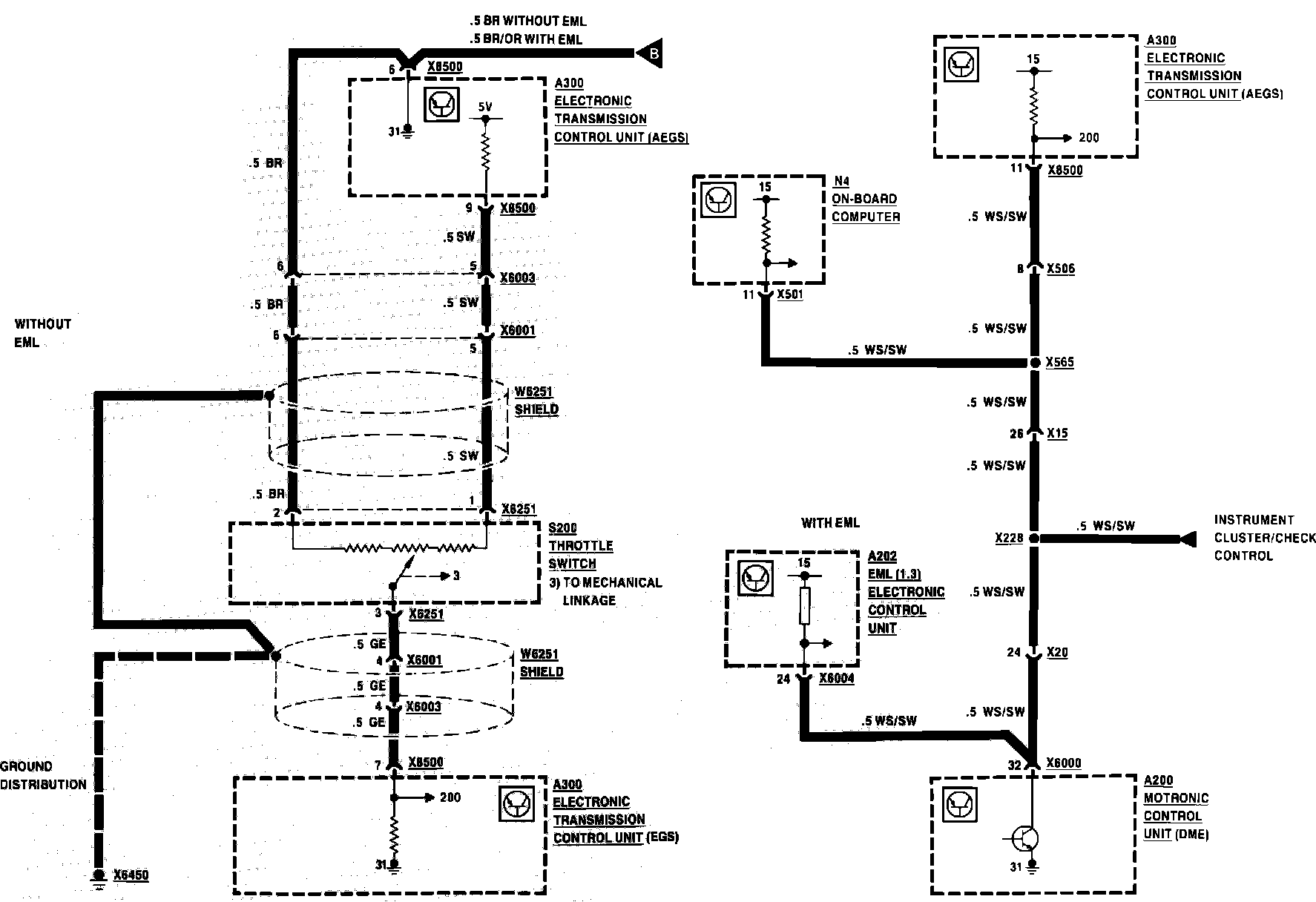

Electronic Transmission Control (EGS):

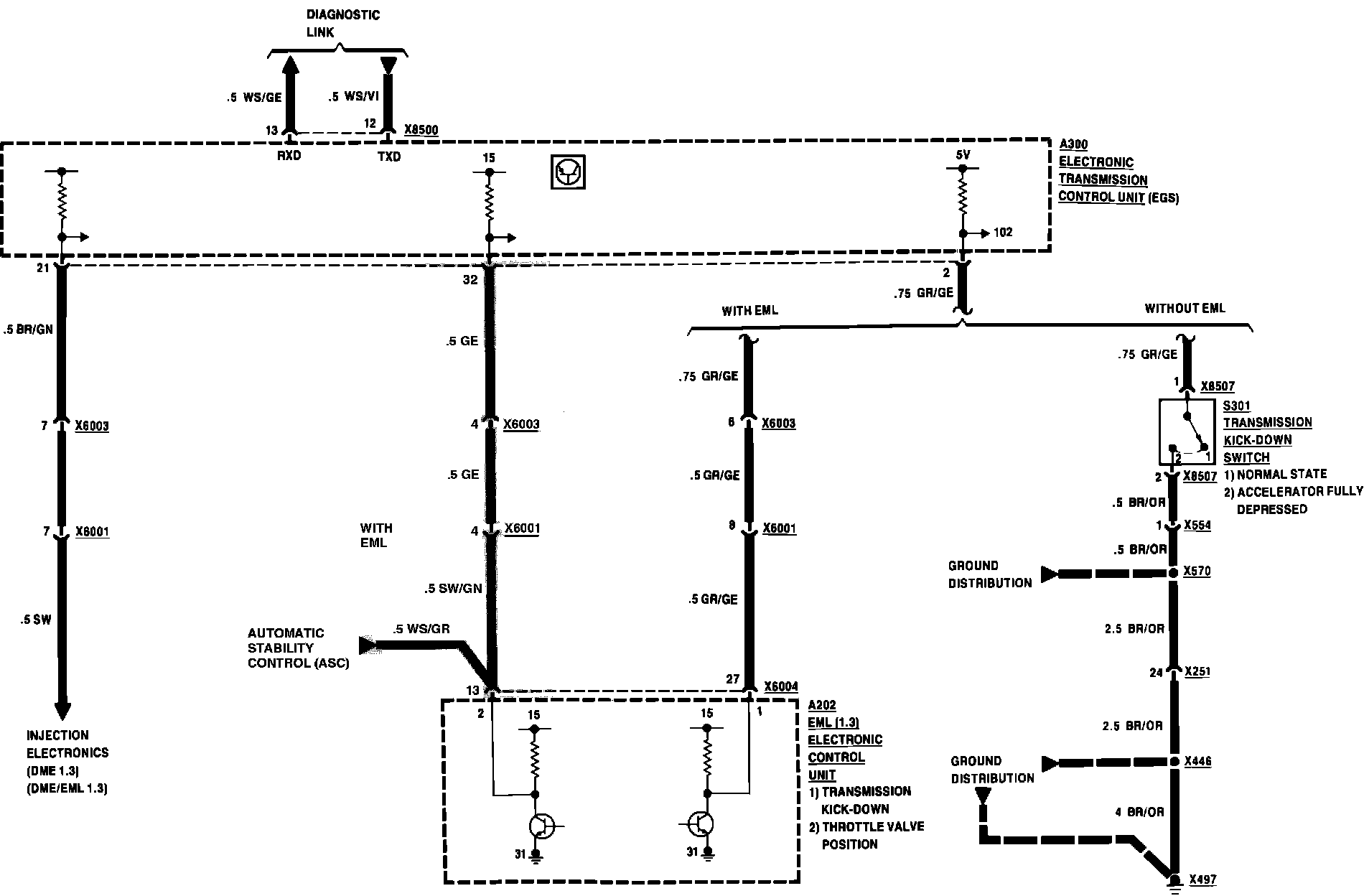

Electronic Transmission Control (EGS):

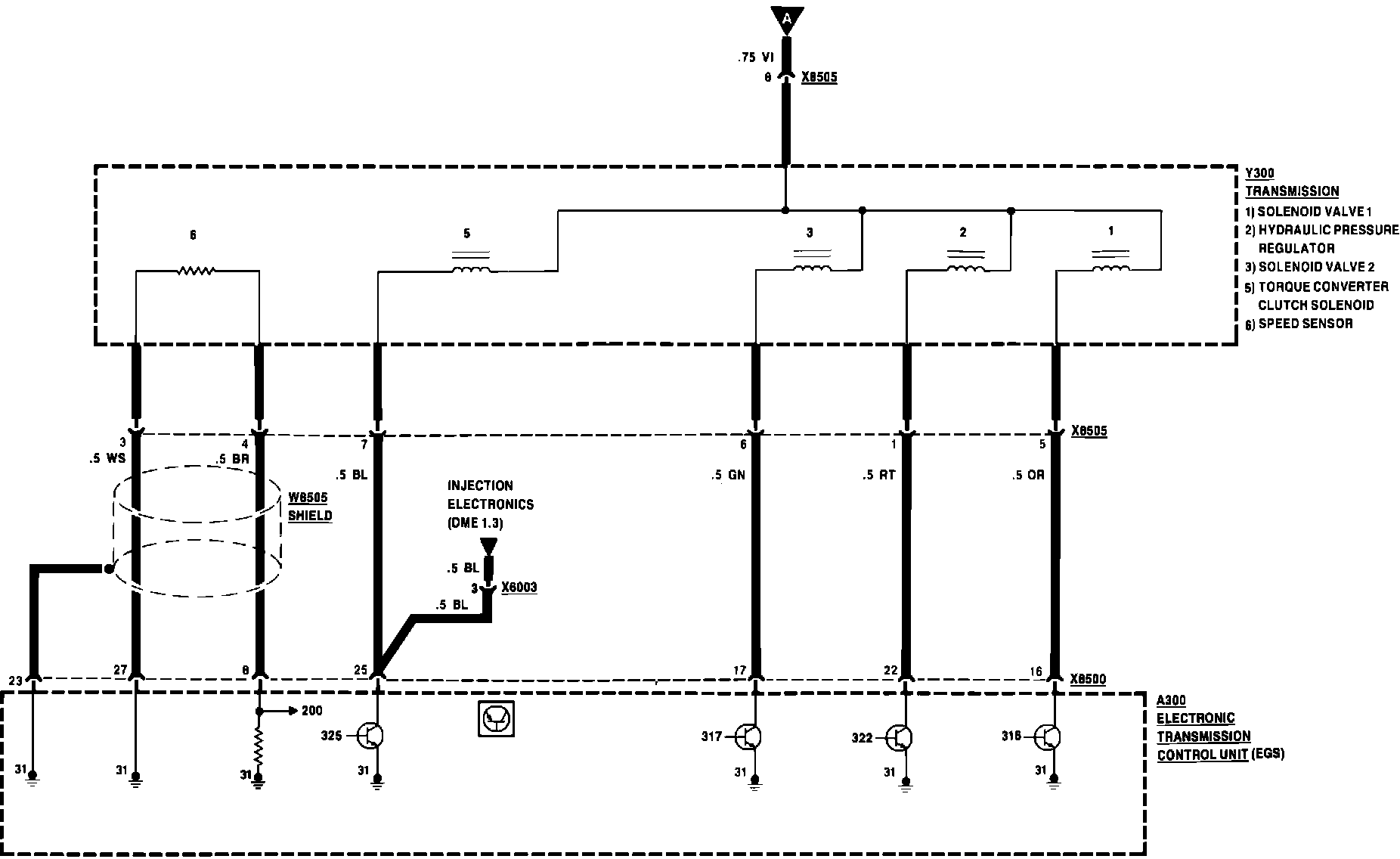

Electronic Transmission Control (EGS):

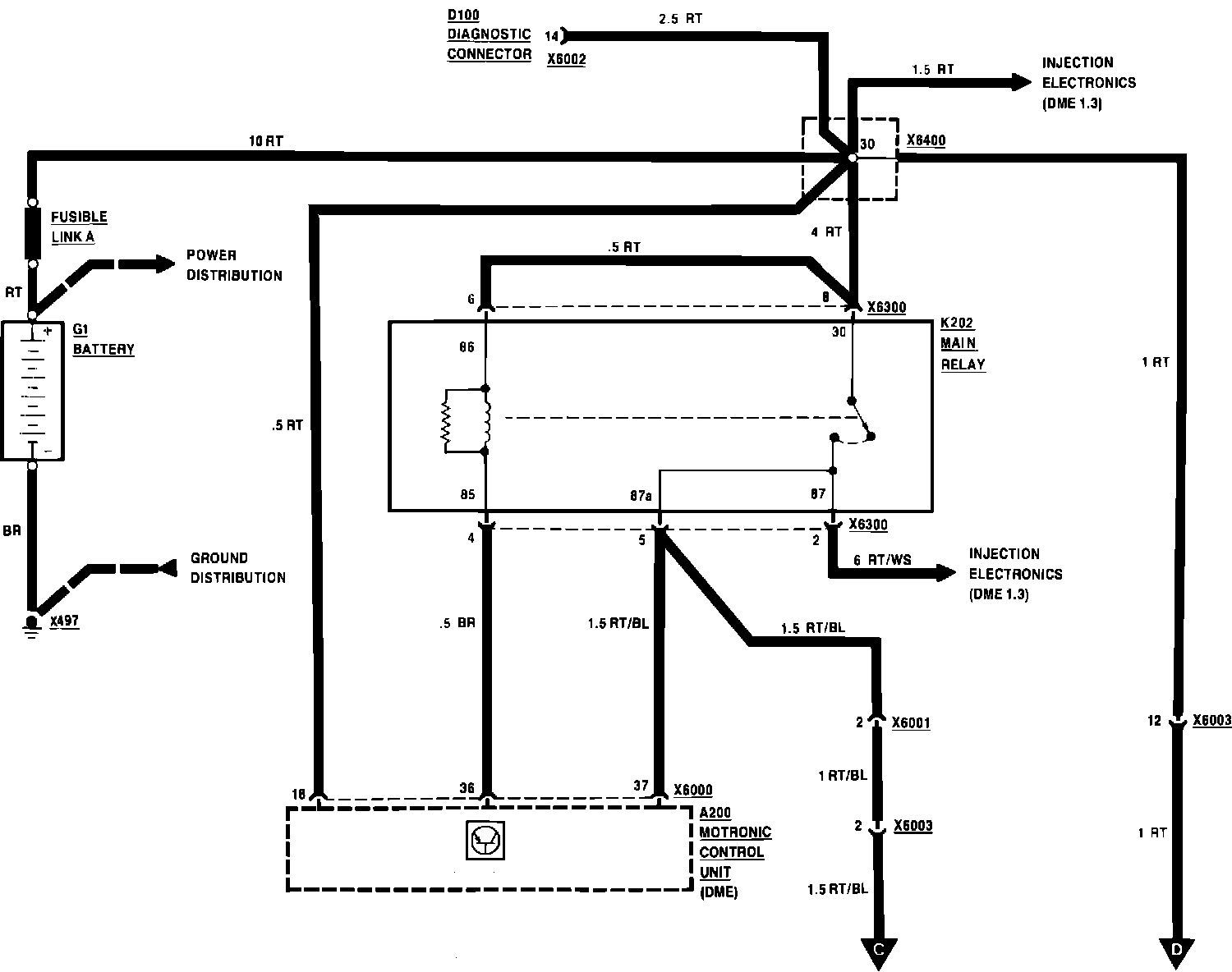

Electronic Transmission Control (EGS):
