Relay Module
Relay Module

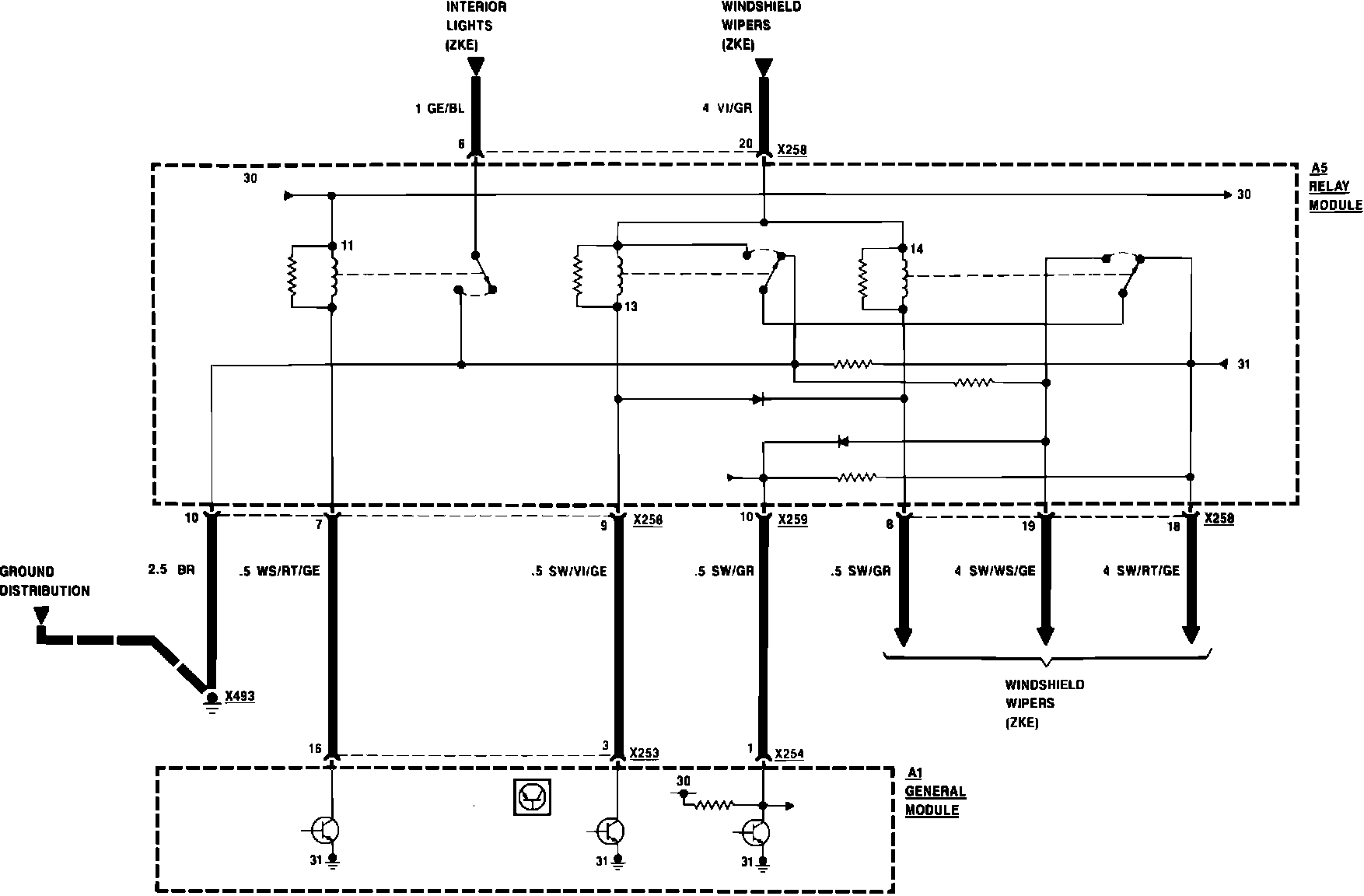

Central Body Electronics (ZKE):

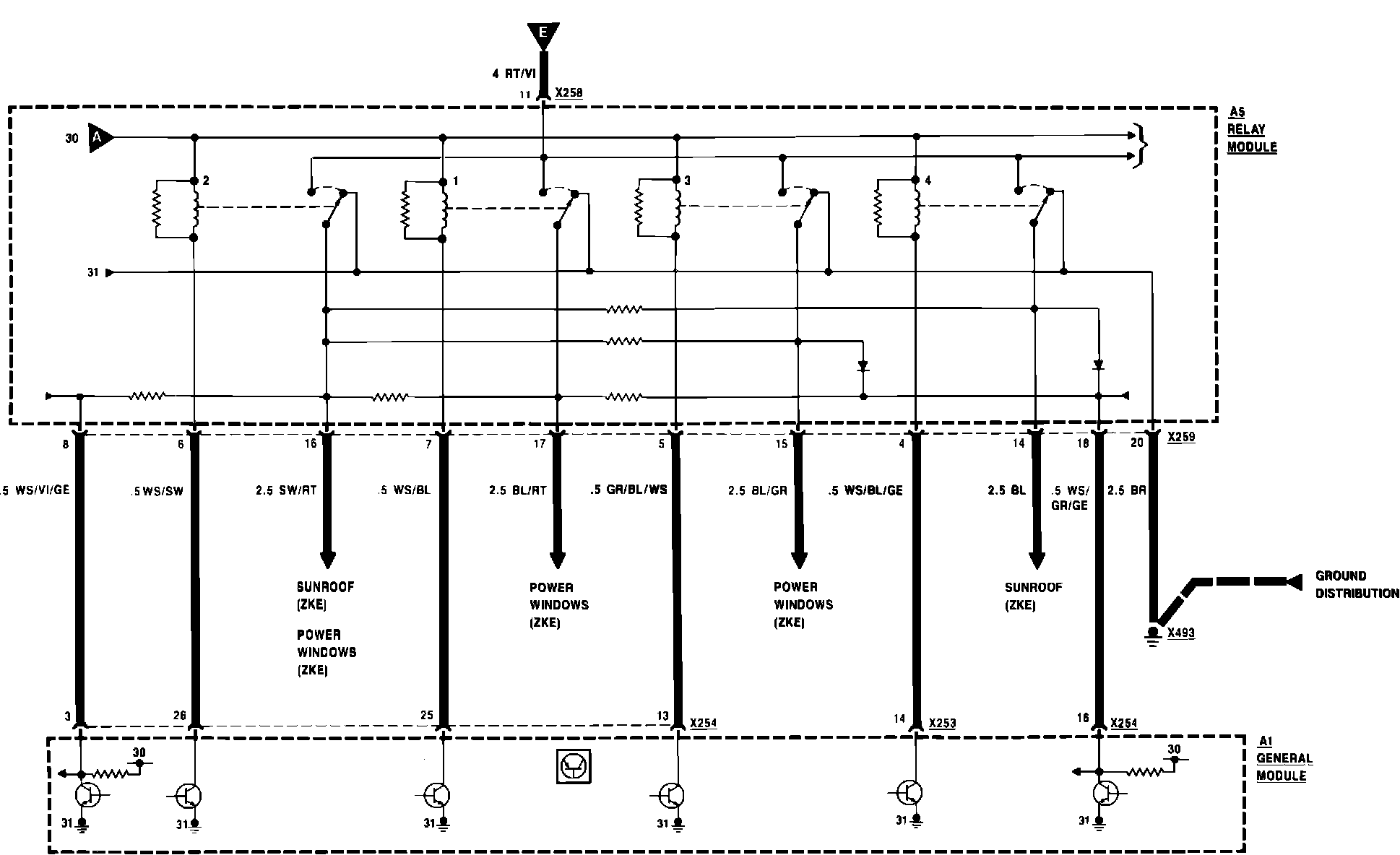

Central Body Electronics (ZKE):

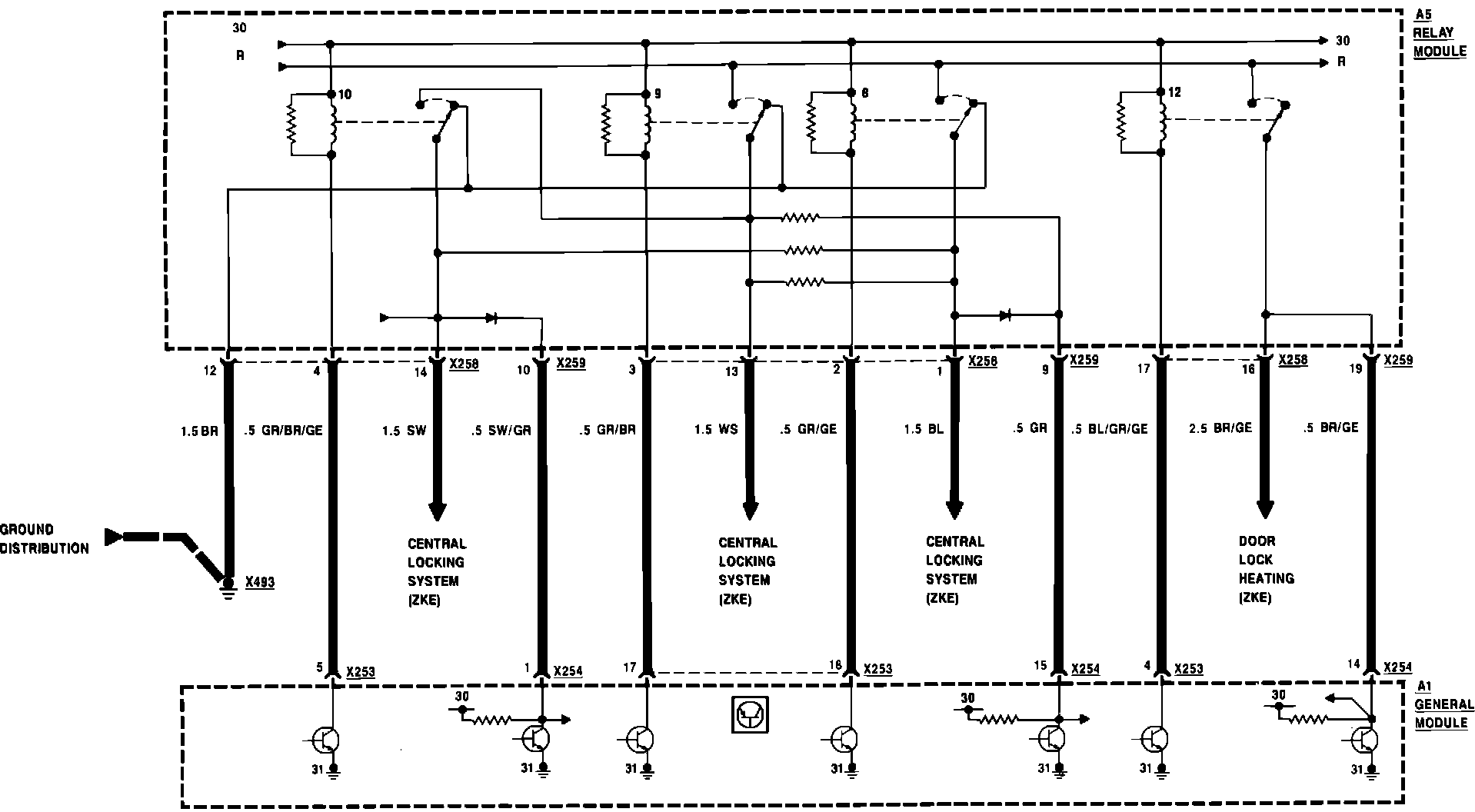

Central Body Electronics (ZKE):

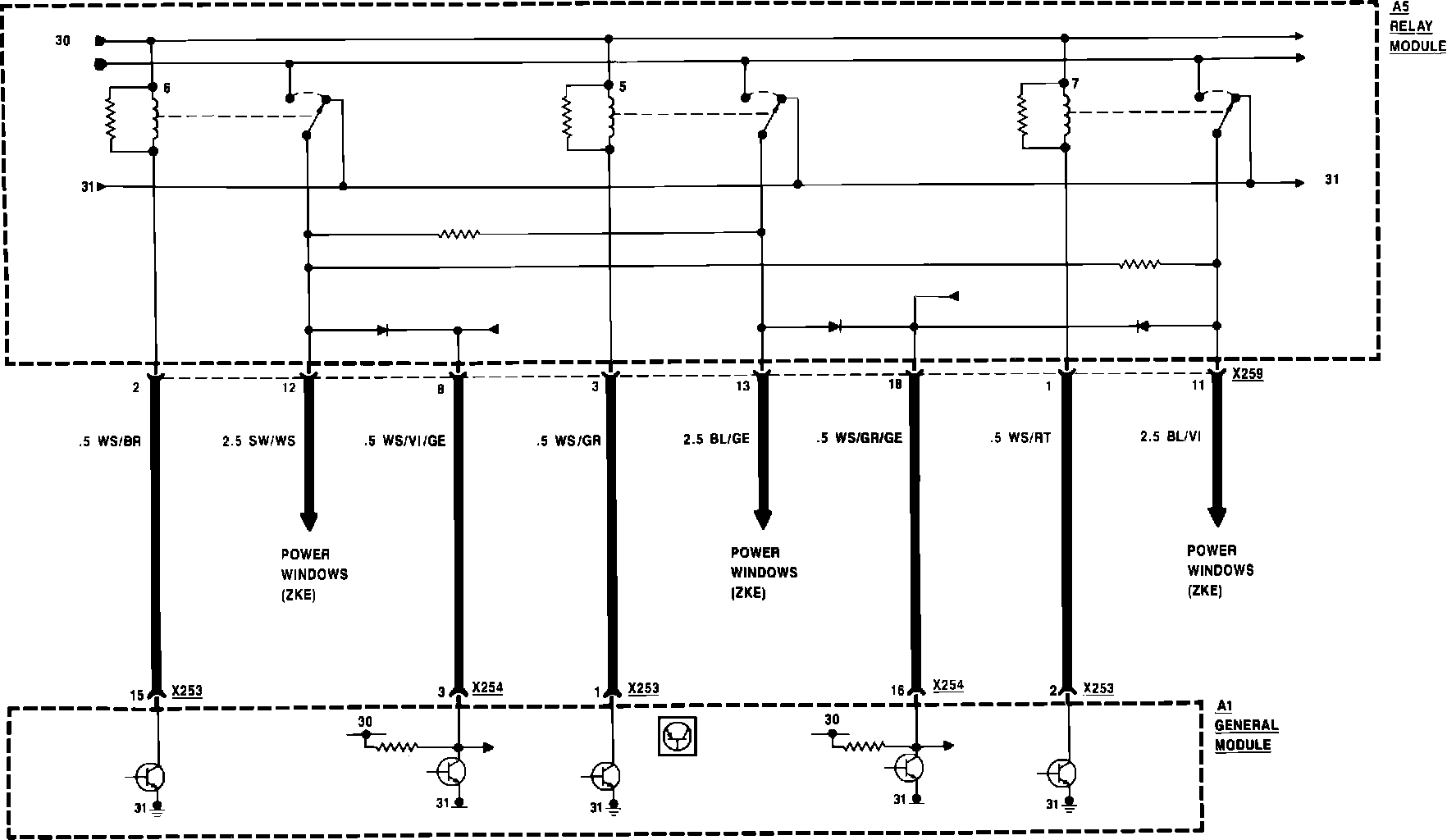

Central Body Electronics (ZKE):
