TXD (Transmitting Data Circuit)

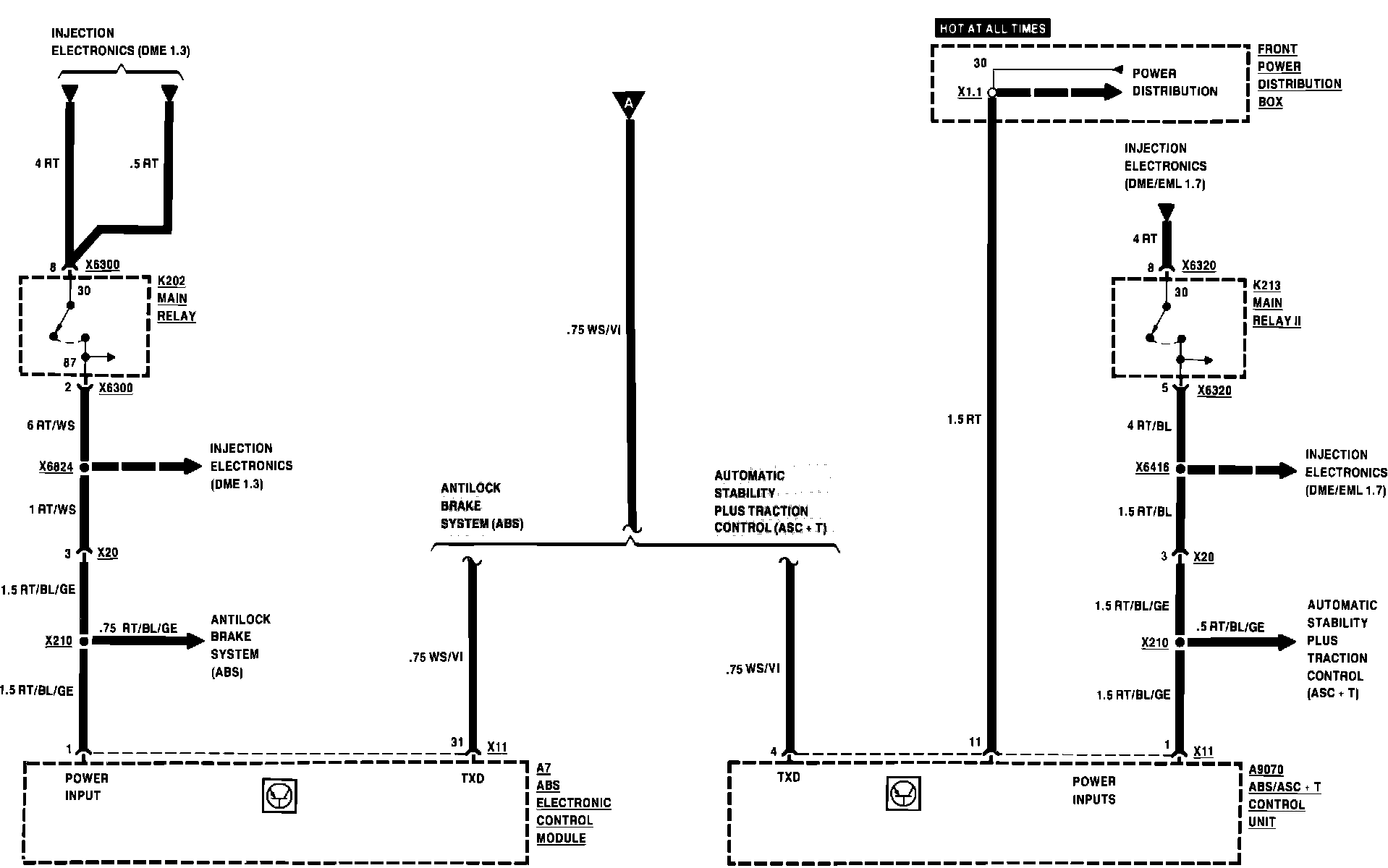

Diagnostic Link: TXD (Transmitting Data Circuit):

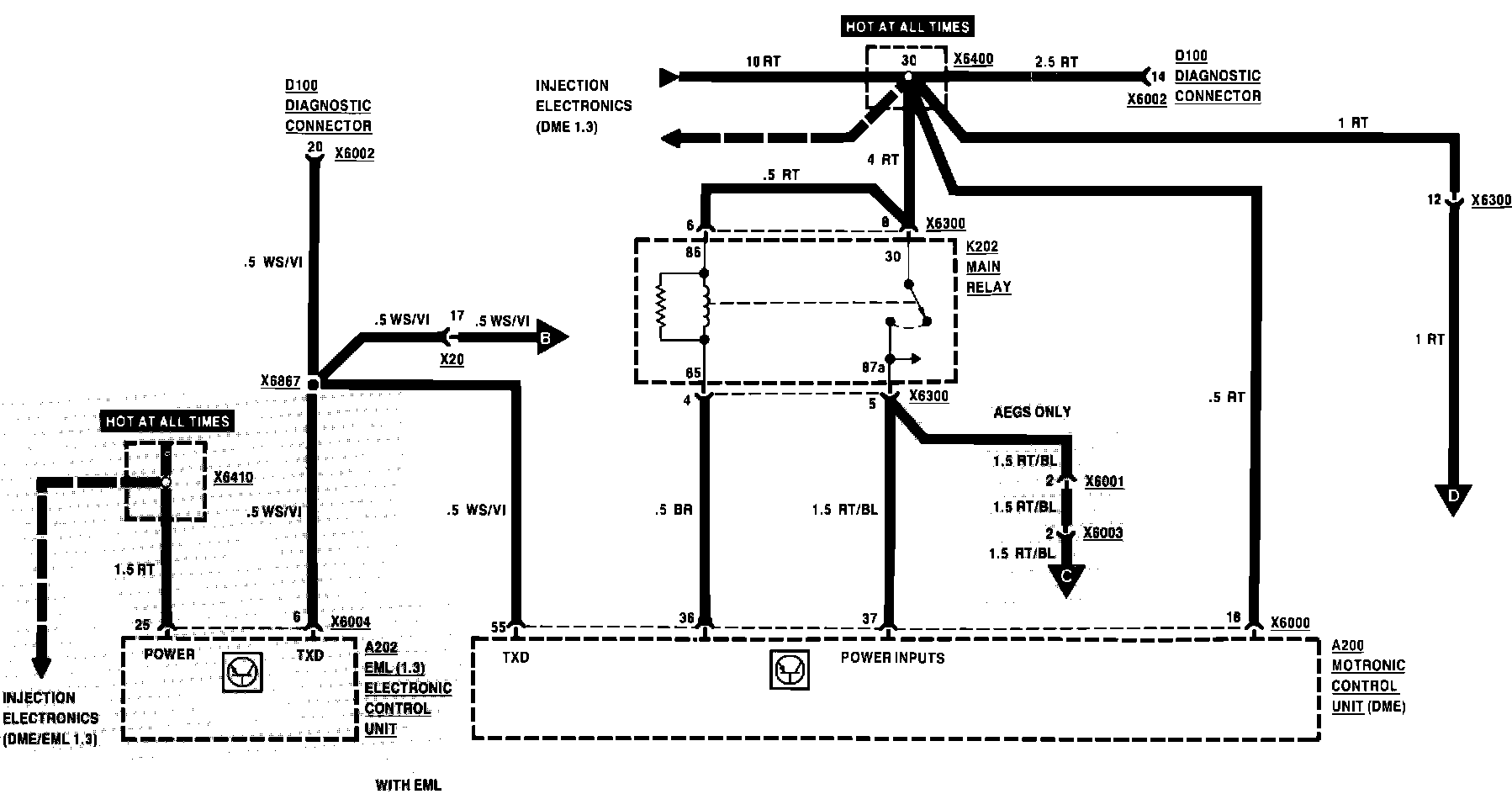

Diagnostic Link: TXD (Transmitting Data Circuit):

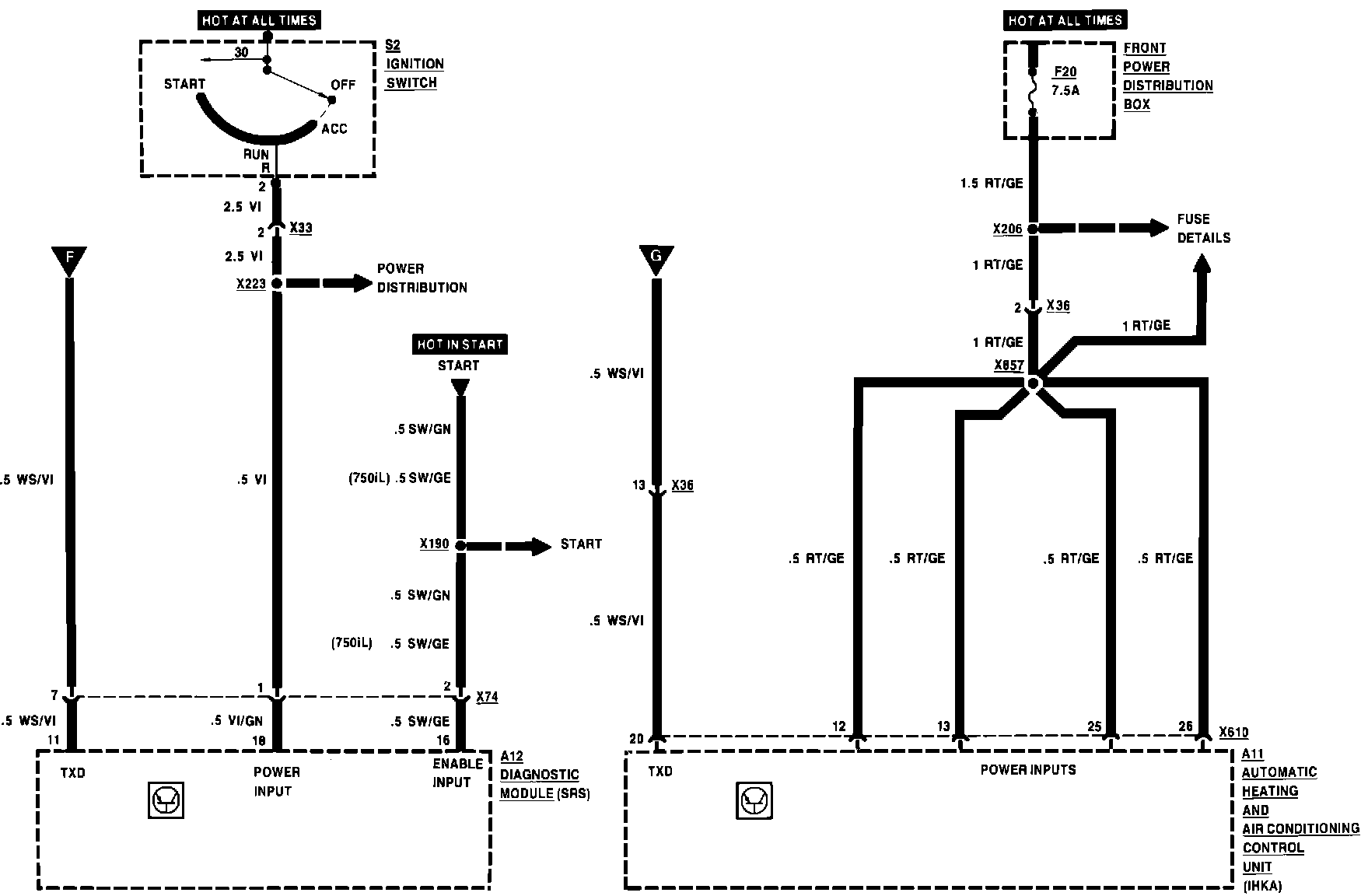

Diagnostic Link: TXD (Transmitting Data Circuit):

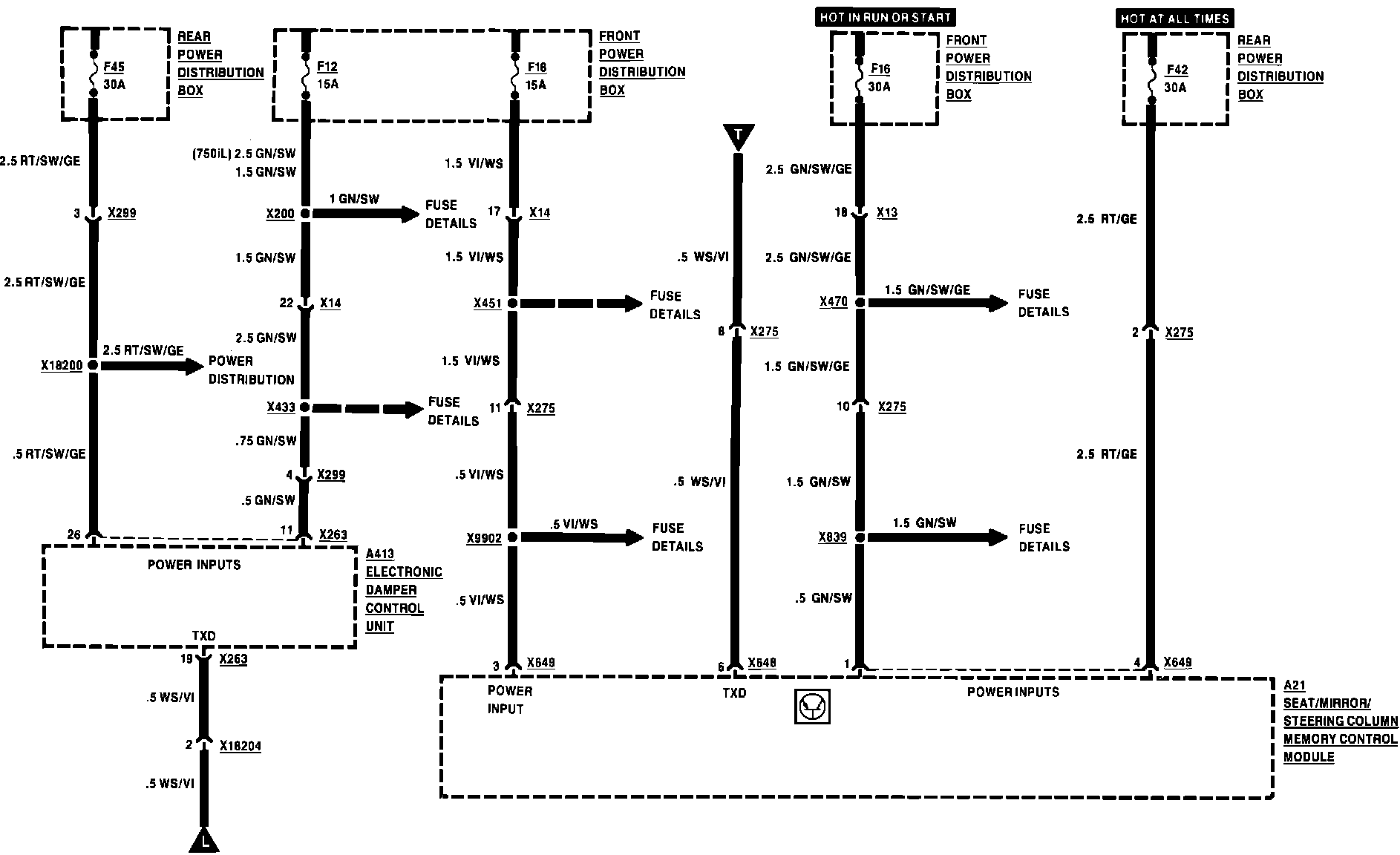

Diagnostic Link: TXD (Transmitting Data Circuit):

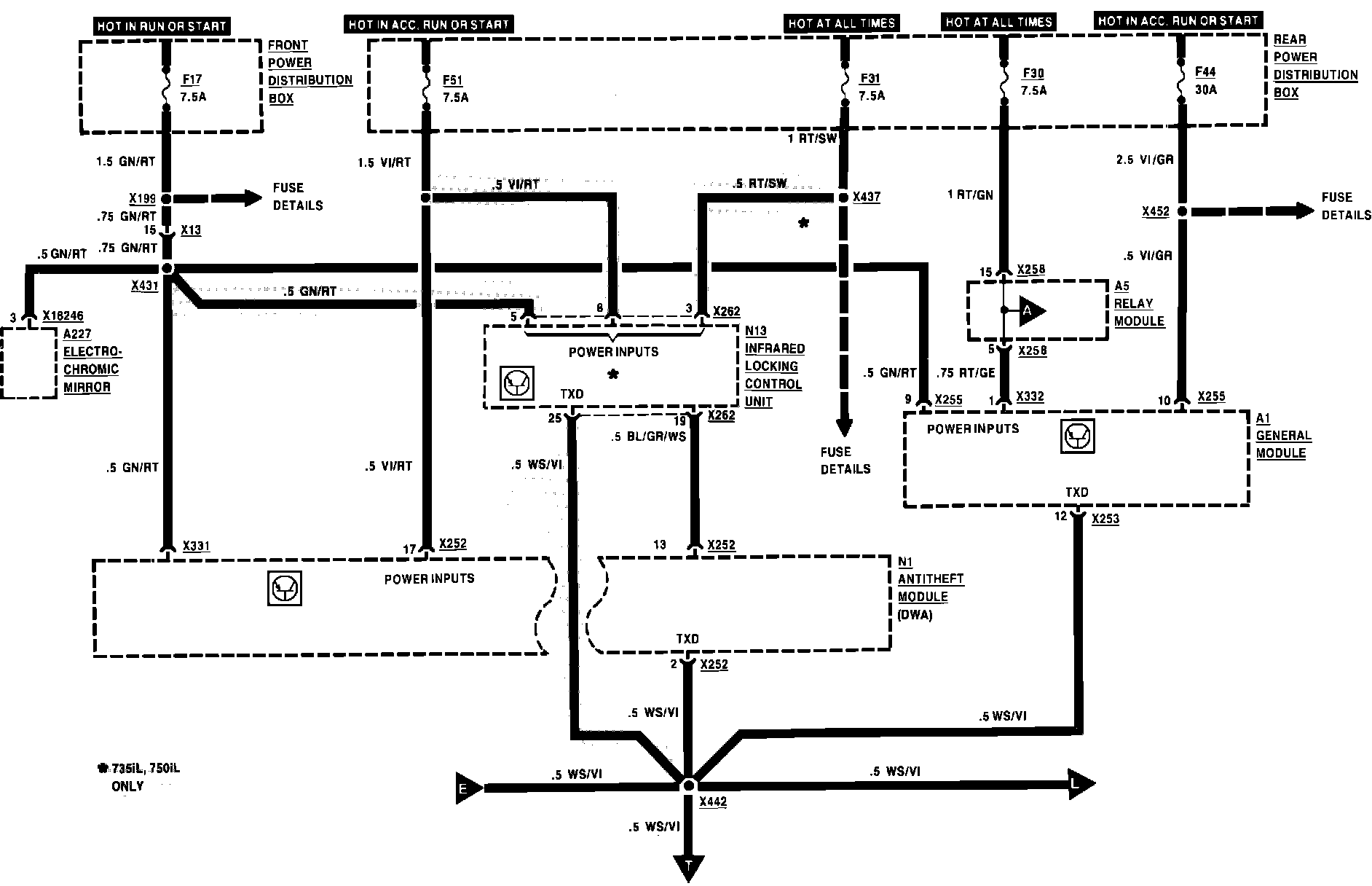

Diagnostic Link: TXD (Transmitting Data Circuit):



Diagnostic Link: TXD (Transmitting Data Circuit):
