Front Fuse Panel

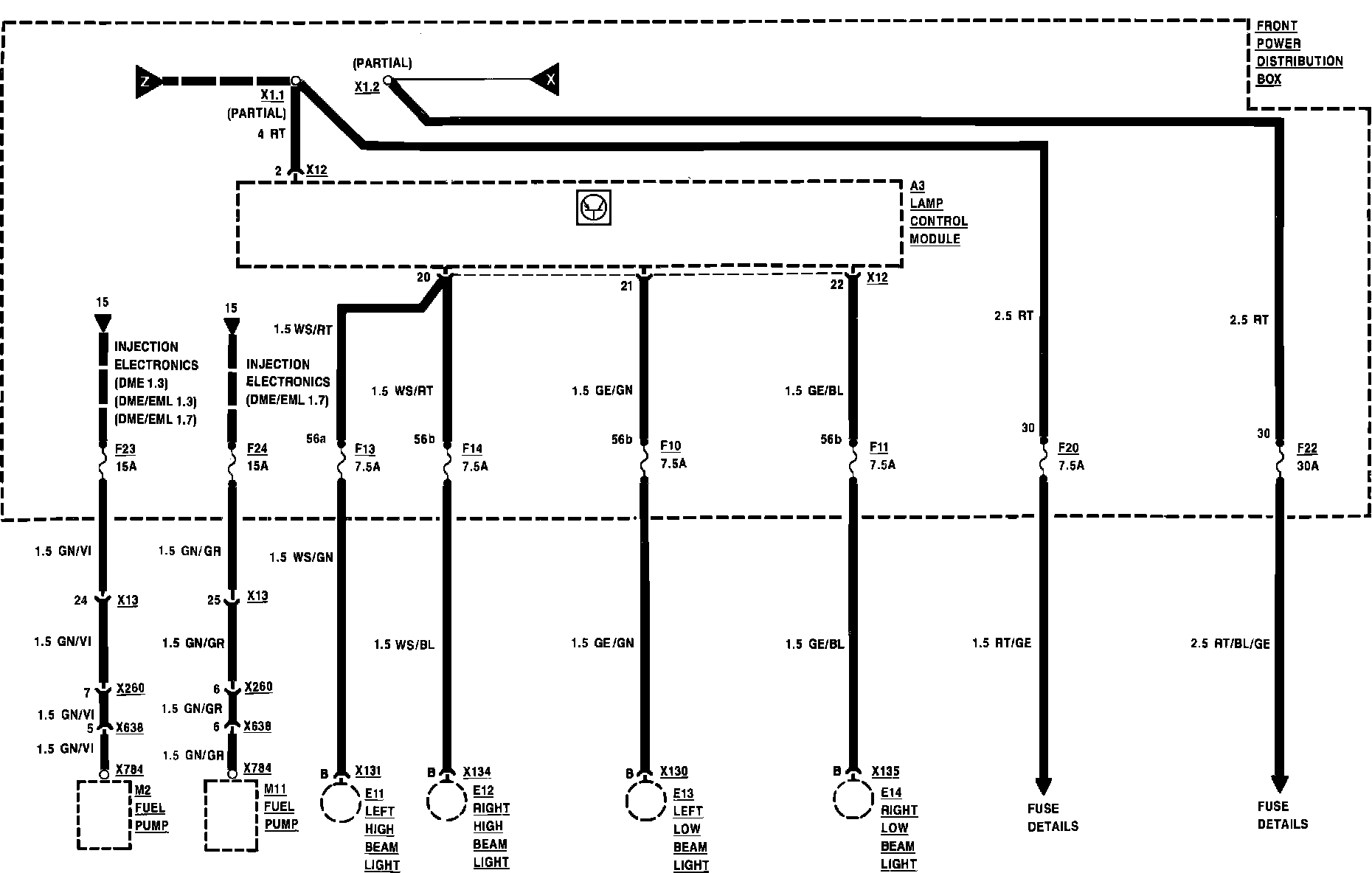

Front Power Distribution Box:

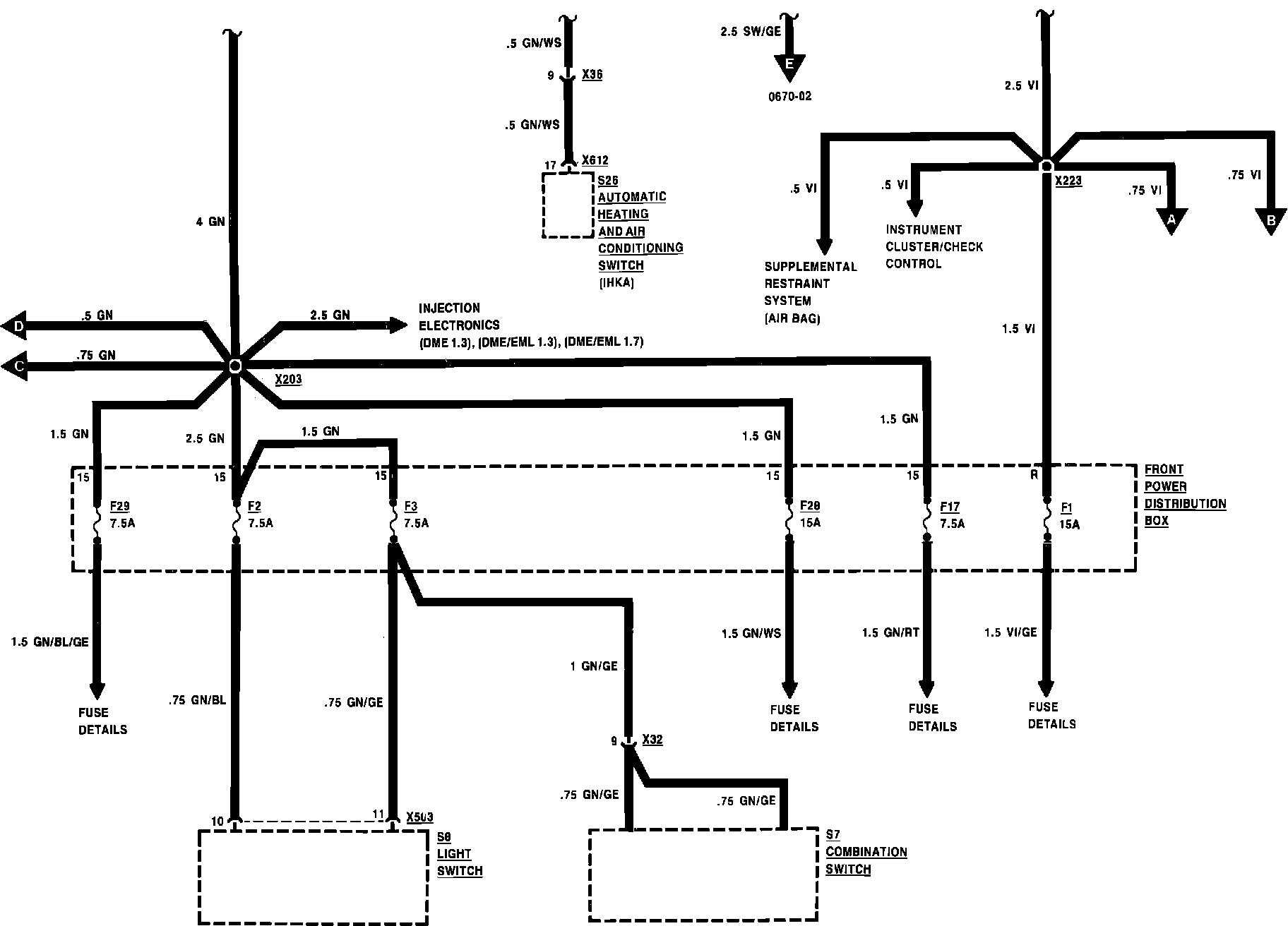

Front Power Distribution Box:

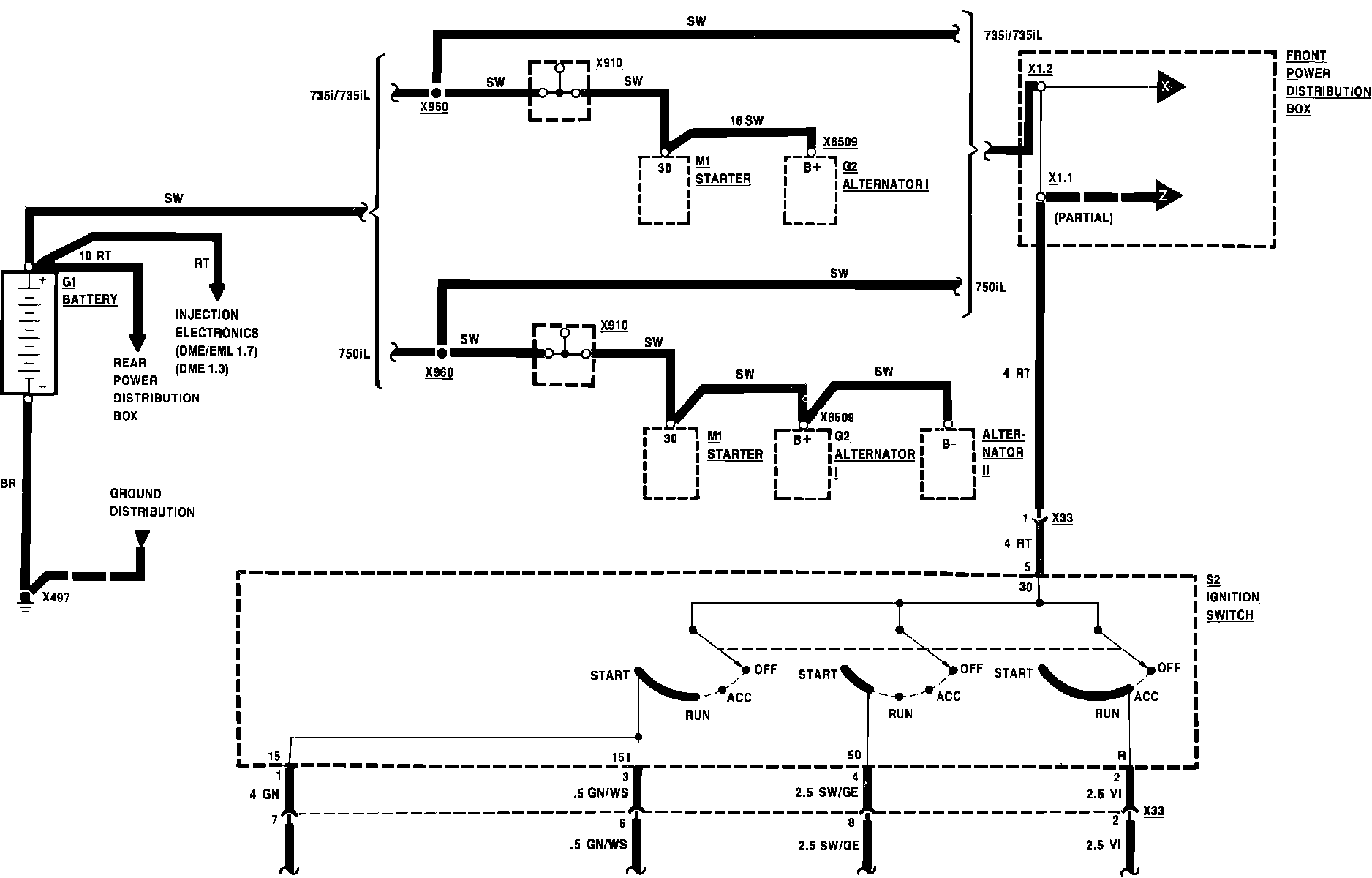

Front Power Distribution Box:

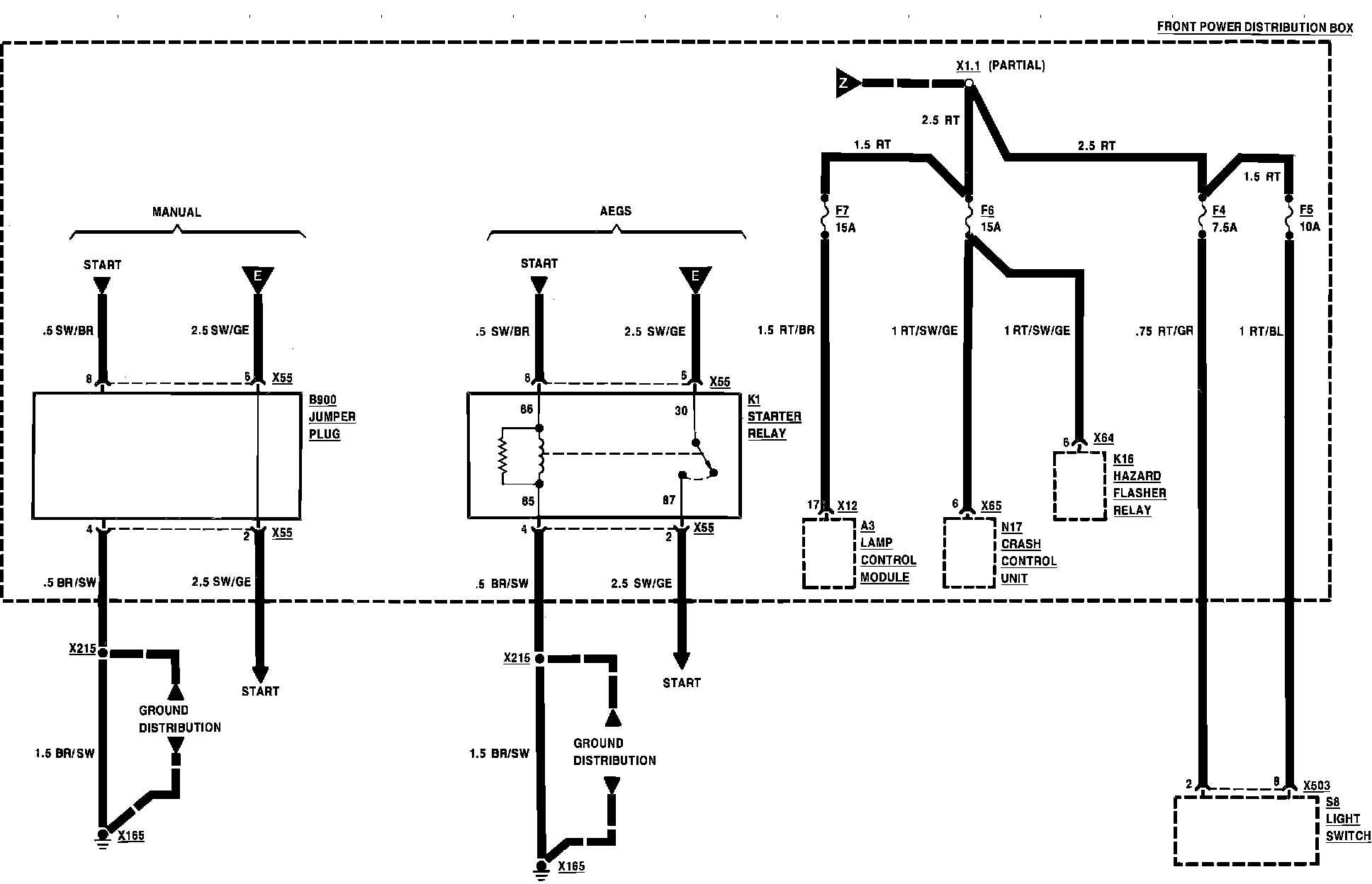

Front Power Distribution Box:

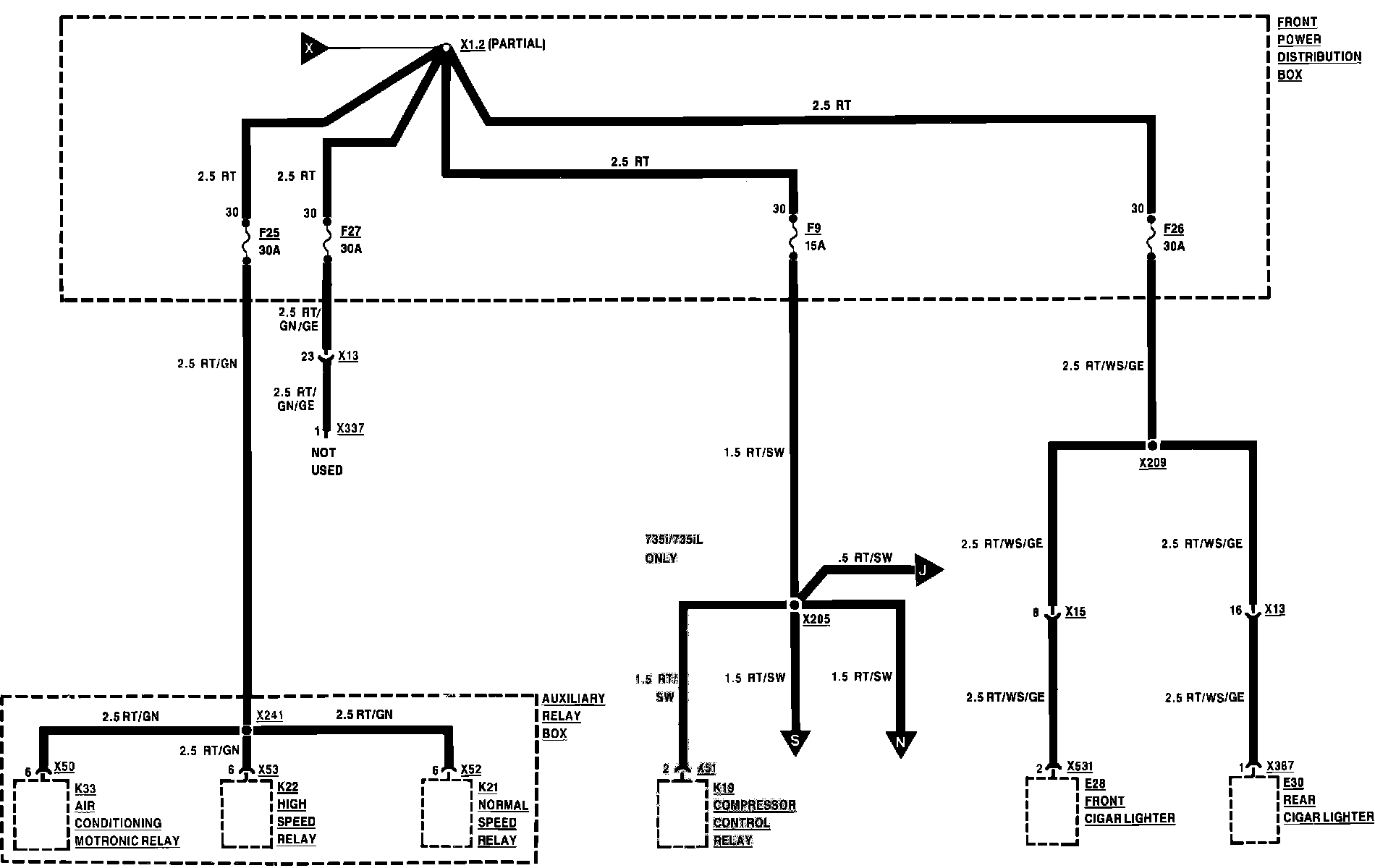

Front Power Distribution Box:

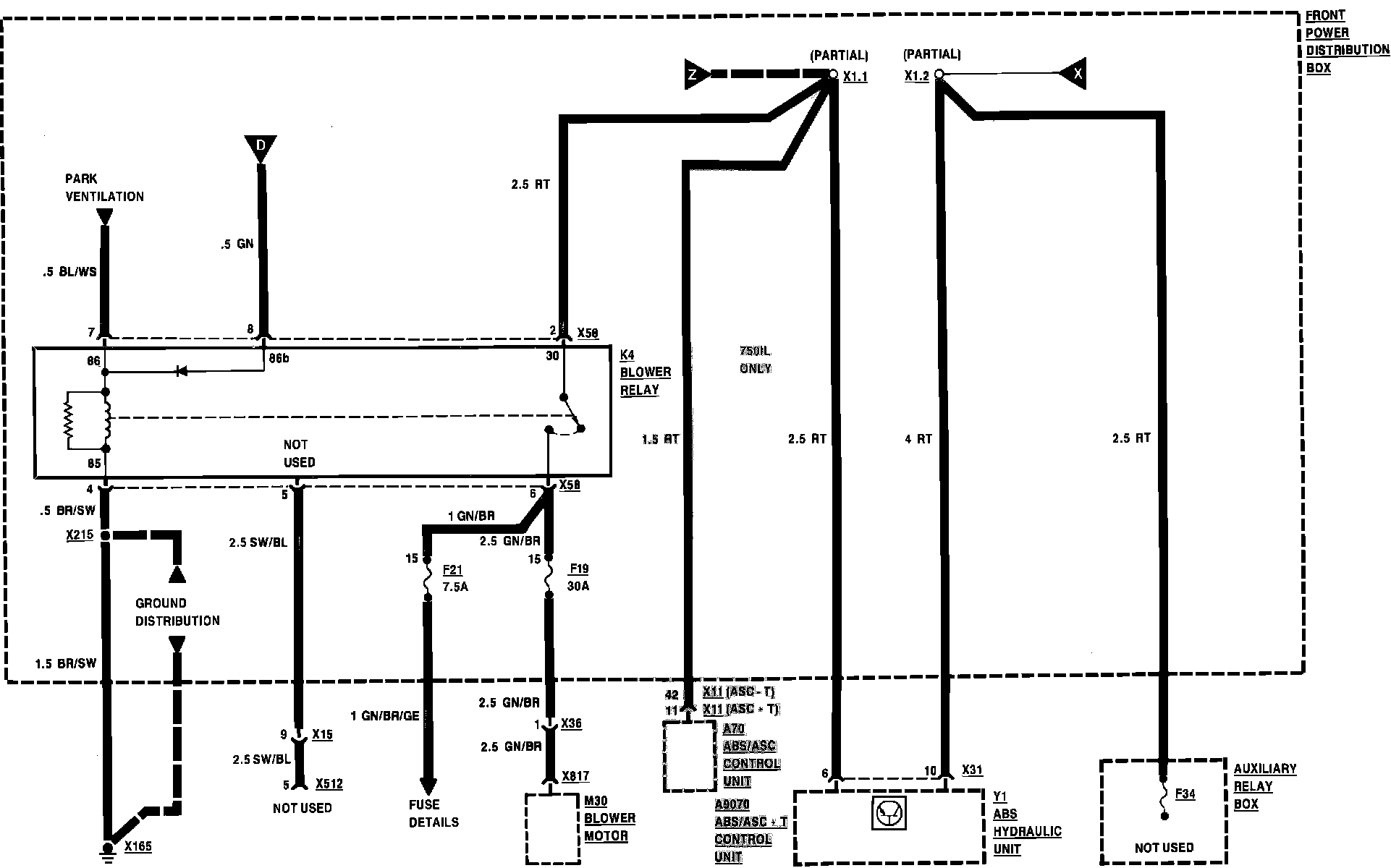

Front Power Distribution Box:

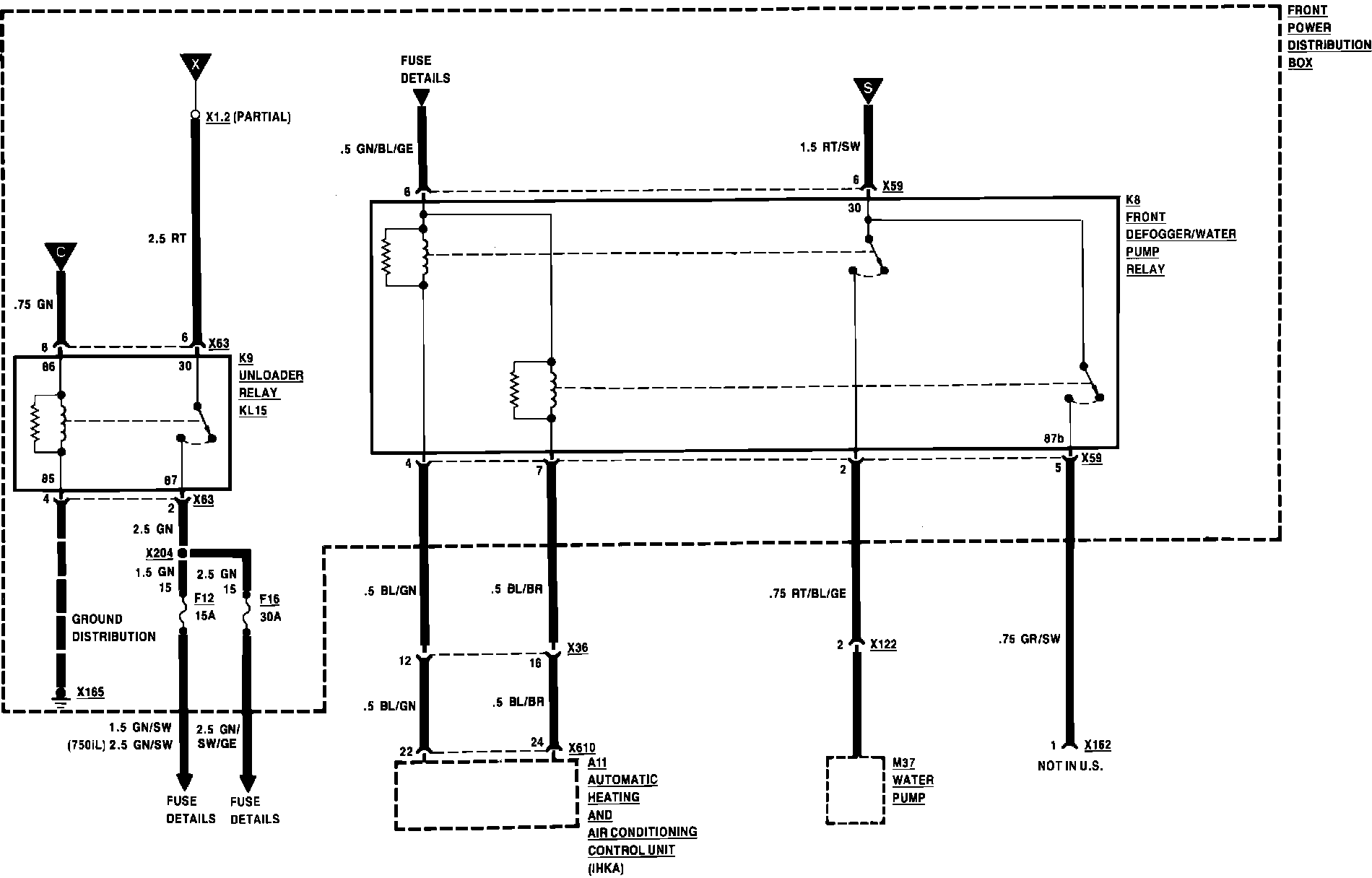

Front Power Distribution Box:

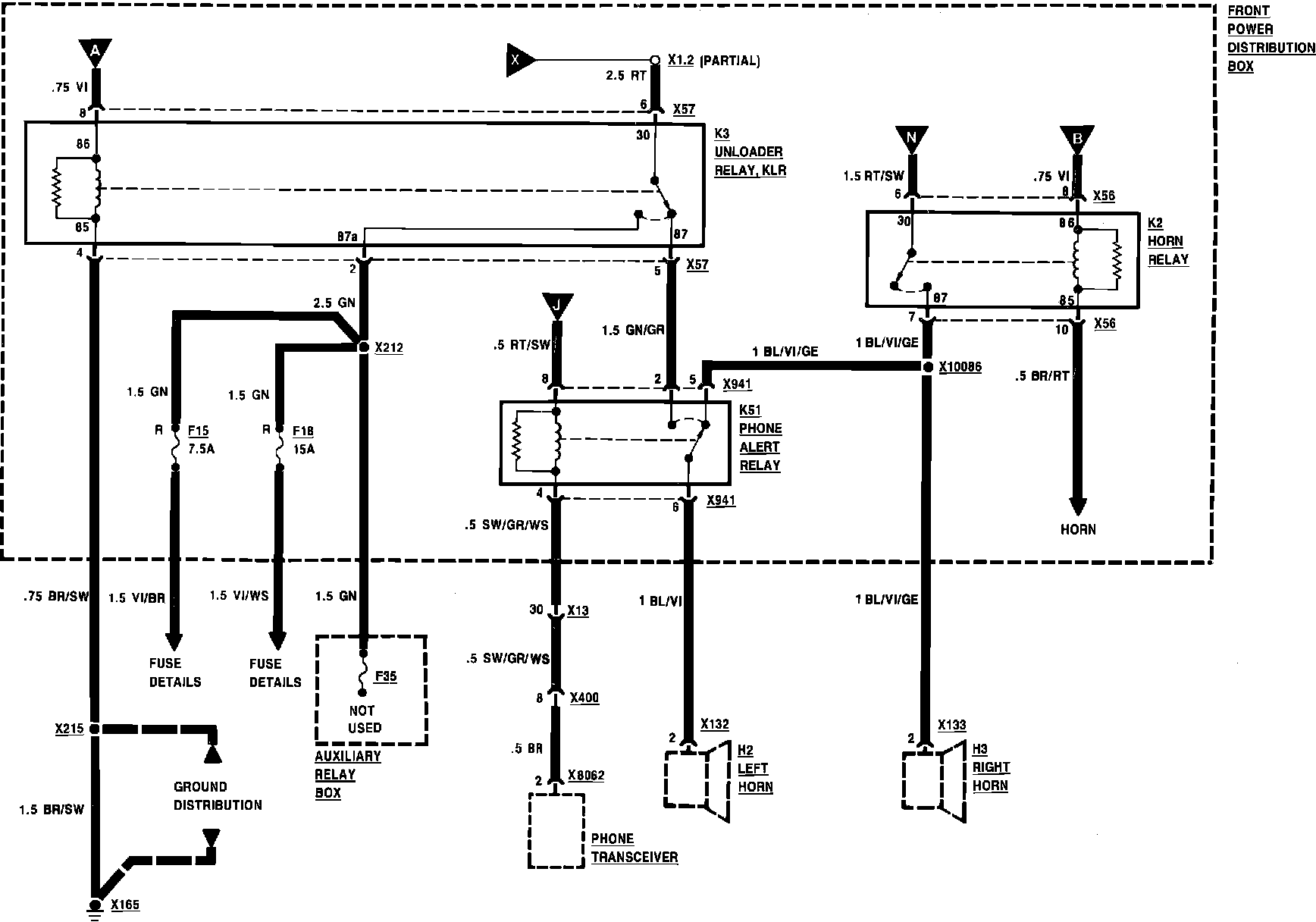

Front Power Distribution Box:
