Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1991
>>
735iL (E32/2) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

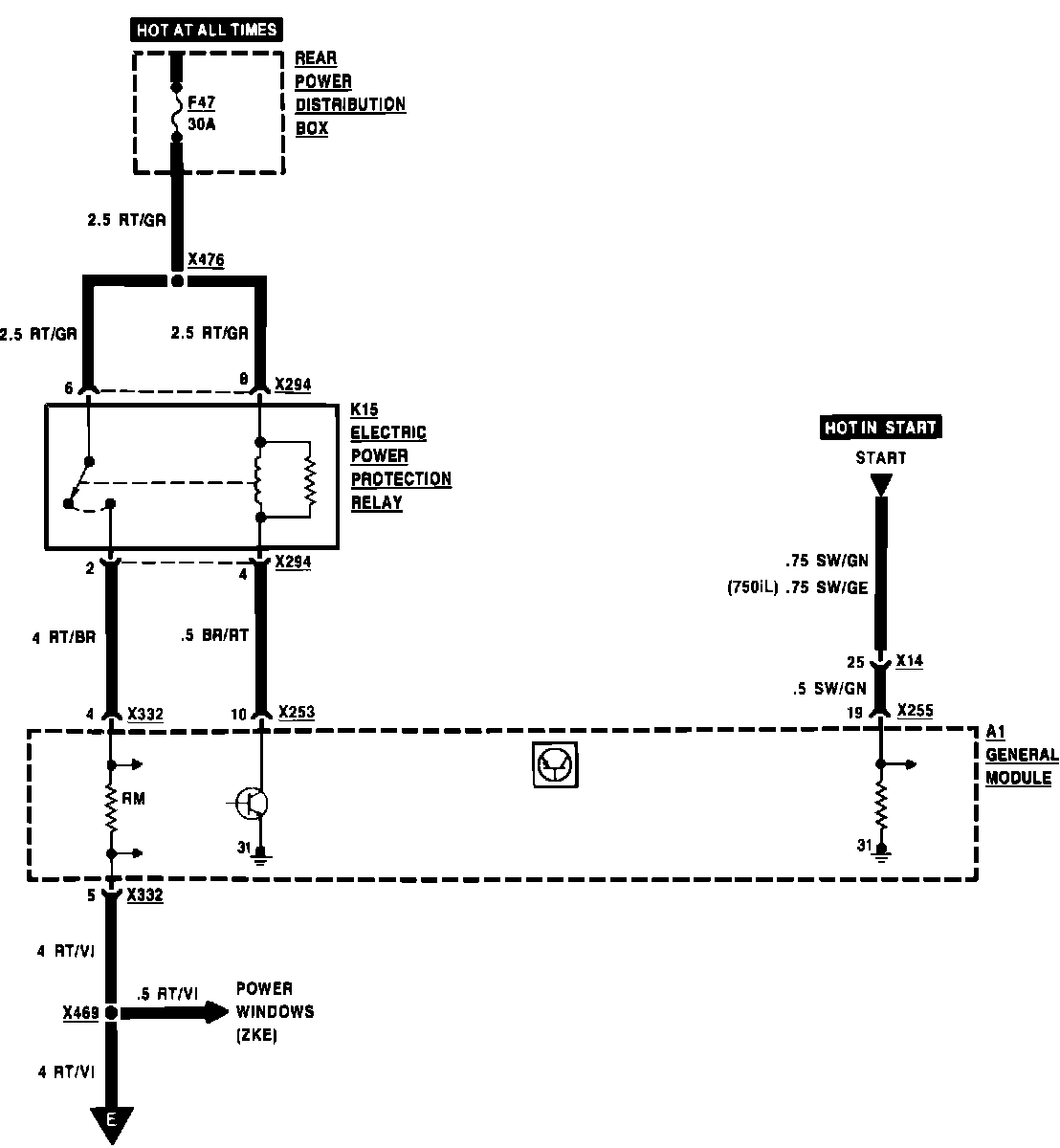

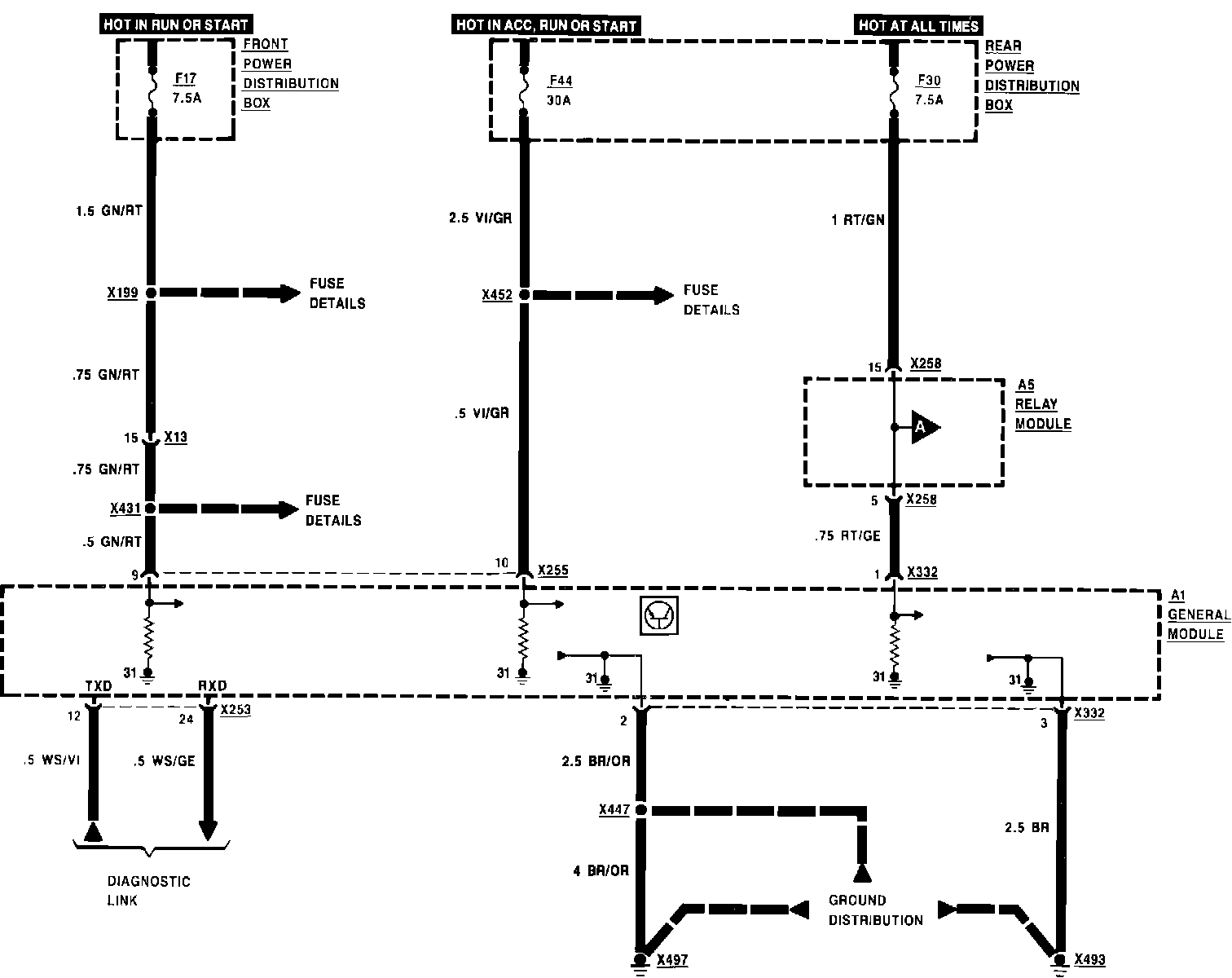

General Module
General Module
Central Body Electronics (ZKE):
Central Body Electronics (ZKE):
