Exterior Lighting Module

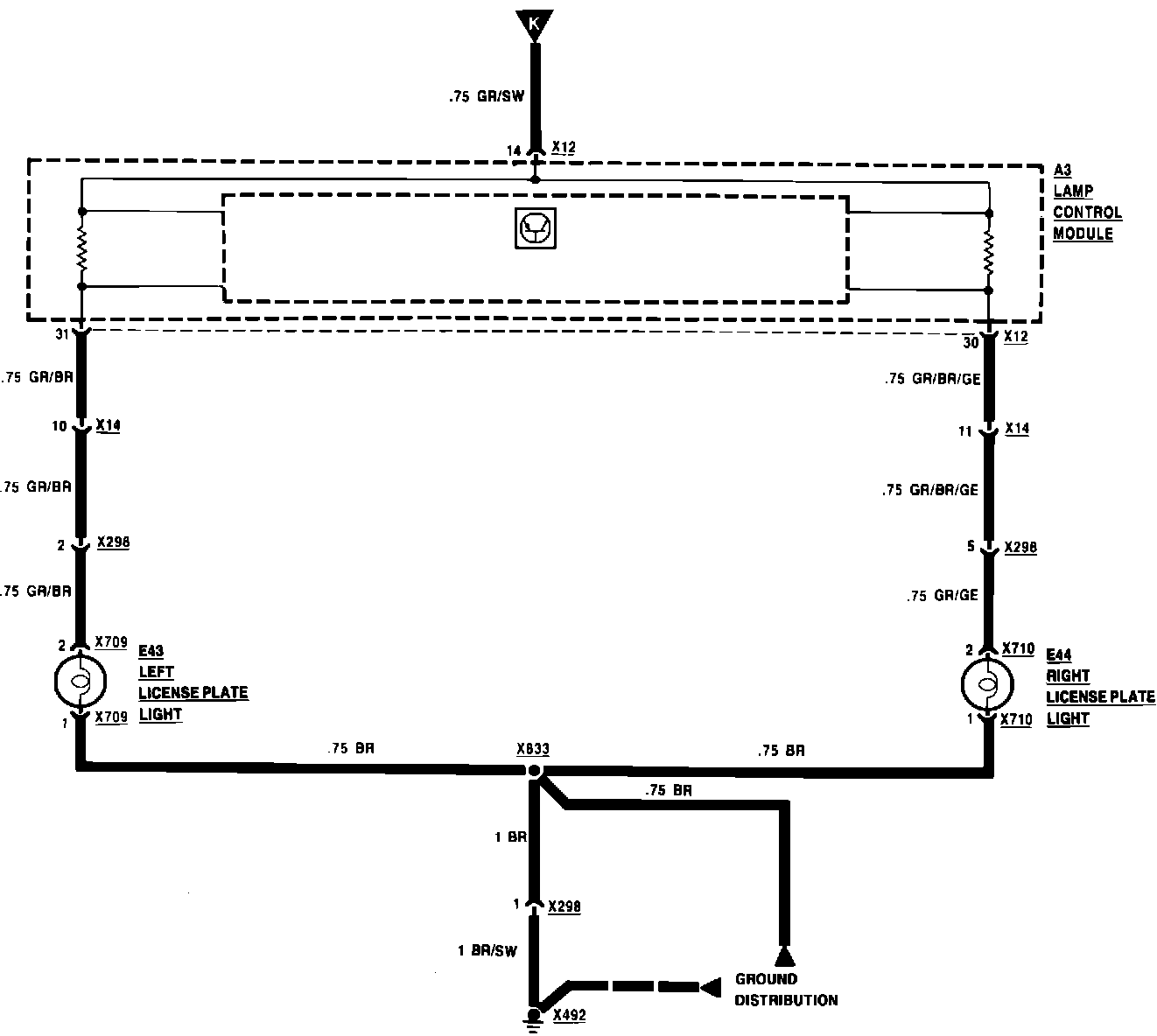

Lamp Monitor (LKM):

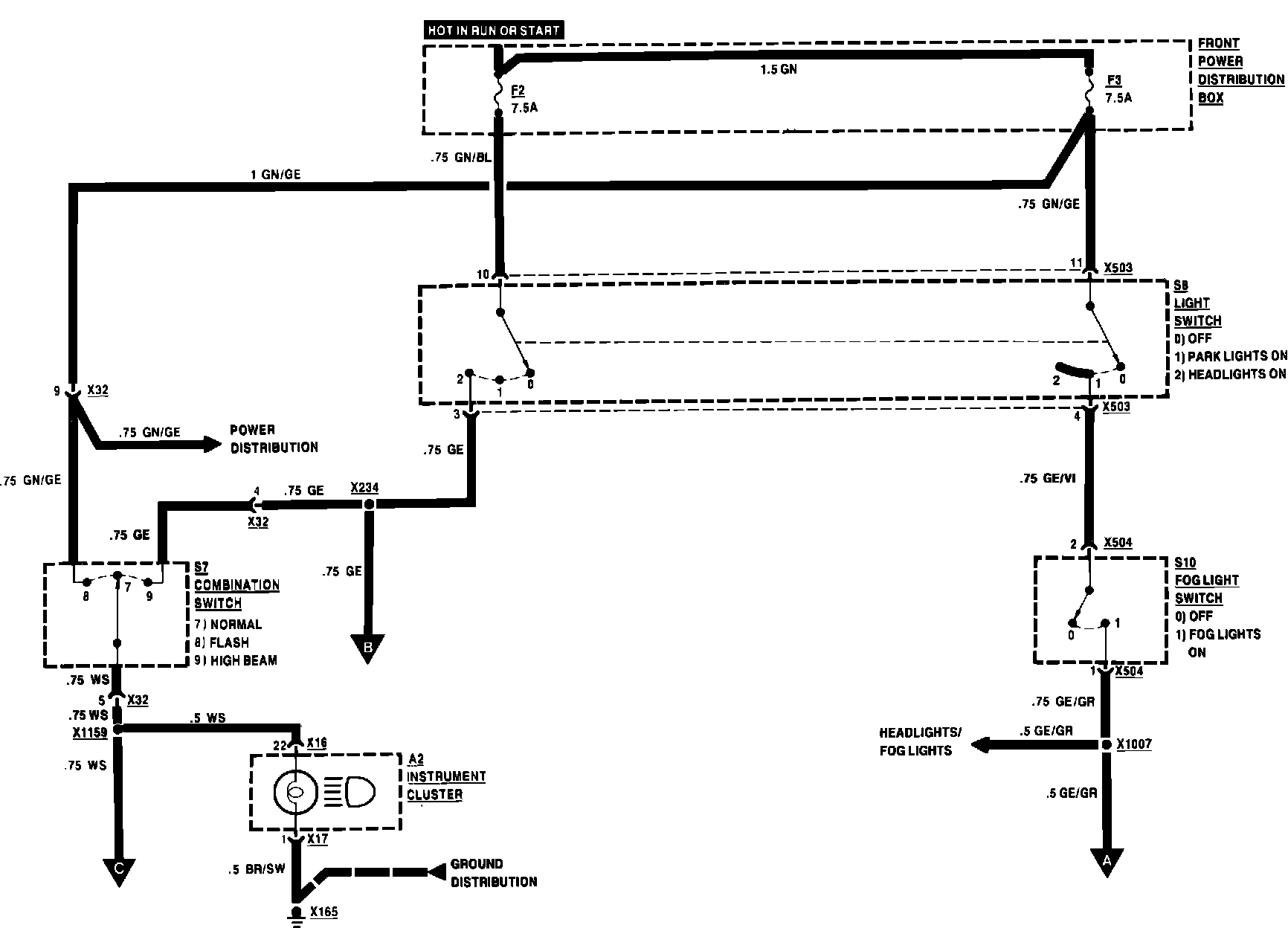

Lamp Monitor (LKM):

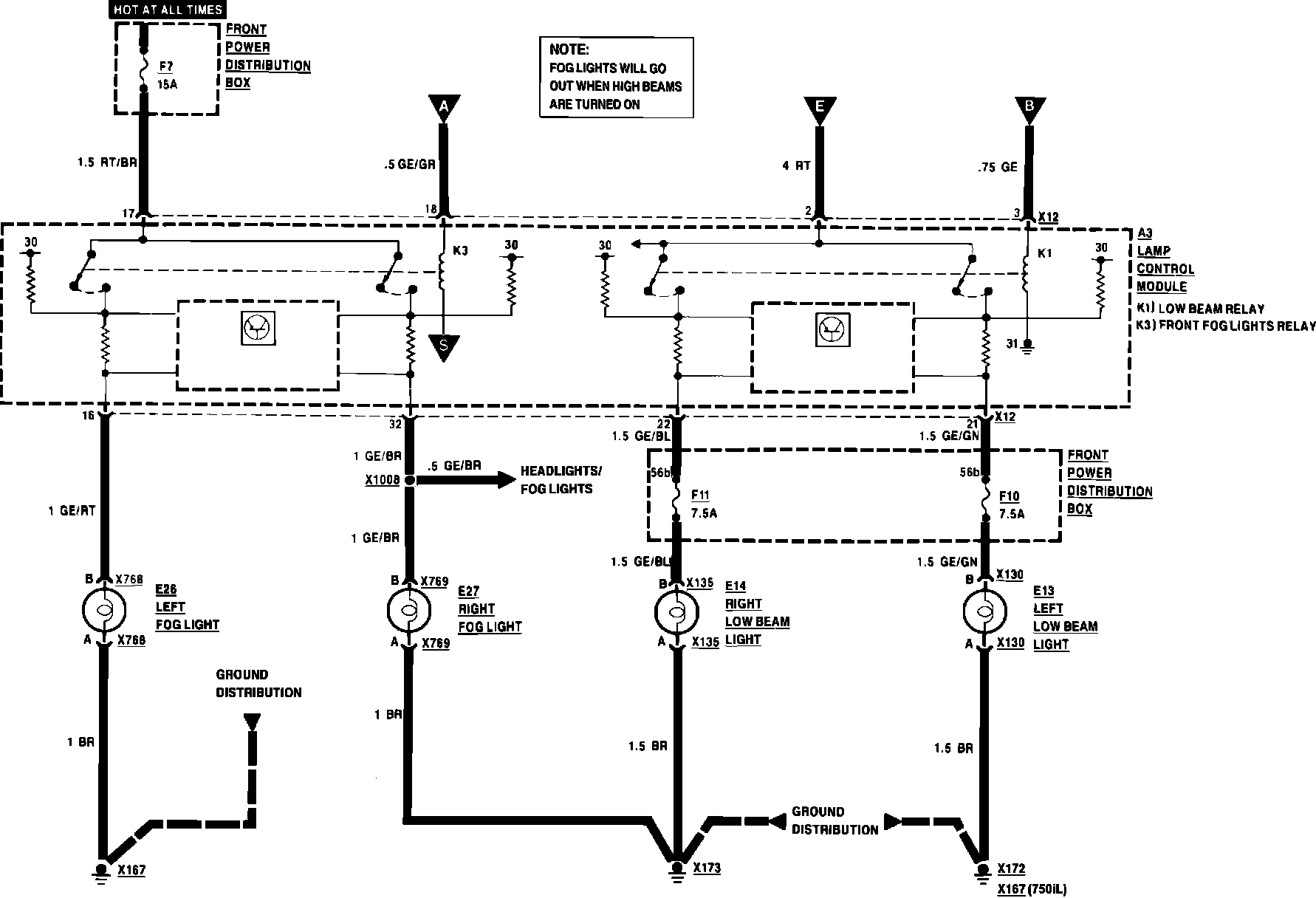

Lamp Monitor (LKM):

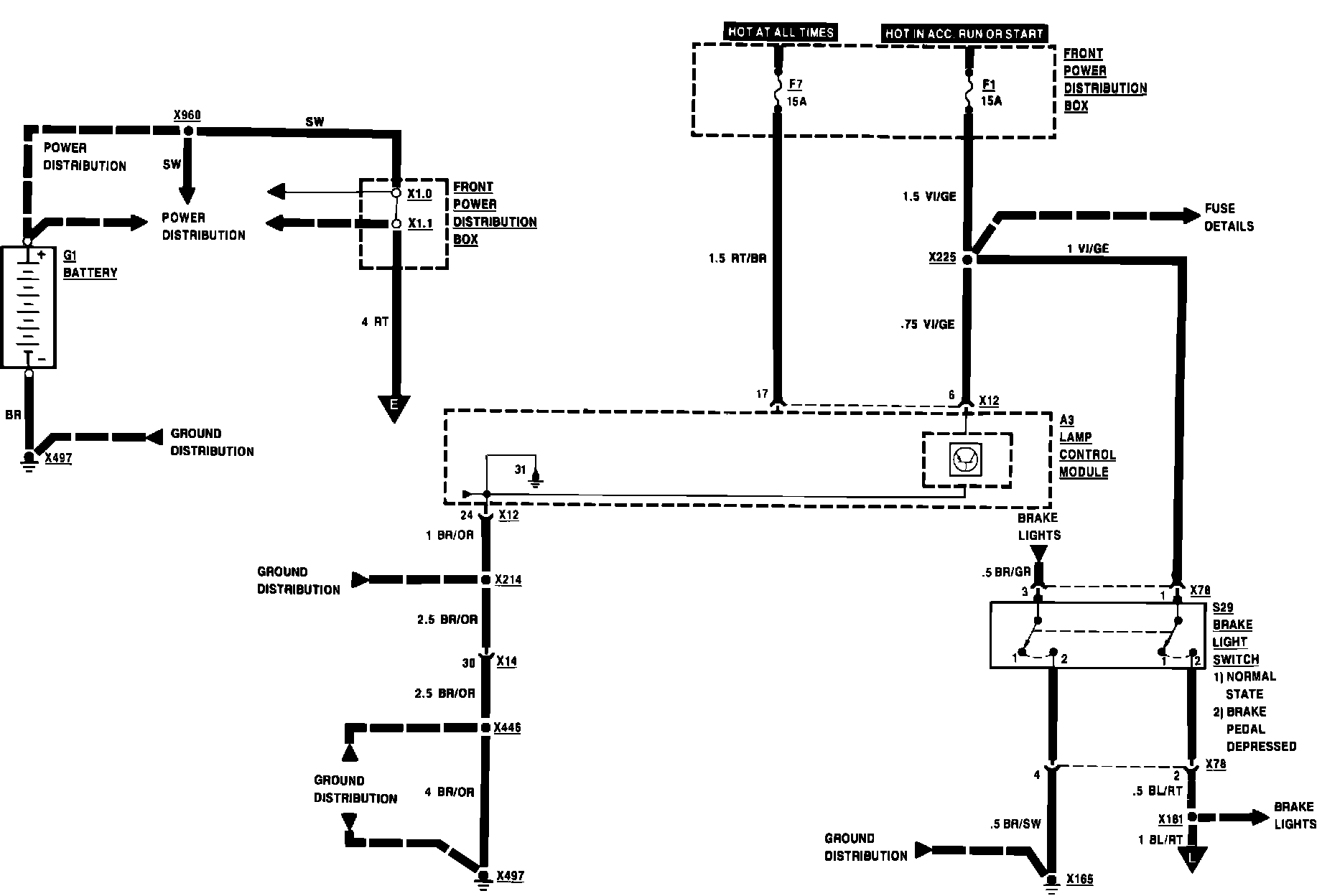

Lamp Monitor (LKM):

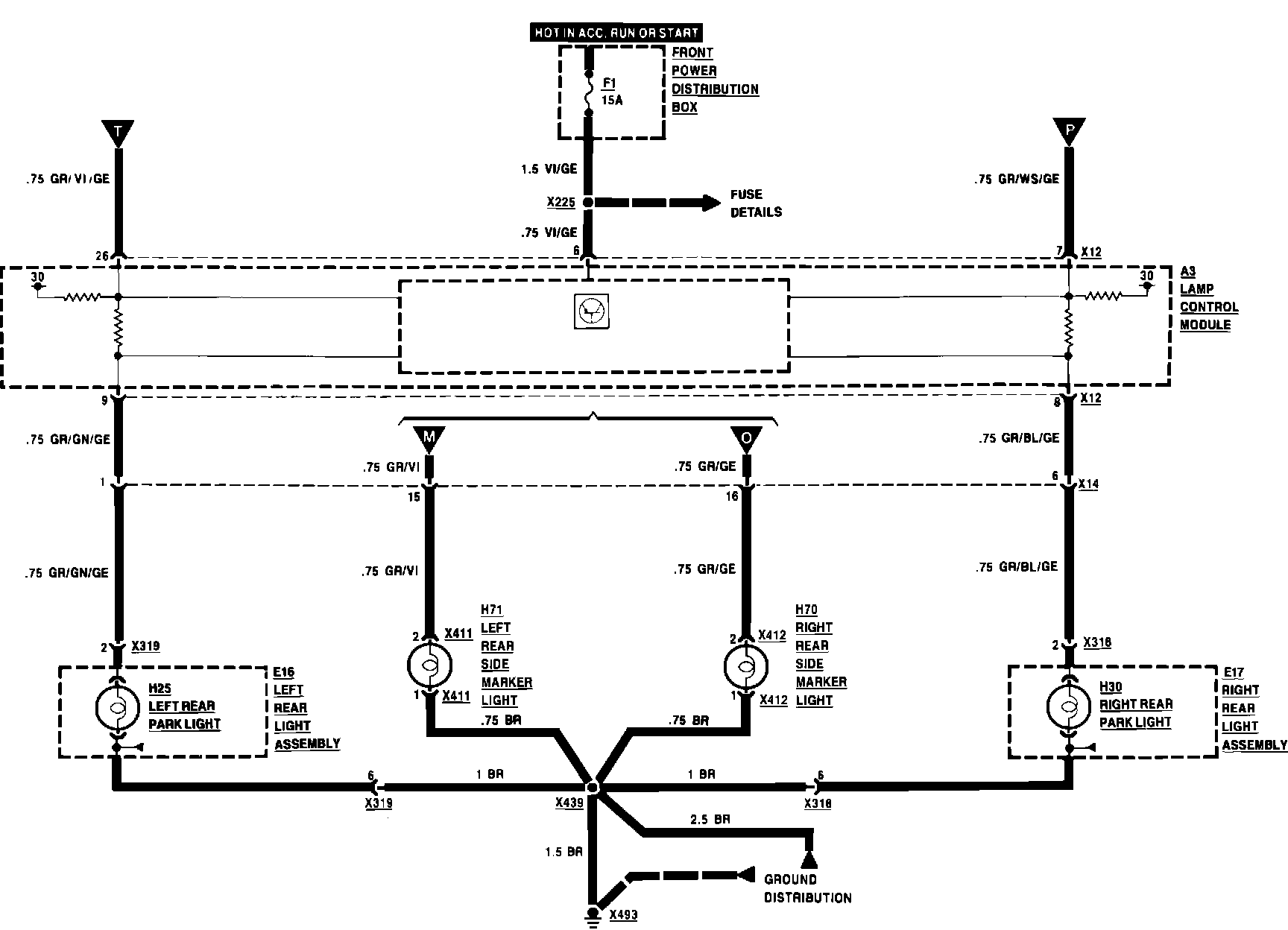

Lamp Monitor (LKM):

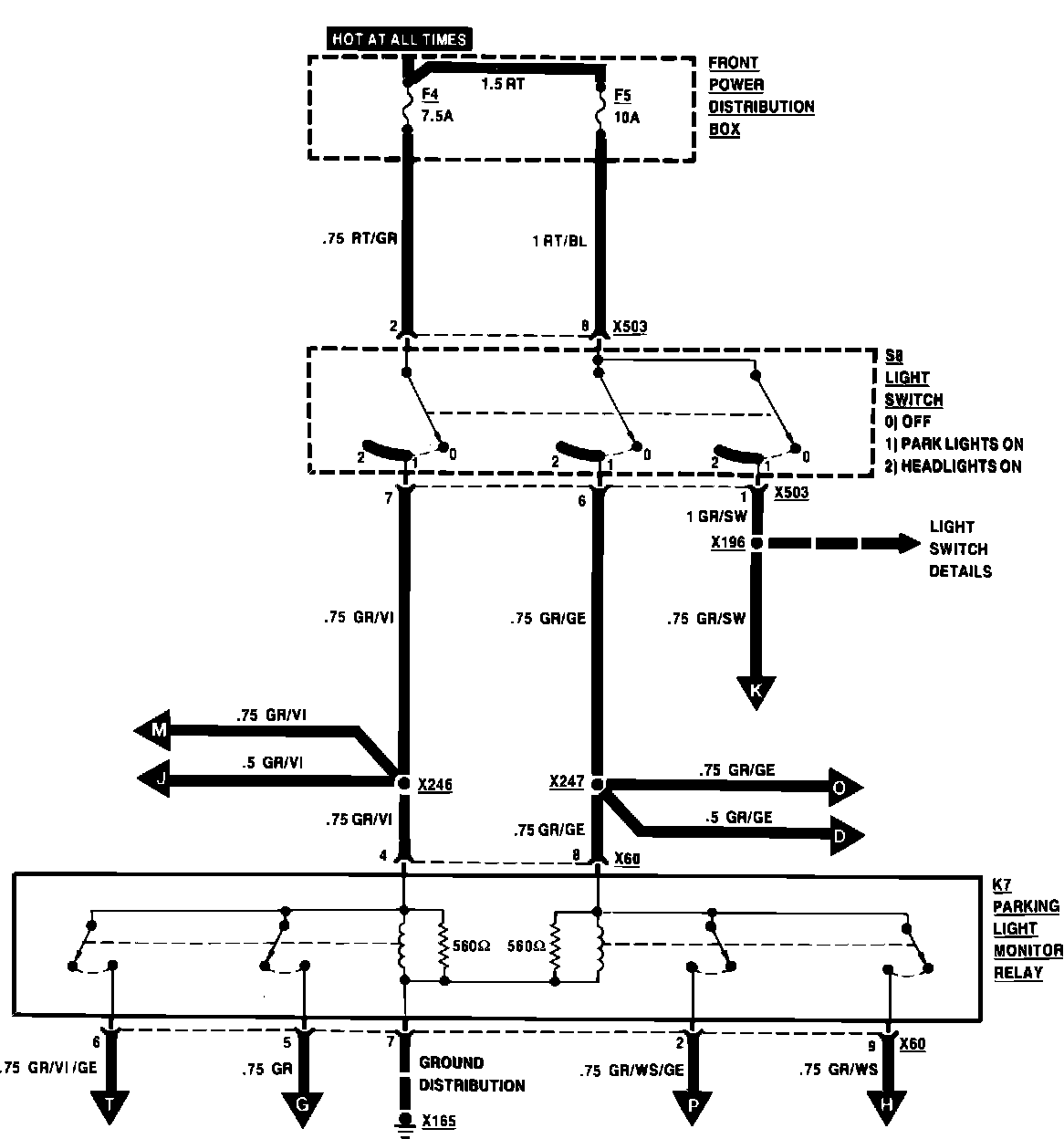

Lamp Monitor (LKM):

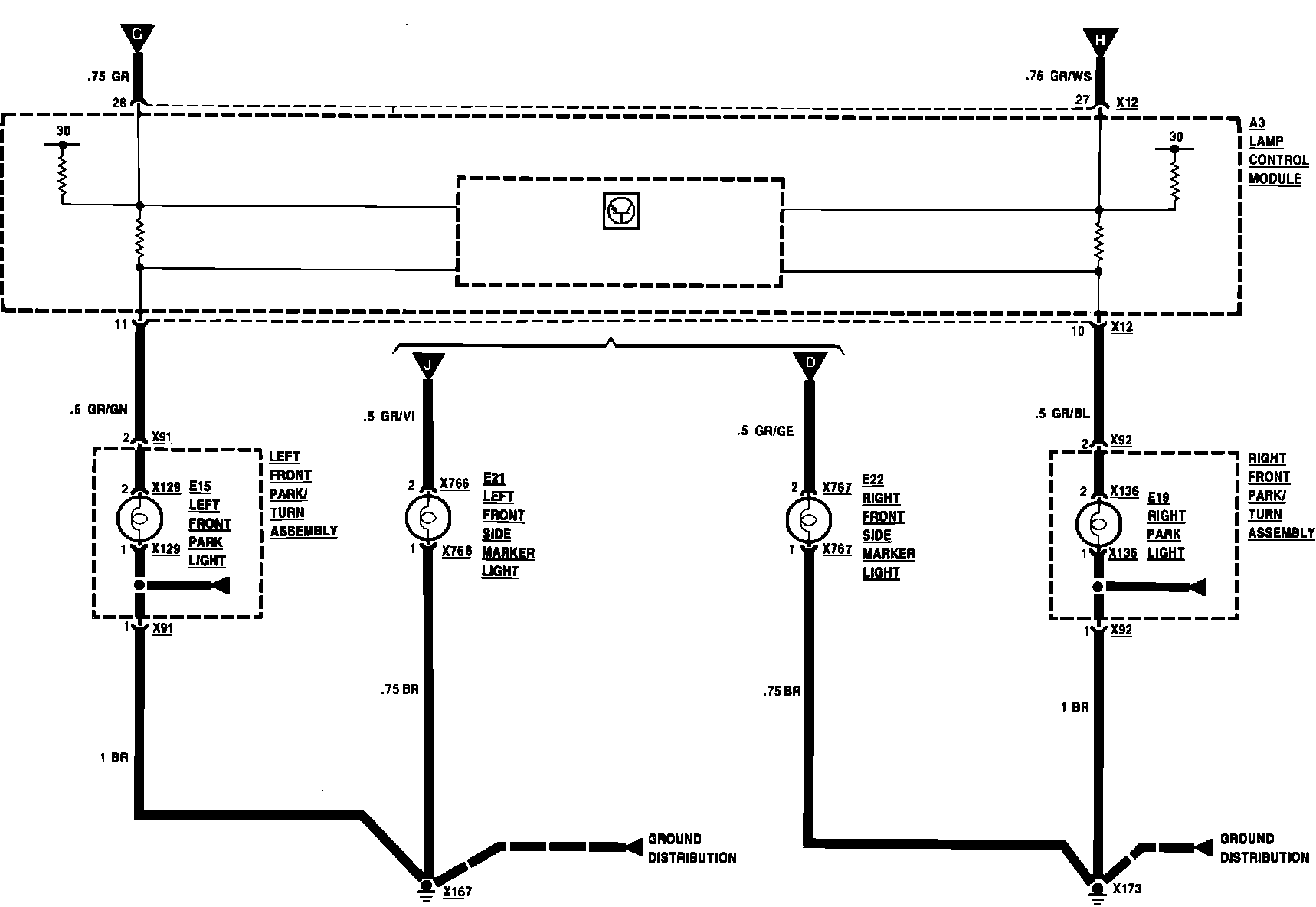

Lamp Monitor (LKM):



Lamp Monitor (LKM):



Lamp Monitor (LKM):



Lamp Monitor (LKM):
