735iL (E32/2) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Automatic Stability Control (ASC+T)
>>
EML Interface
EML Interface

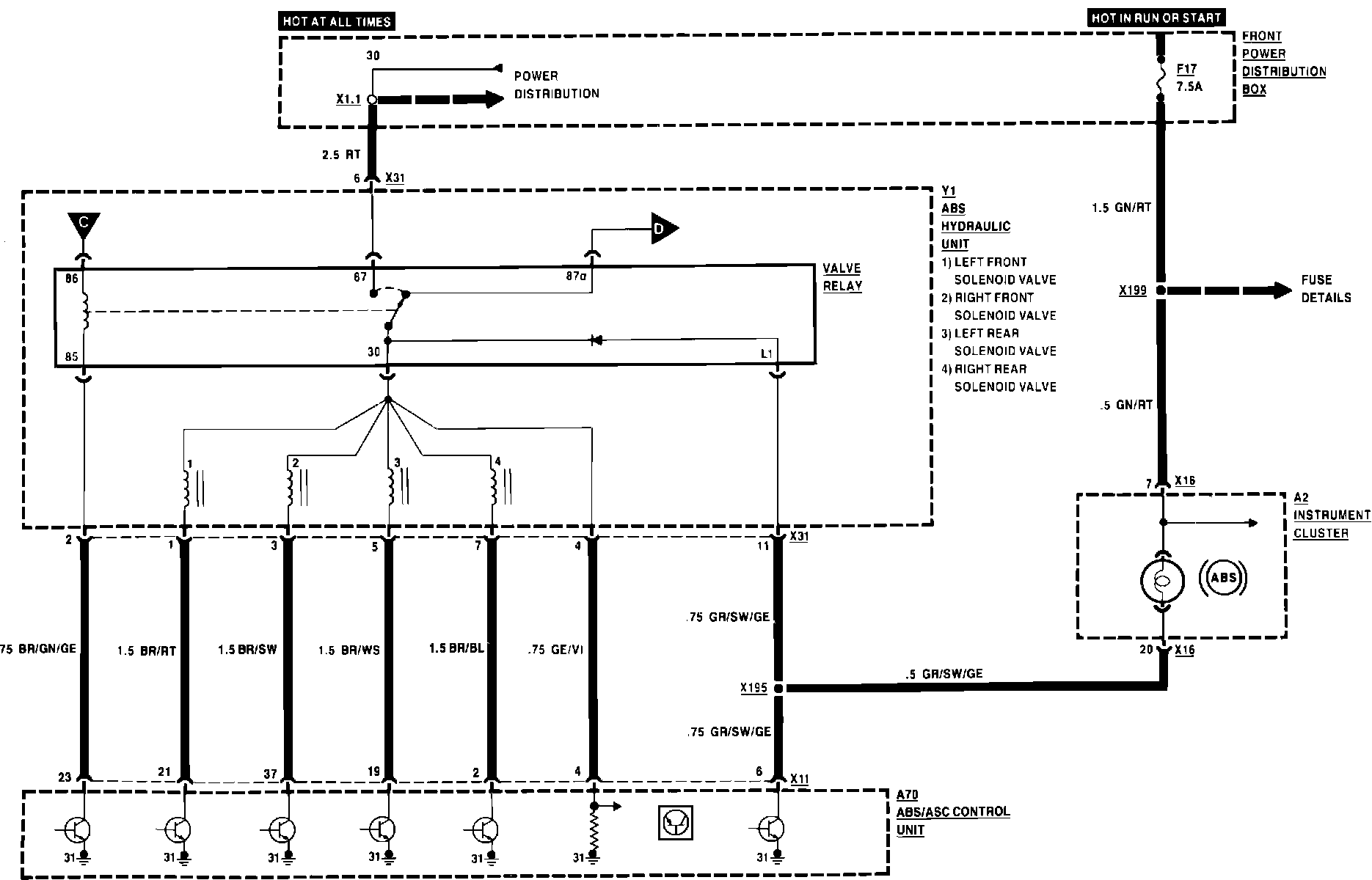

Automatic Stability Control (ASC):

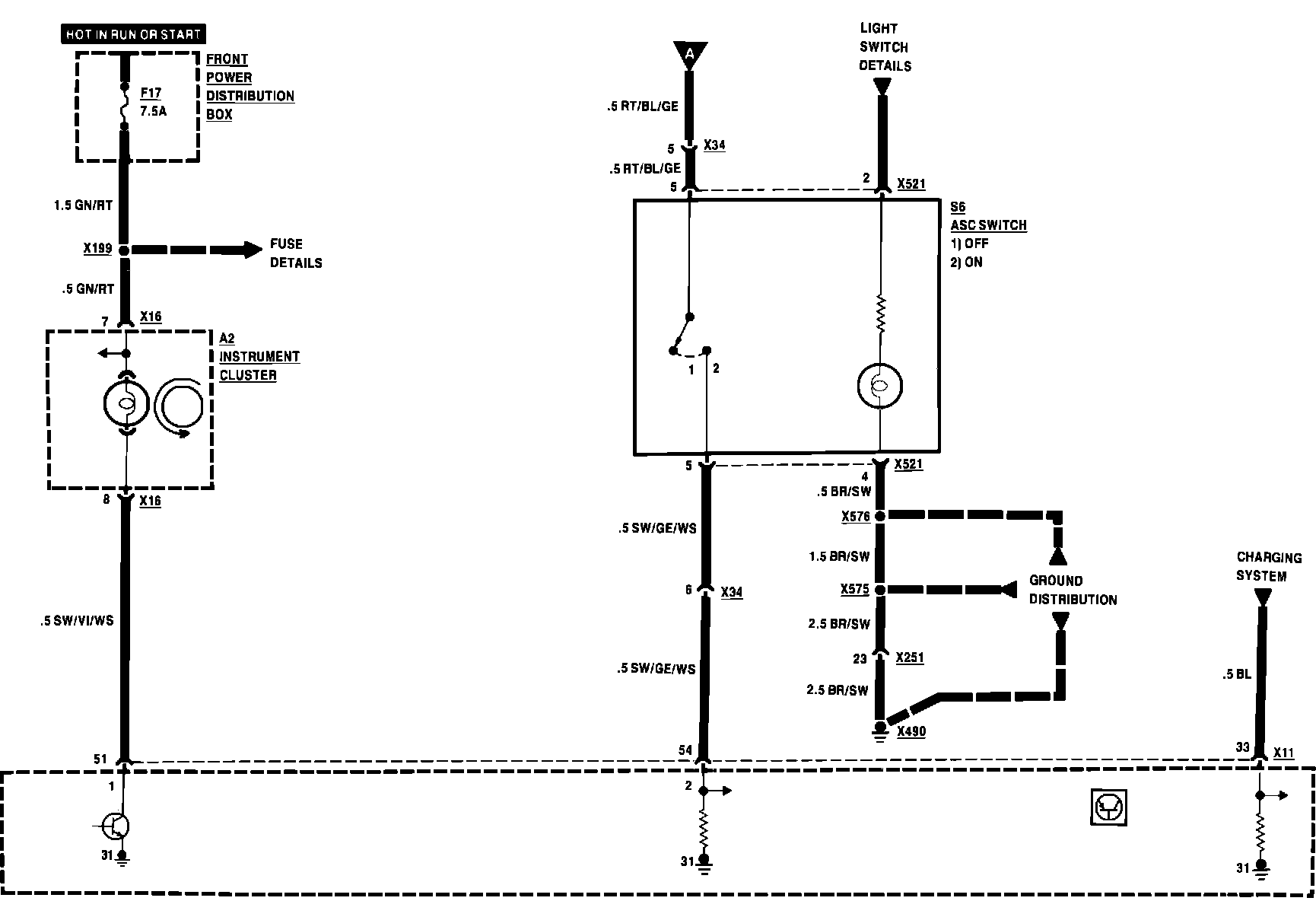

Automatic Stability Control (ASC):

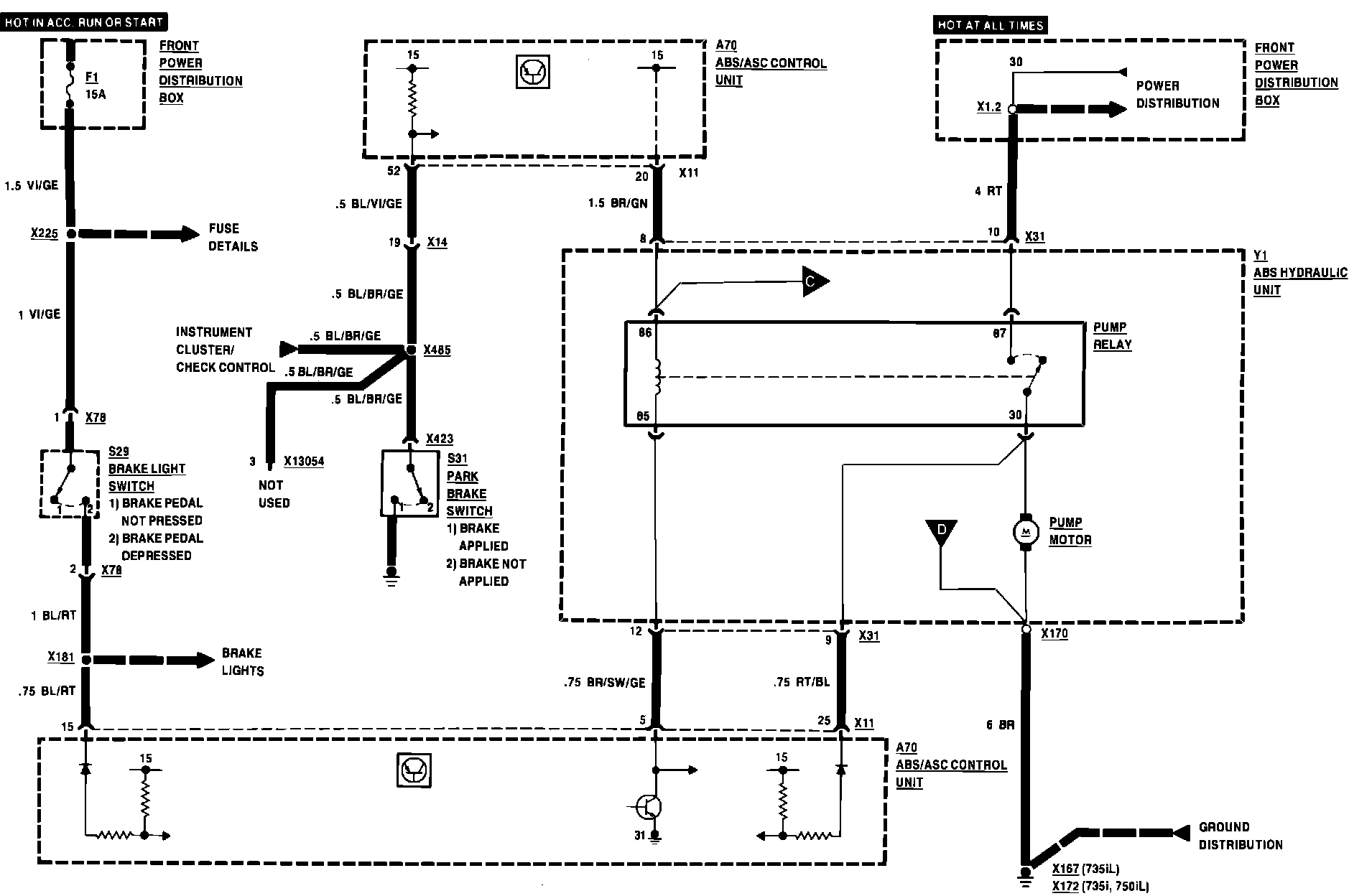

Automatic Stability Control (ASC):

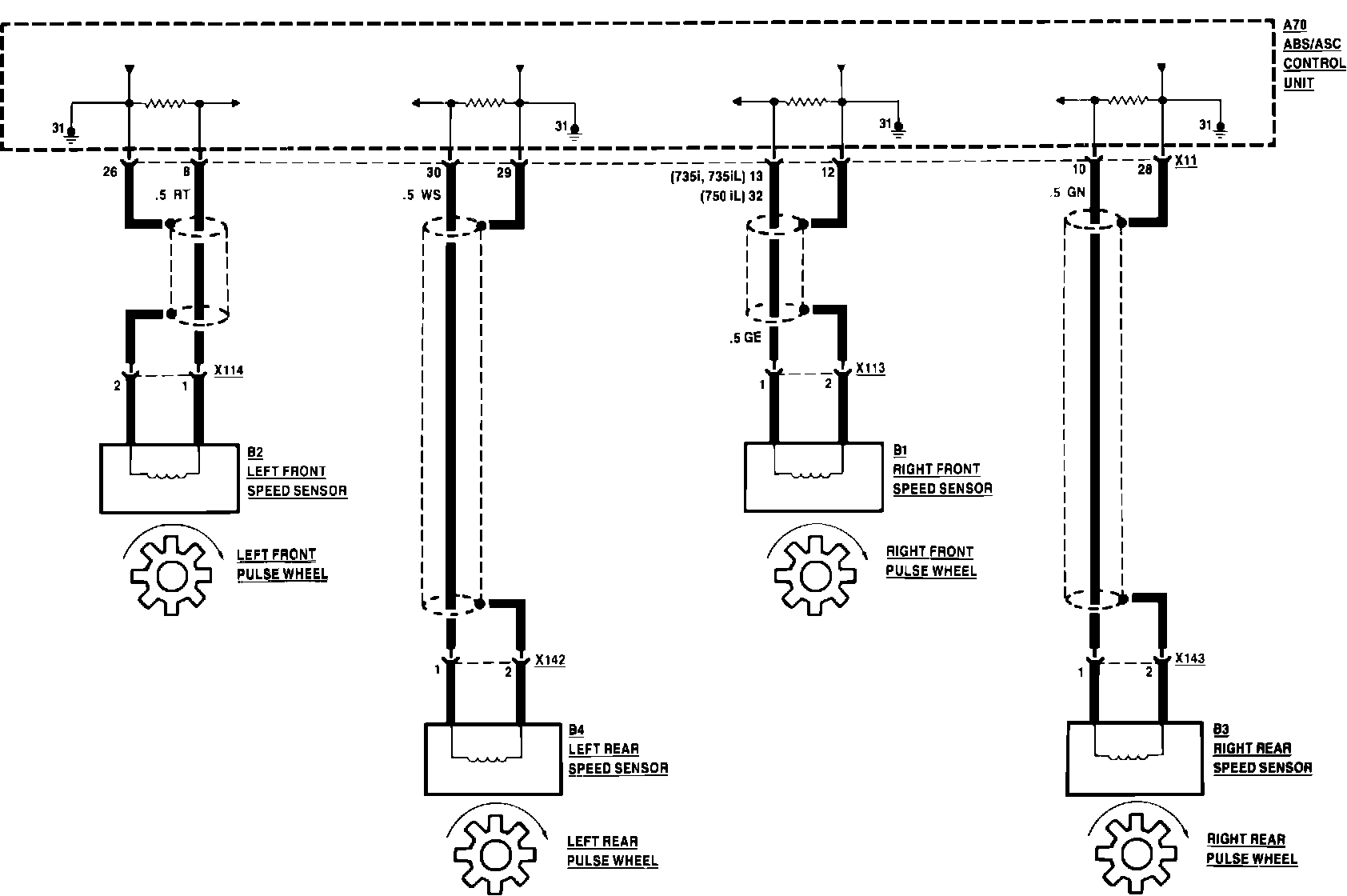

Automatic Stability Control (ASC):

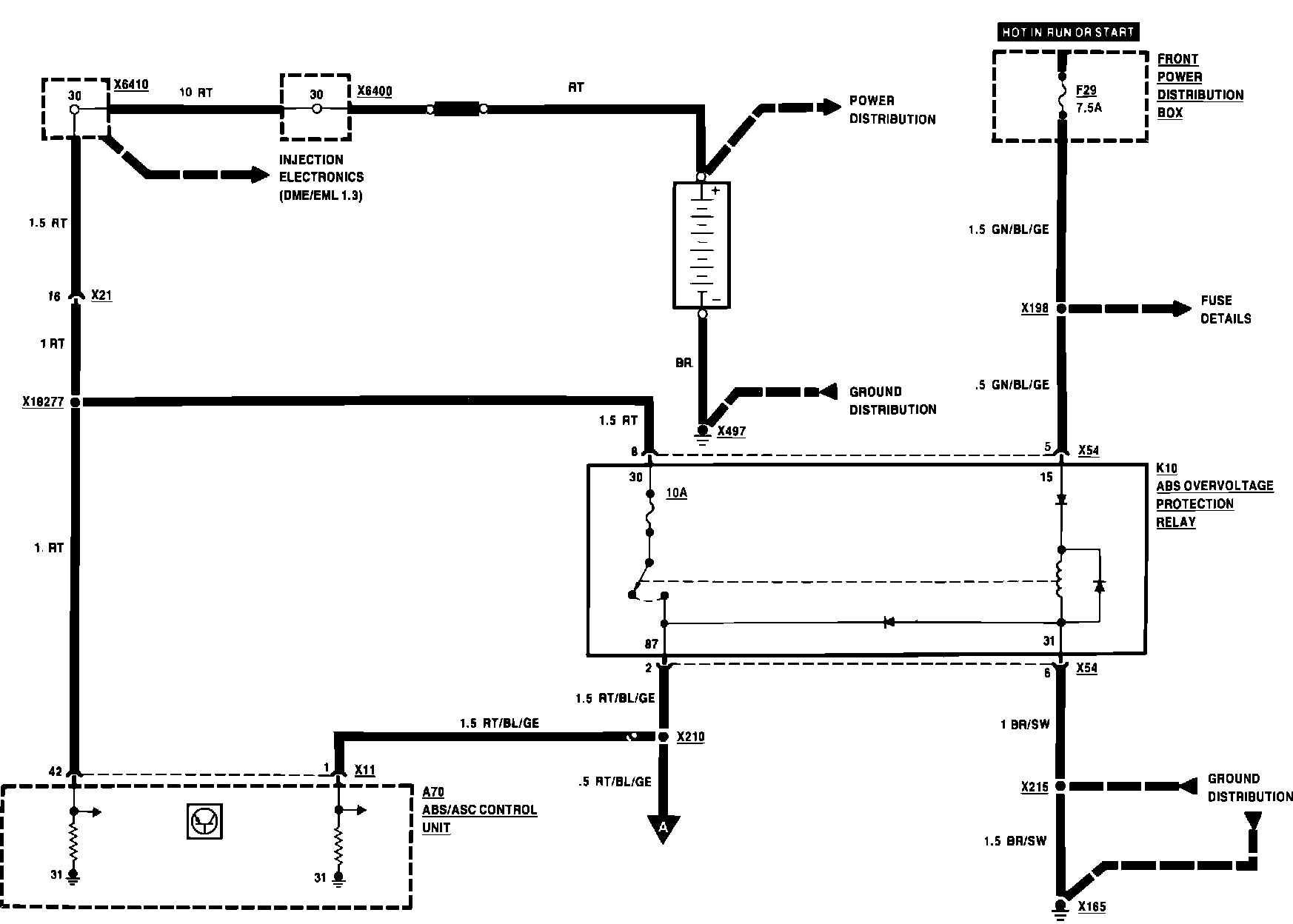

Automatic Stability Control (ASC):
