Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Automatic Stability Control (ASC+T)
>>

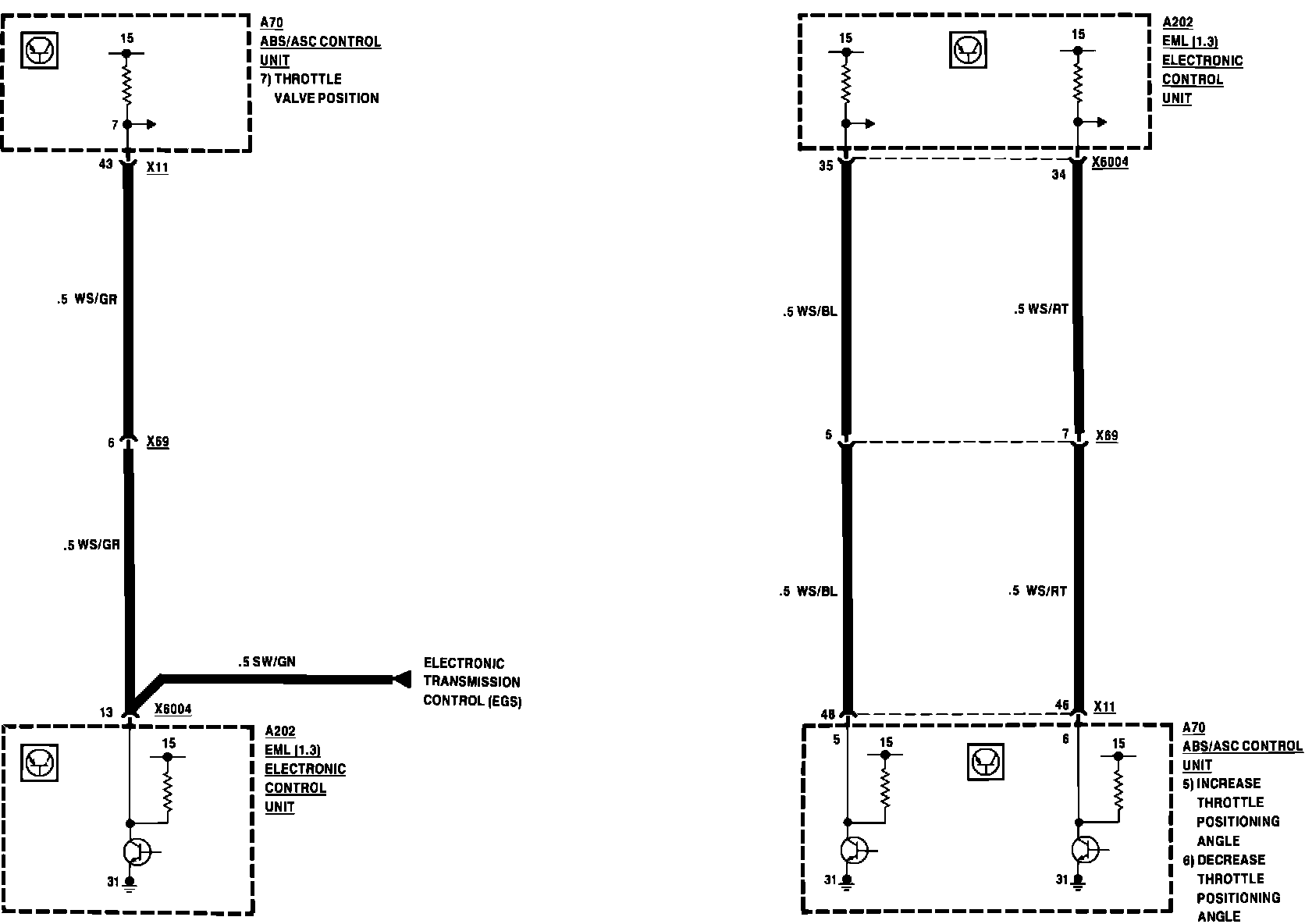

DME Interface
DME Interface

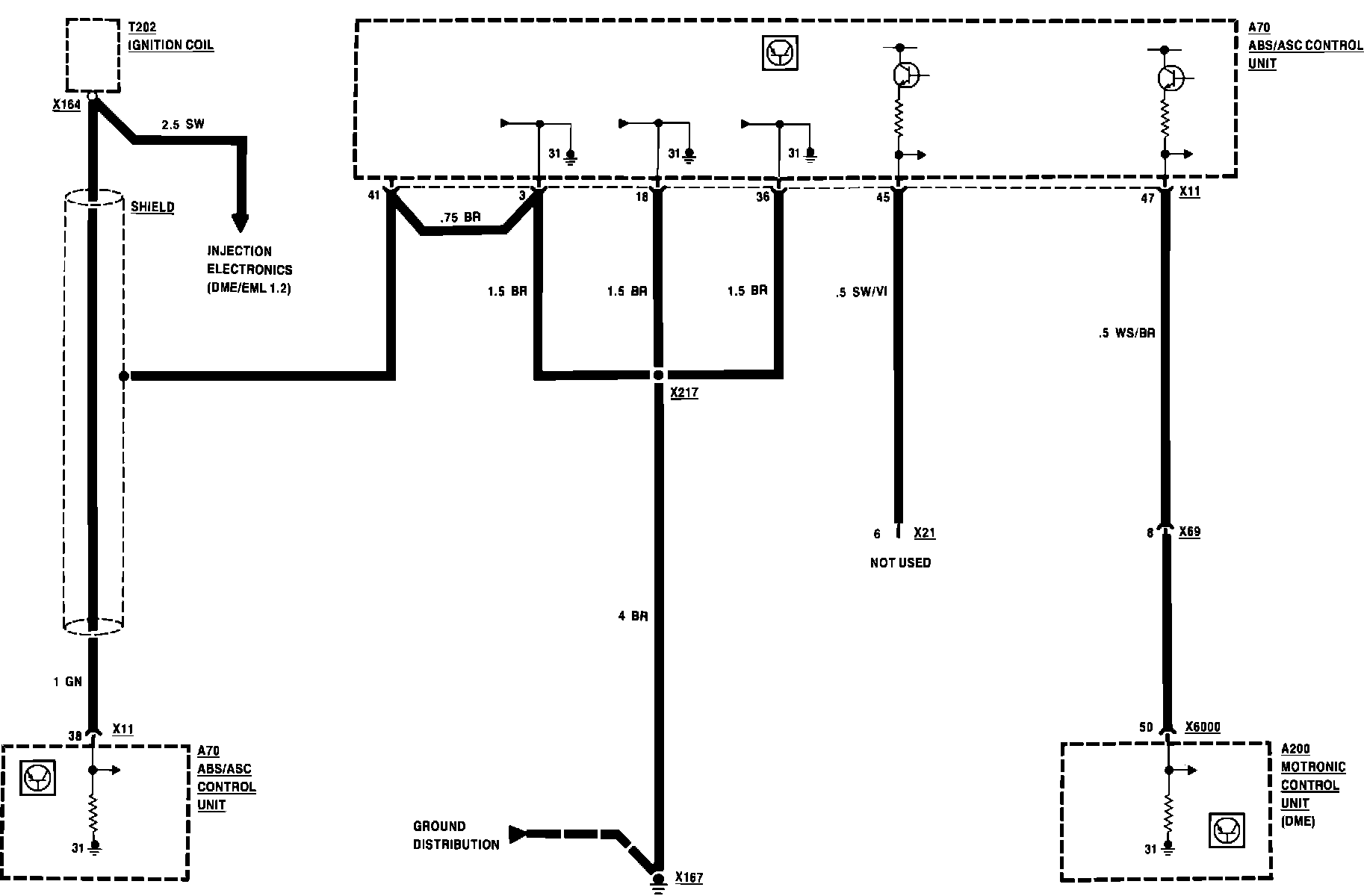

Automatic Stability Control (ASC):
Automatic Stability Control (ASC):
