Starting Unloader Relay: Locations

Component ID# K9
Component Name: Unloader Relay, Terminal 15

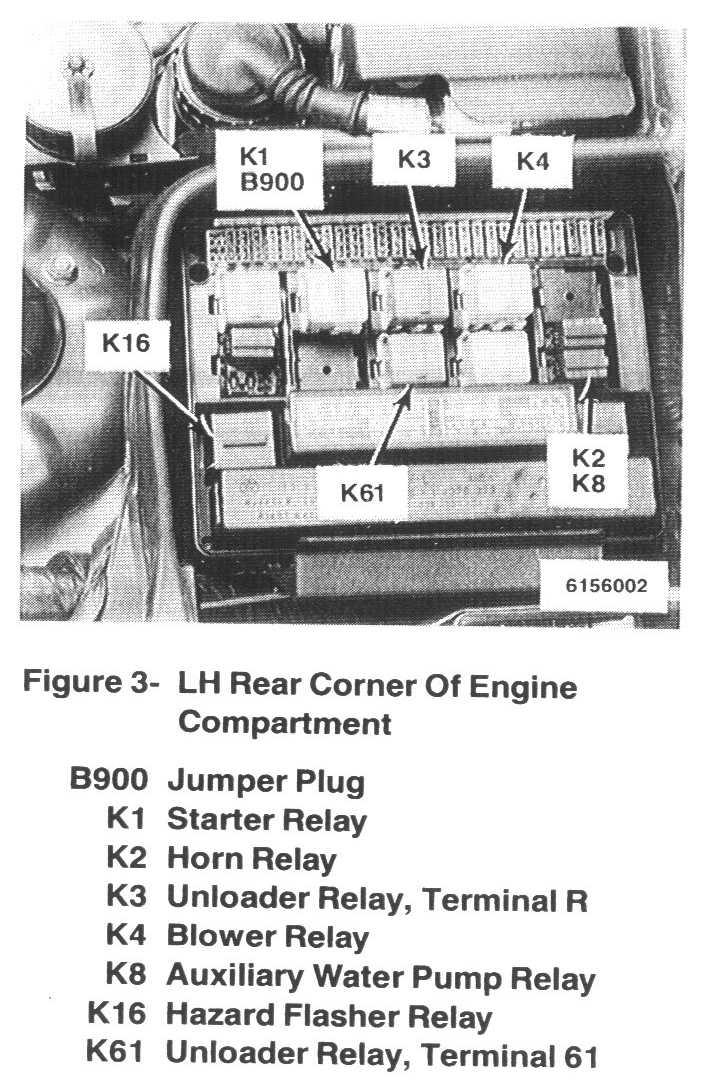

Component Location: LH rear of engine compartment, in P90 Front Power Distribution Box




Component ID# K61
Component Name: Unloader Relay, Terminal 61
Component Location: LH rear of engine compartment, in P90 Front Power Distribution Box




Component ID# K3
Component Name: Unloader Relay, Terminal R
Component Location: LH rear of engine compartment, in P90 Front Power Distribution Box
