Air Injection Control Valve: Locations

Component ID# Y6101

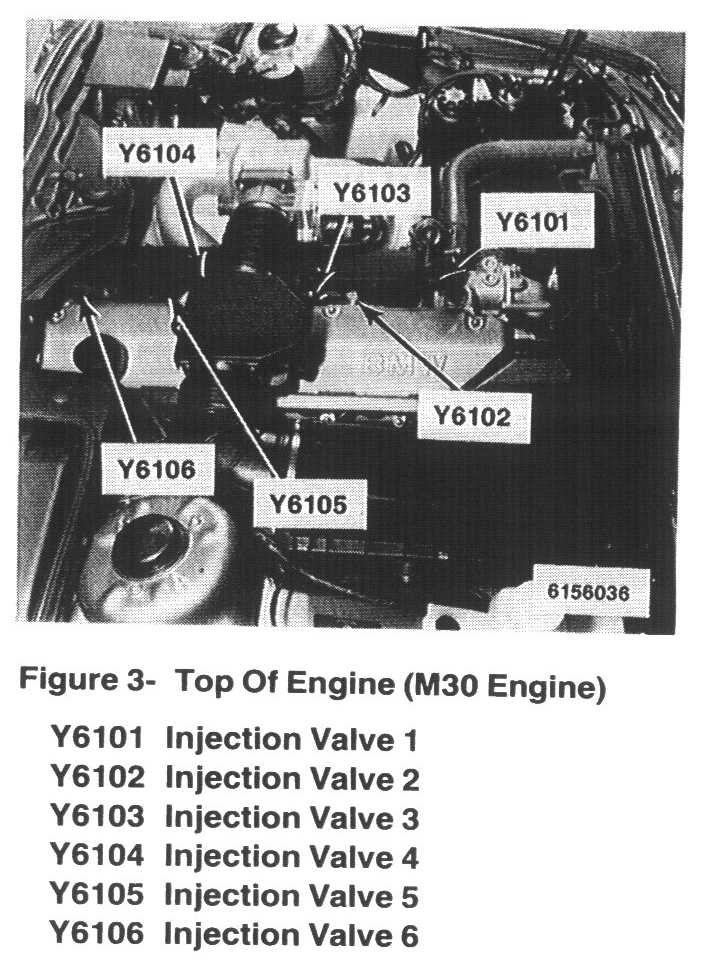

Component Name: Injection Valve 1 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6101

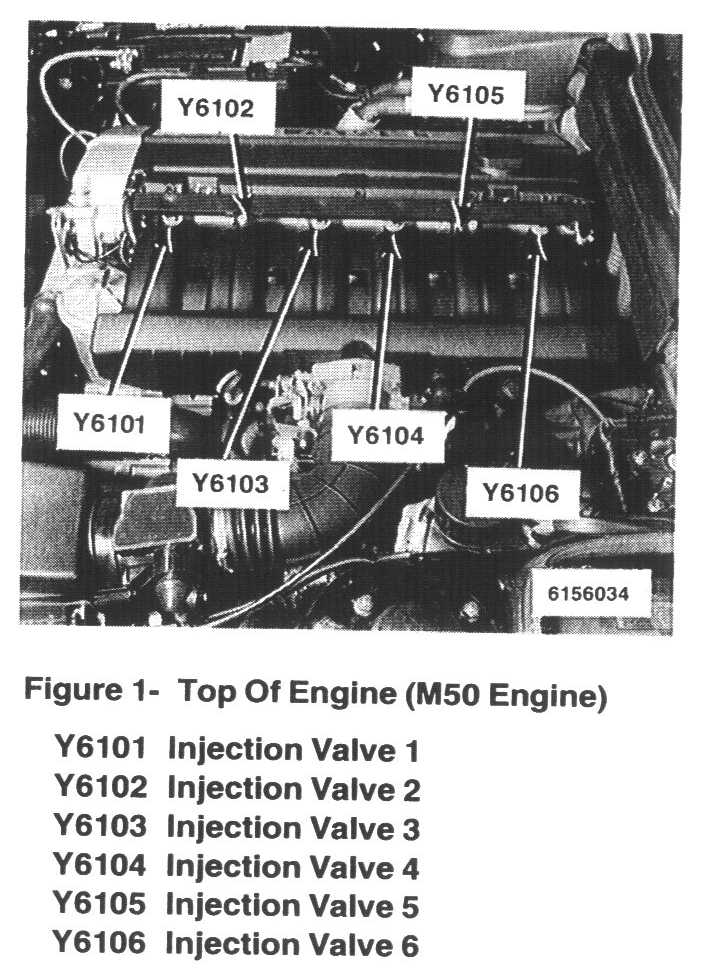

Component Name: Injection Valve 1 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6101

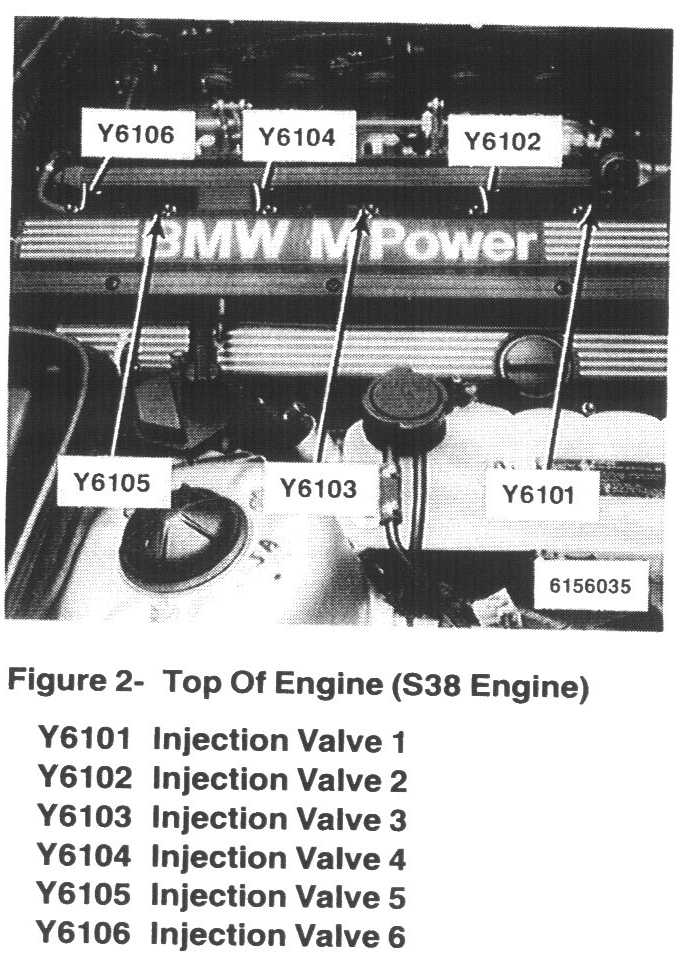

Component Name: Injection Valve 1(538 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6102
Component Name: Injection Valve 2 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6102
Component Name: Injection Valve 2 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6102
Component Name: Injection Valve 2 (S38 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6103
Component Name: Injection Valve 3 (538 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6103
Component Name: Injection Valve 3 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6103
Component Name: Injection Valve 3 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6104
Component Name: Injection Valve 4 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6104
Component Name: Injection Valve 4 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6104
Component Name: Injection Valve 4 (S38 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6105
Component Name: Injection Valve 5 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6105
Component Name: Injection Valve 5 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6105
Component Name: Injection Valve 5 (S38 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6106
Component Name: Injection Valve 6 (M30 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6106
Component Name: Injection Valve 6 (M50 Engine)
Component Location: Top of engine, on intake manifold




Component ID# Y6106
Component Name: Injection Valve 6 (S38 Engine)
Component Location: Top of engine, on intake manifold
