Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1991
>>
535i (E34) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

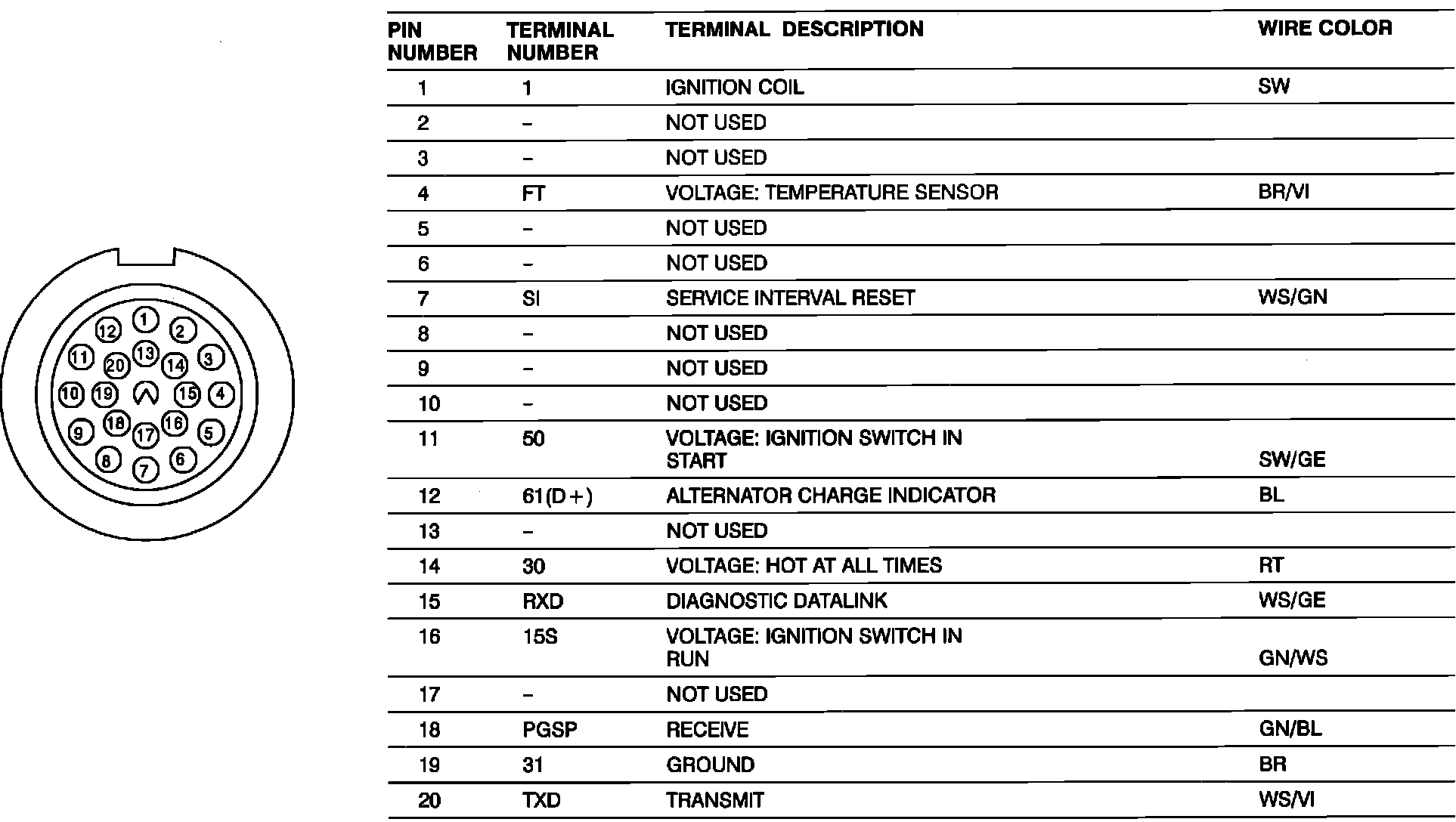

Diagnostic Link. Pin Assignments:
