Ignition Coil: Locations

Component ID# T6150
Component Name: Ignition Coil
Component Location: RH side of engine compartment, at strut tower

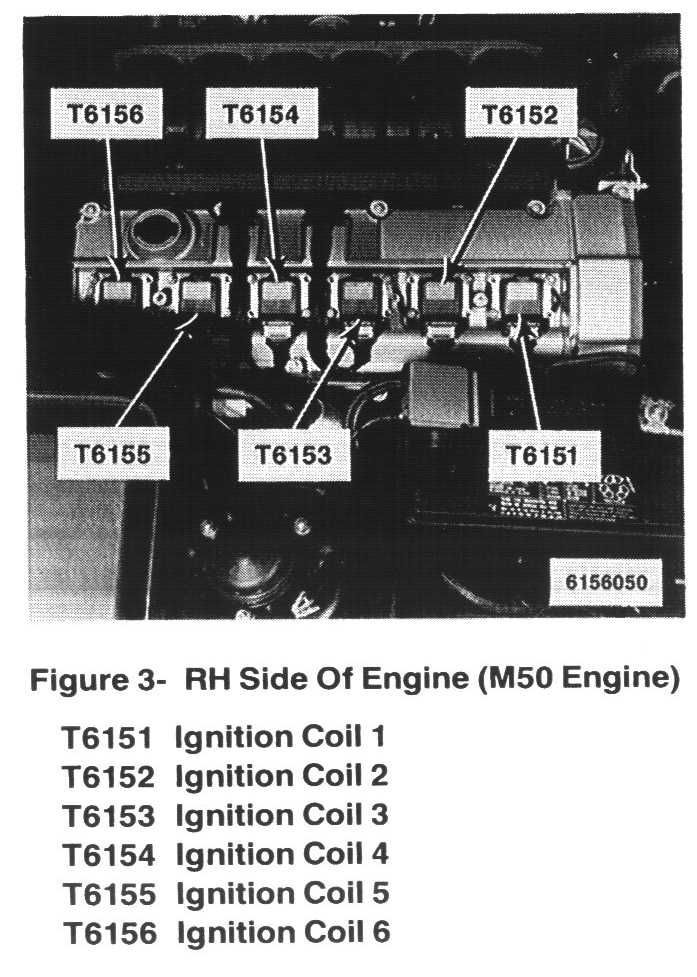

Component ID# T6151
Component Name: Ignition Coil 1
Component Location: Top RH side of engine




Component ID# T6152
Component Name: Ignition Coil 2
Component Location: Top RH side of engine




Component ID# T6153
Component Name: Ignition Coil 3
Component Location: Top RH side of engine




Component ID# T6154
Component Name: Ignition Coil 4
Component Location: Top RH side of engine




Component ID# T6155
Component Name: Ignition Coil 5
Component Location: Top RH side of engine




Component ID# T6156
Component Name: Ignition Coil 6
Component Location: Top RH side of engine
