Accessory Drives

All accessory component rotary drive is accomplished with two poly-ribbed V-type drive belts. Once correctly installed the belts are self-adjusting with automatic hydraulic tensioners and thus are maintenance free.

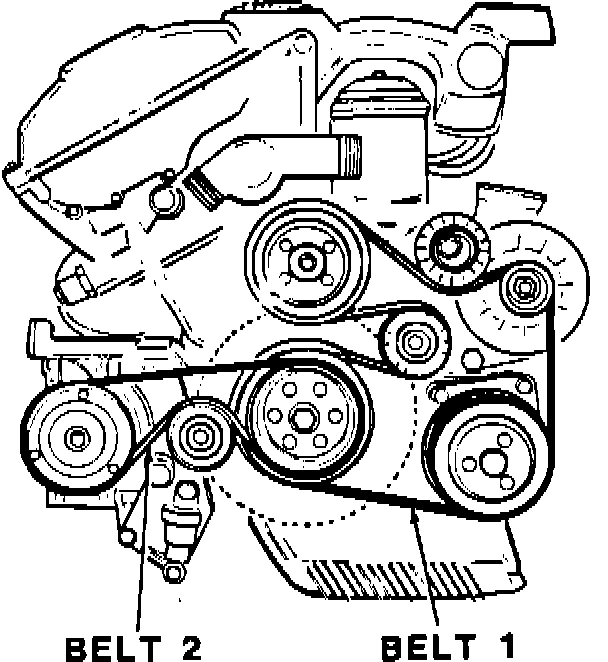

Drive belt # 1 (main V-belt):
Crankshaft to water pump (fan), alternator and power steering pump.

Drive belt # 2 (secondary V-belt); Crankshaft to air conditioning compressor.
