TXD
TXD

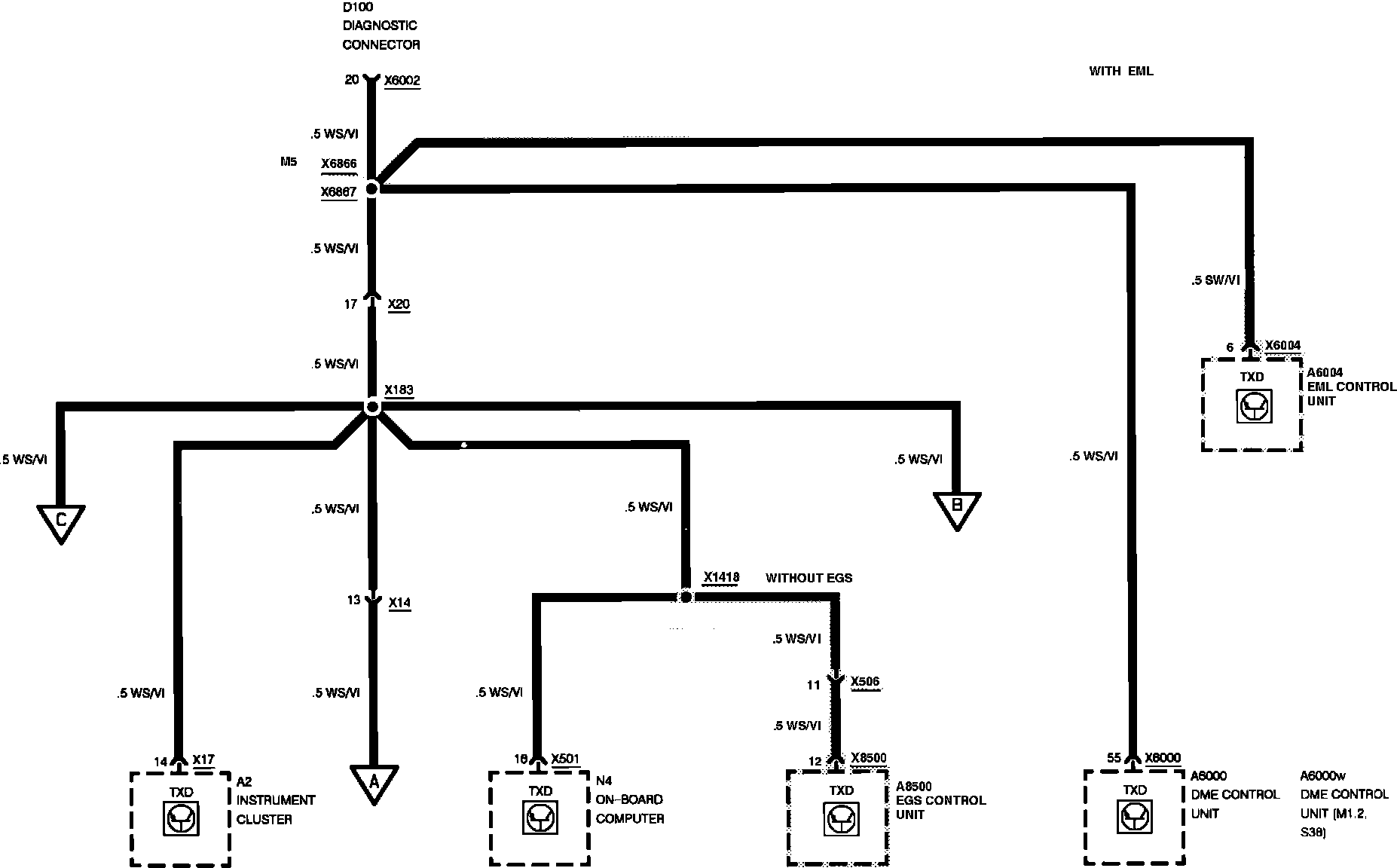

Diagnostic Link. Transmission Data Circuit (TXD):

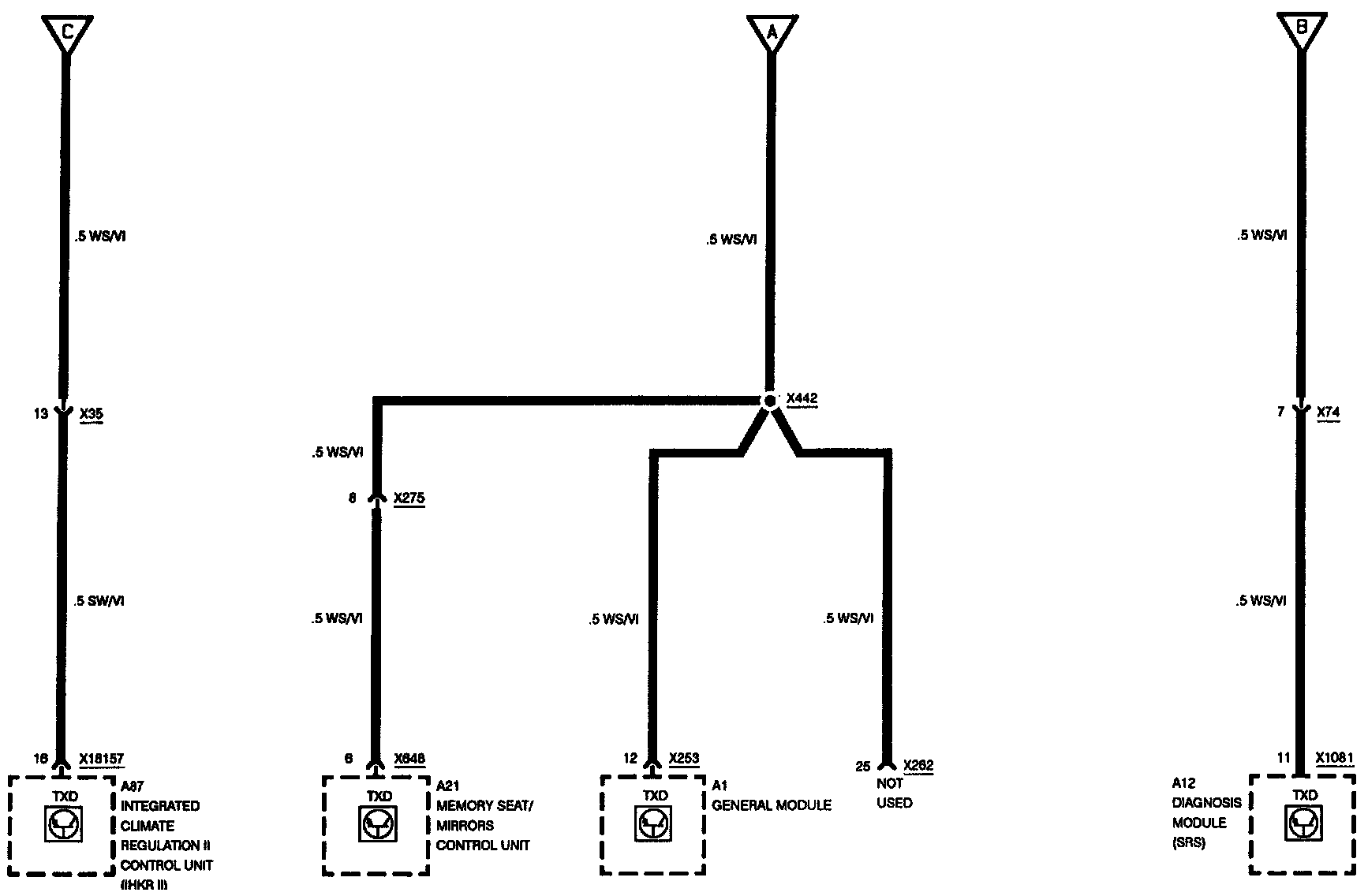

Diagnostic Link. Transmission Data Circuit (TXD):
