Timing Chain Guide: Service and Repair

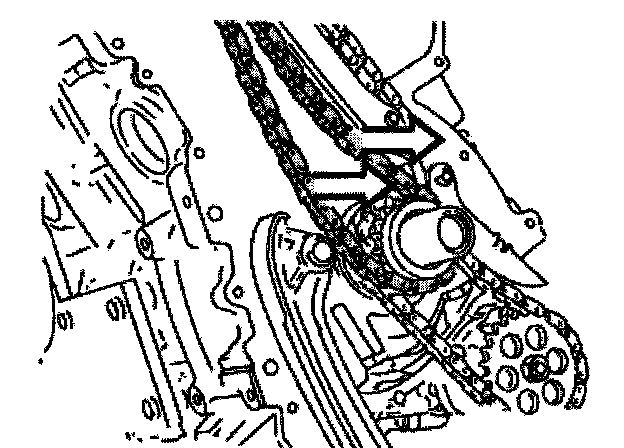

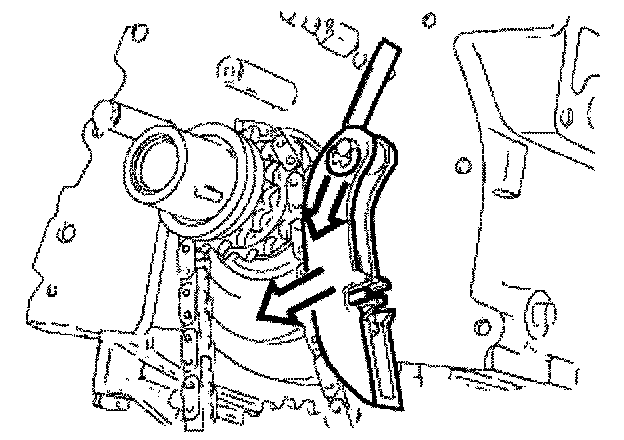

Fold tensioning rail in downwards direction. Lift out timing chain.

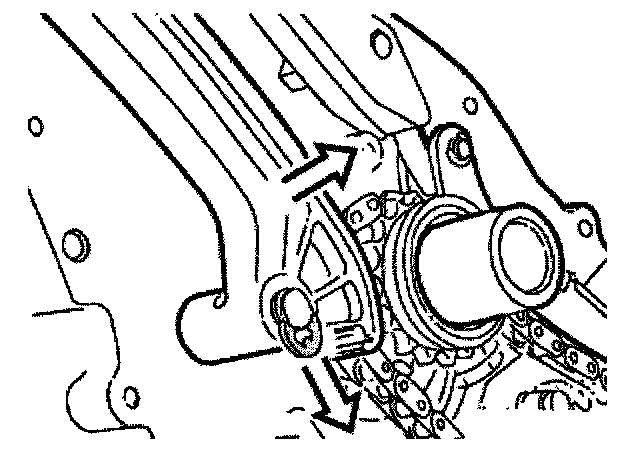

Remove tensioning rail.

Removing Chain Guide:

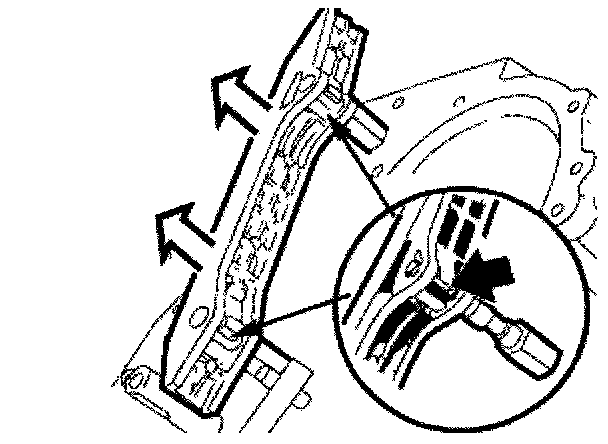

Lift upper and lower retainers. Pull chain guide off.

Remove chain tensioner for oil pump.

NOTE: The chain tensioner is no longer installed.
The chain tensioner may also be omitted in repair work
