Engine - Microfiche Repair Instructions Change

91bmw09

Group 11
Engine


Bulletin Number
11 05 91 (3308)


Woodcliff Lake, NJ
July 1991
Service Engineering


SUBJECT: Repair Instructions Microfiche

MODEL: E34 (M50 engine)





Situation: Please be advised of the following change to the Repair instructions microfiche.

Description Date Part Number

Repair Instructions for 12/90 01 51 9 770 421
Constr. Groups No. 11

Frame: 11-50/6

Illustration number 50 11 081 U is incomplete (third holddown bolt not shown) and should be disregarded during repairs.

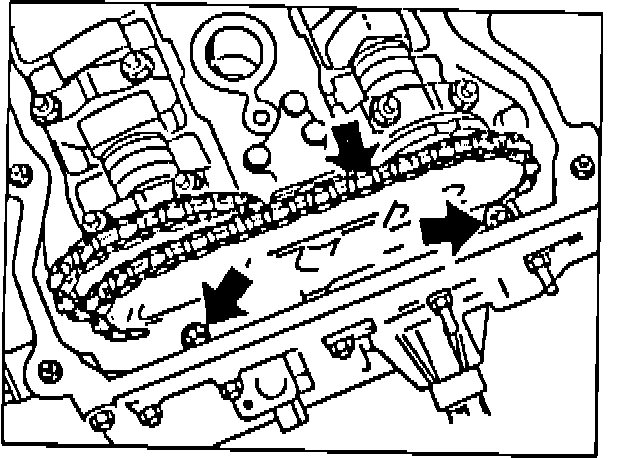

The illustration below shows the correct location of the three holddown bolts and should be referred to during repairs.
