Power Distribution Box, Front

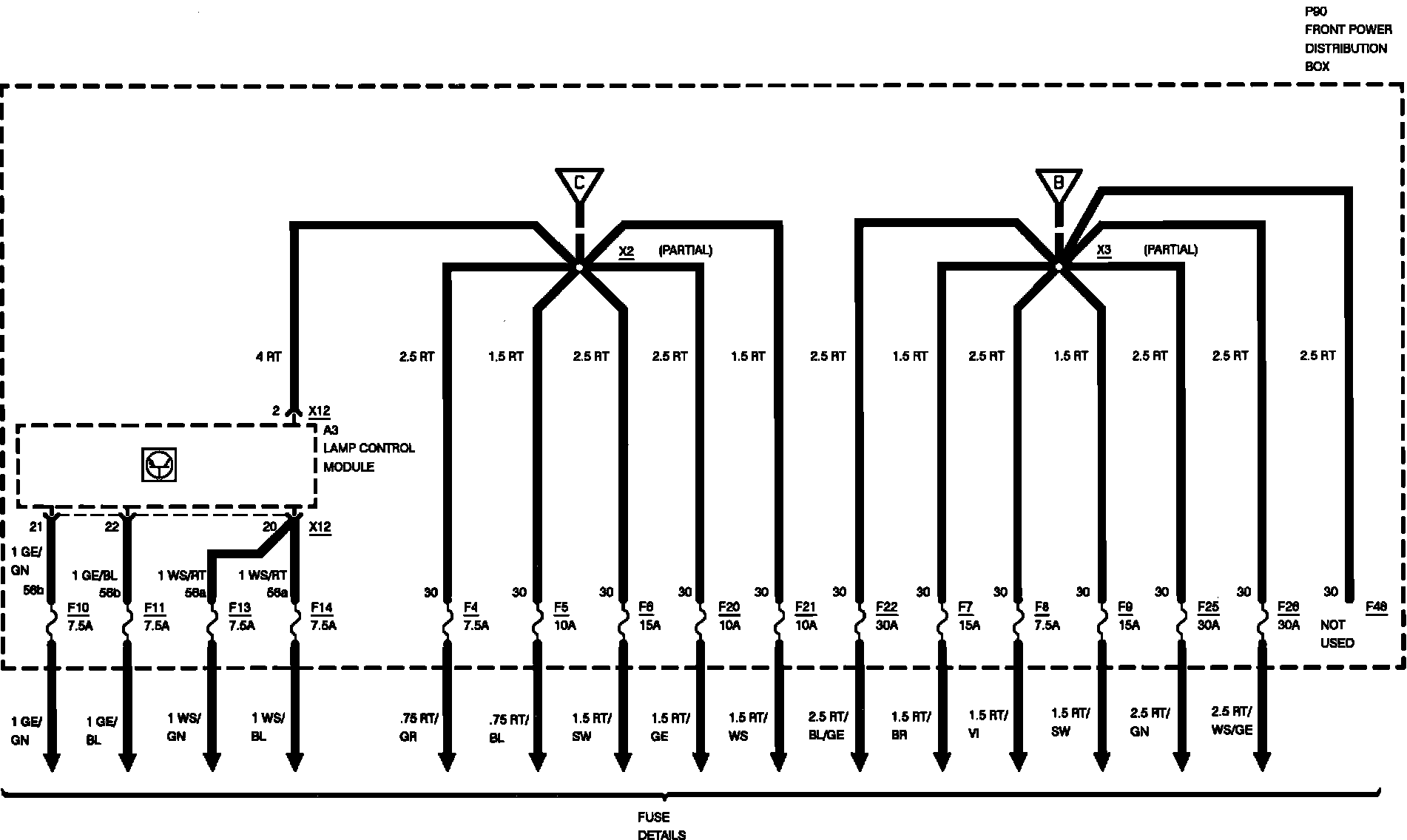

Power Distribution:

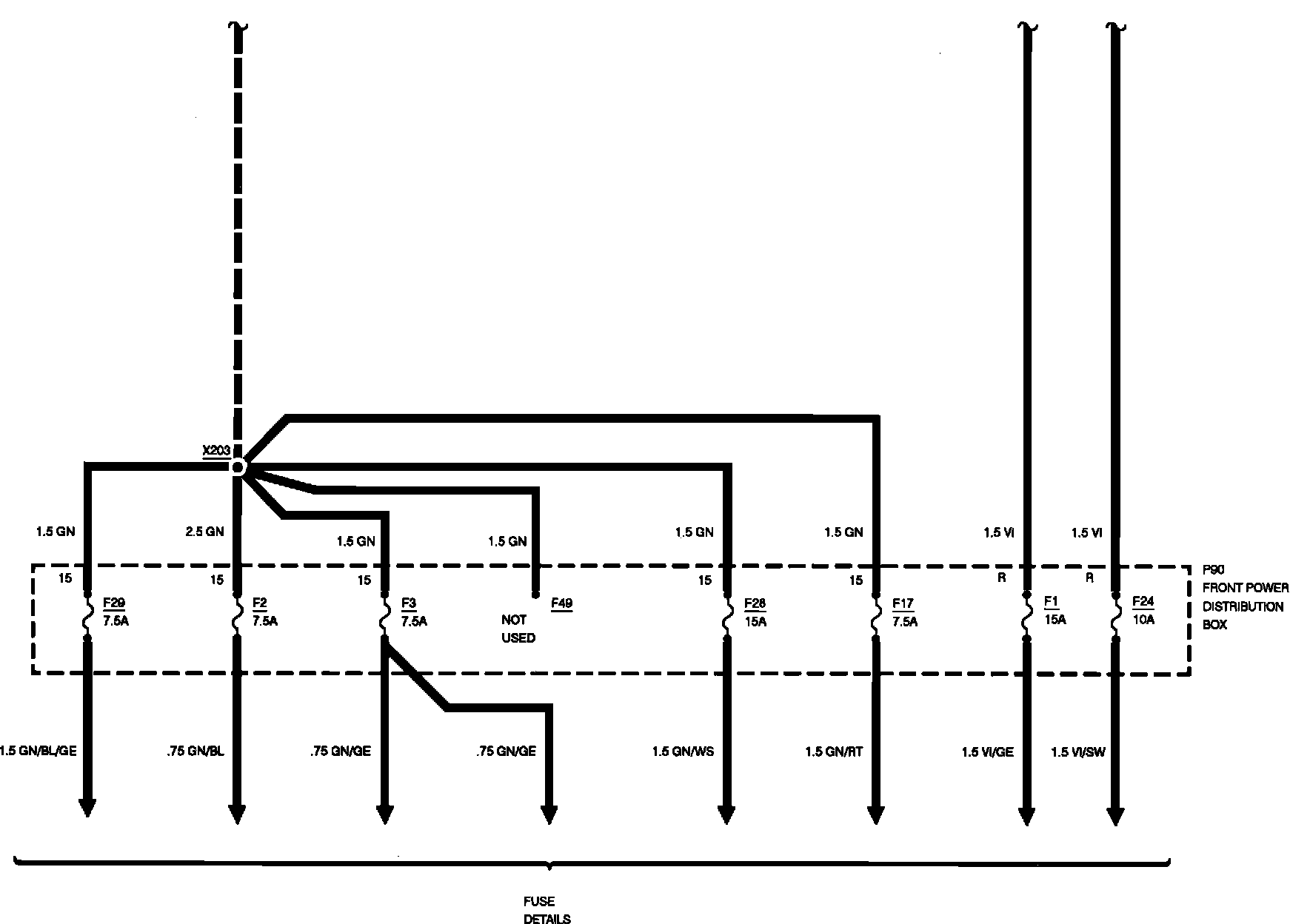

Power Distribution:

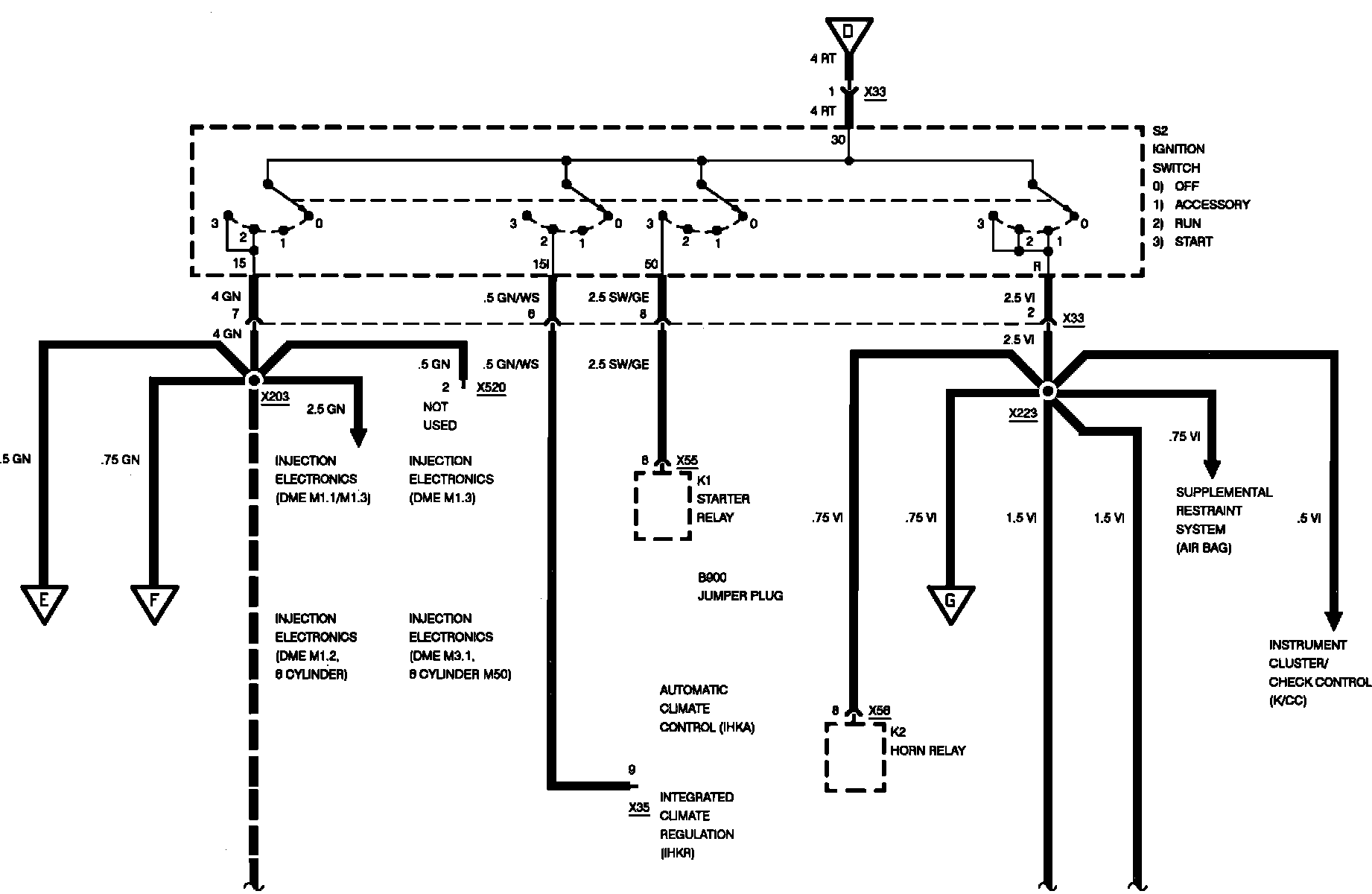

Power Distribution:

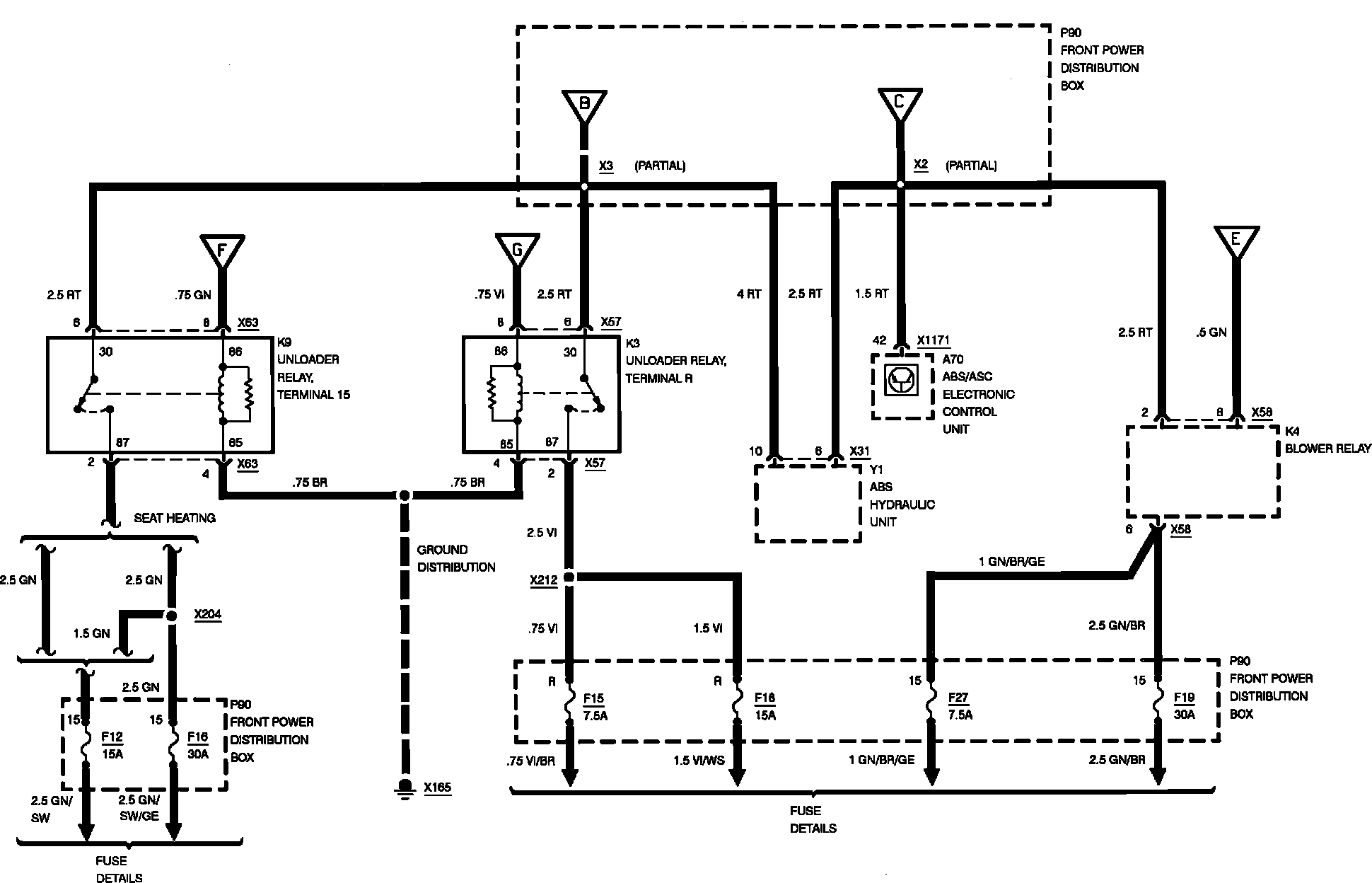

Power Distribution:
