Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

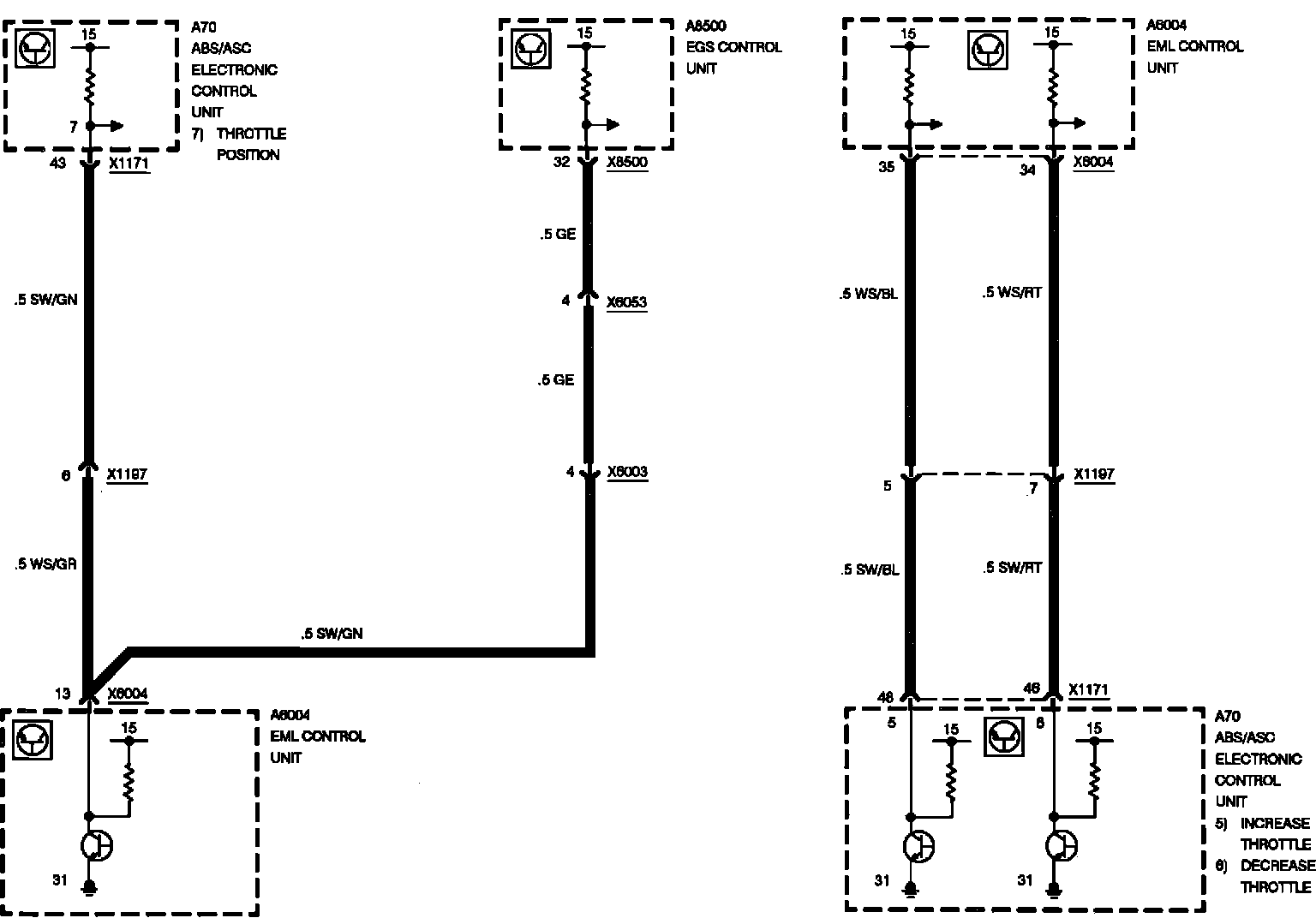

Automatic Stability Control (ASC)
Automatic Stability Control (ASC)

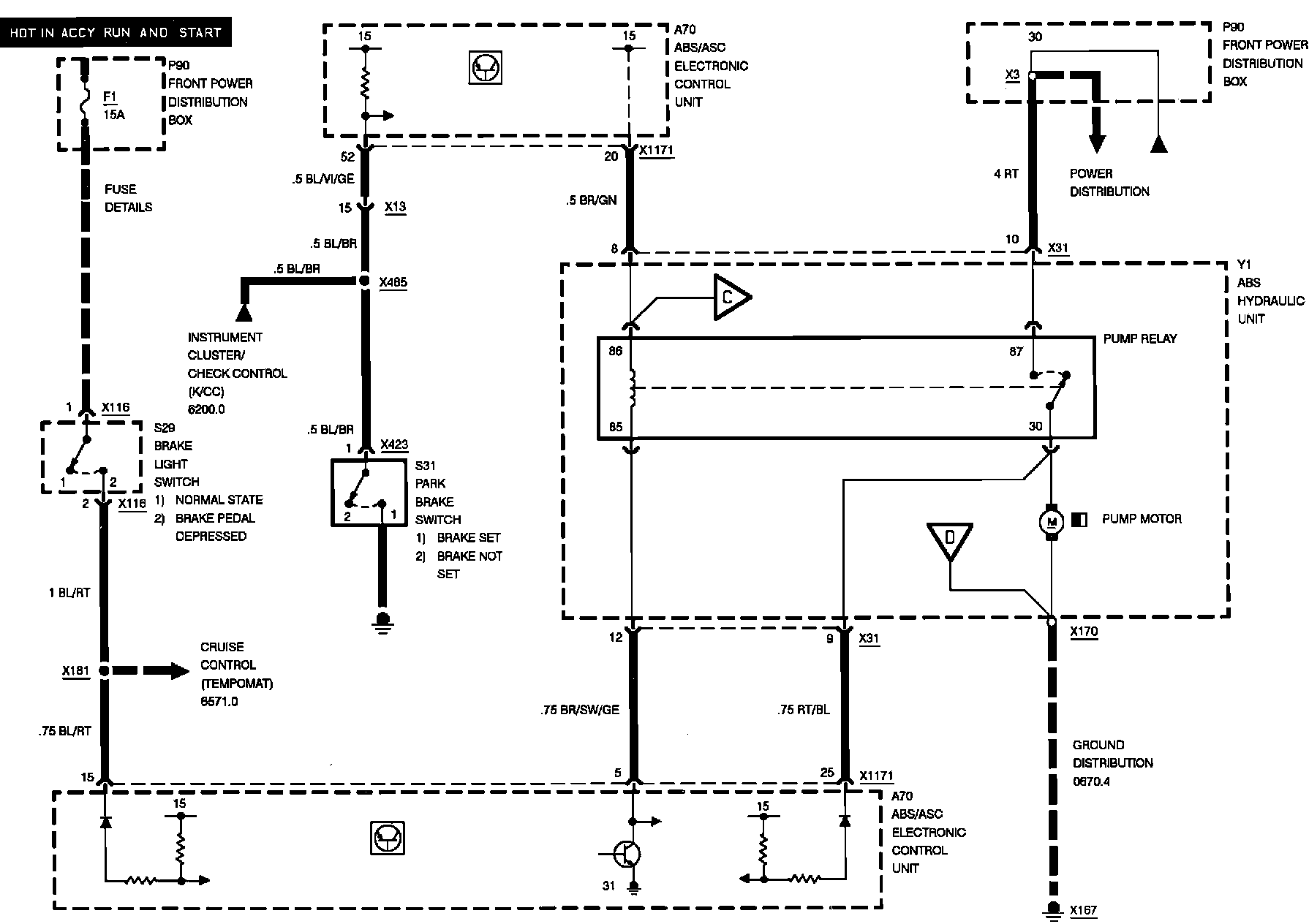

Anti-Lock Brakes (ABS):

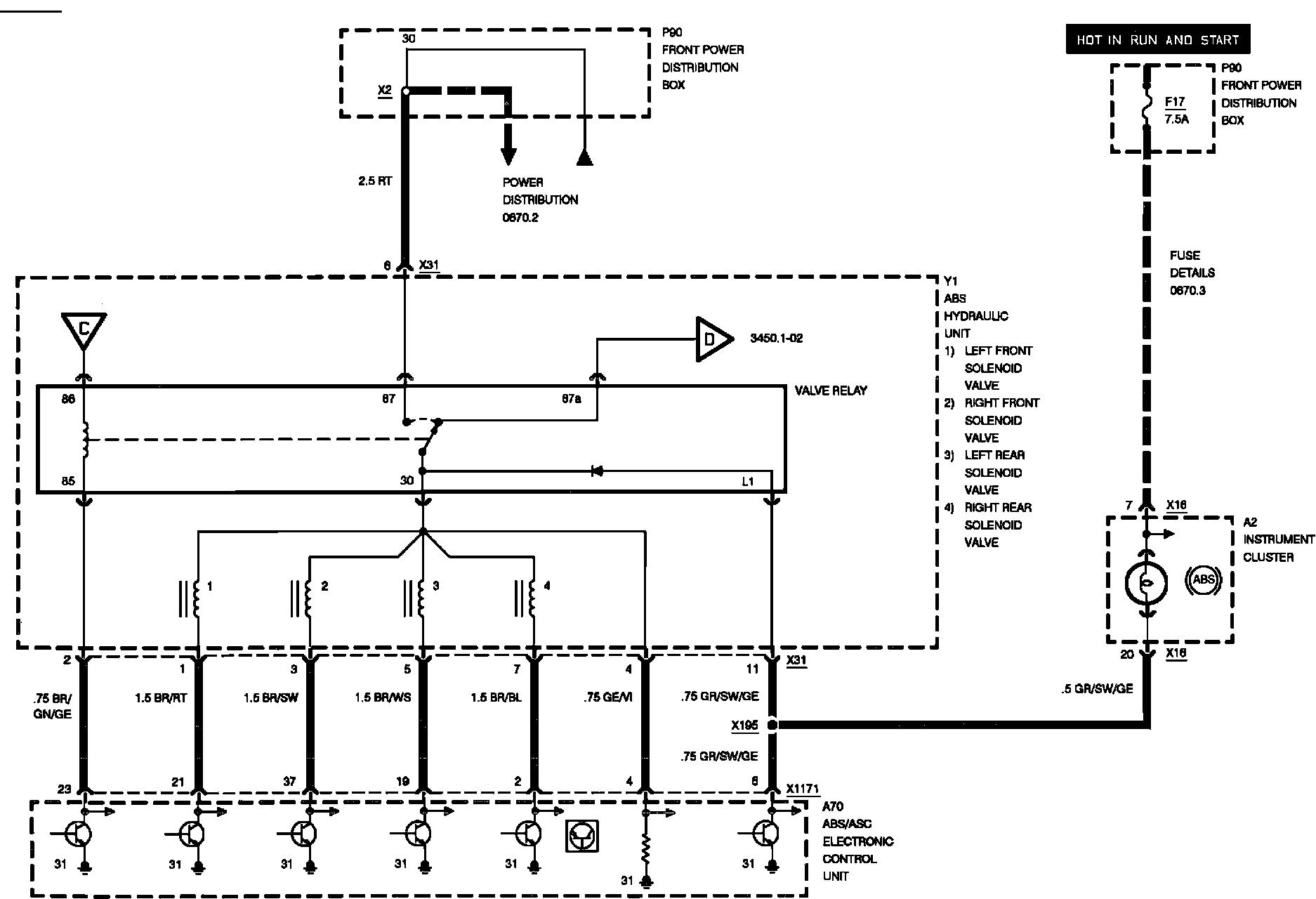

Anti-Lock Brakes (ABS):

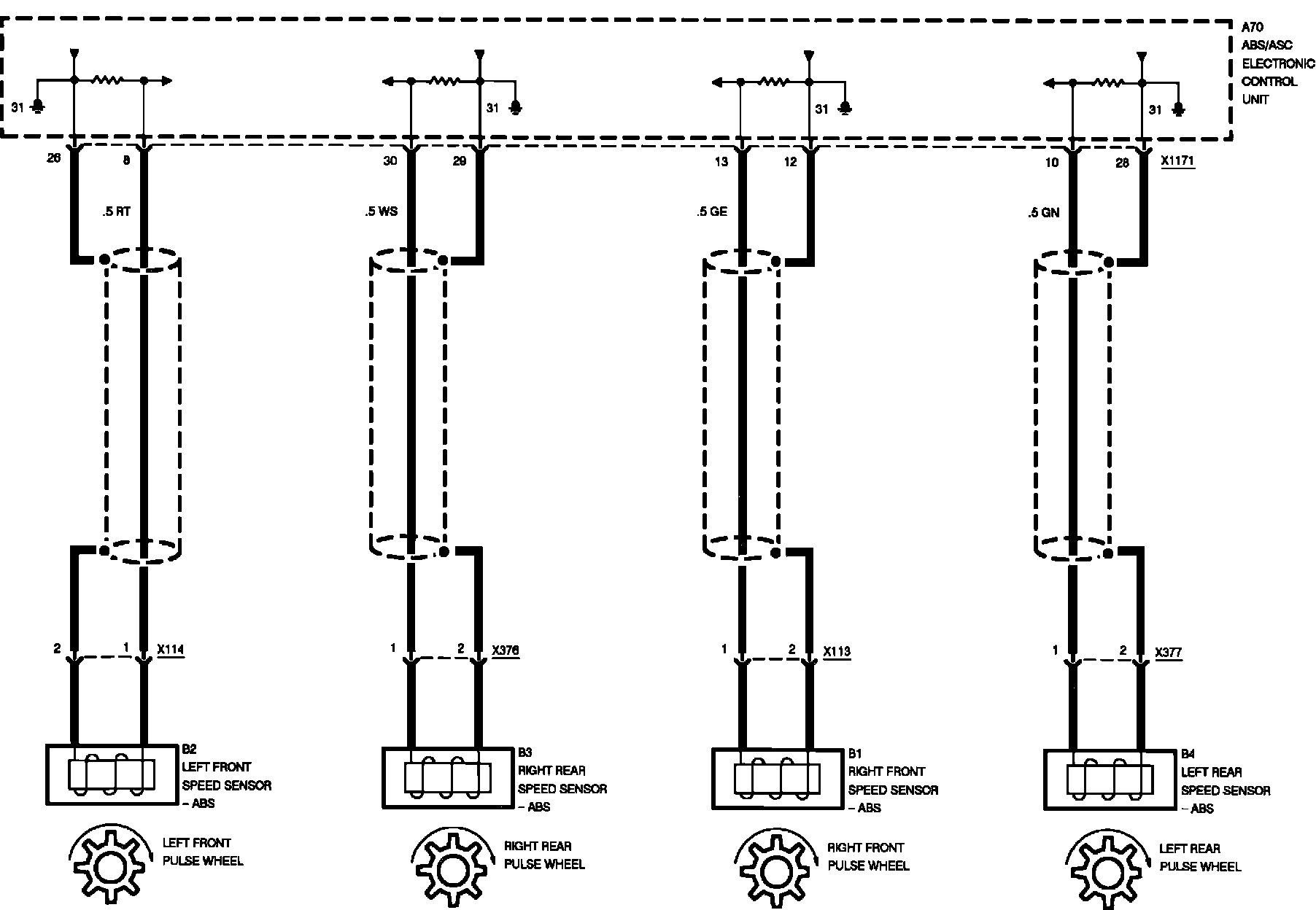

Anti-Lock Brakes (ABS):

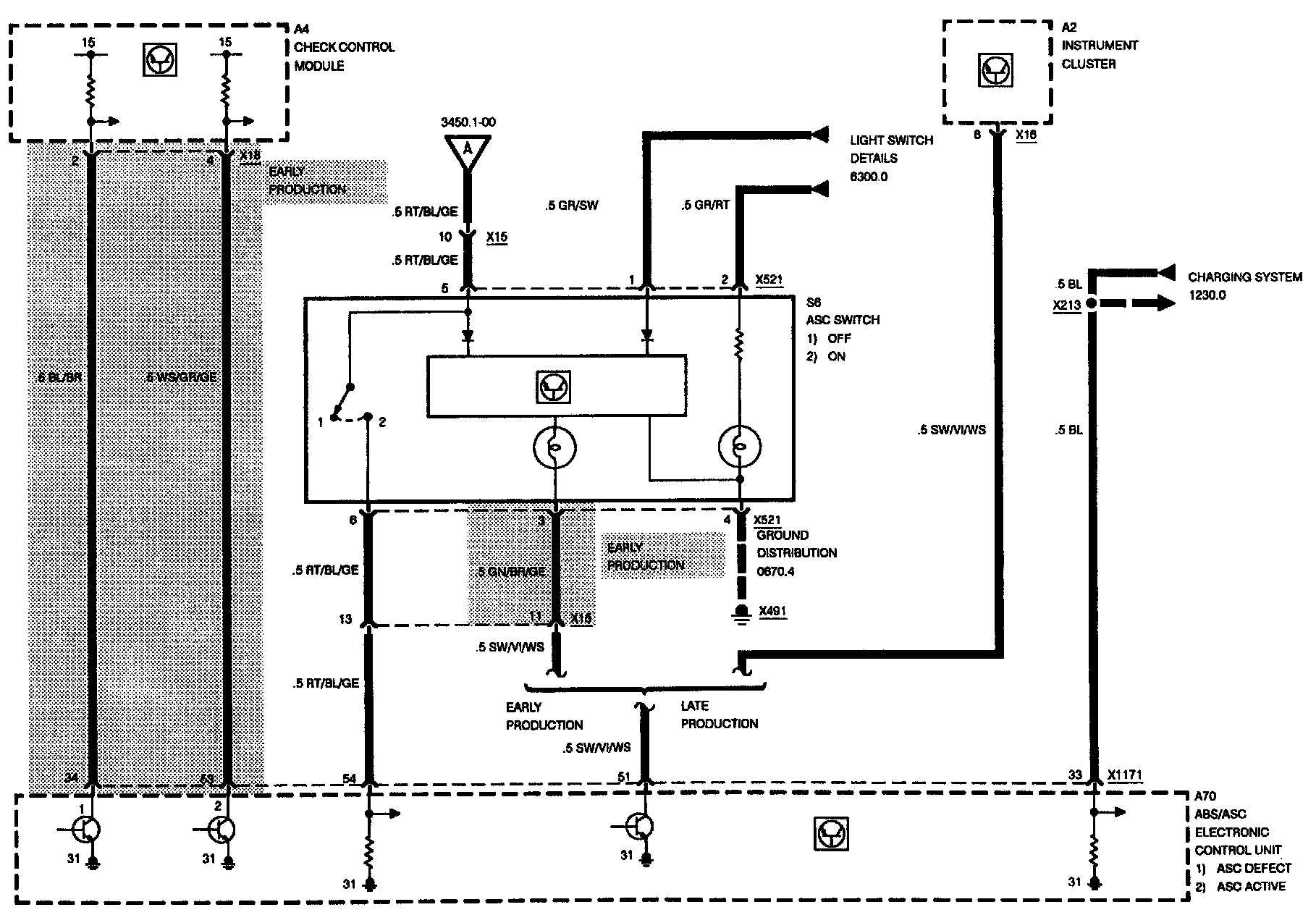

Anti-Lock Brakes (ABS):
Anti-Lock Brakes (ABS):

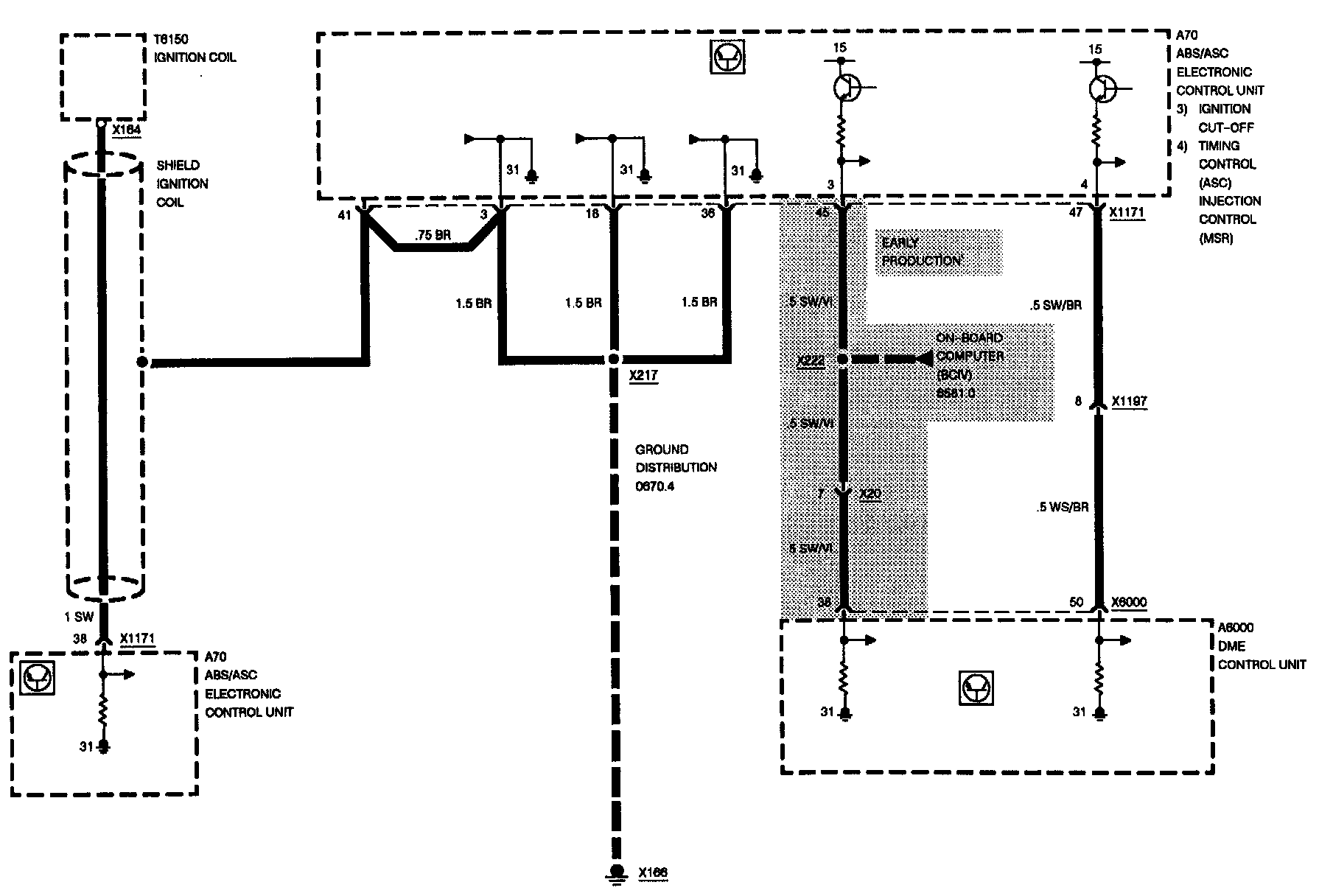

DME Interface:
EML Interface:
