525i (E34) L6-2494cc 2.5L DOHC (M50)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Memory Positioning Systems
>>
Memory Positioning Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

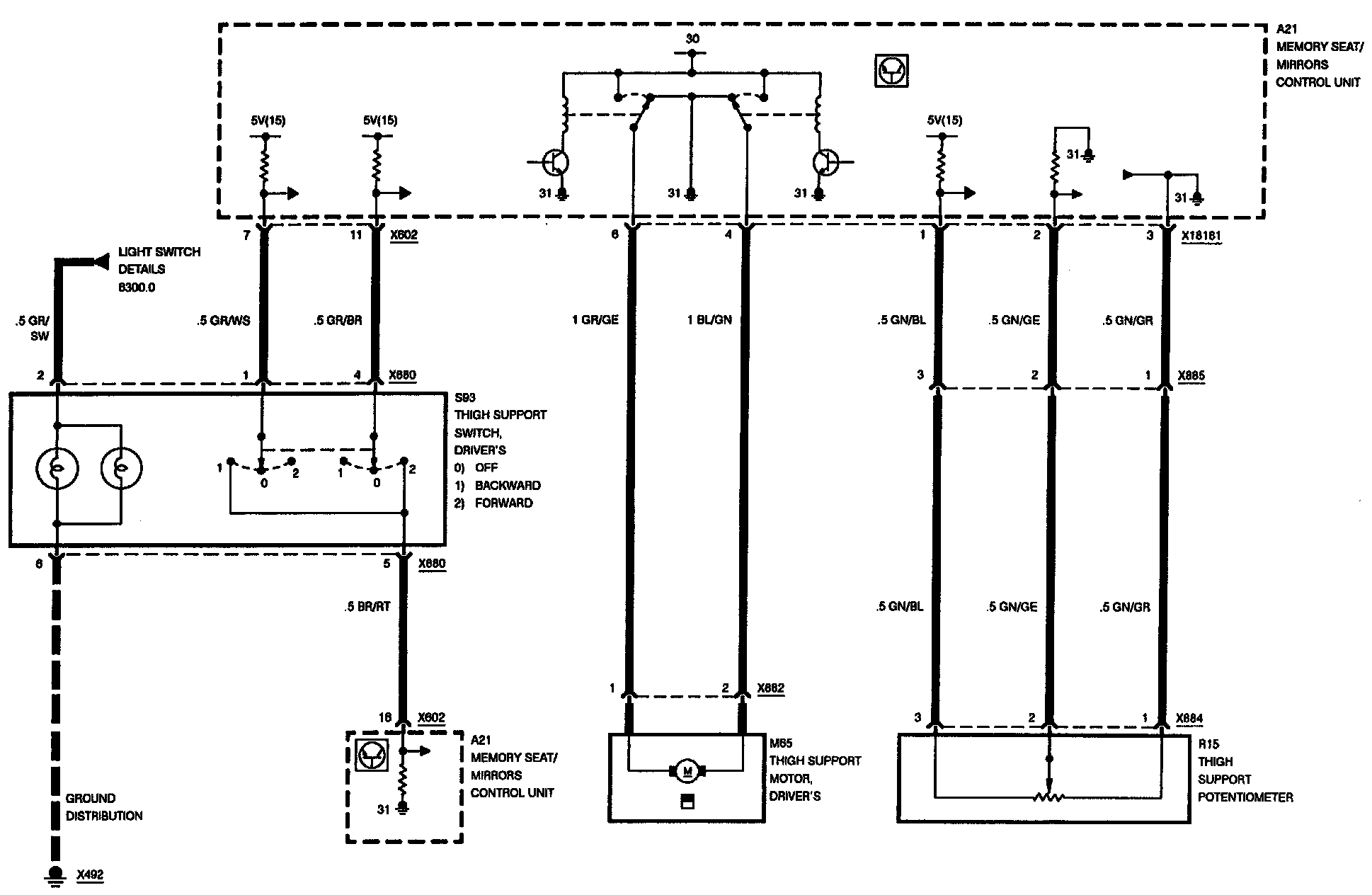

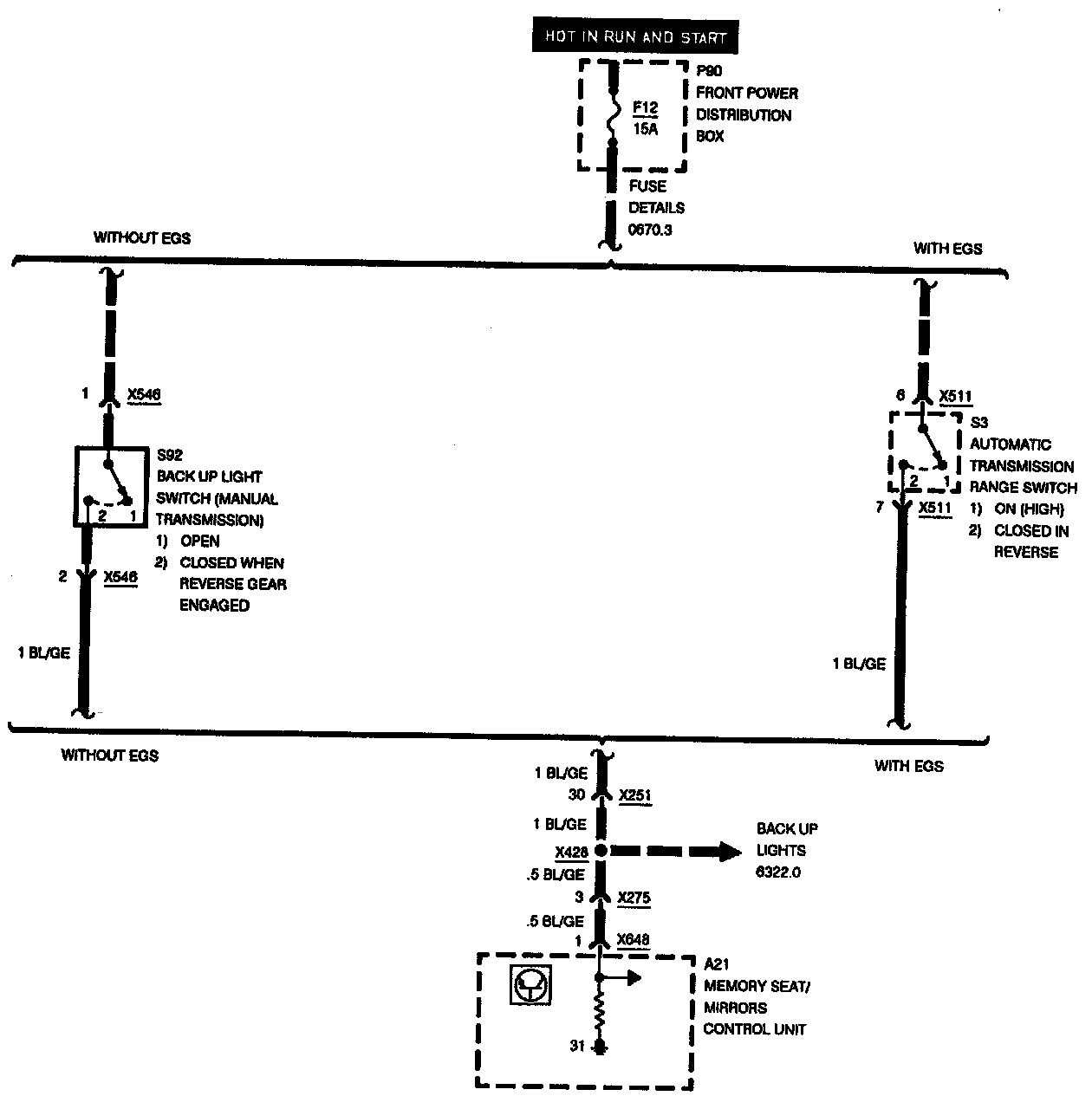

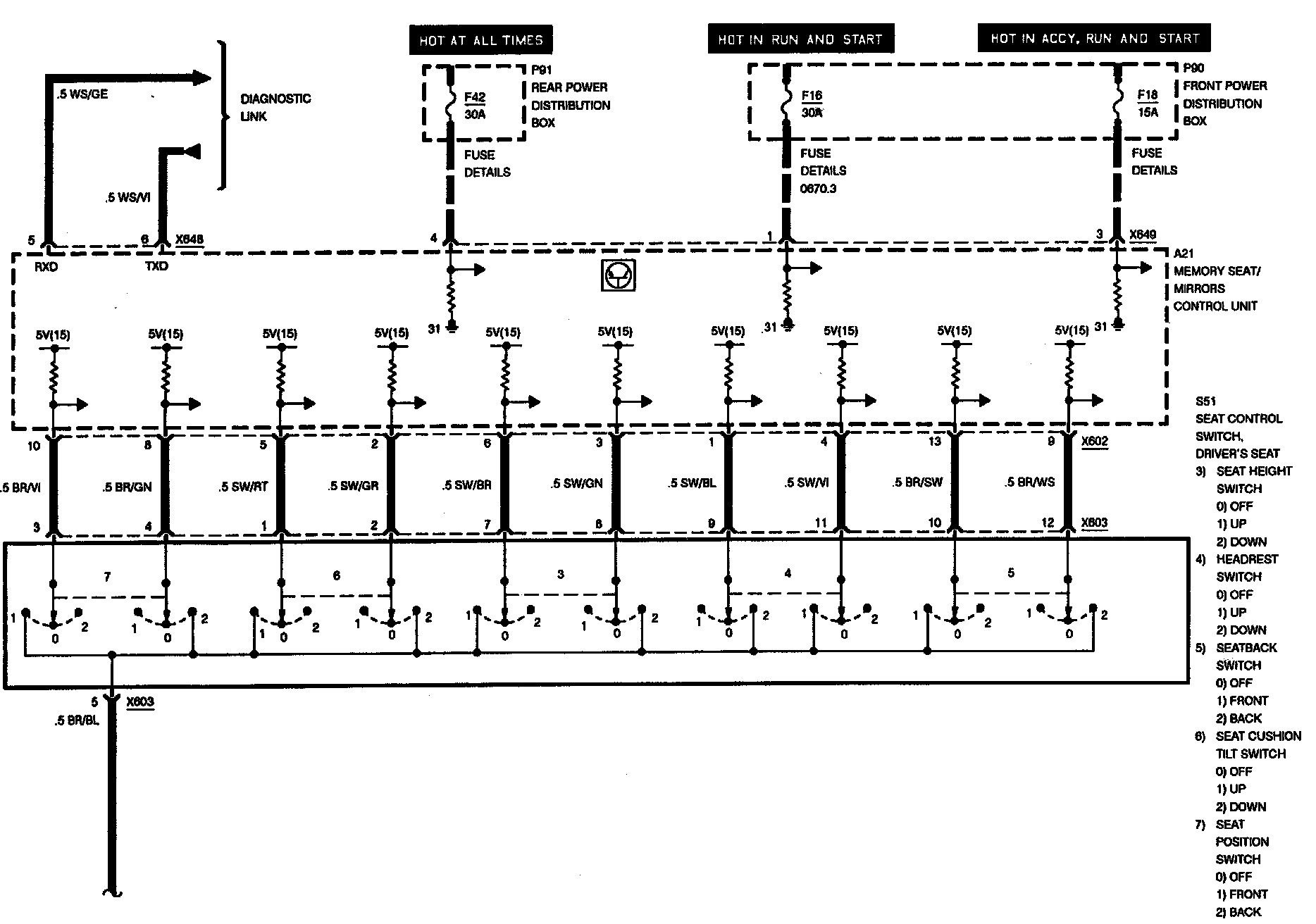

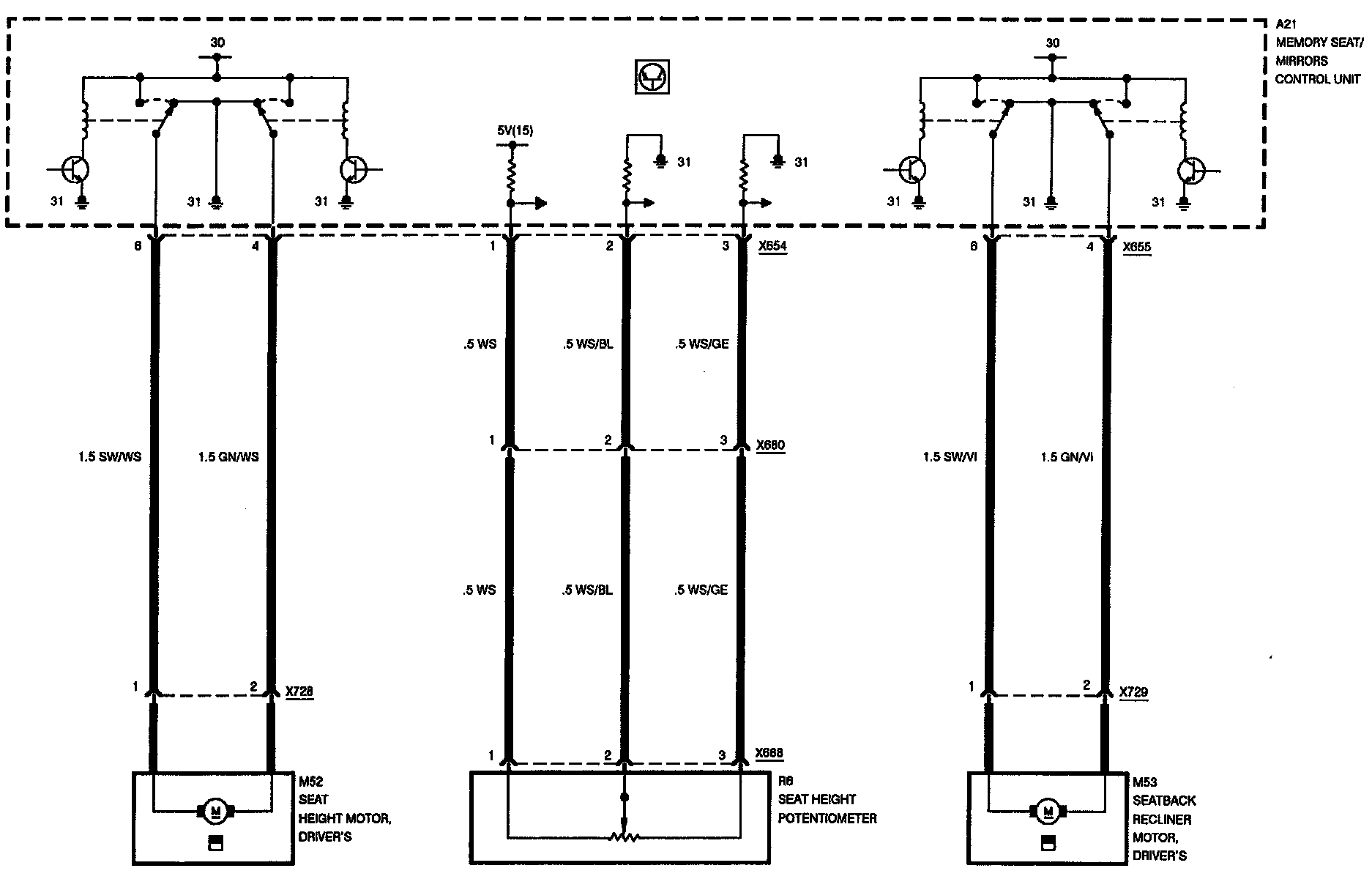

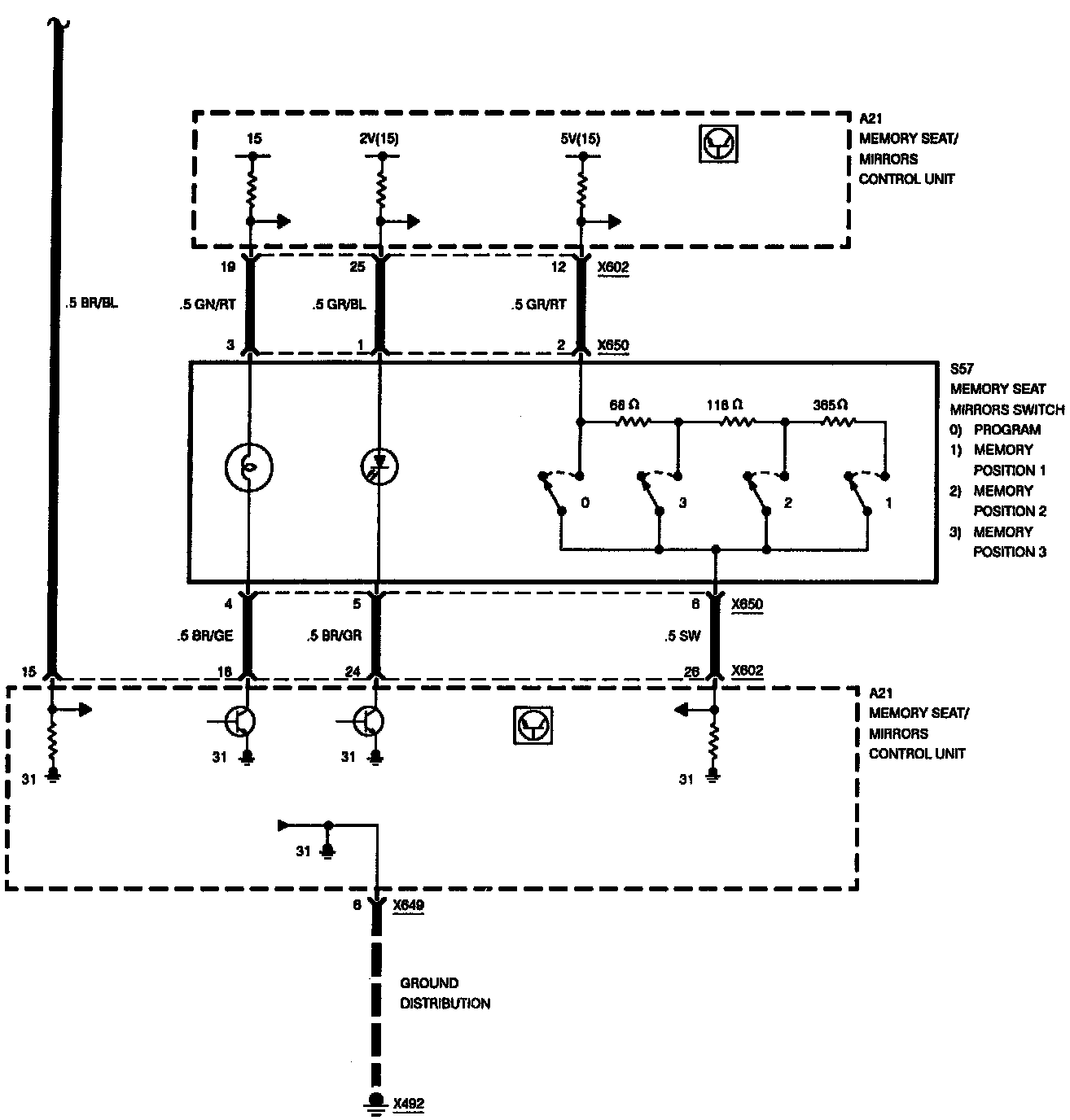

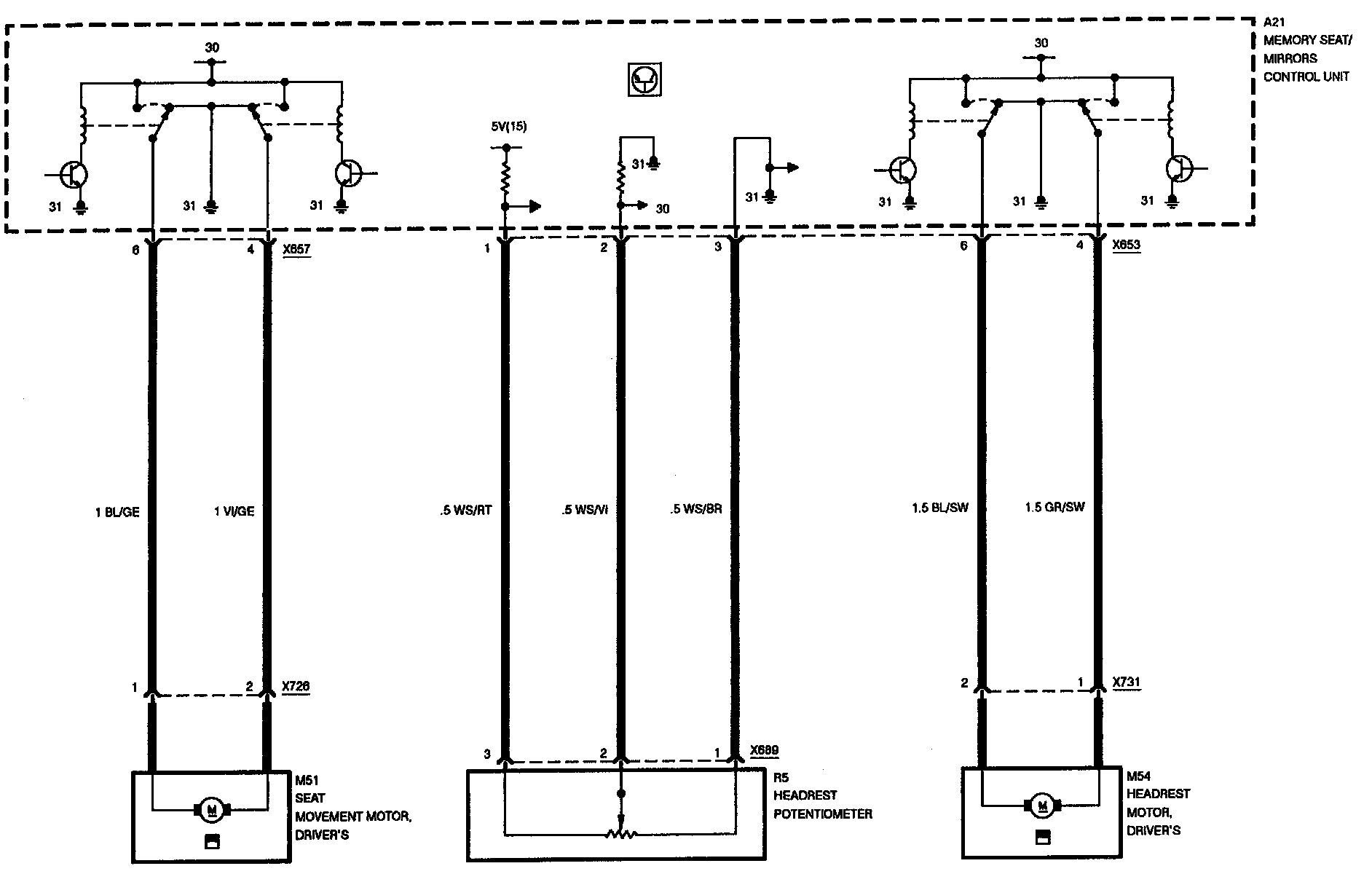

Seat:
Seat:
Seat:
With Sport Seat:

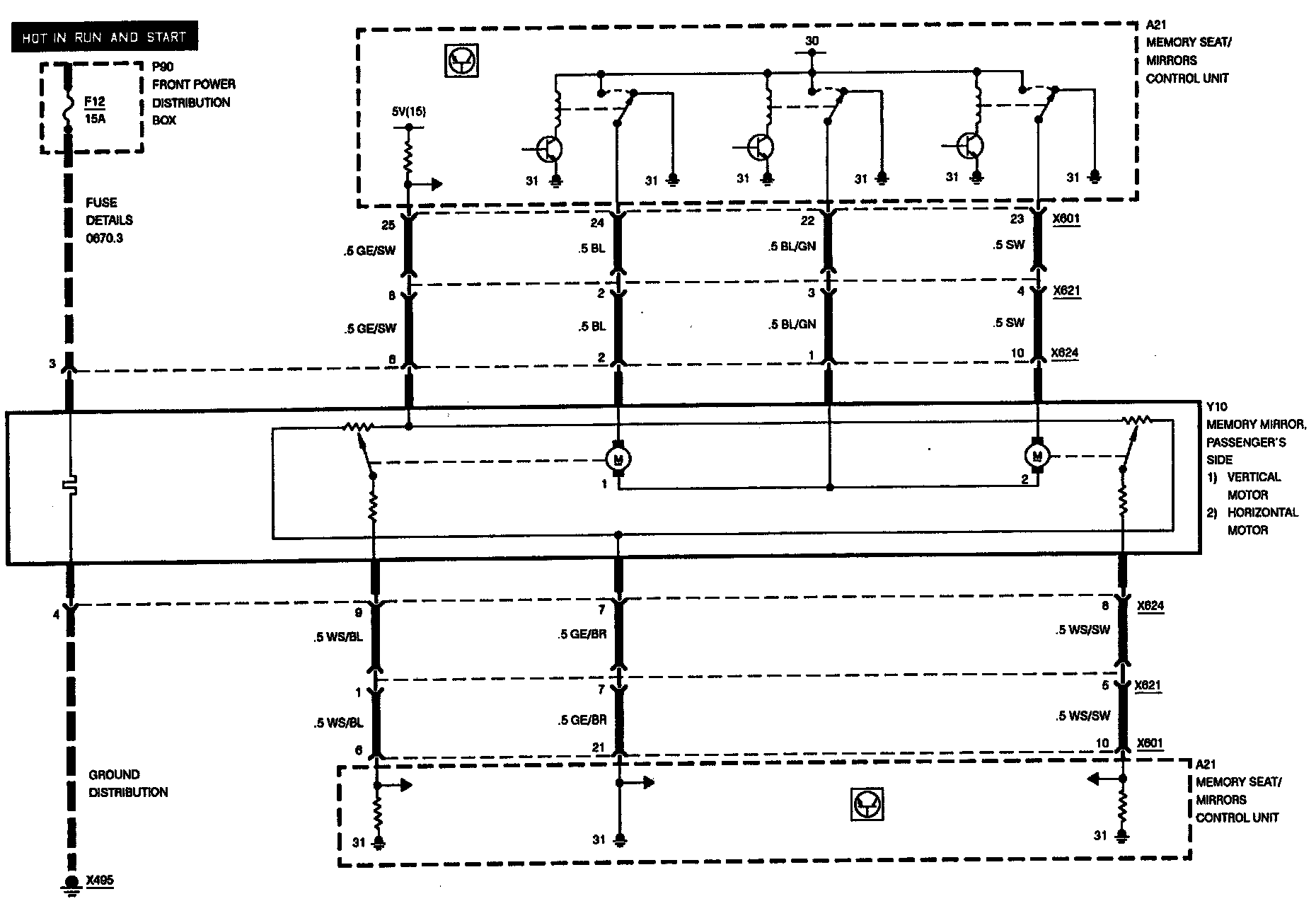

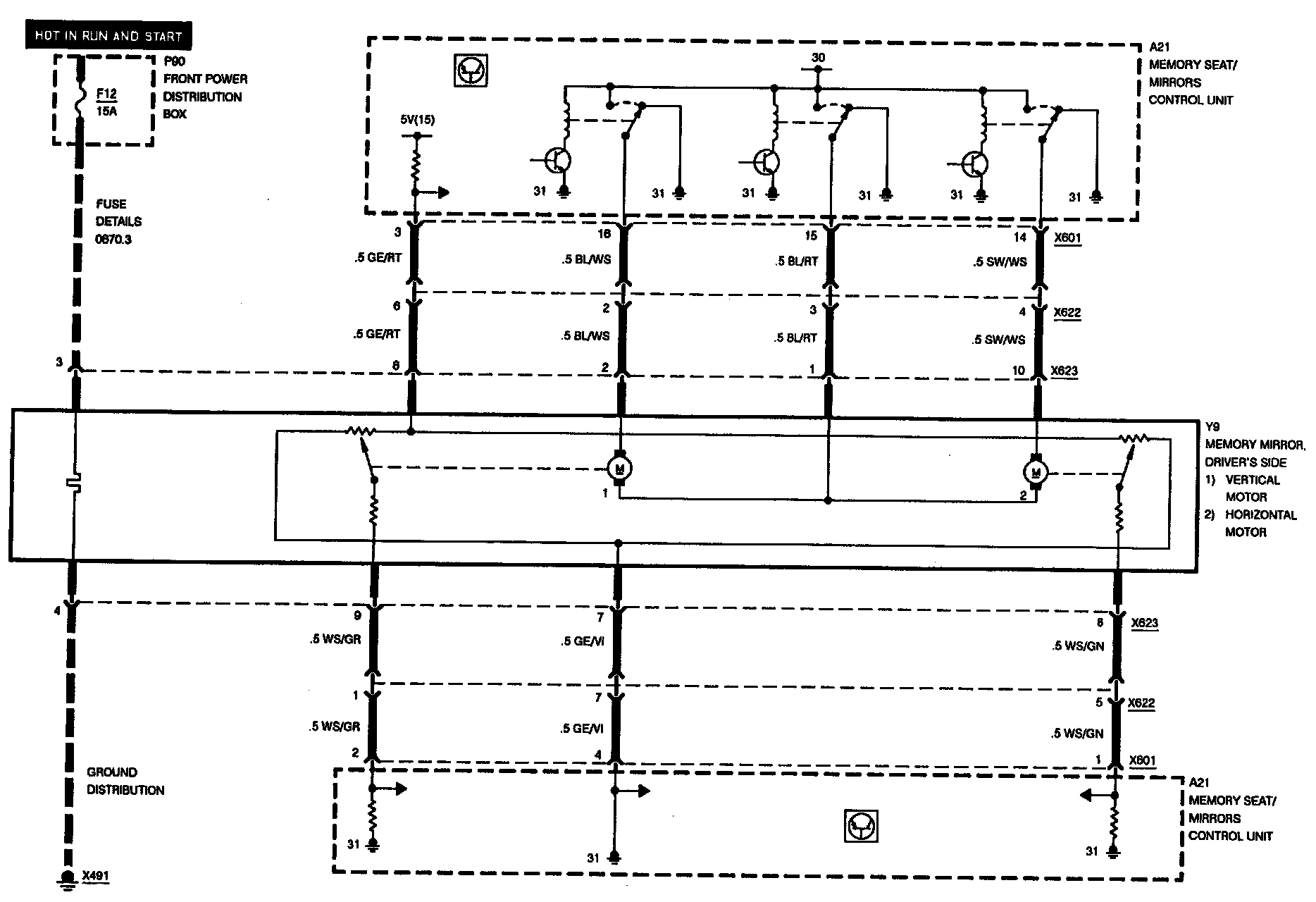

Mirror:
Mirror:
