Home
>>
BMW
>>
1991
>>
325i (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views/Pin Assignments
>>

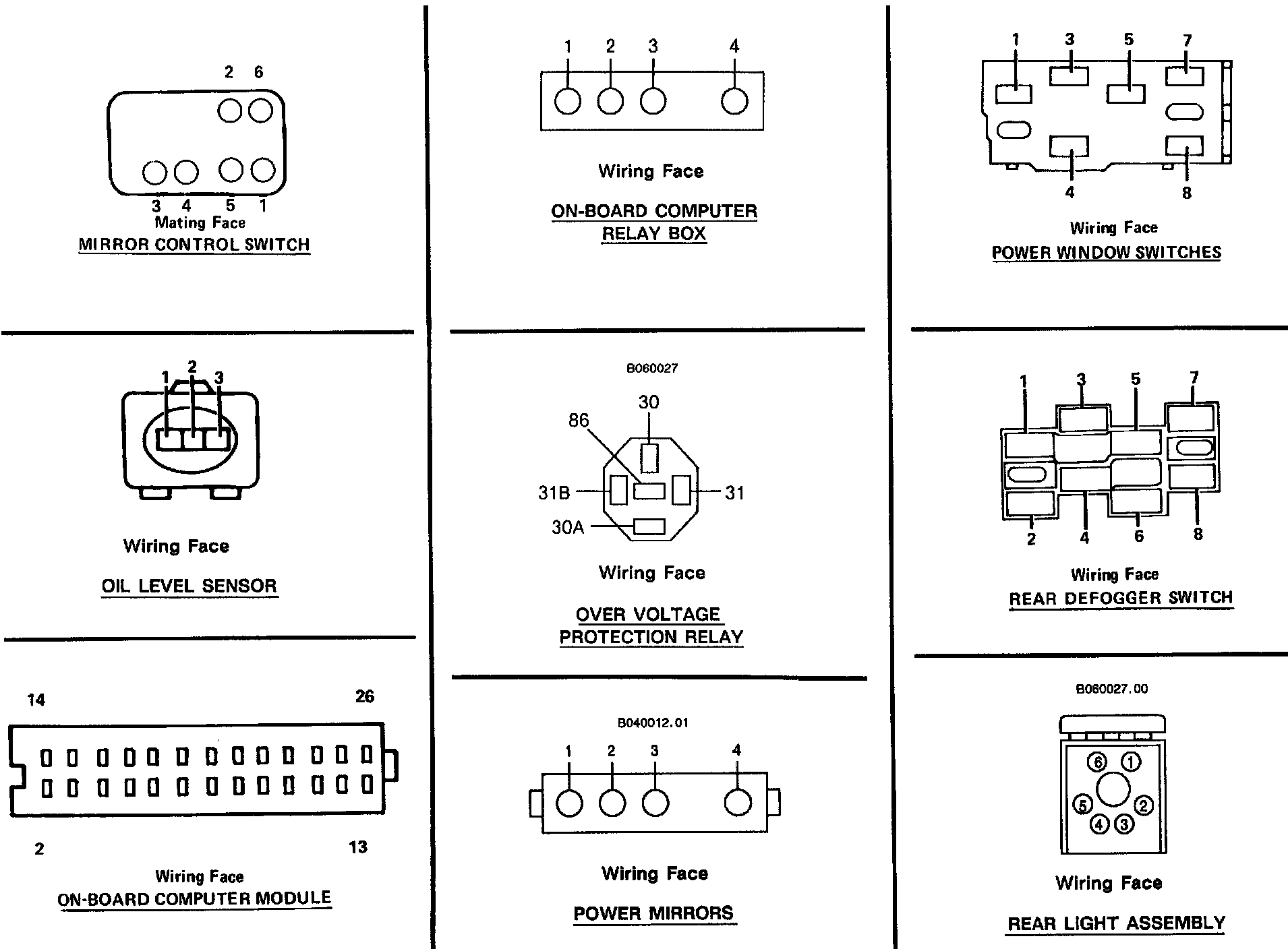

Mirror Control Switch ... Rear Light
Mirror Control Switch ... Rear Light
Mirror Control Switch ... Rear Light:
