BMW
>>
1991
>>
325i (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views/Pin Assignments
>>

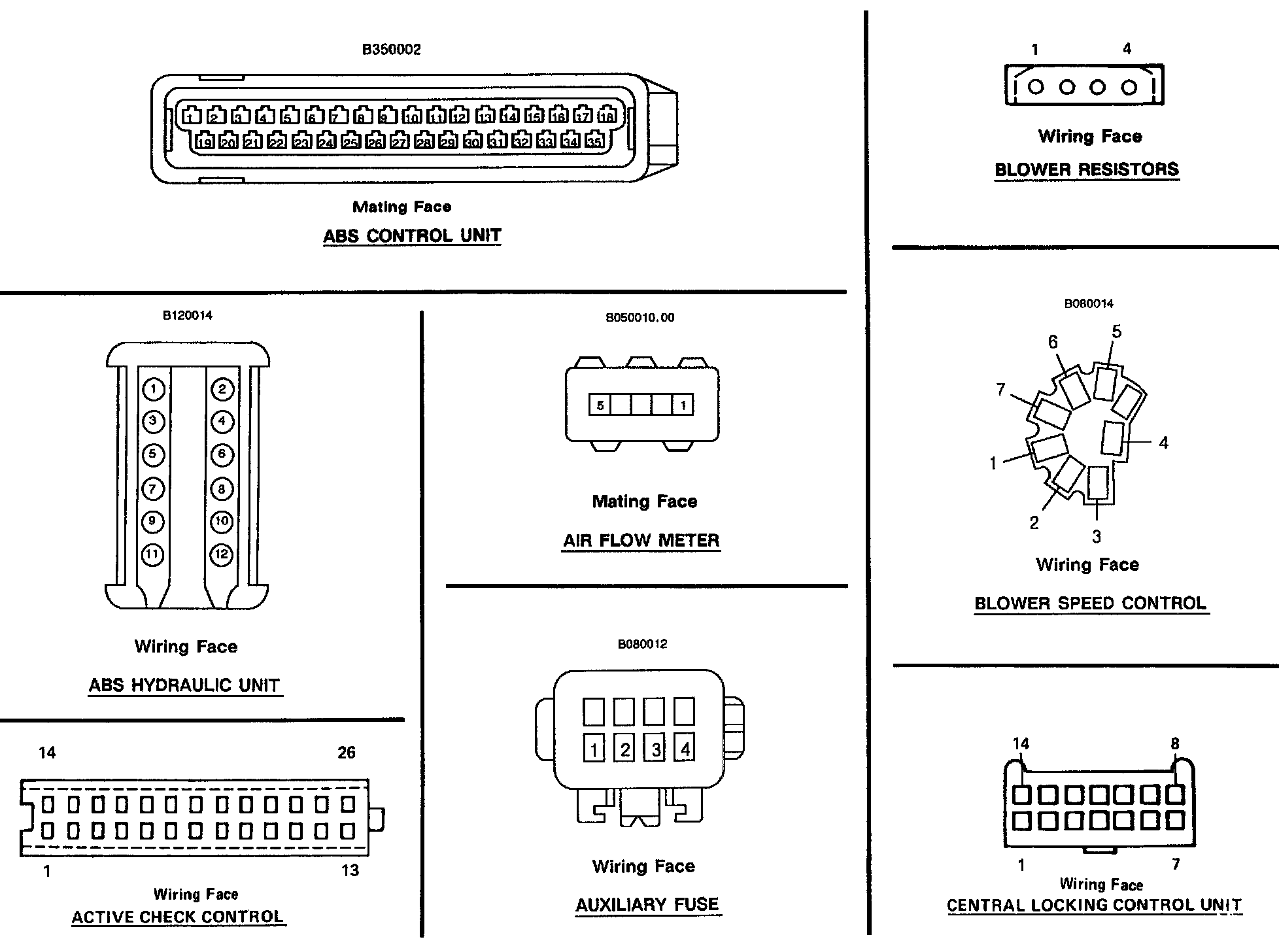

ABS Control Unit ... Central Locking
ABS Control Unit ... Central Locking
ABS Control Unit ... Central Locking:
