750iL (E32/2) V12-4988cc 5.0L SOHC (M70)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Pump
Fuel Pump

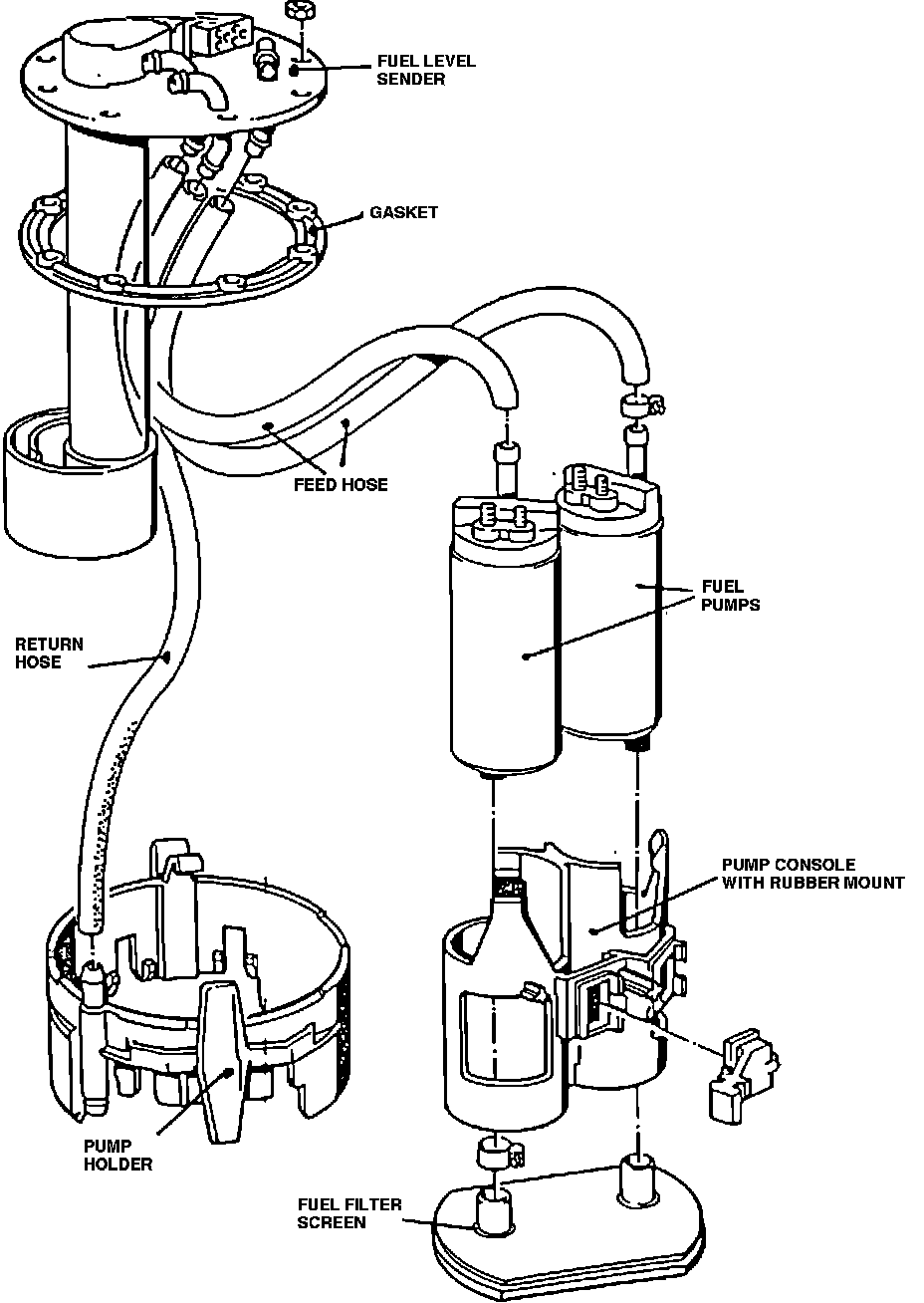

Fig. 44 Fuel Pumps:
