ABS/ASC Control Unit - Manual Corrections
90BMW01Group 00 Maintenance and General Hints
Bulletin Number 00 05 90 (3016) Page 1 of 2
Woodcliff Lake, NJ January 1990 Service Engineering
SUBJECT: ETM Corrections
MODEL: 1990 735i/735iL/750iL Vehicles (produced 6/89 to present)

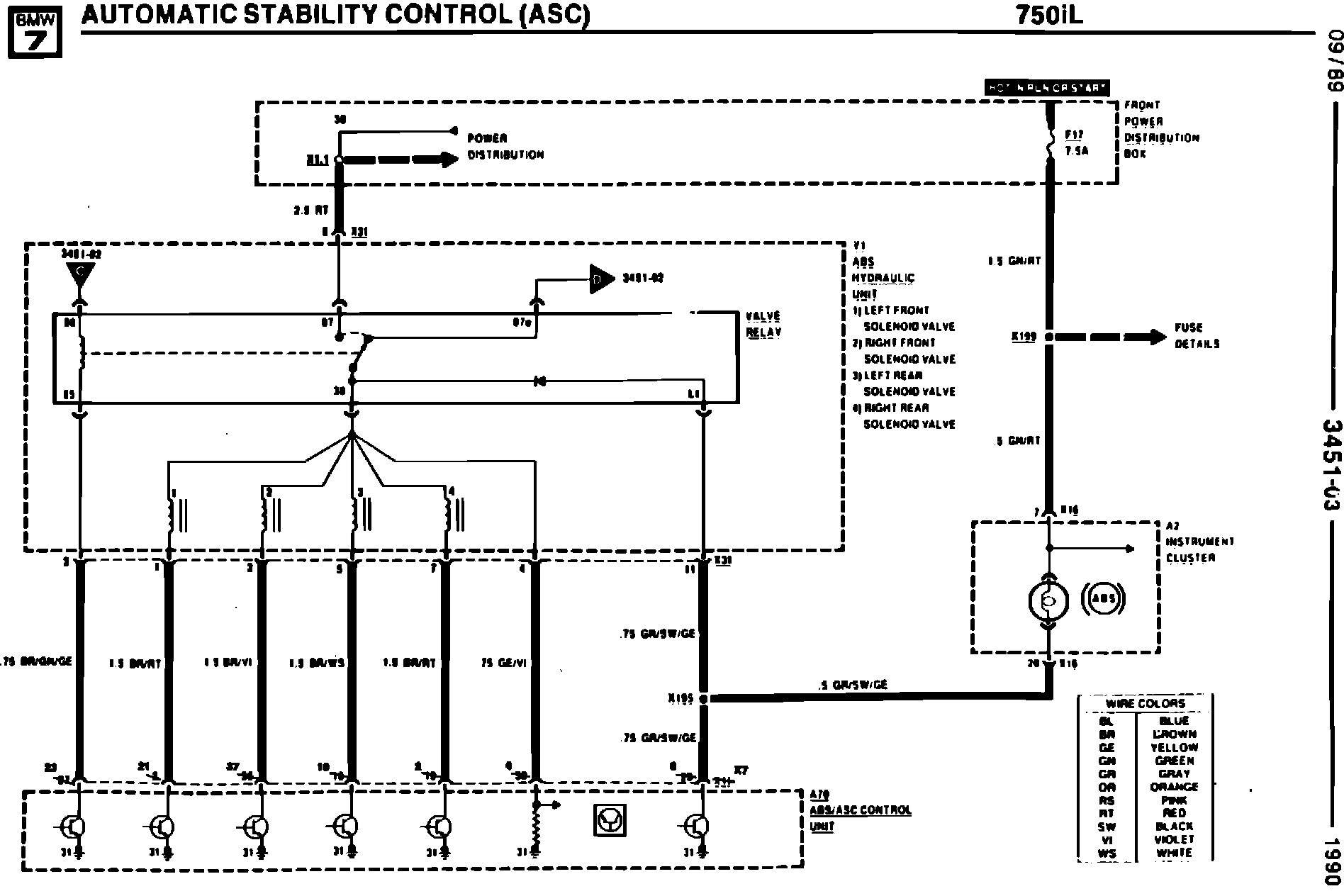

The pin and connector numbers for the A70 ABS/ASC Control Unit are incorrectly labeled on page 3451-03 of the above mentioned ETM (P/N 89 89 1 000 316).
Please make the corrections to this page as indicated on the back side of this S.I.
These corrections will be incorporated into a supplement scheduled later for this year.
