RXD & Grounds

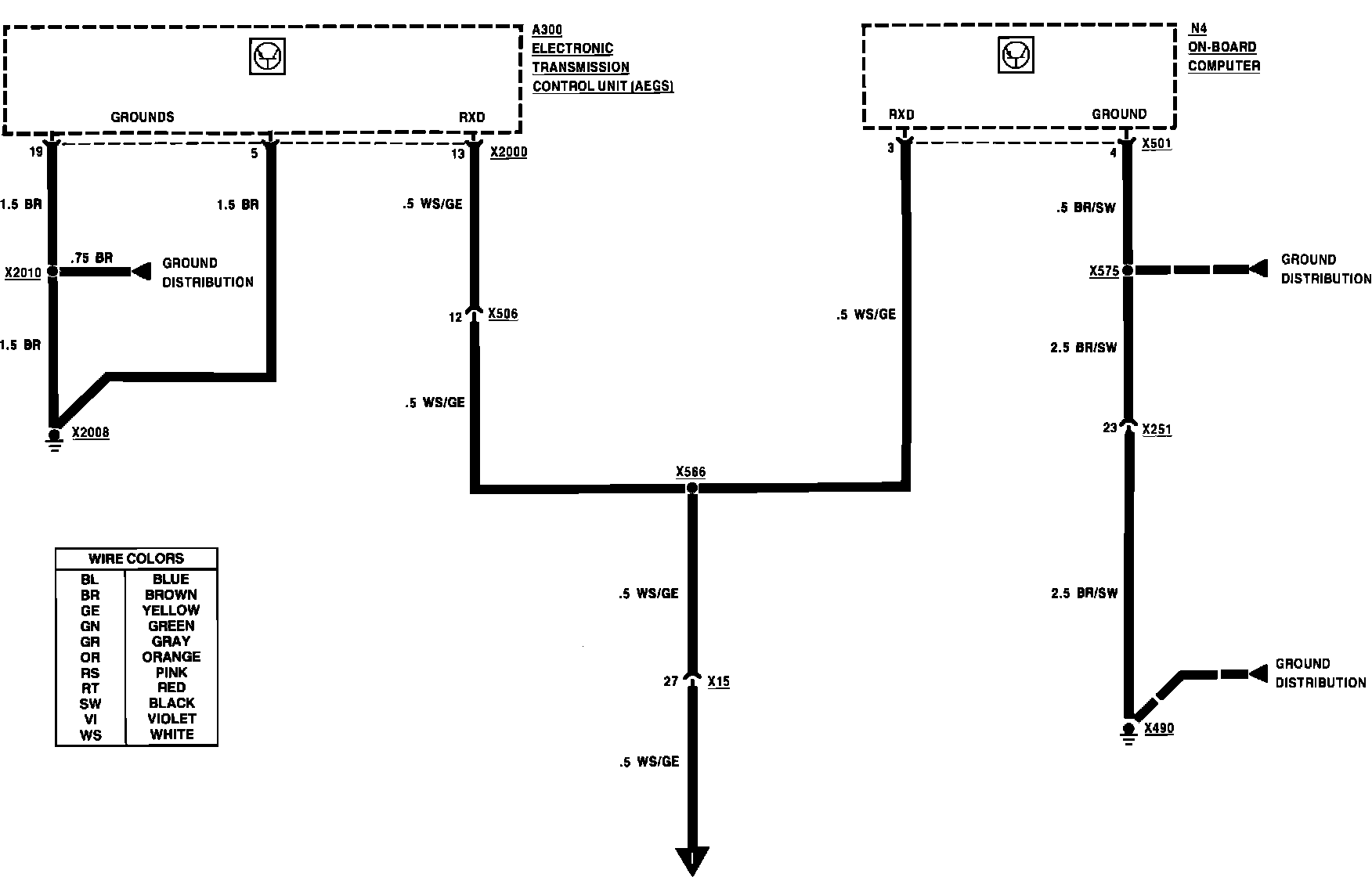

Diagnostic Link (RXD & Grounds). Wiring Diagram:

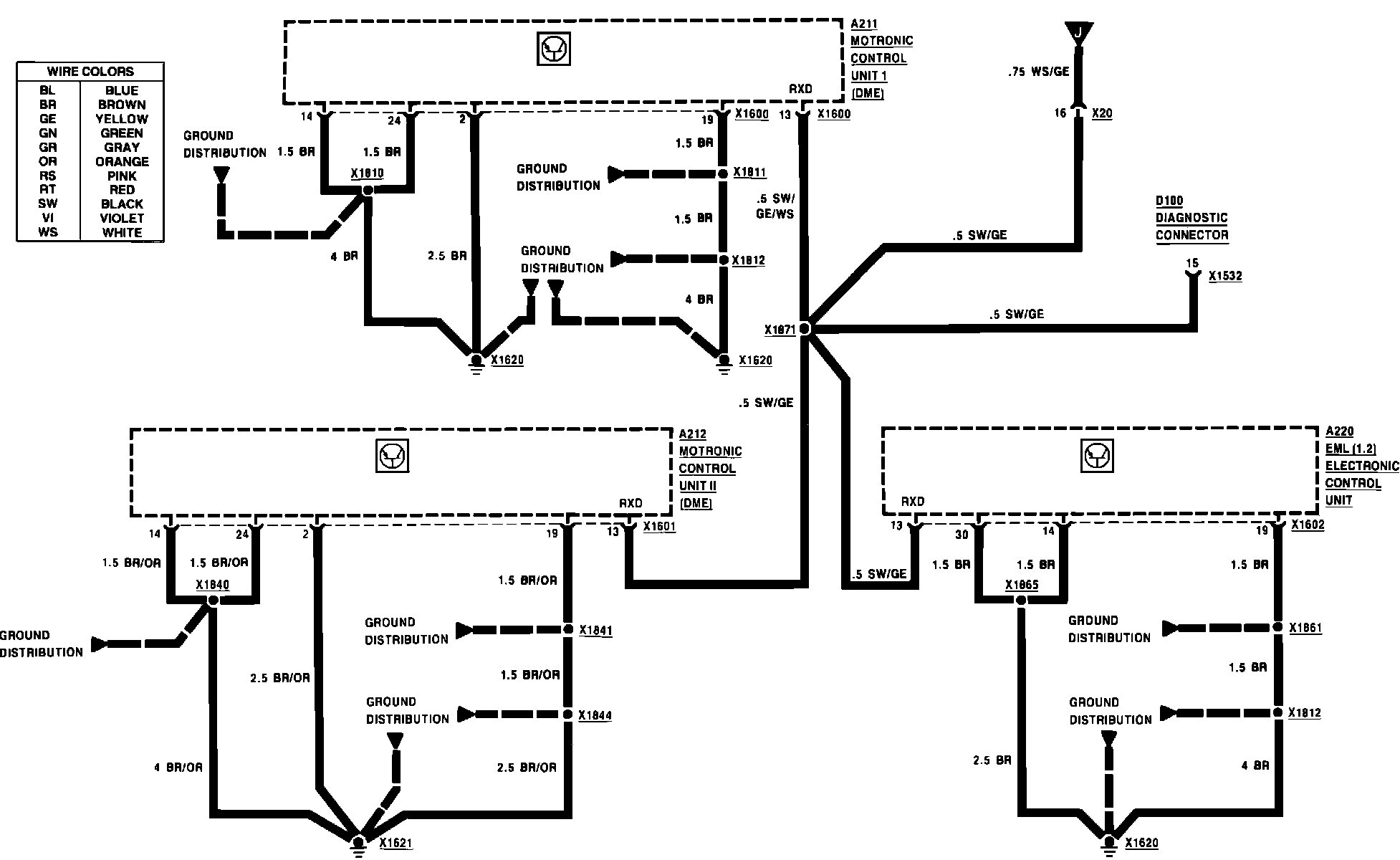

Diagnostic Link (RXD & Grounds). Wiring Diagram:

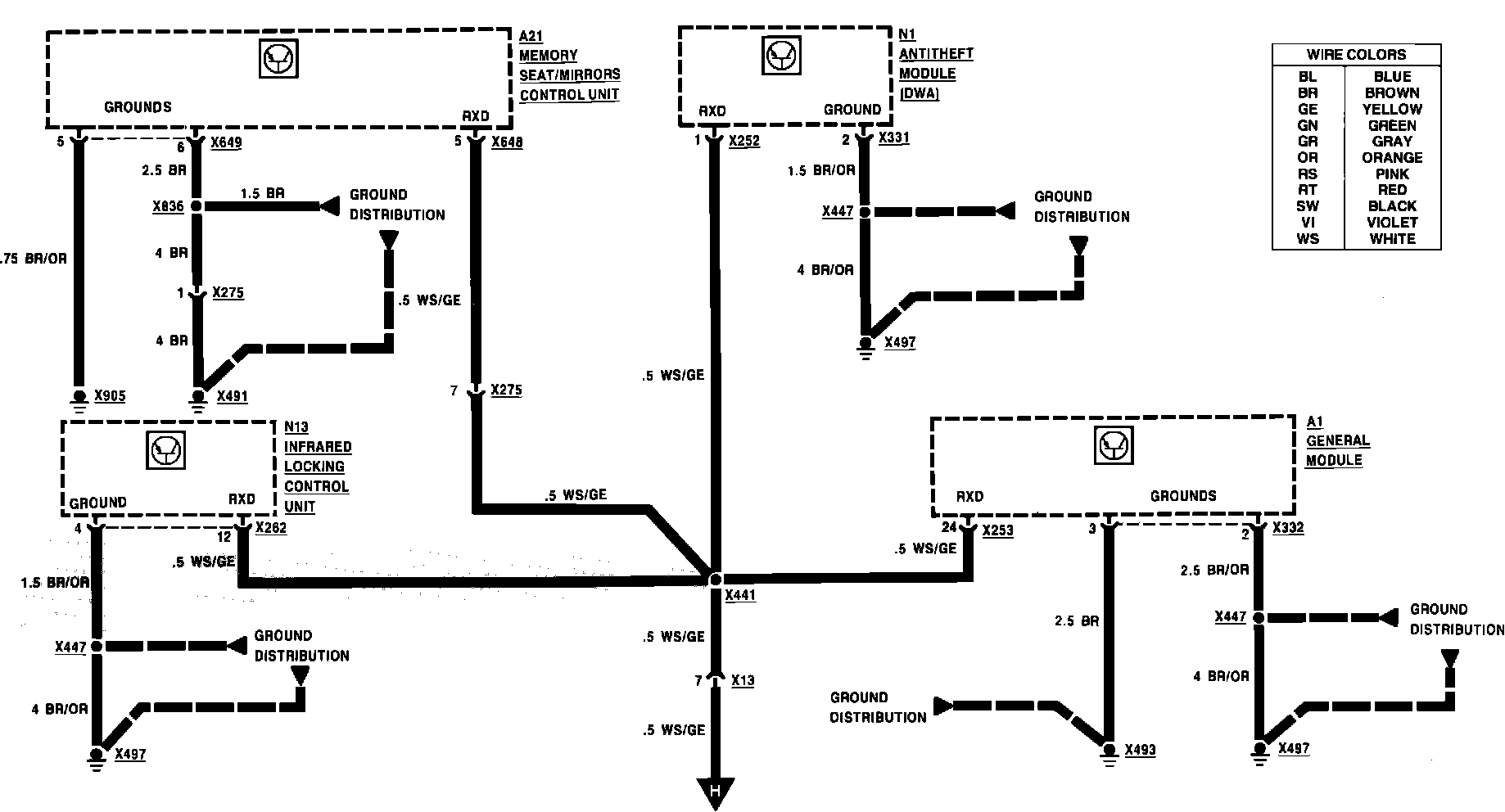

Diagnostic Link (RXD & Grounds). Wiring Diagram:

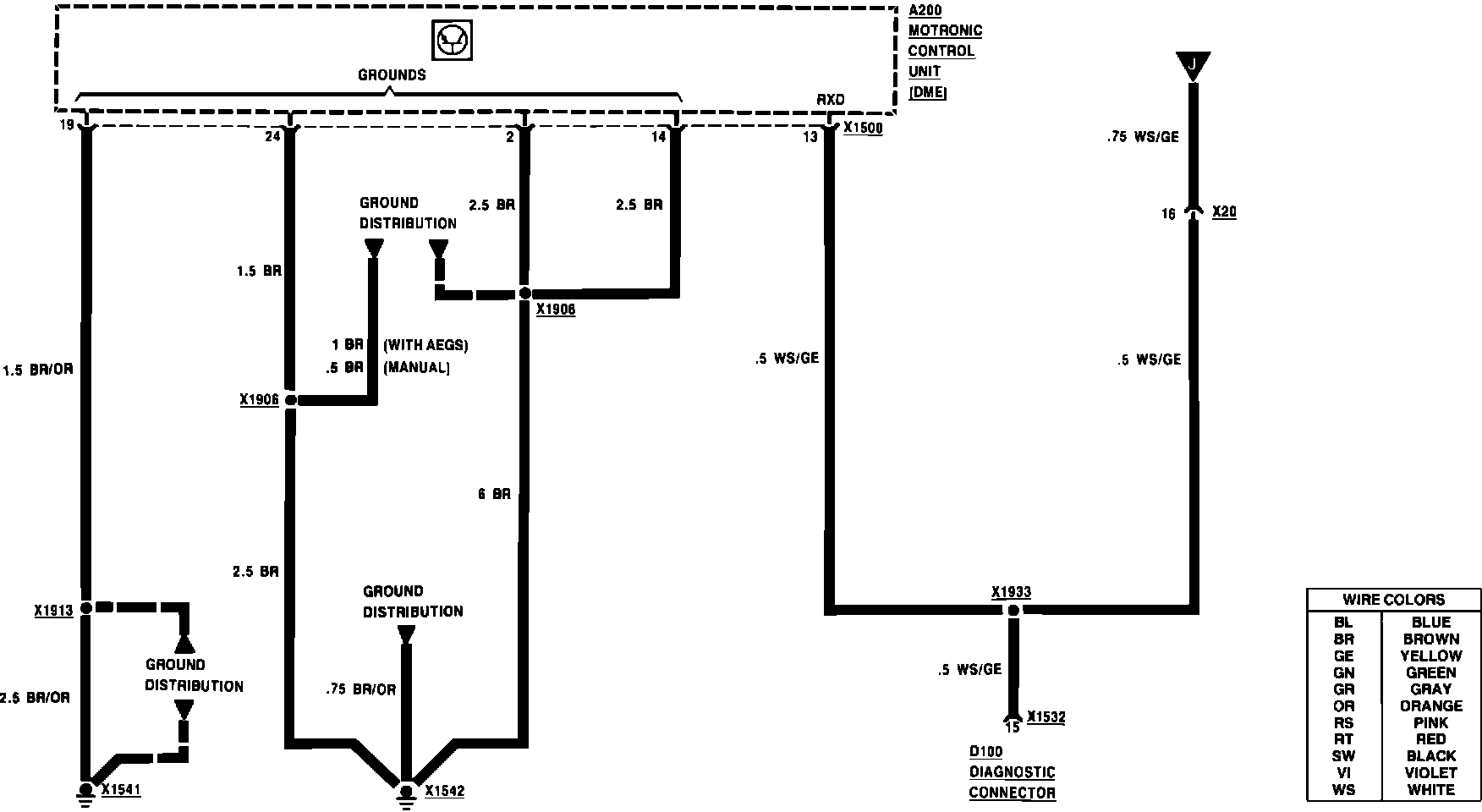

Diagnostic Link (RXD & Grounds). Wiring Diagram:



Diagnostic Link (RXD & Grounds). Wiring Diagram:
