Locks
>>
System Diagram
>>
Infrared Locking
>>
Control Unit
Control Unit

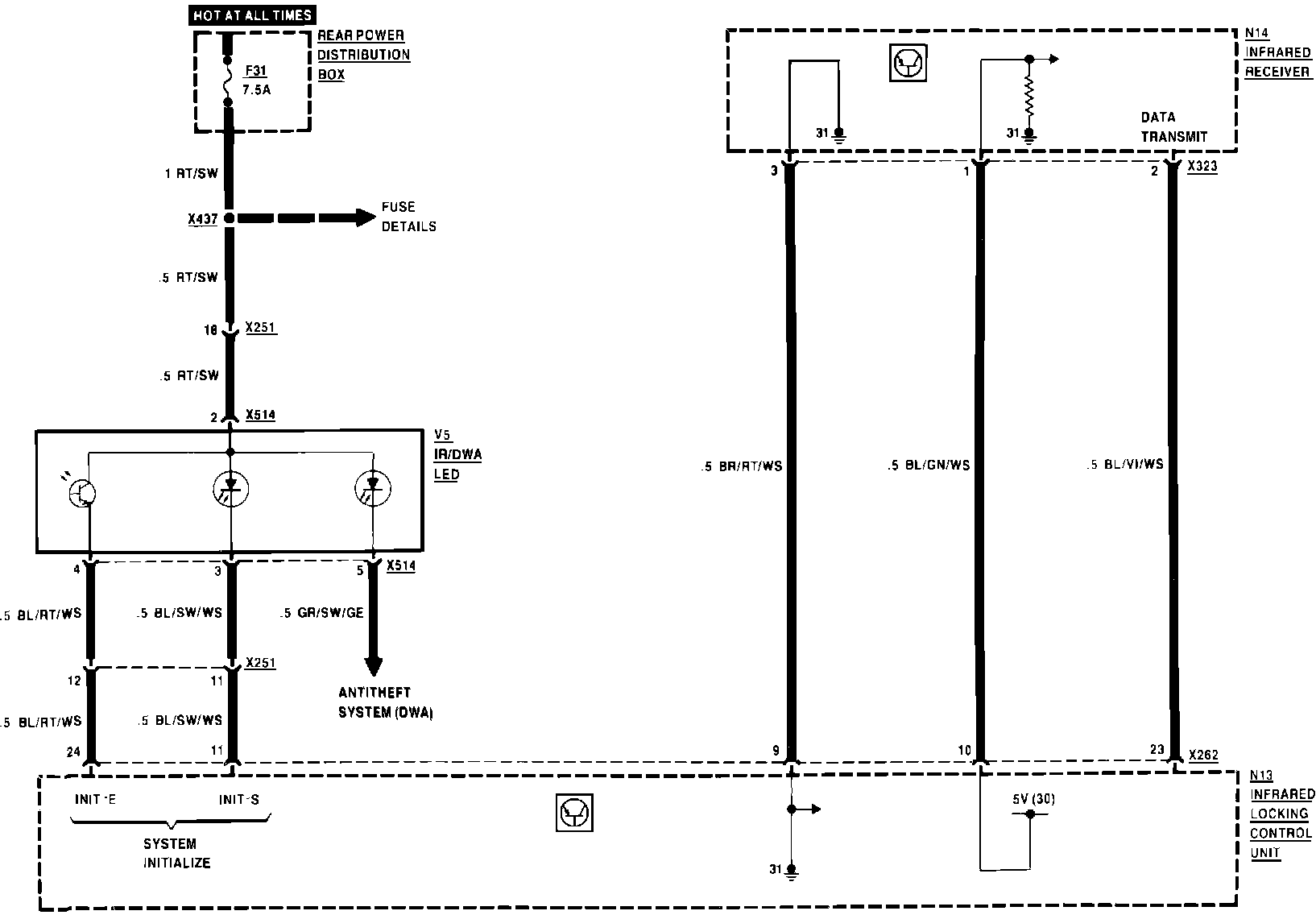

Infrared Locking (Initialize, Receiver Circuits). Wiring Diagram:
