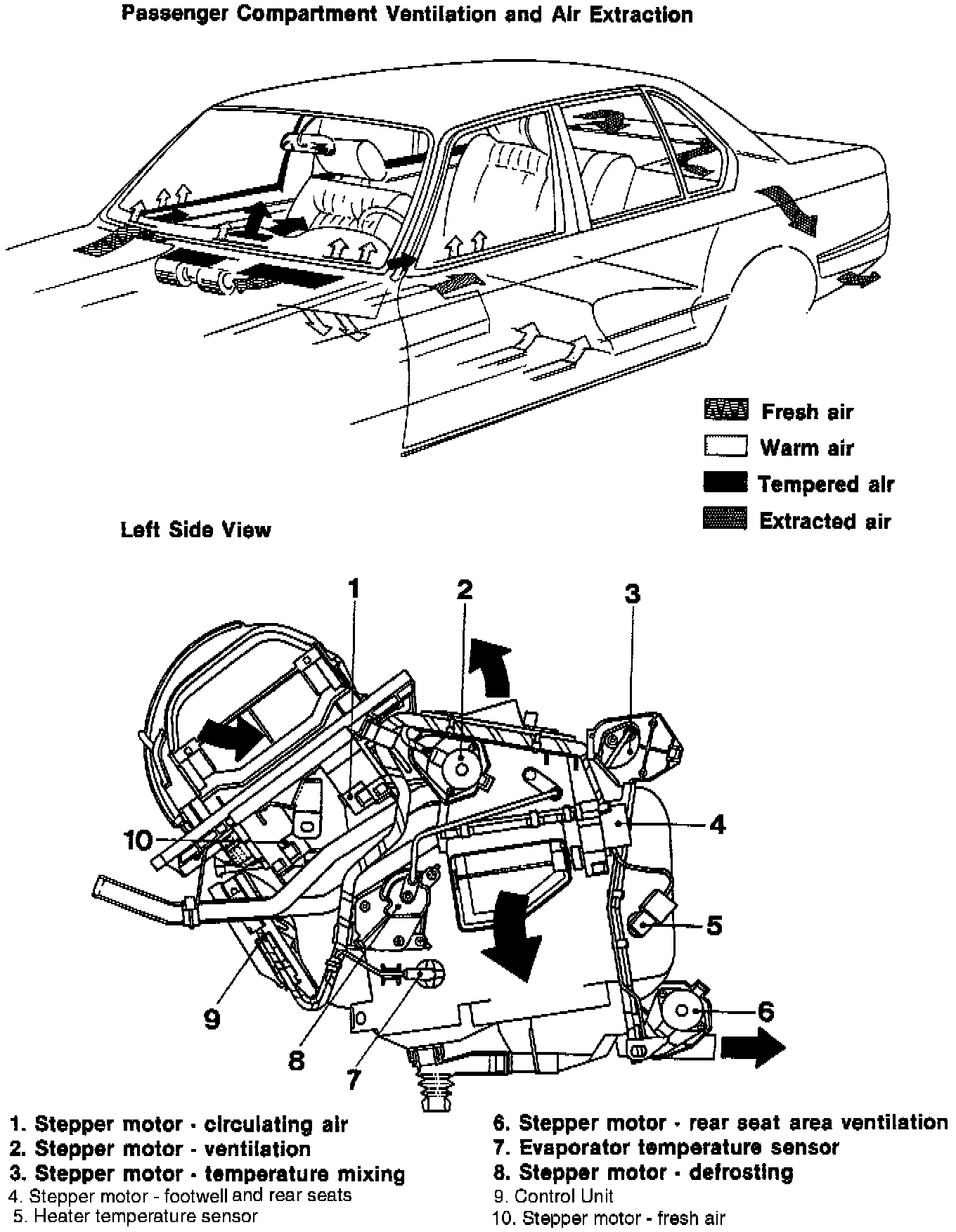

Air Distribution

The air flow can be distributed separately on each side by using these buttons:








The flaps that change the air distribution are controlled by stepper motors. Stepper motors have many advantages; low power consumption, precise positioning without potentiometers and quick movements.

Two minutes after turning off the ignition the air distribution flaps are automatically positioned to their defrost position. This insures that the windscreen is cleared first. Selected air distribution programs are restored once this cold start mode is completed.
