Home >> BMW >> 1990 >> 535i (E34) L6-3430cc 3.4L SOHC (M30) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Locations

Battery: Locations

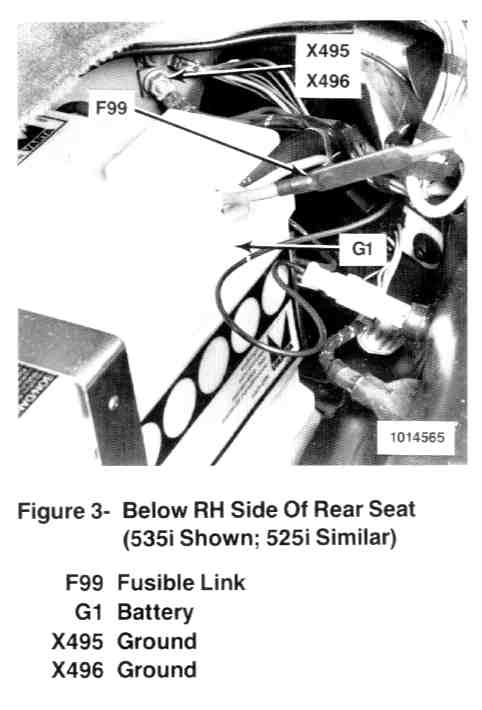

Component Location View:





Component ID : G1, Battery
Location : Below RH side of rear seat
