BMW
>>
1990
>>
535i (E34) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Electronics Box
Central Electronics Box

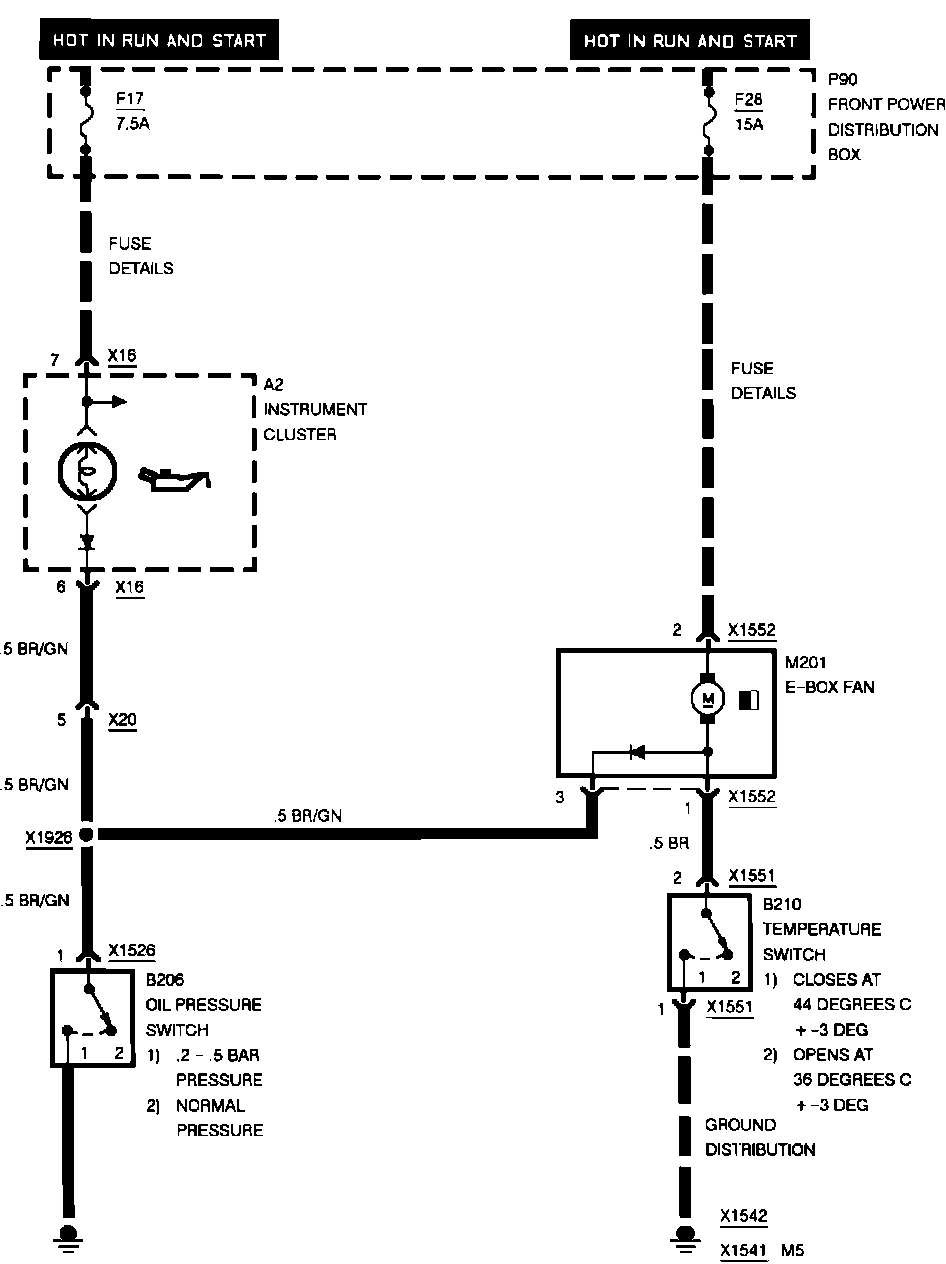

E-Box Fan:
