Relay Module

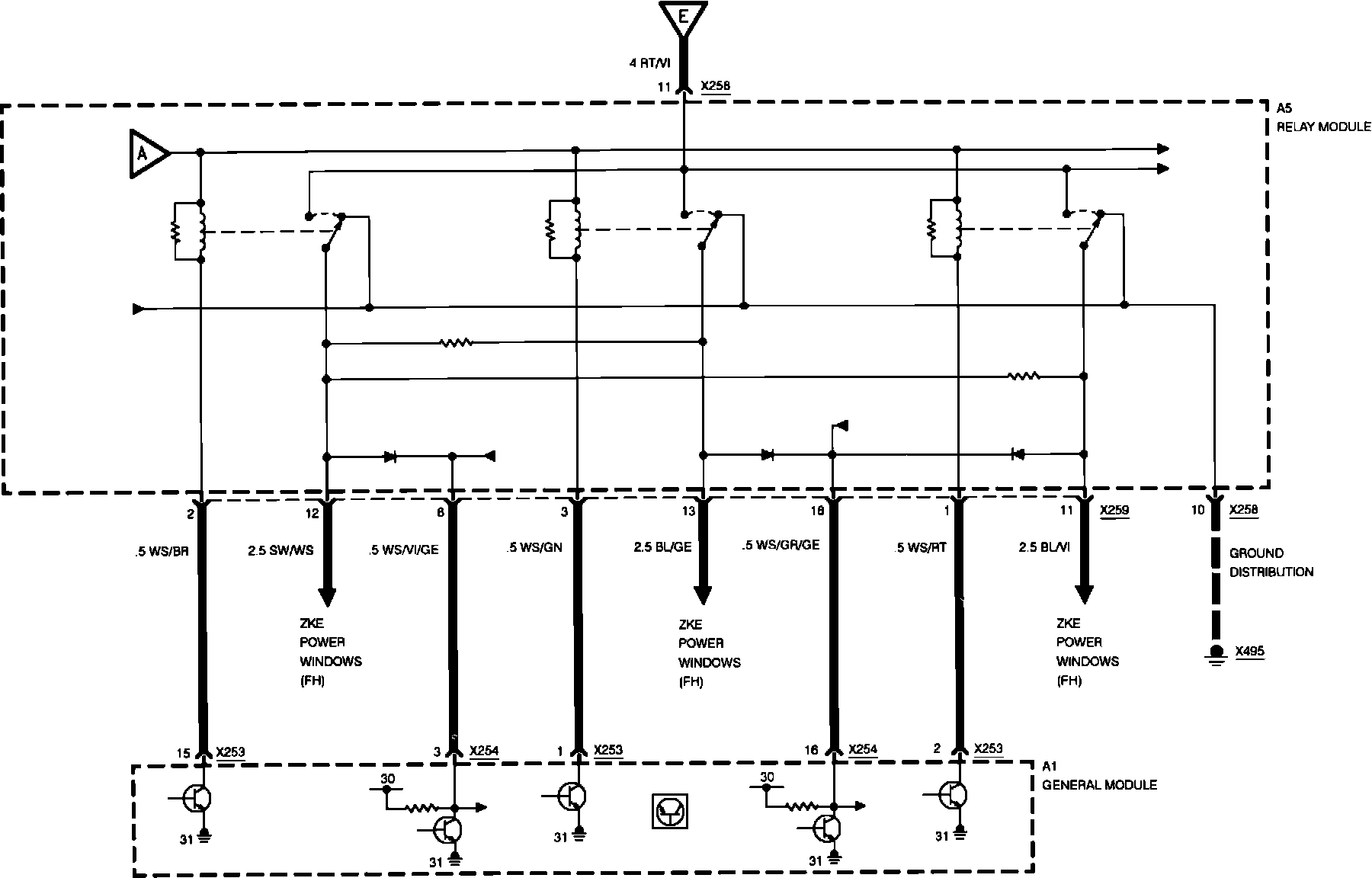

Central Body Electronics (ZKE) Relay Module:

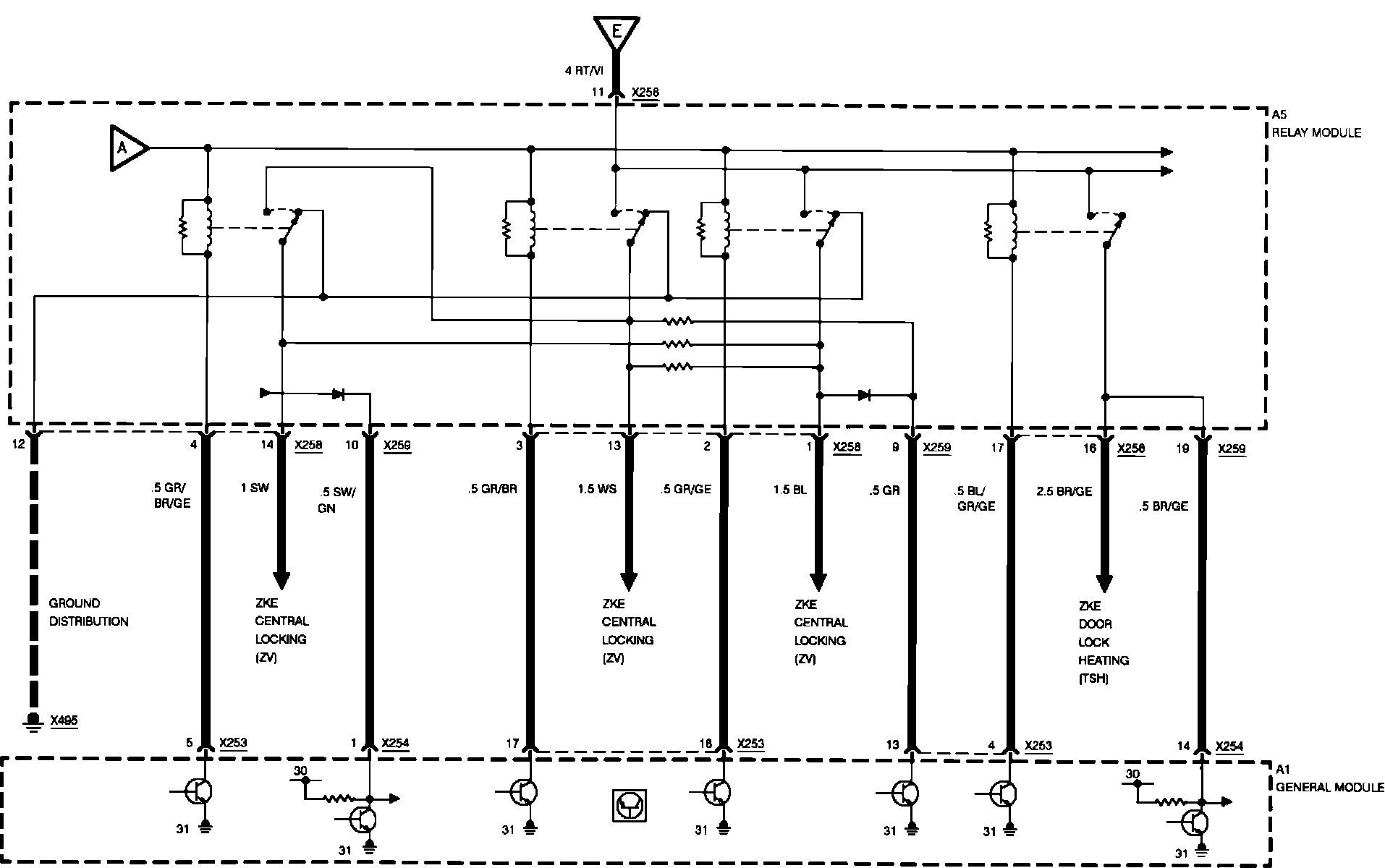

Central Body Electronics (ZKE) Relay Module:

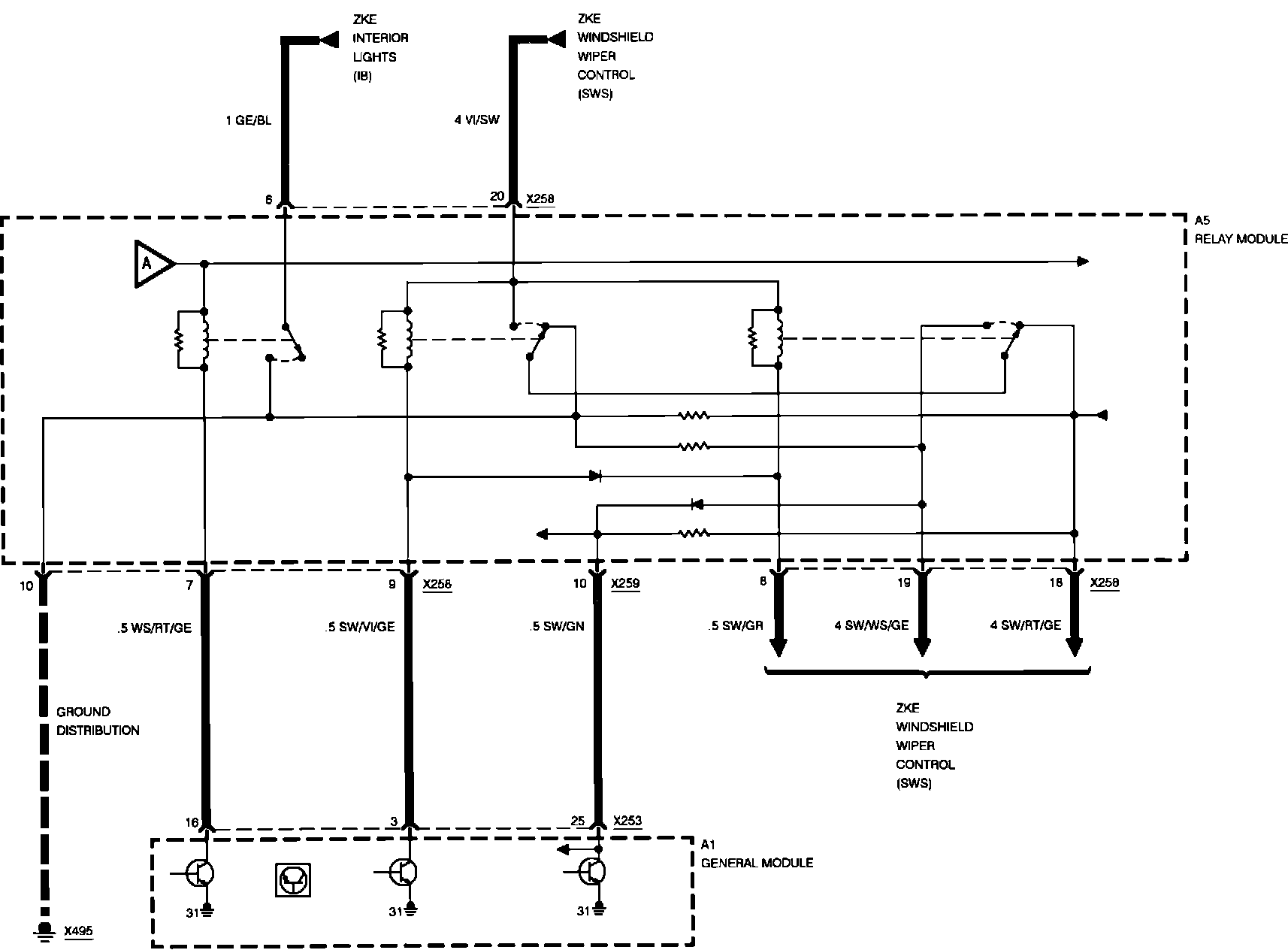

Central Body Electronics (ZKE) Relay Module:
Central Body Electronics (ZKE) Relay Module:
