Instruments - Coolant Level Sensor Location Updated
Group 17Cooling System
Bulletin Number
17 01 89 (1882)
Woodcliff Lake, NJ
June 1989
Technical Dept.
SUBJECT:
Coolant Level Sensor Location
MODEL:
525i
Situation:
The above model is equipped with a radiator which incorporates the coolant expansion tank.
Due to the new design, the coolant level sensor has been repositioned and is not visible from the engine compartment.

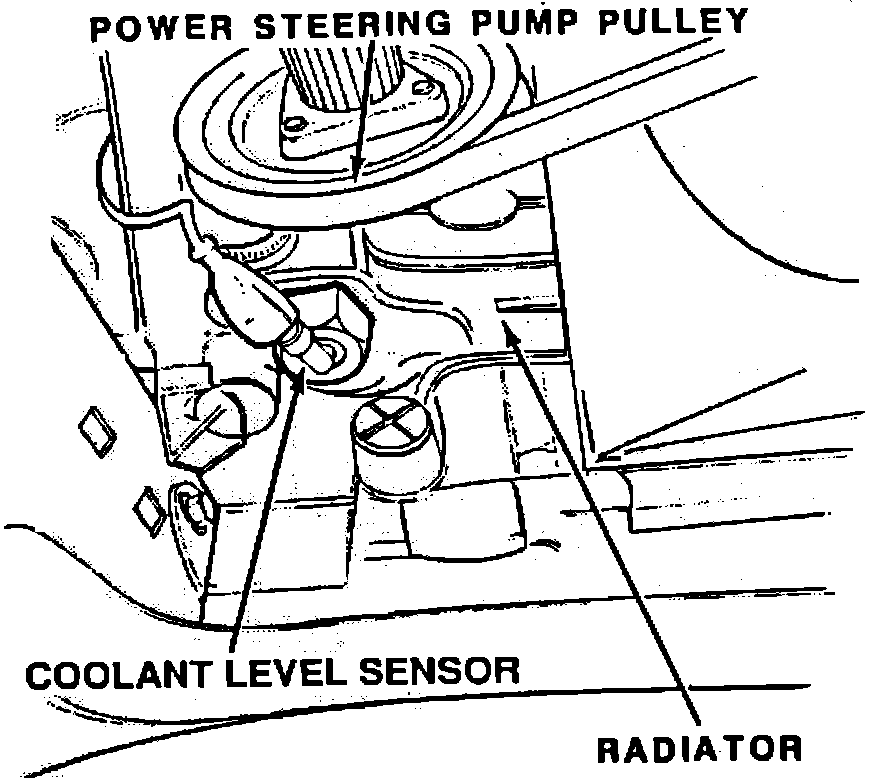

The coolant level sensor is now located on the left underside corner of the radiator (see illustration), just forward of the power steering pump.
Refer to the Repair Manual for replacement instructions.
Parts
Information:
The coolant level sensor can be ordered under P/N 61 31 1 384 739.
