Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

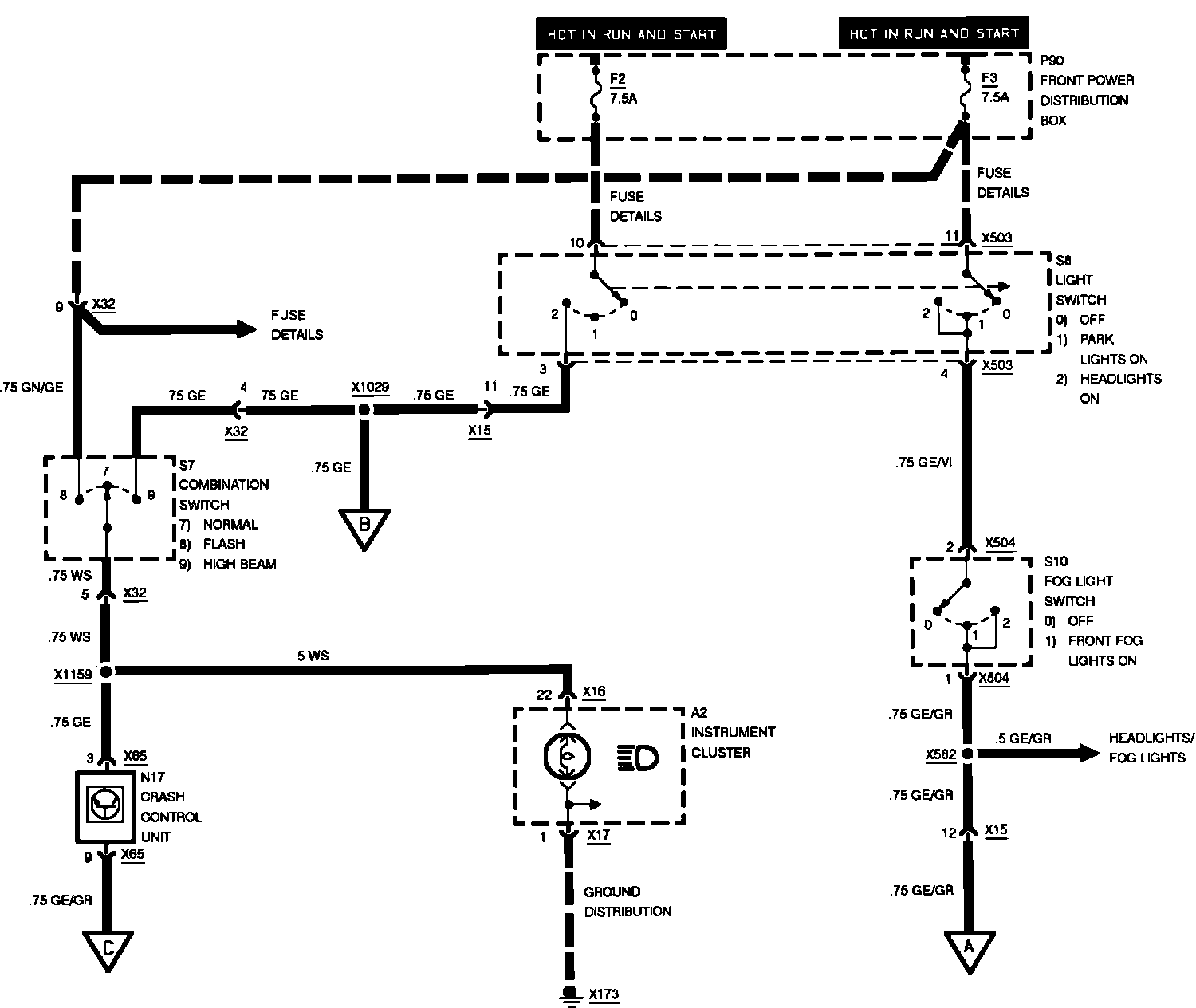

Lamp Monitor:

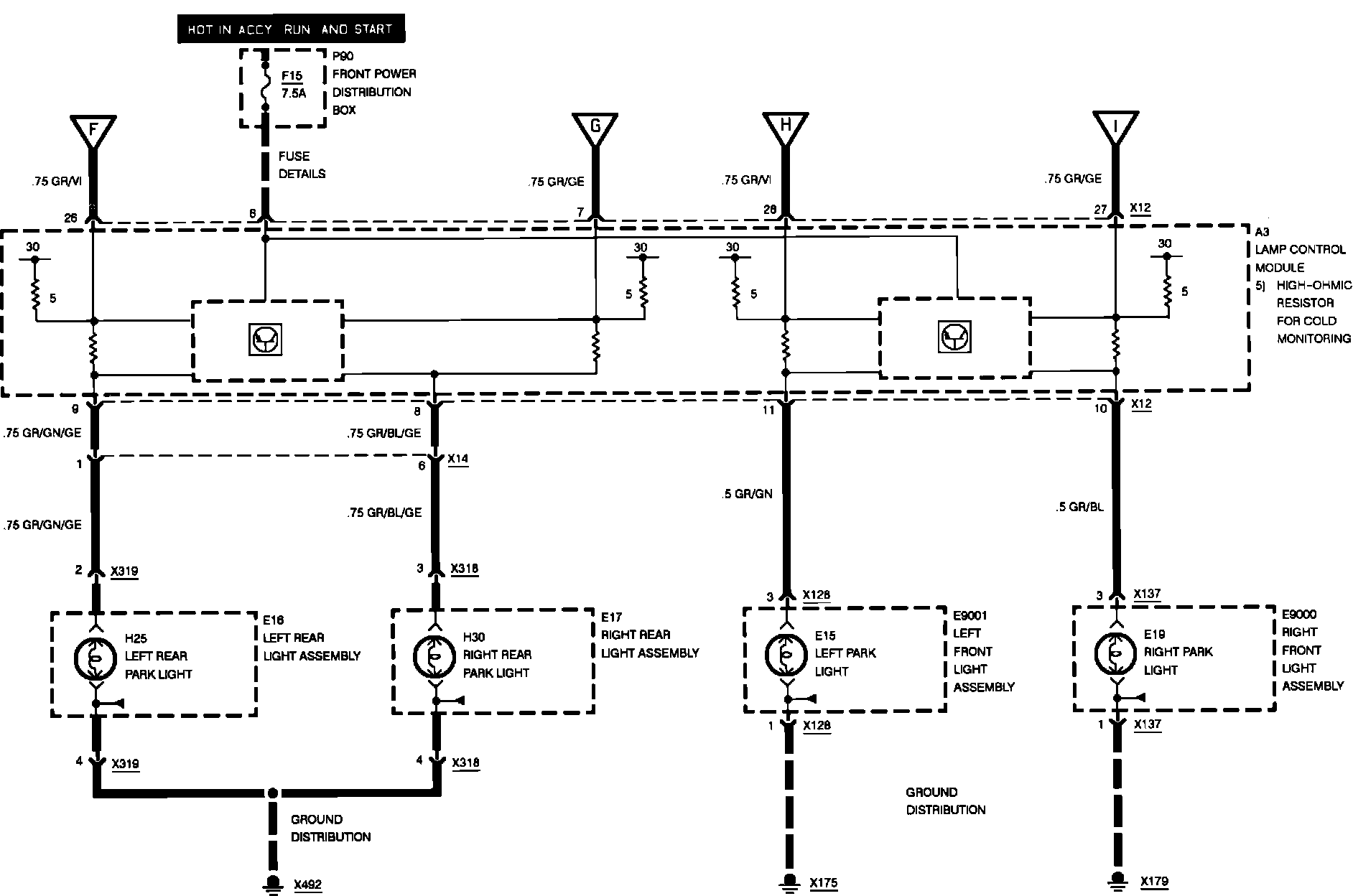

Lamp Monitor:

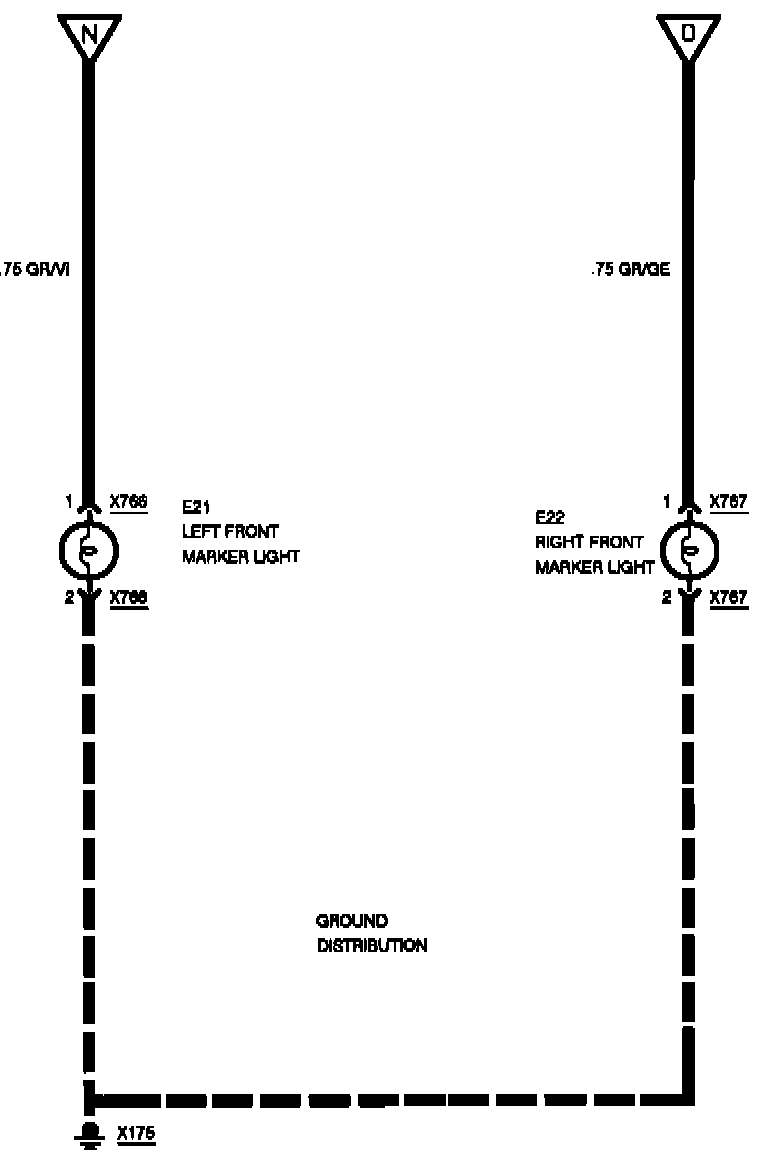

Lamp Monitor:

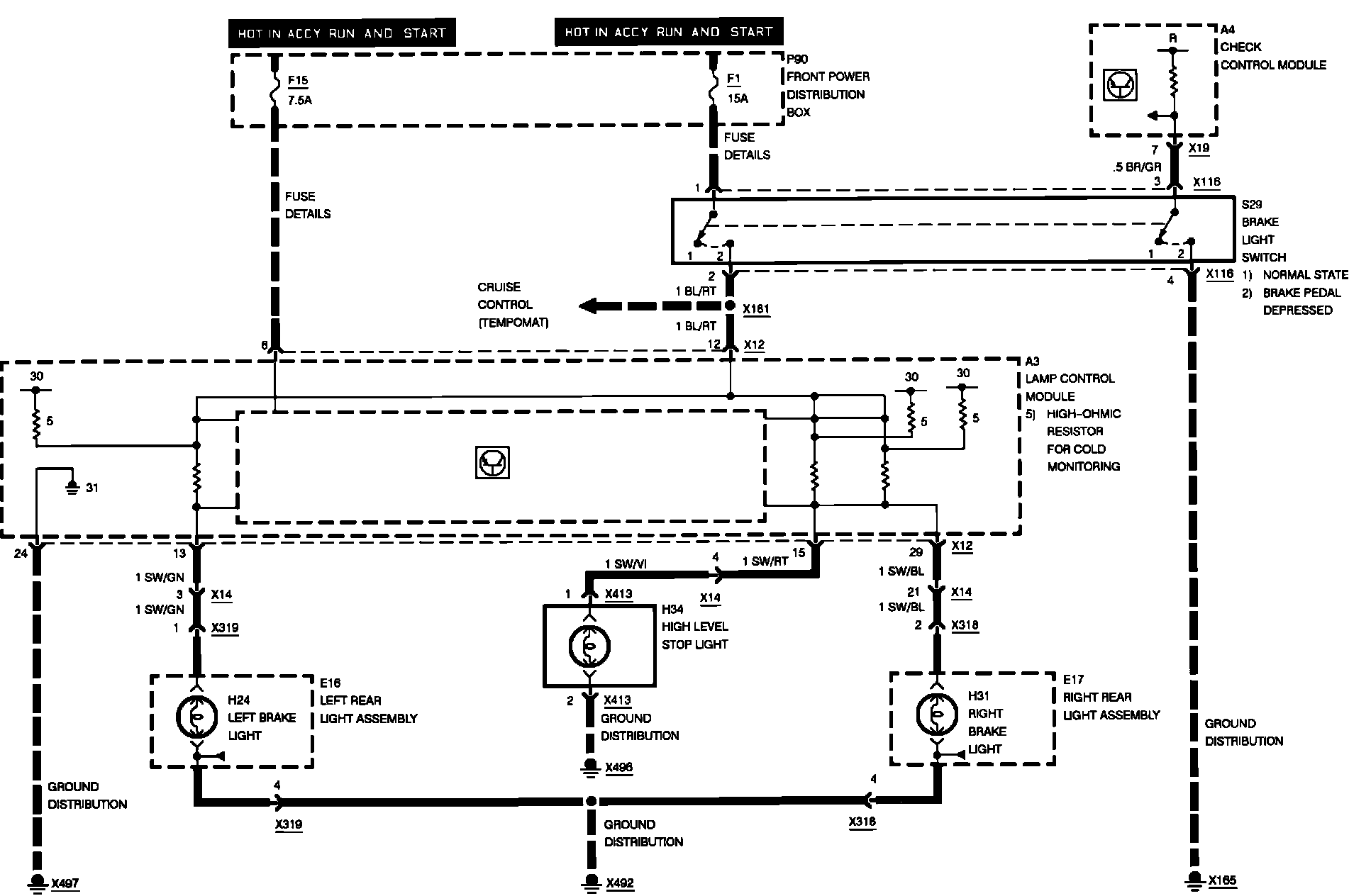

Lamp Monitor:

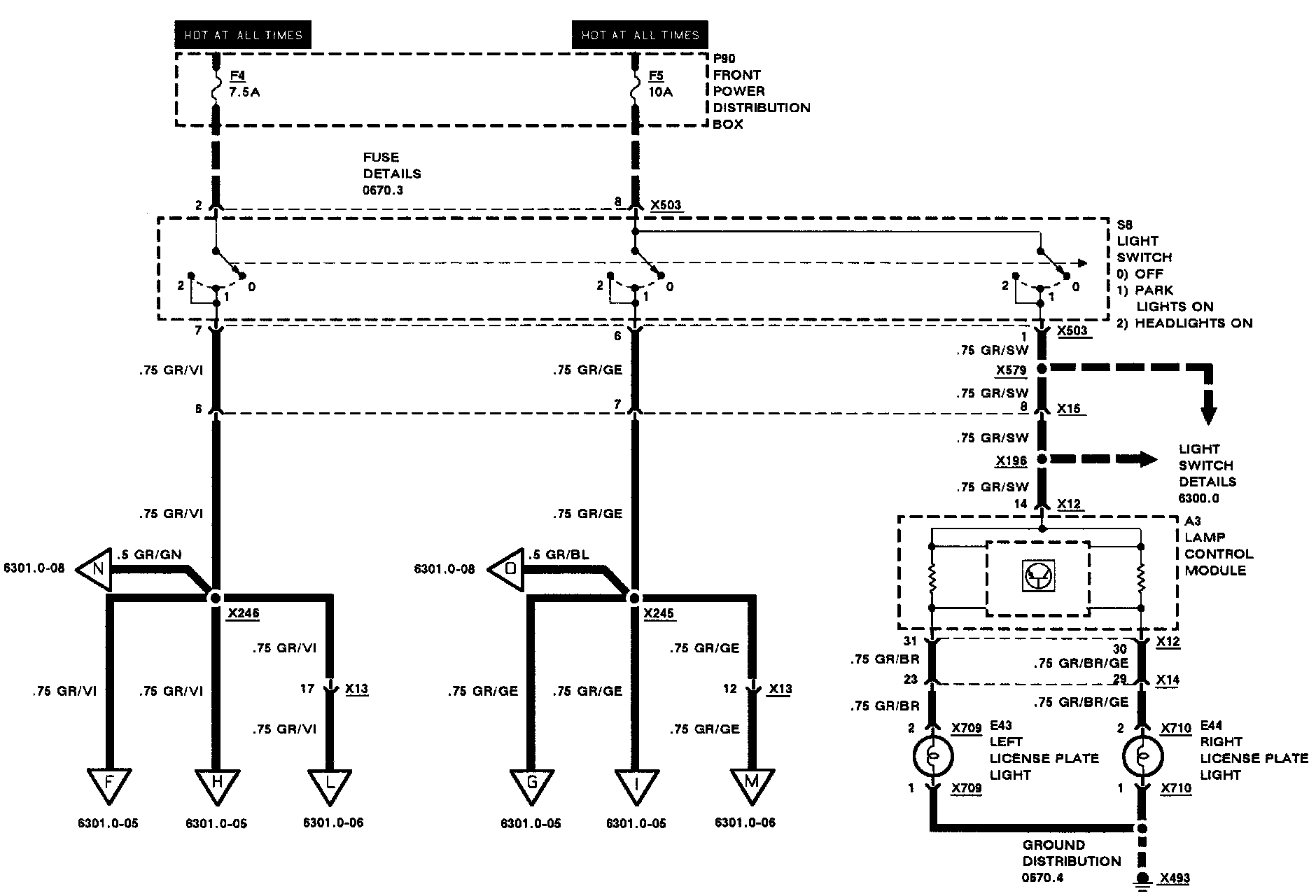

Lamp Monitor:

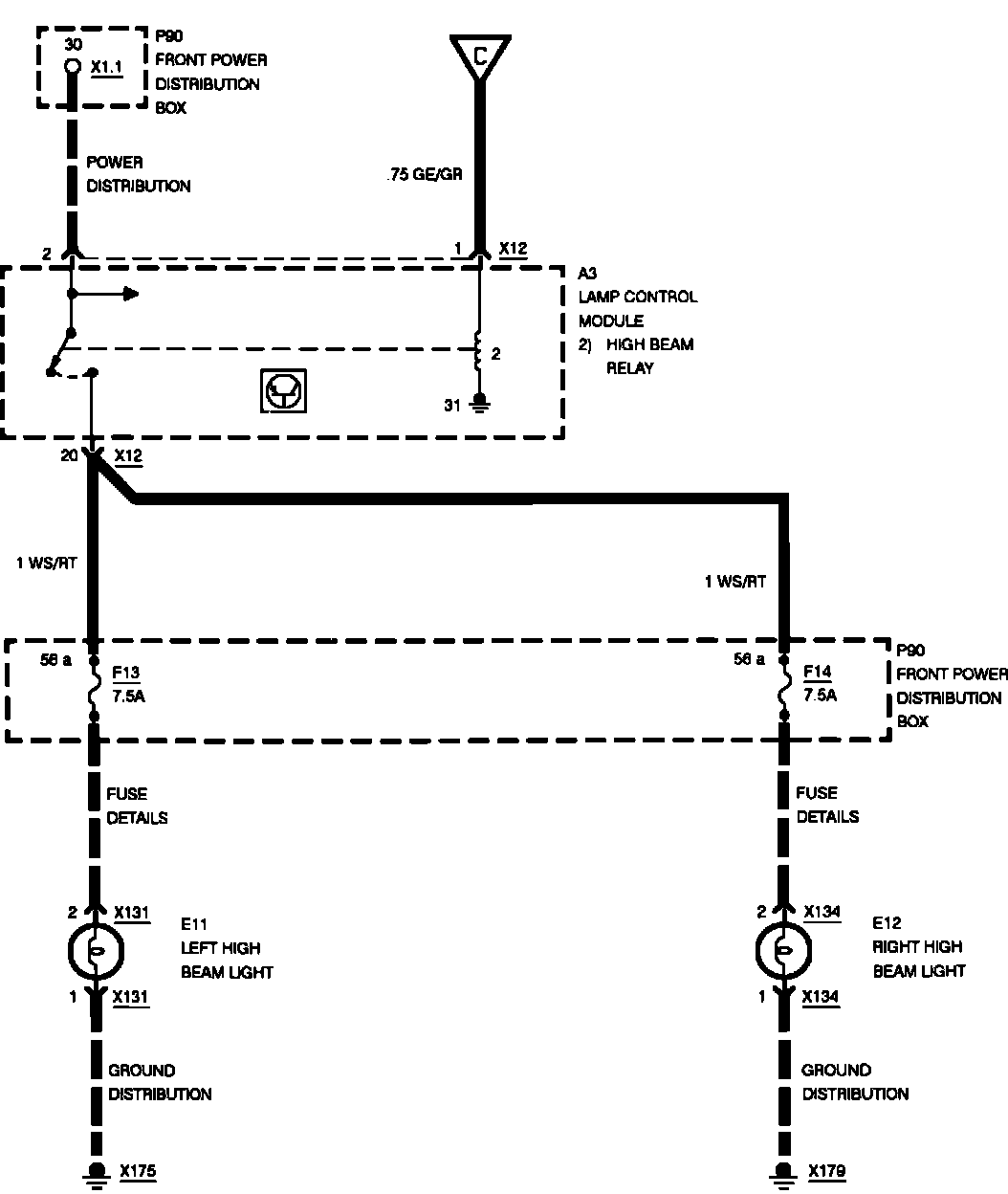

Lamp Monitor:

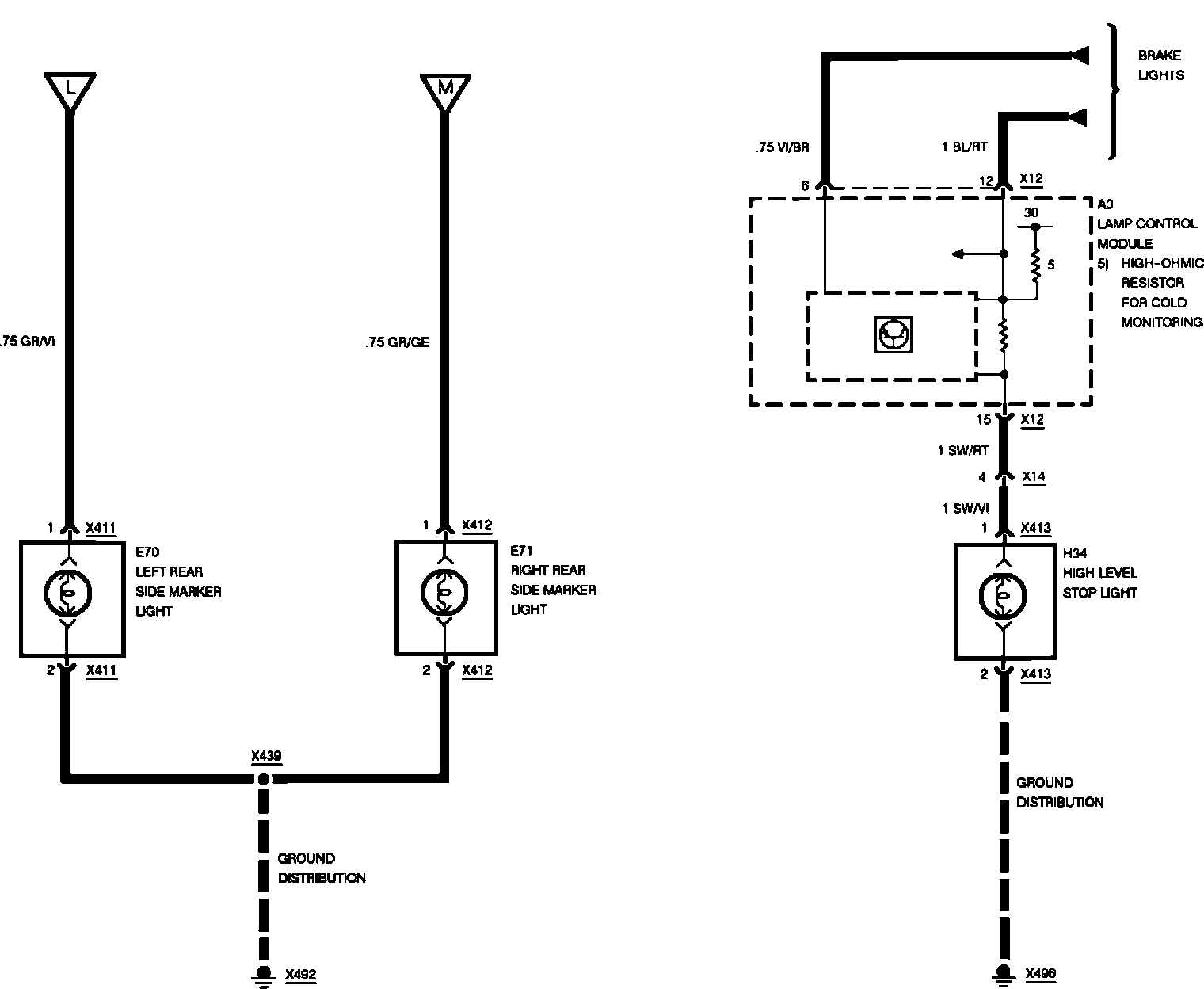

Lamp Monitor:

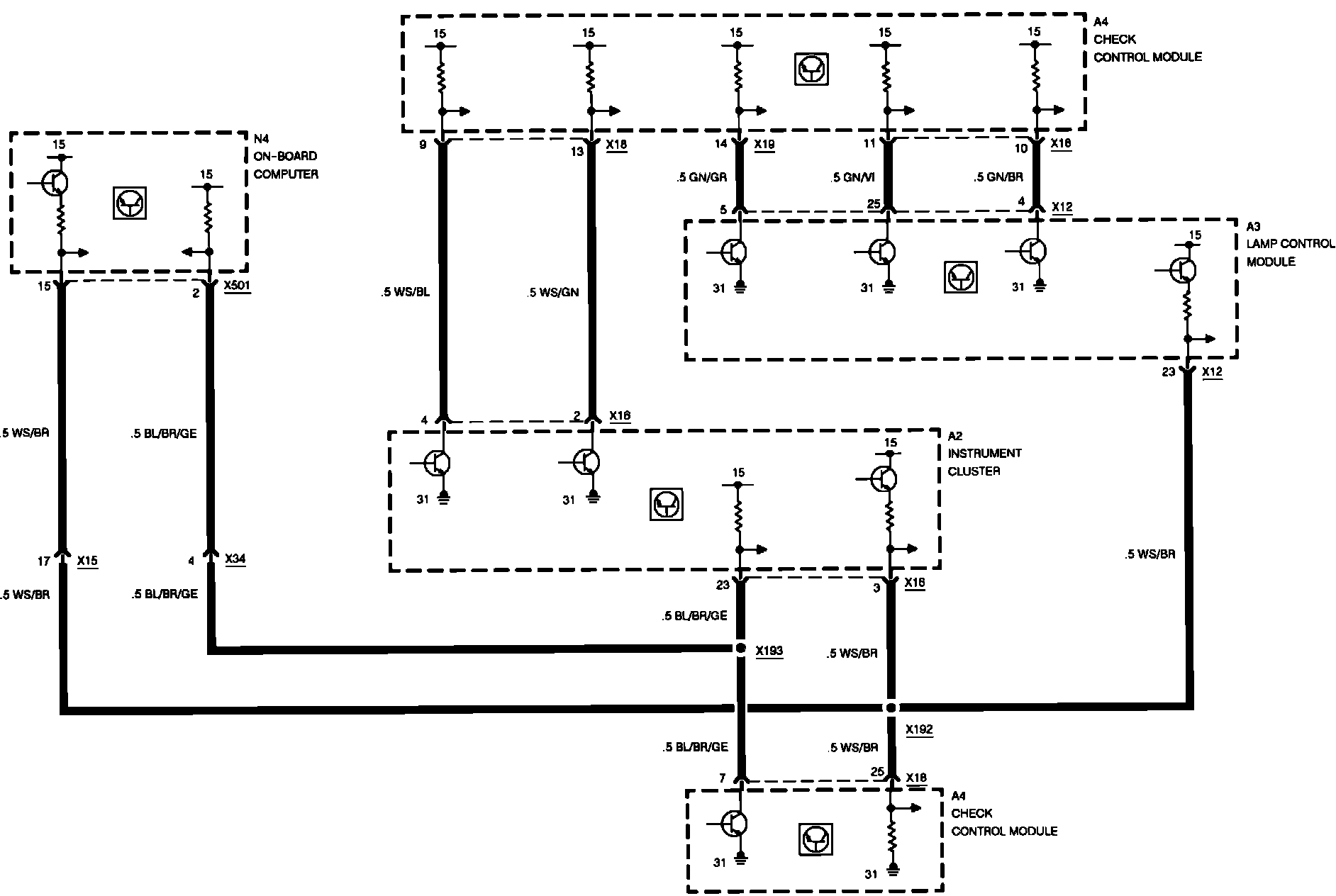

Data Link:
Lamp Monitor:
