Fuel Filter: Service and Repair

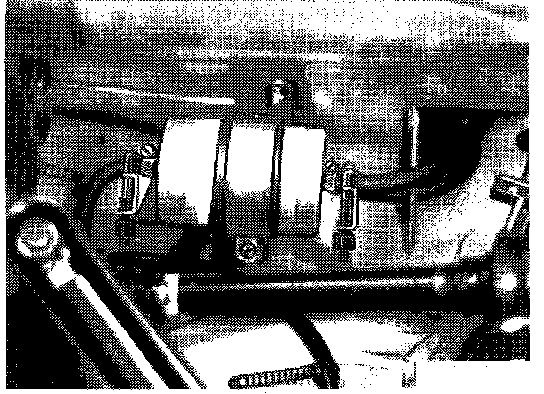

Fuel Filter View:

1. With the ignition (OFF) clamp the inlet and outlet hoses to prevent fuel leakage.
2. Remove the fuel hoses, filter mounting strap and the fuel filter.

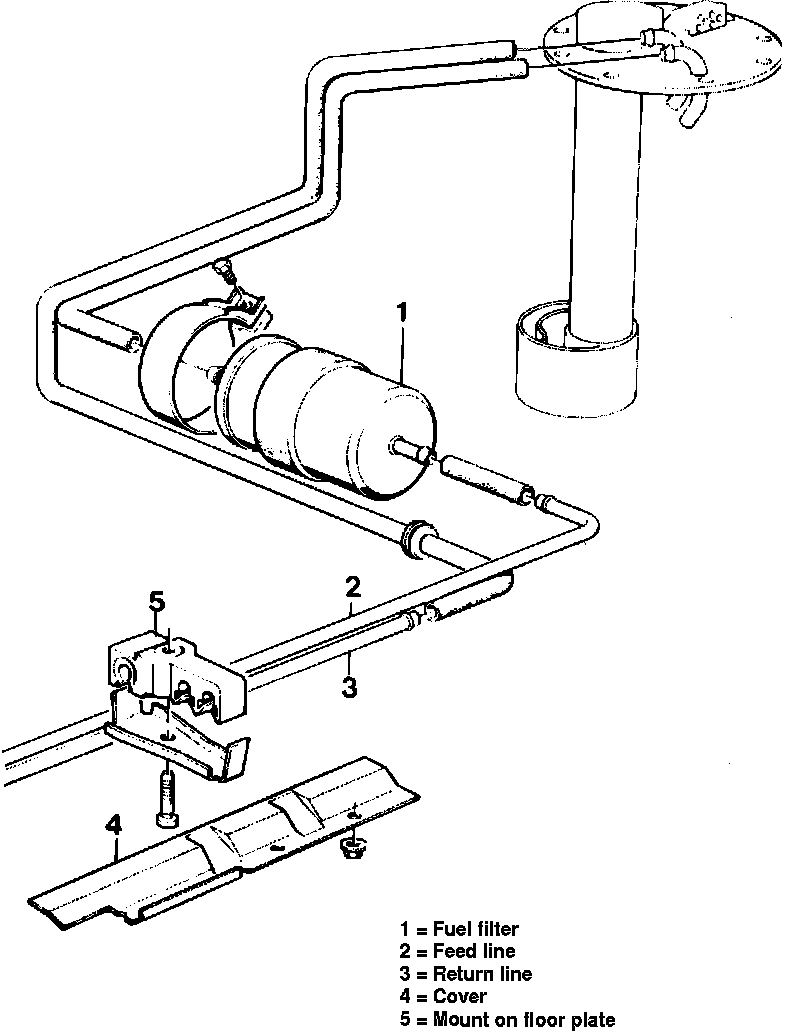

Fuel Filter And Lines:

3. Install the fuel filter with the directional arrow pointing away from the fuel pump (source) and remove the clamps.
