Connector Pin Assignments & Descriptions

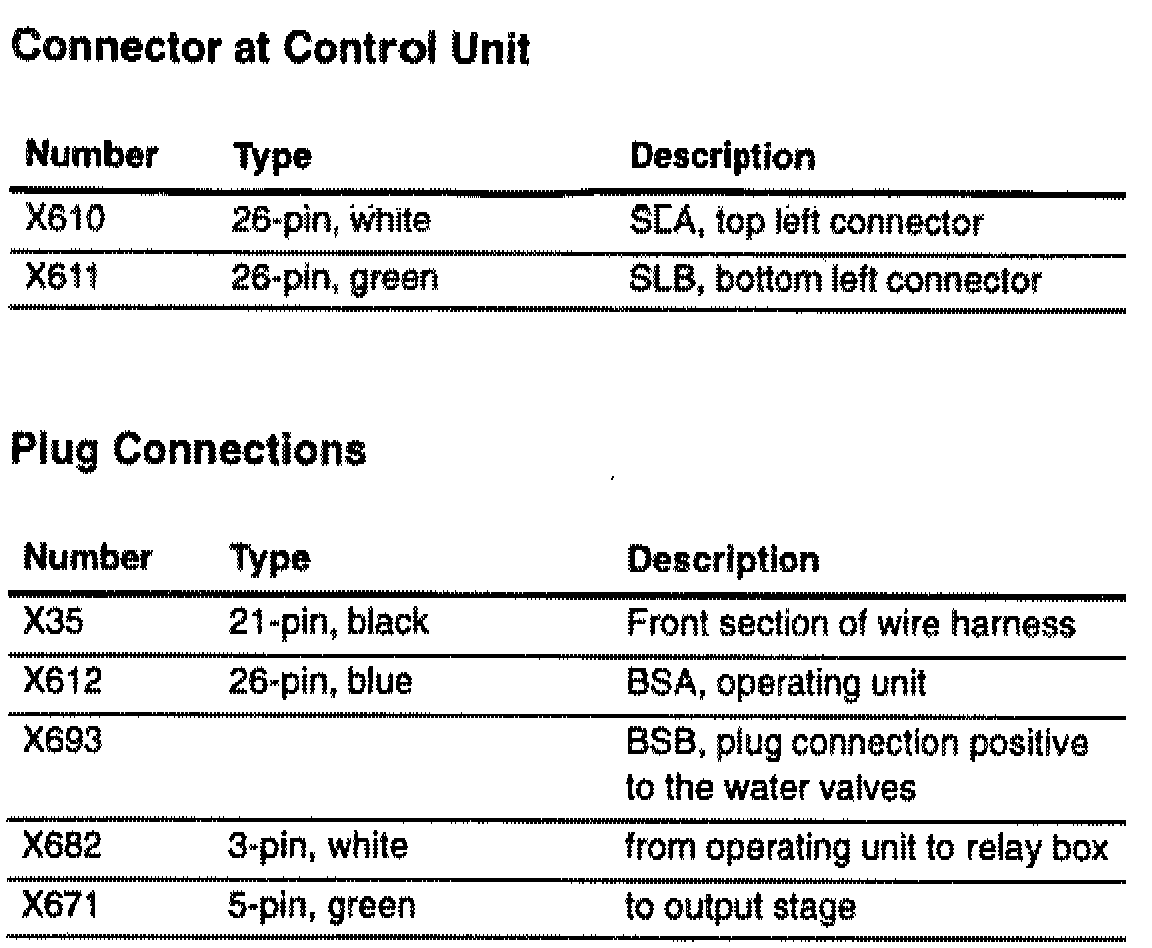

Connectors At Control Unit & Operating Unit:

Connectors At Control Unit & Operating Unit


Abbreviations
A Output
E Input

Used in the following charts:

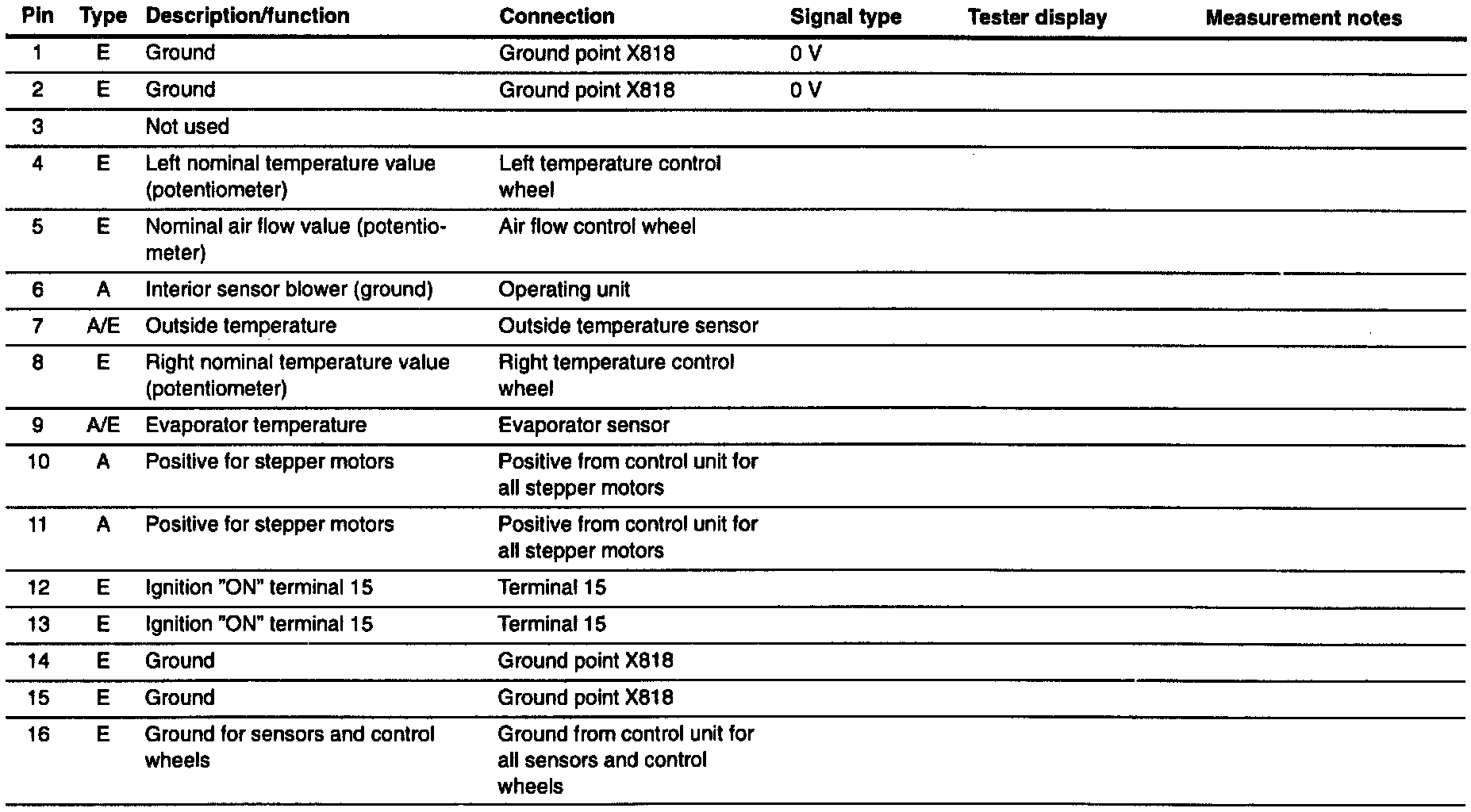

Pin Assignments @ IHKR Control Unit Connector X613-Part 1:

IHKA Control Unit Connector X613 Pin Assignments - Part 1

Pin Assignments @ IHKR Control Unit Connector X613-Part 2:

IHKA Control Unit Connector X613 Pin Assignments - Part 2

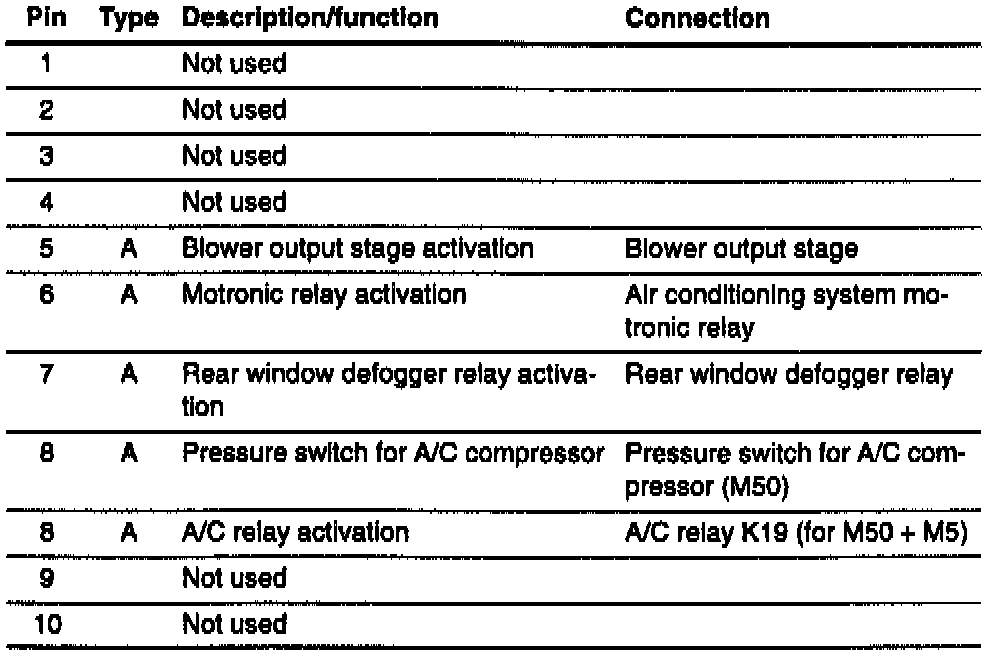

Pin Assignments @ IHKR Control Unit Connector X614-Part 1:

IHKA Control Unit Connector X614 Pin Assignments - Part 1

Pin Assignments @ IHKR Control Unit Connector X614-Part 2:

IHKA Control Unit Connector X614 Pin Assignments - Part 2

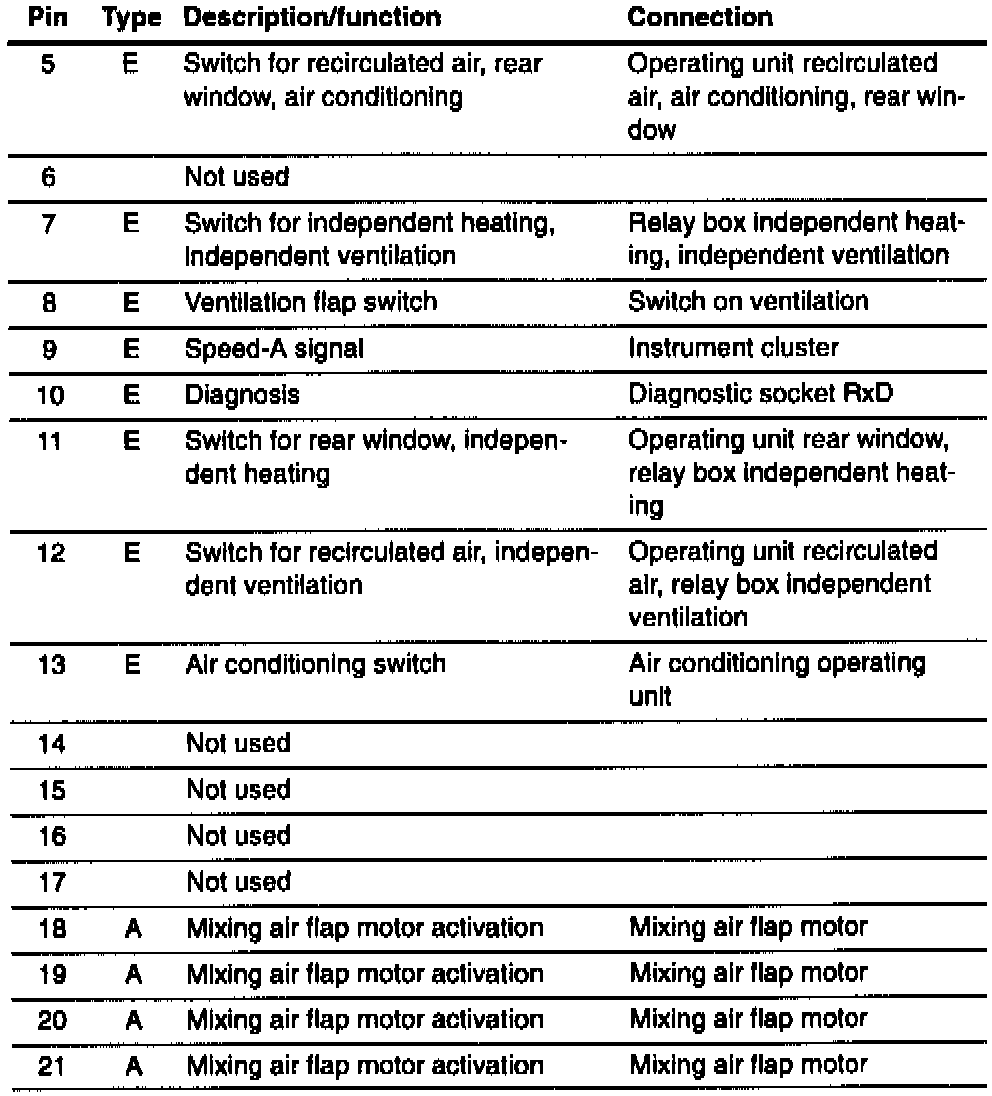

Pin Assignments @ IHKR Control Unit Connector X614-Part 3:

IHKA Control Unit Connector X614 Pin Assignments - Part 3

Pin Assignments @ IHKR Control Unit Connector X610-Part 1:

IHKA Control Unit Connector X610 Pin Assignments - Part 1

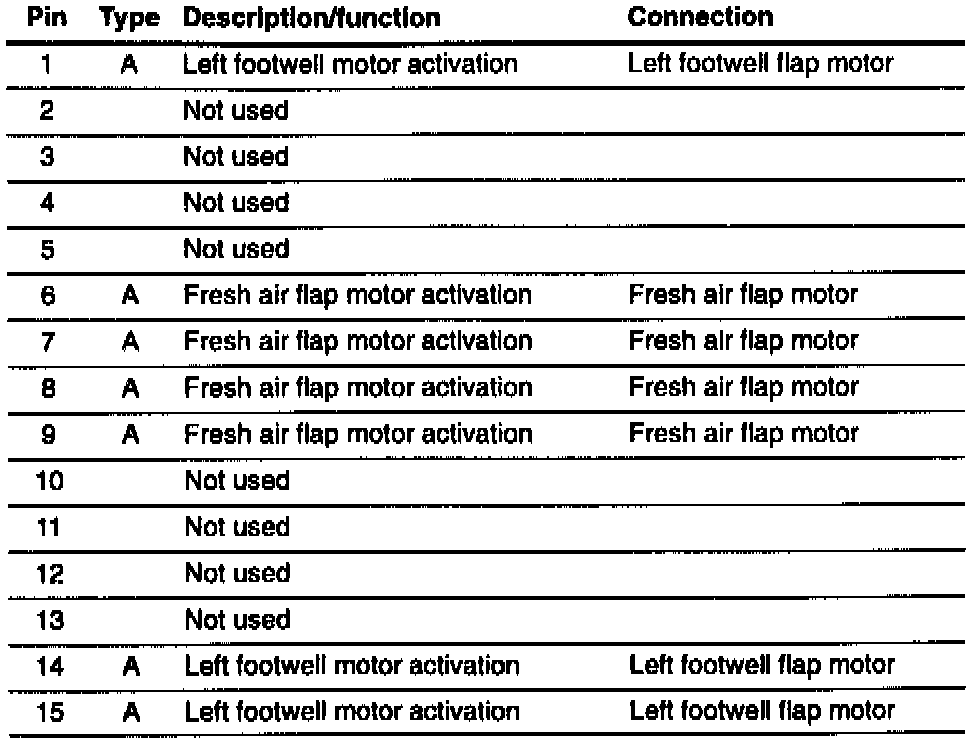

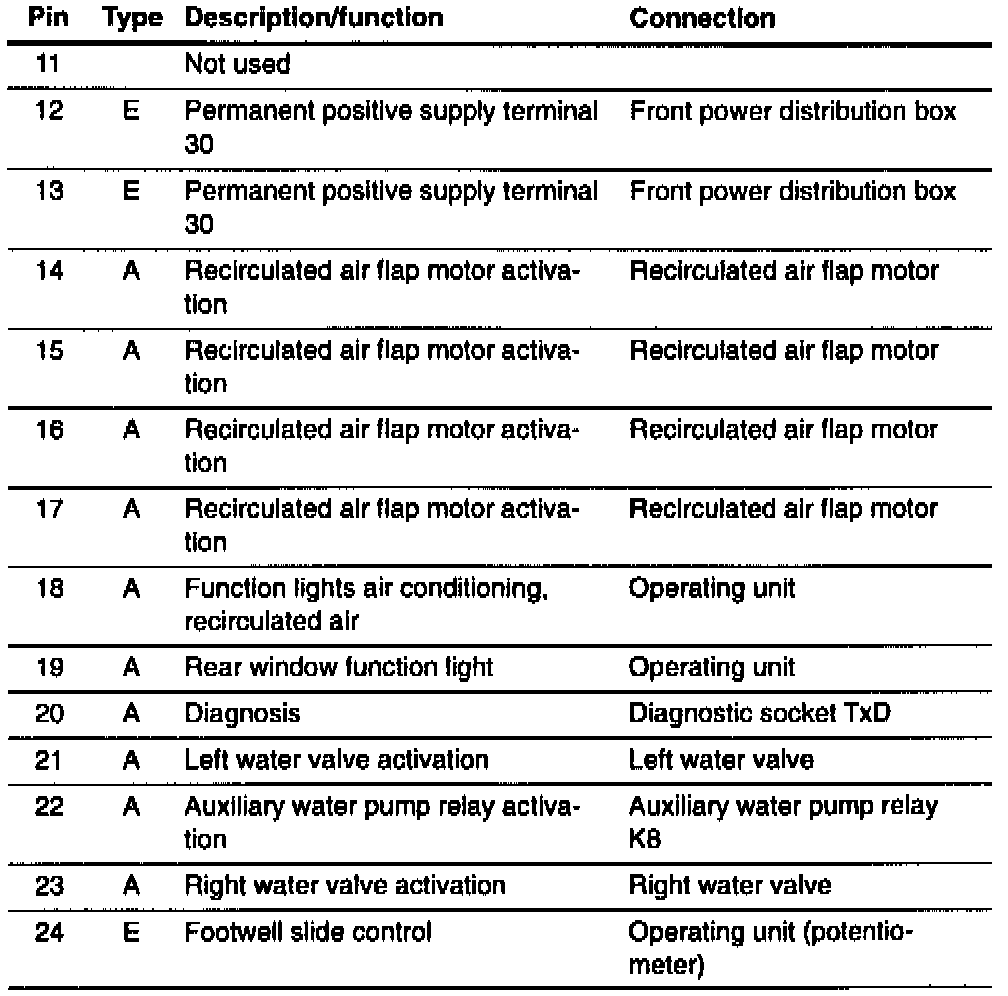

Pin Assignments @ IHKR Control Unit Connector X610-Part 2:

IHKA Control Unit Connector X610 Pin Assignments - Part 2

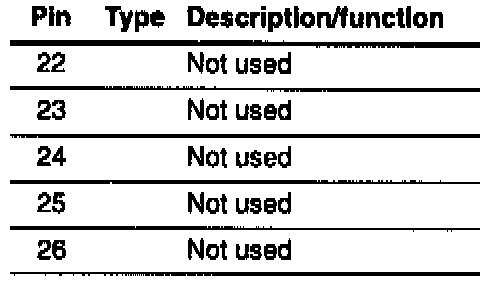

Pin Assignments @ IHKR Control Unit Connector X610-Part 3:

IHKA Control Unit Connector X610 Pin Assignments - Part 3

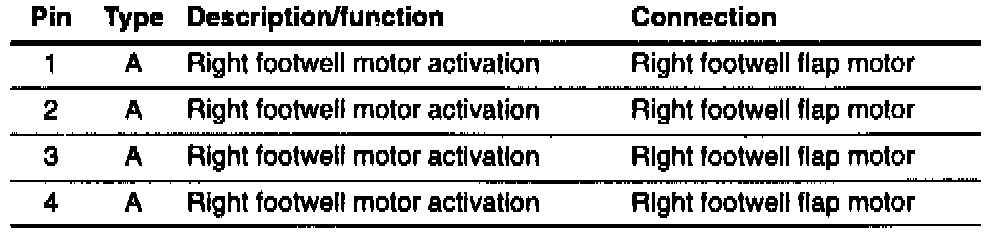

Pin Assignments @ IHKR Control Unit Connector X611-Part 1:

IHKA Control Unit Connector X611 Pin Assignments - Part 1

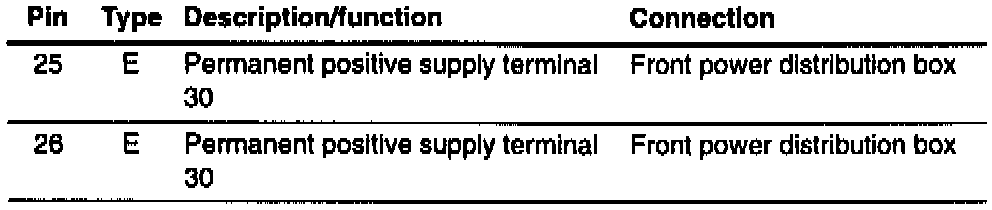

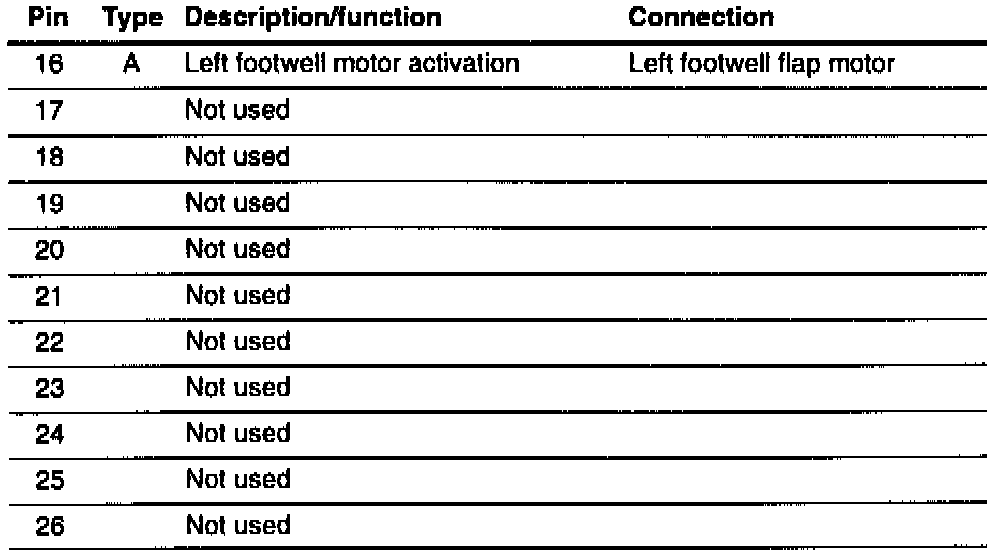

Pin Assignments @ IHKR Control Unit Connector X611-Part 2:

IHKA Control Unit Connector X611 Pin Assignments - Part 2

Pin Assignments @ IHKR Operating Unit X612 - Part 1:

IHKA Operating Unit X612 Pin Assignments - Part 1

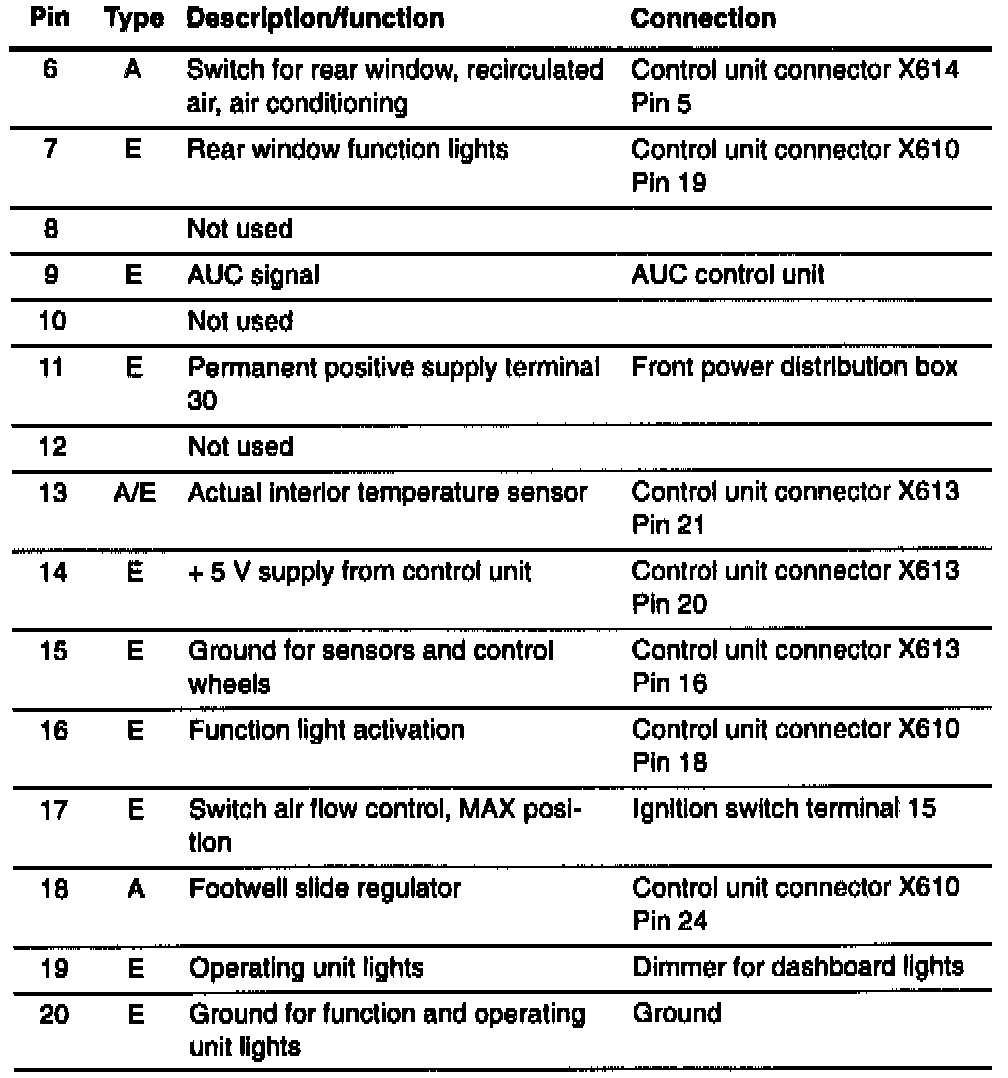

Pin Assignments @ IHKR Operating Unit X612 - Part 2:

IHKA Operating Unit X612 Pin Assignments - Part 2

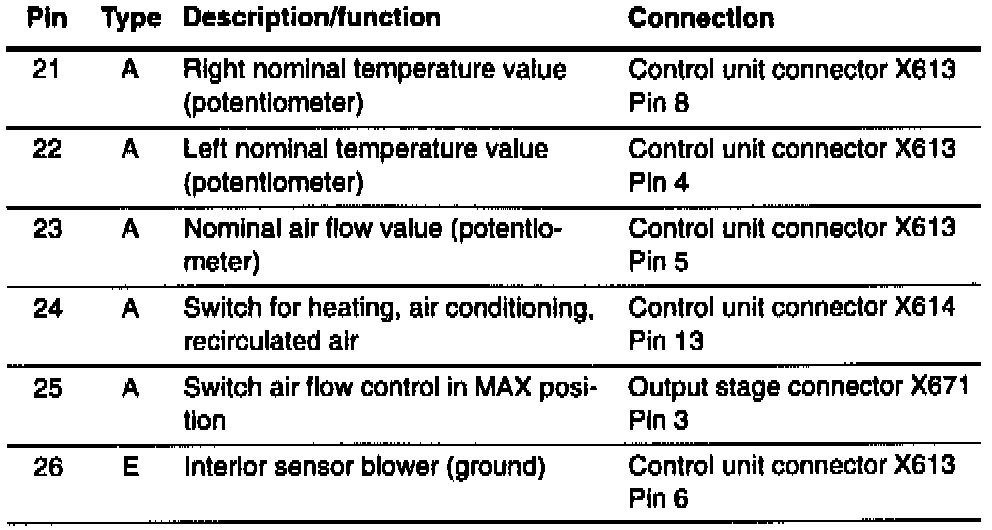

Pin Assignments @ IHKR Operating Unit X612 - Part 3:

IHKA Operating Unit X612 Pin Assignments - Part 3
