Cabin Air Filter / Purifier: Service and Repair

A/C MICROFILTER, REPLACING

1. From inside car, remove glove box.

2. Remove screws retaining right and left side carpeted console trim panels.

3. Remove trim panel from above glove box.




4. Remove two screws (arrows) retaining ventilation duct and remove duct.

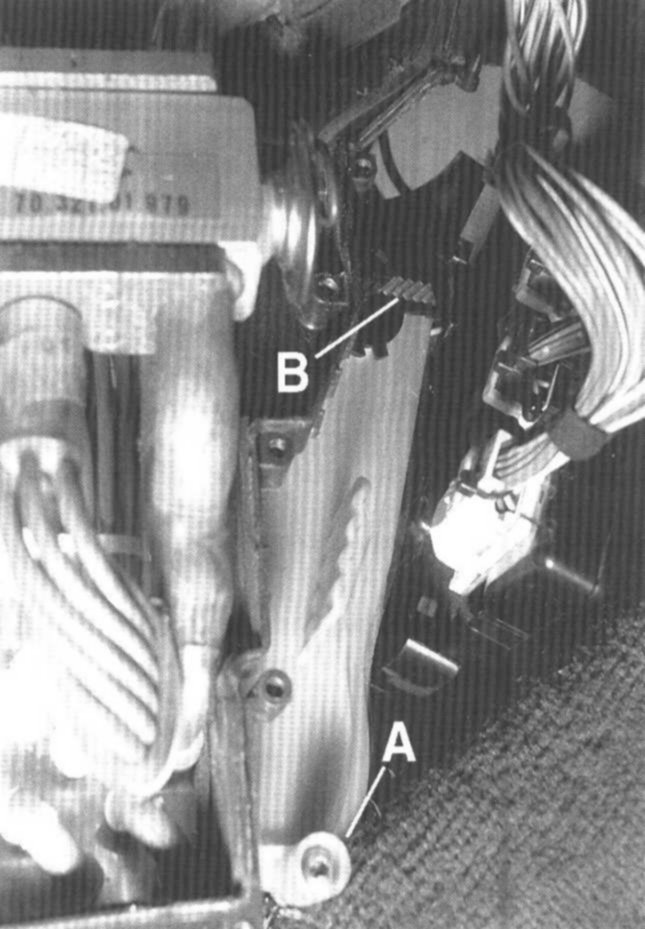

5. Remove cover from microfilter housing by removing screw (A) and turning locking lever (B).

6. Pull the microfilter out of housing and discard.

7. Installation is the reverse of removal.
