Transceiver Installation

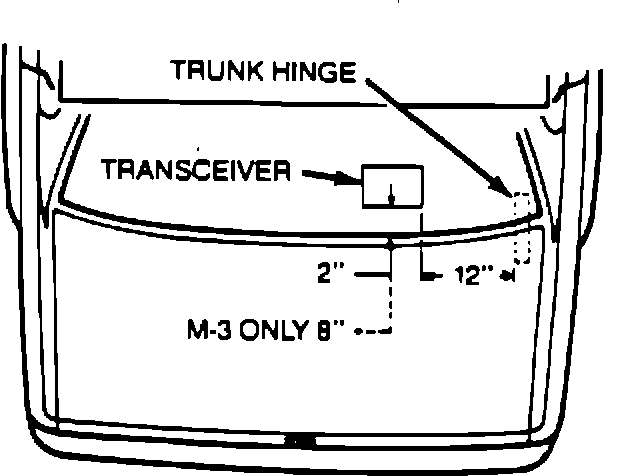

Figure 1:

1. See Figure 1. Install telephone transceiver mounting bracket in trunk area below rear window shelf. Use the mounting bracket to locate and mark the position of the four mounting holes.

CAUTION

In the next step, take care not to drill into rear interior package shed covering. Wear safety glasses during drilling operation.

2. Use a 4 mm (5/32") drill bit to drill four mounting bracket holes into sheet metal below rear package shelf.

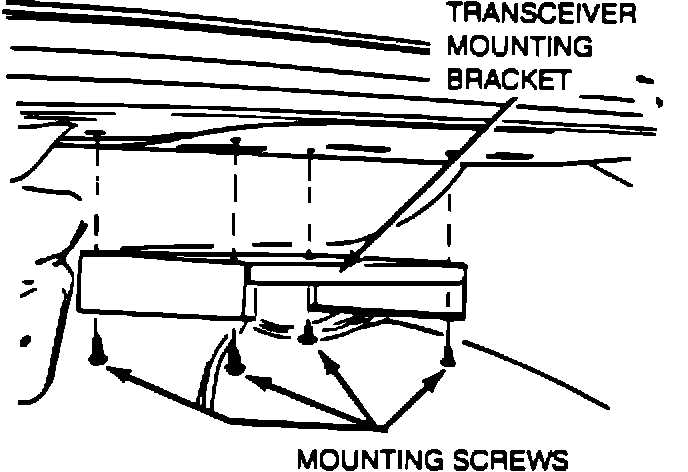

Figure 2:

3. See Figure 2. Install transceiver mounting bracket using four sheet metal screws provided.
