Removing/Installing Left or Right Control Arm

REMOVING AND INSTALLING LEFT OR RIGHT CONTROL ARM




Remove front wheel.
Unscrew holder for control arm.

Installation:
Tightening torque. 42 Nm (30 ft lb)

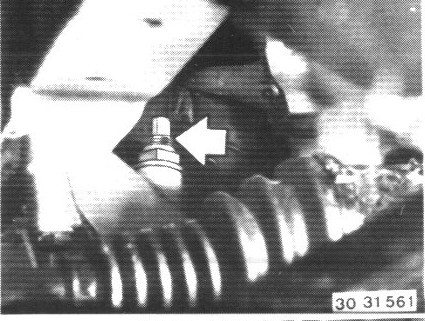

Unscrew nut.

Installation:
Replace self-locking nut.
Tightening torque. 85 Nm (61 ft lb)




Unscrew nut.

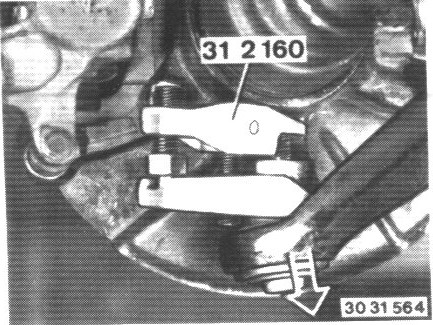

Press off control arm with Special Tool 31 2 160.

Installation:
Keep grease off of pins end bores.
Tightening torque. 65 Nm (47 ft lb)
Lock nut with cotter pin.
