Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1990
>>
325ix AWD (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Active Check Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

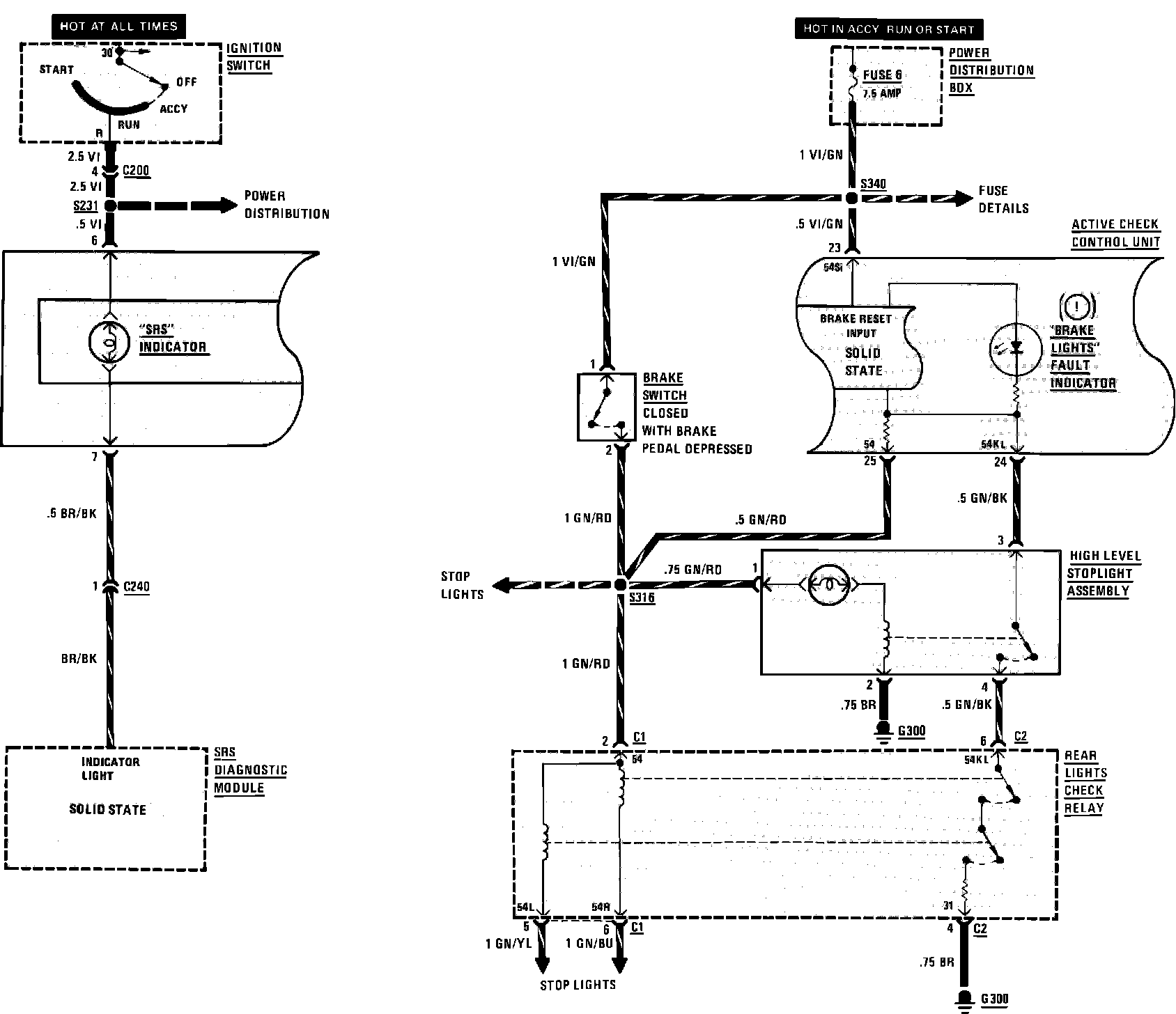

Active Check Control:

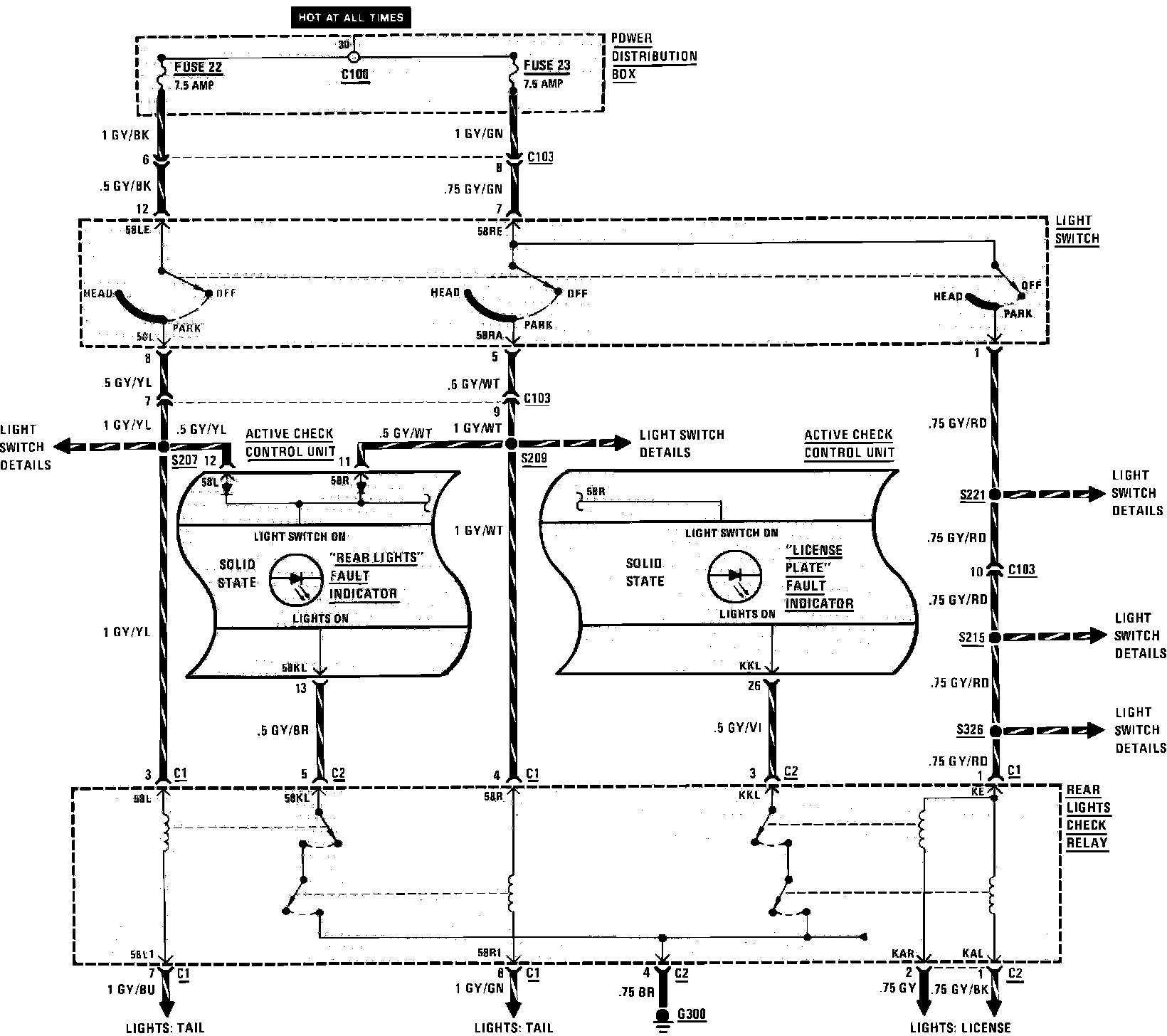

Active Check Control:

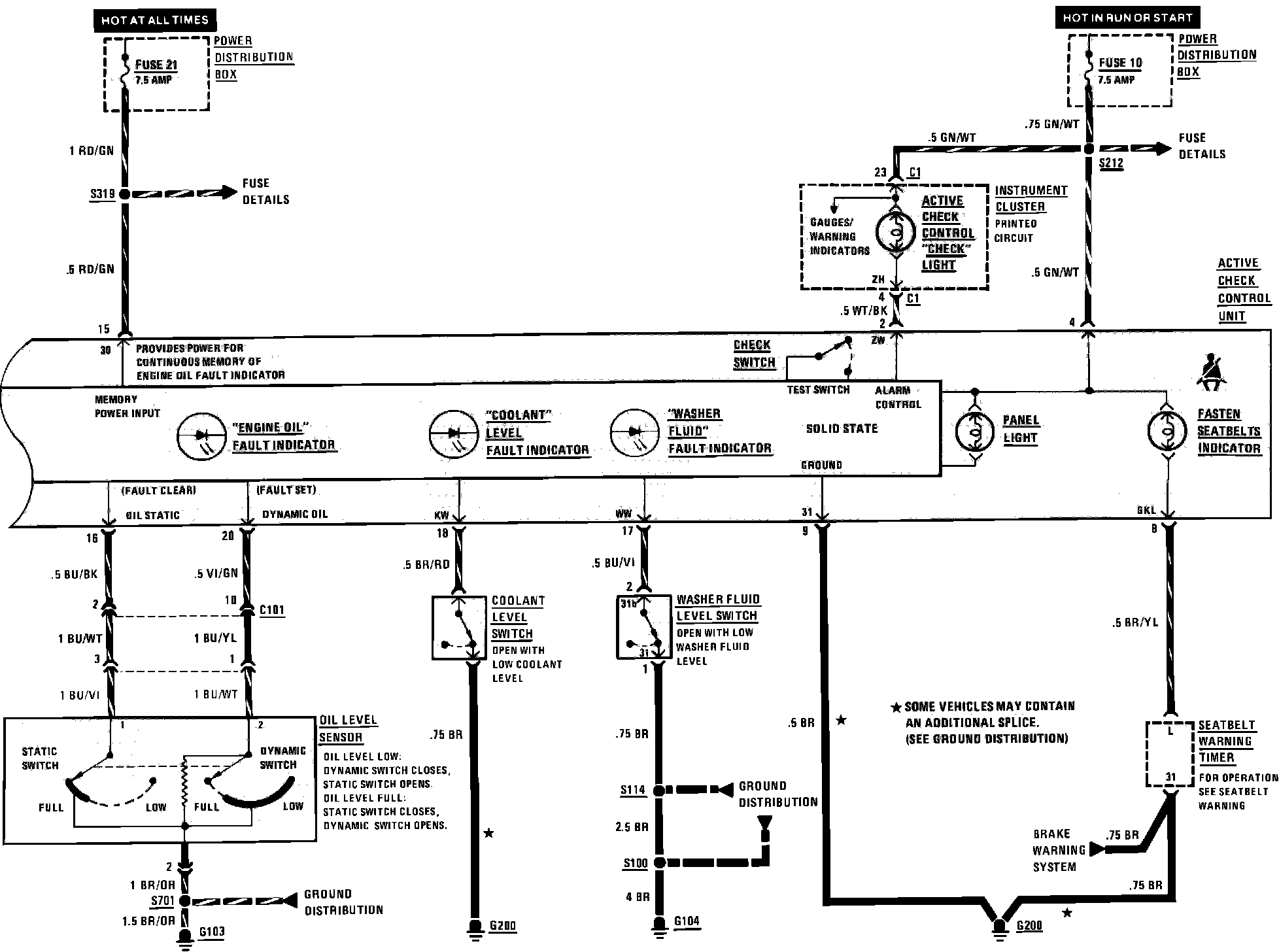

Active Check Control:

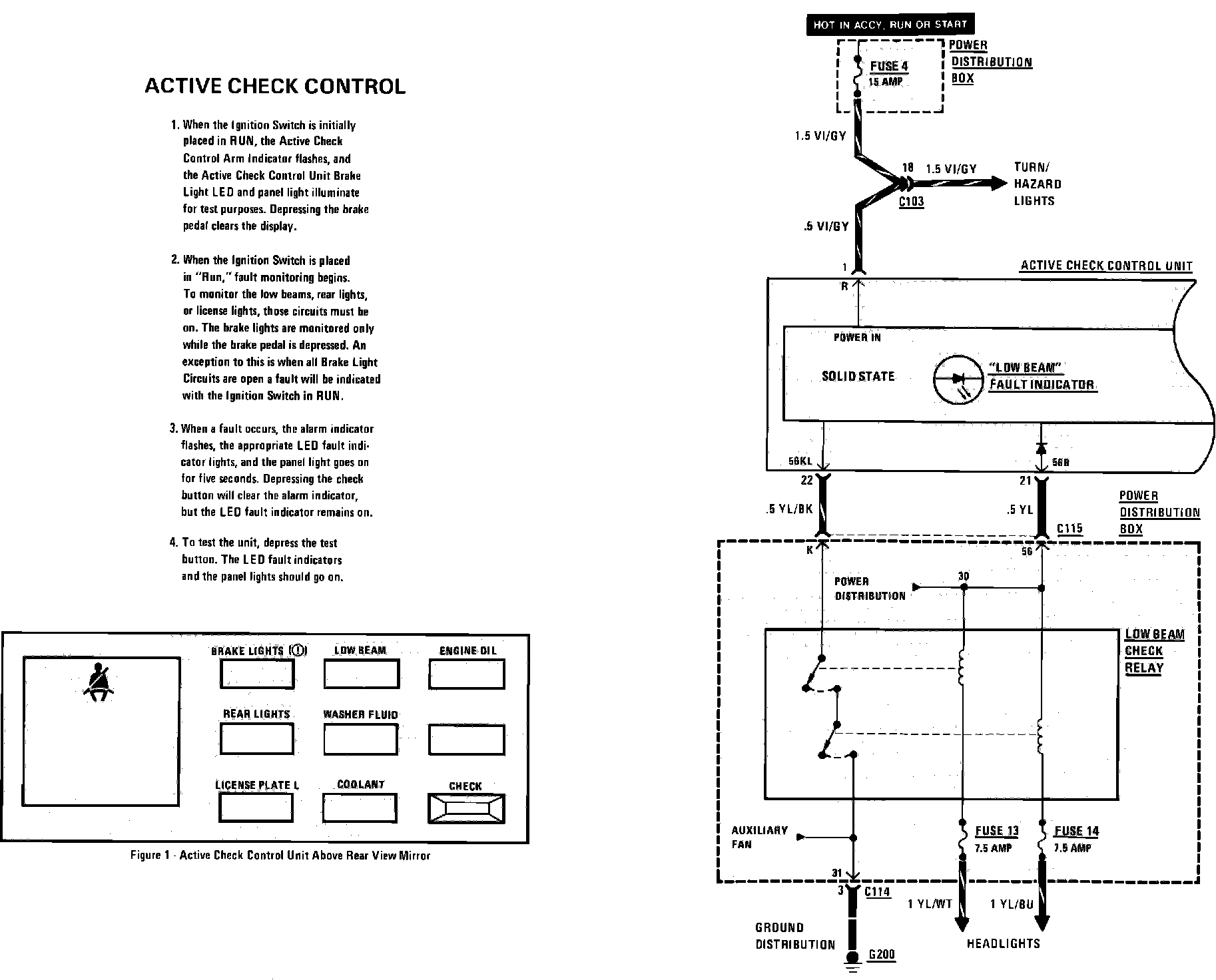

Active Check Control:
