325ix AWD (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Blower Control
Blower Control

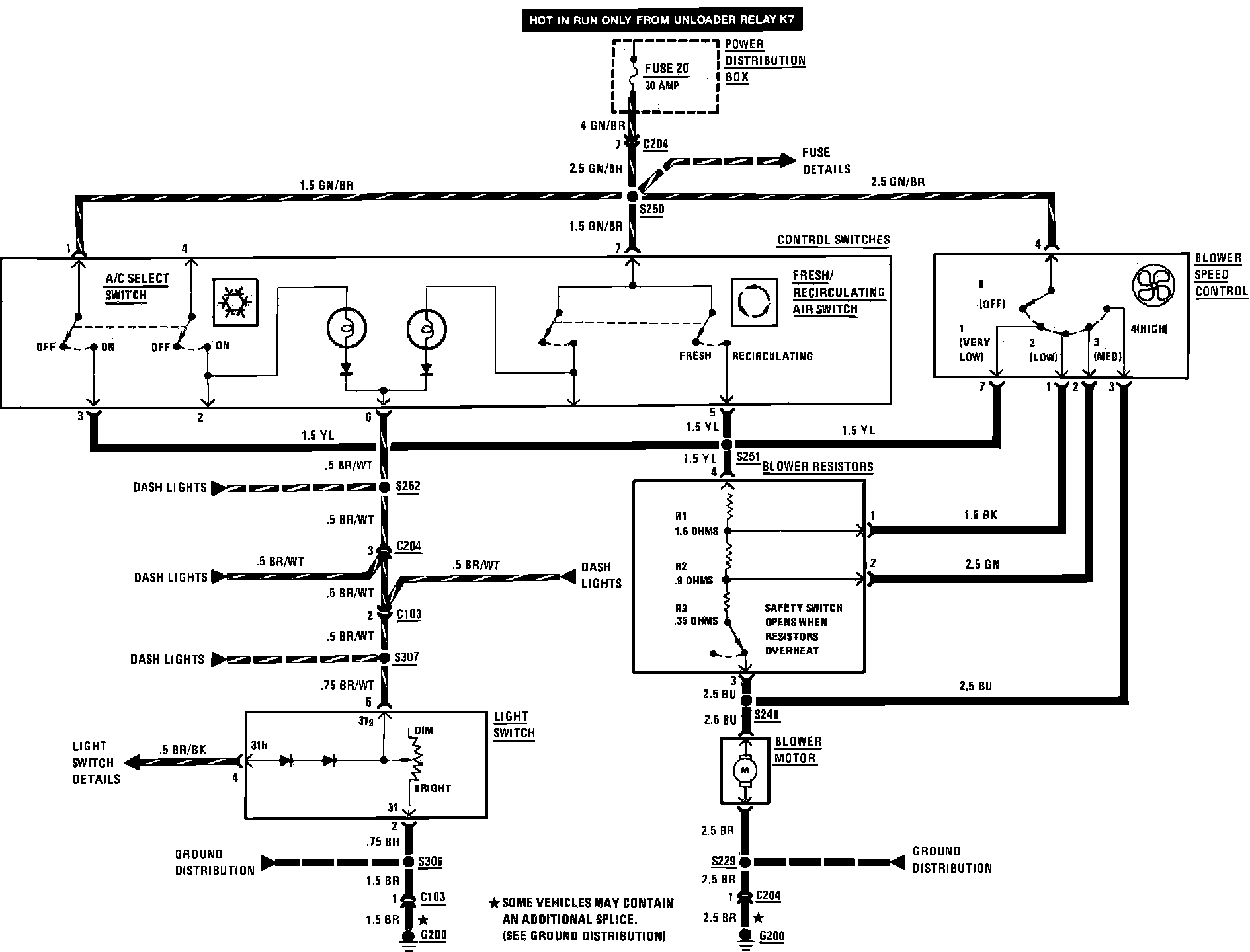

Air Conditioning & Heating (Blower Control):
