Engine Management

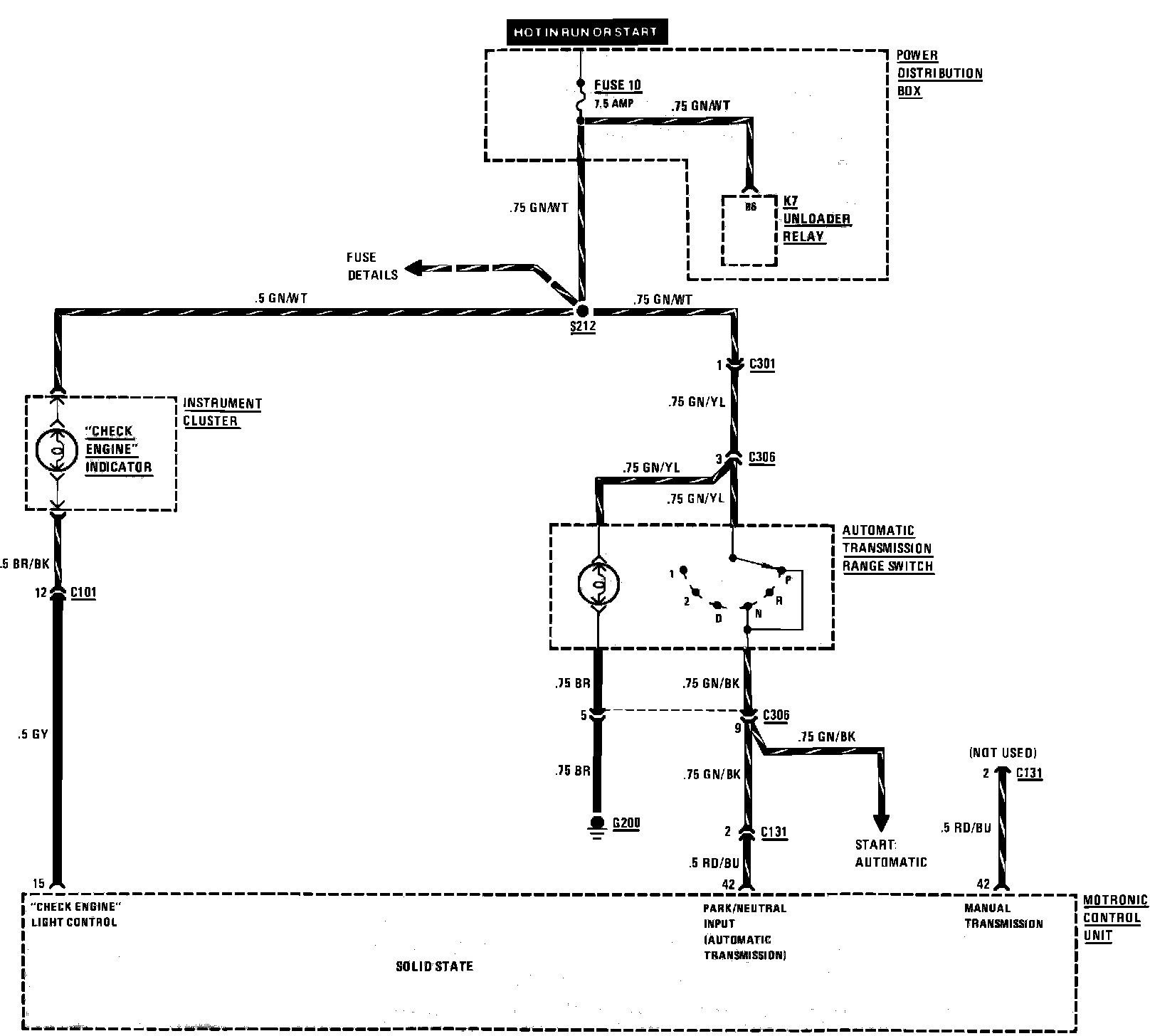

Injection Electronics (Motronic Control Unit):

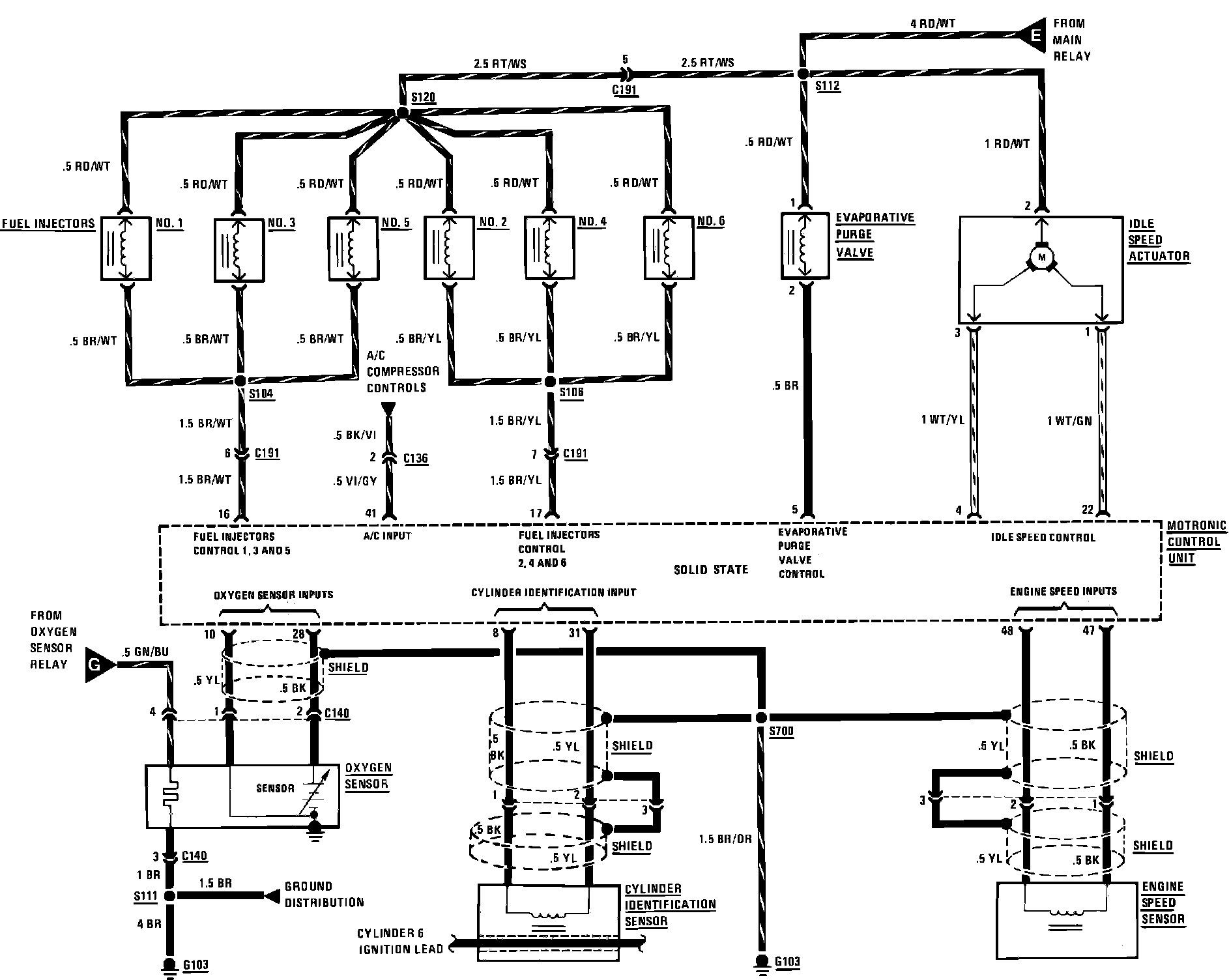

Injection Electronics (Motronic Control Unit):

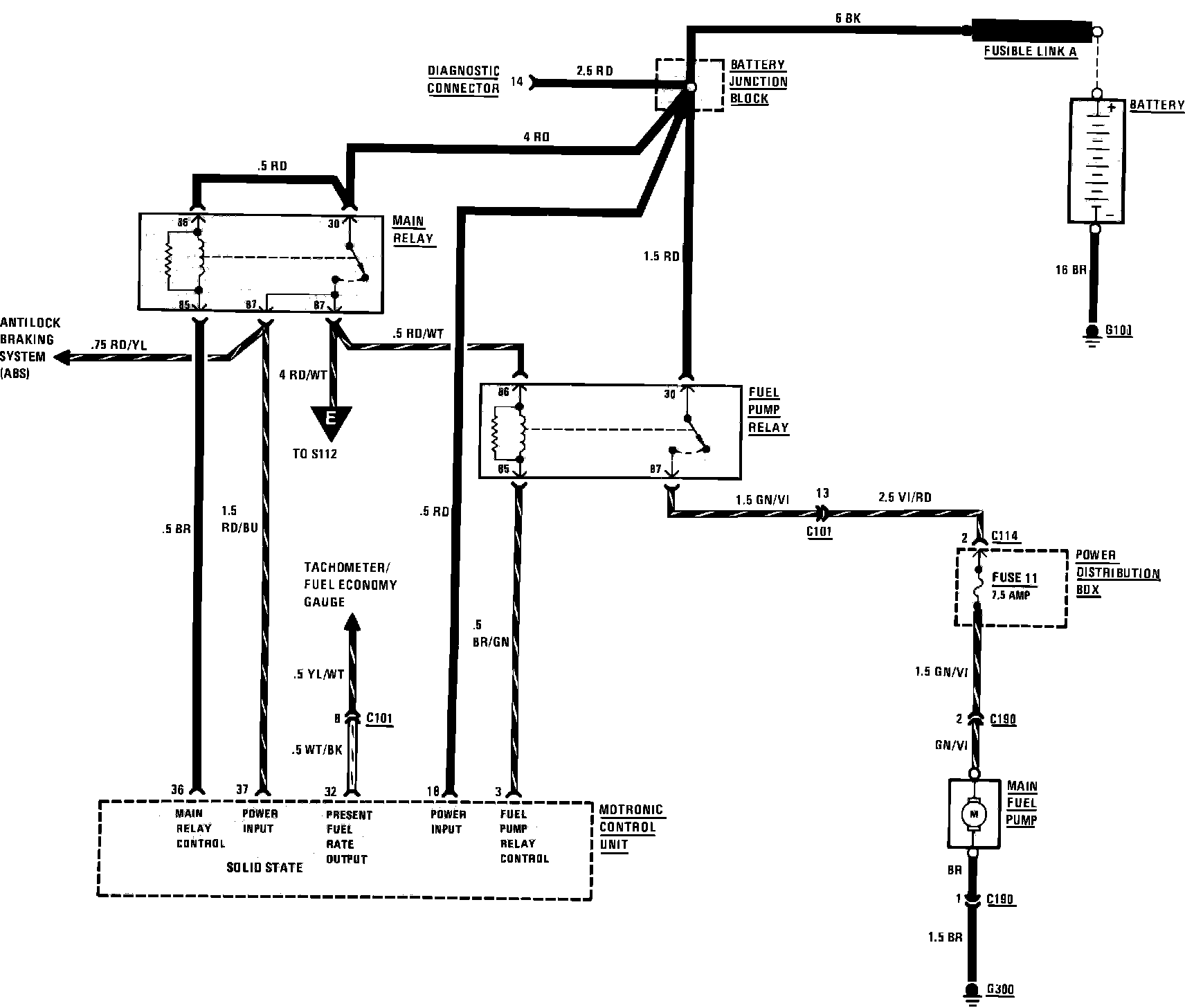

Injection Electronics (Motronic Control Unit):

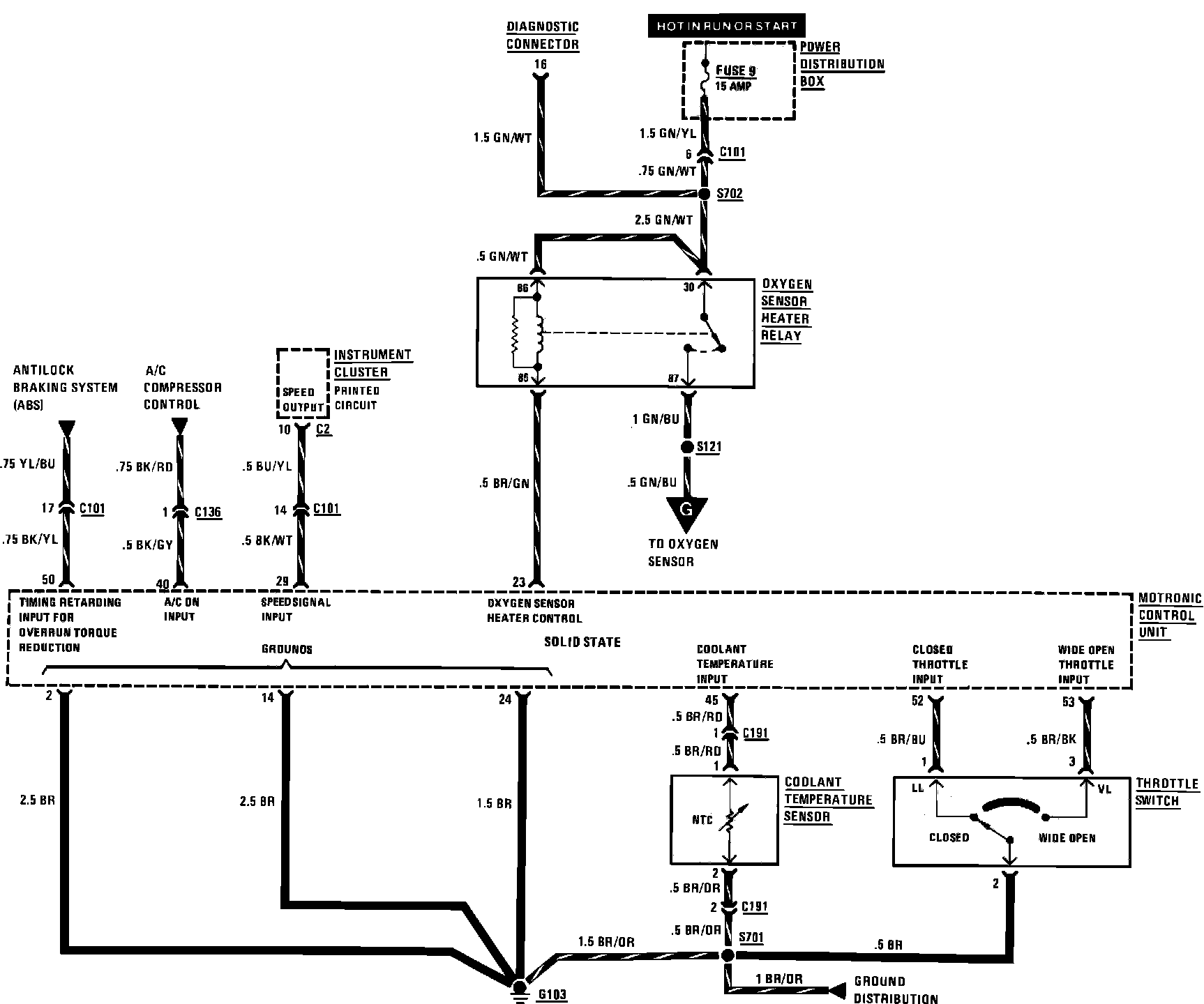

Injection Electronics (Motronic Control Unit):

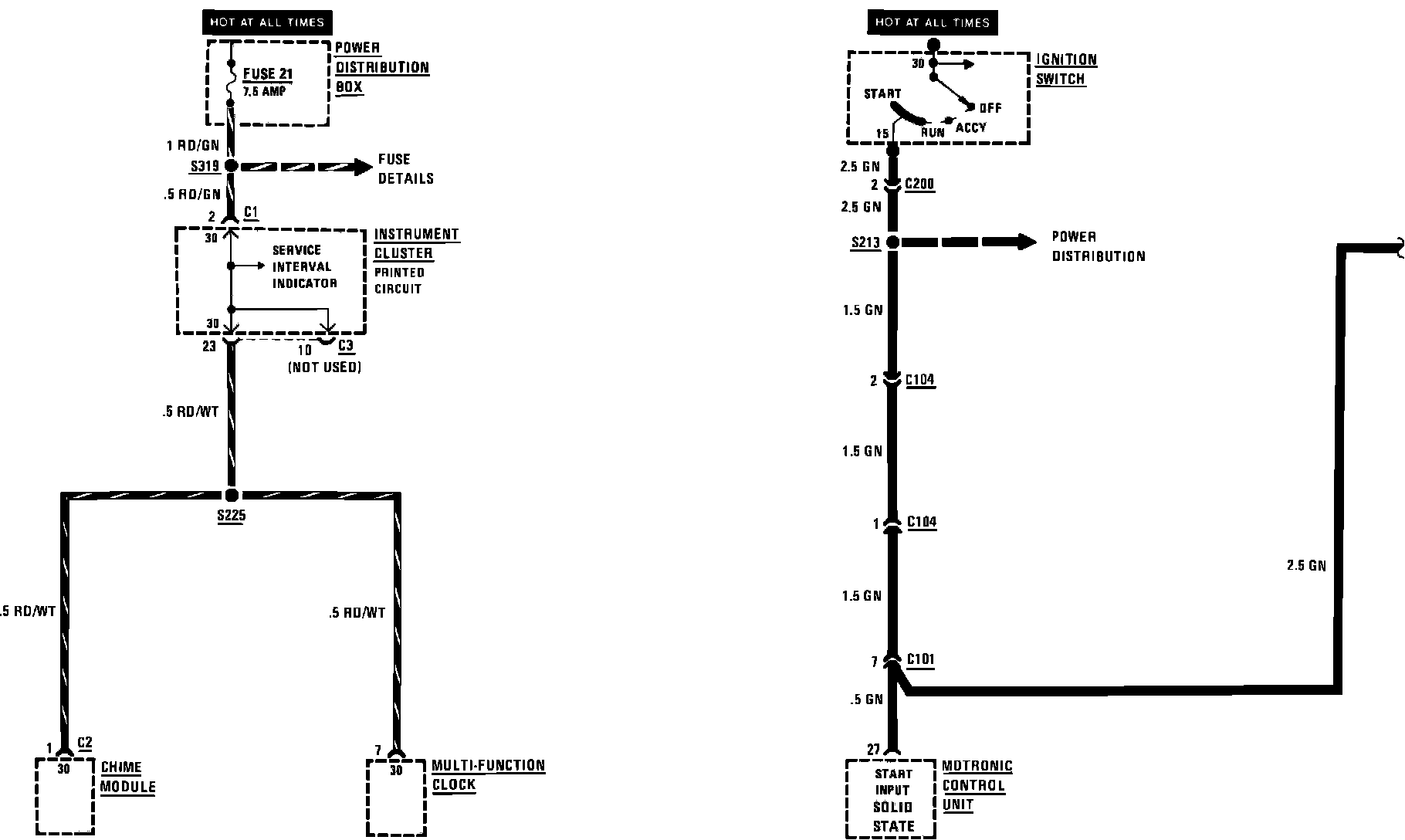

Injection Electronics (Motronic Control Unit):

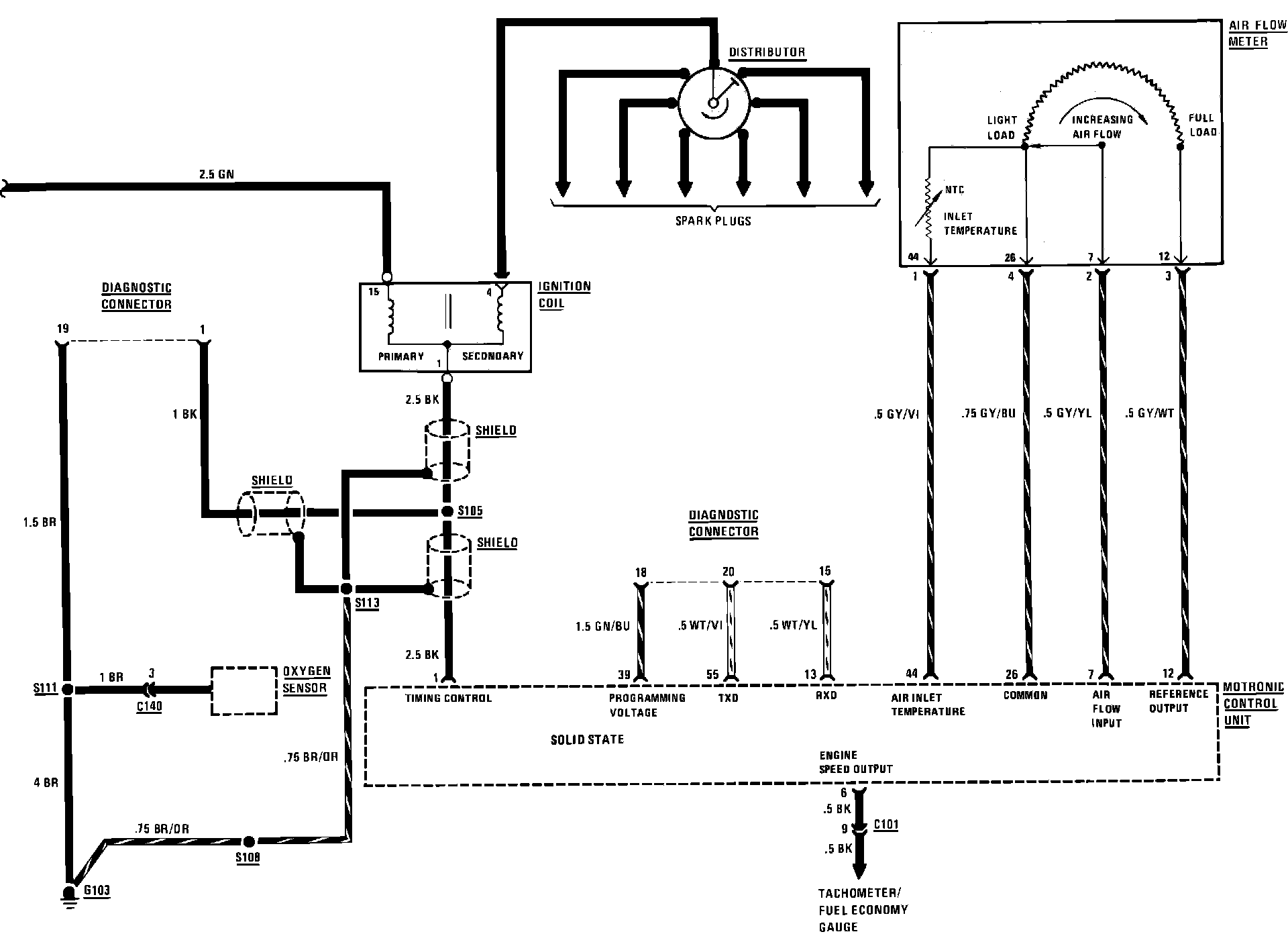

Injection Electronics (Motronic Control Unit):
