BMW
>>
1990
>>
325ix AWD (E30) L6-2494cc 2.5L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views/Pin Assignments
>>

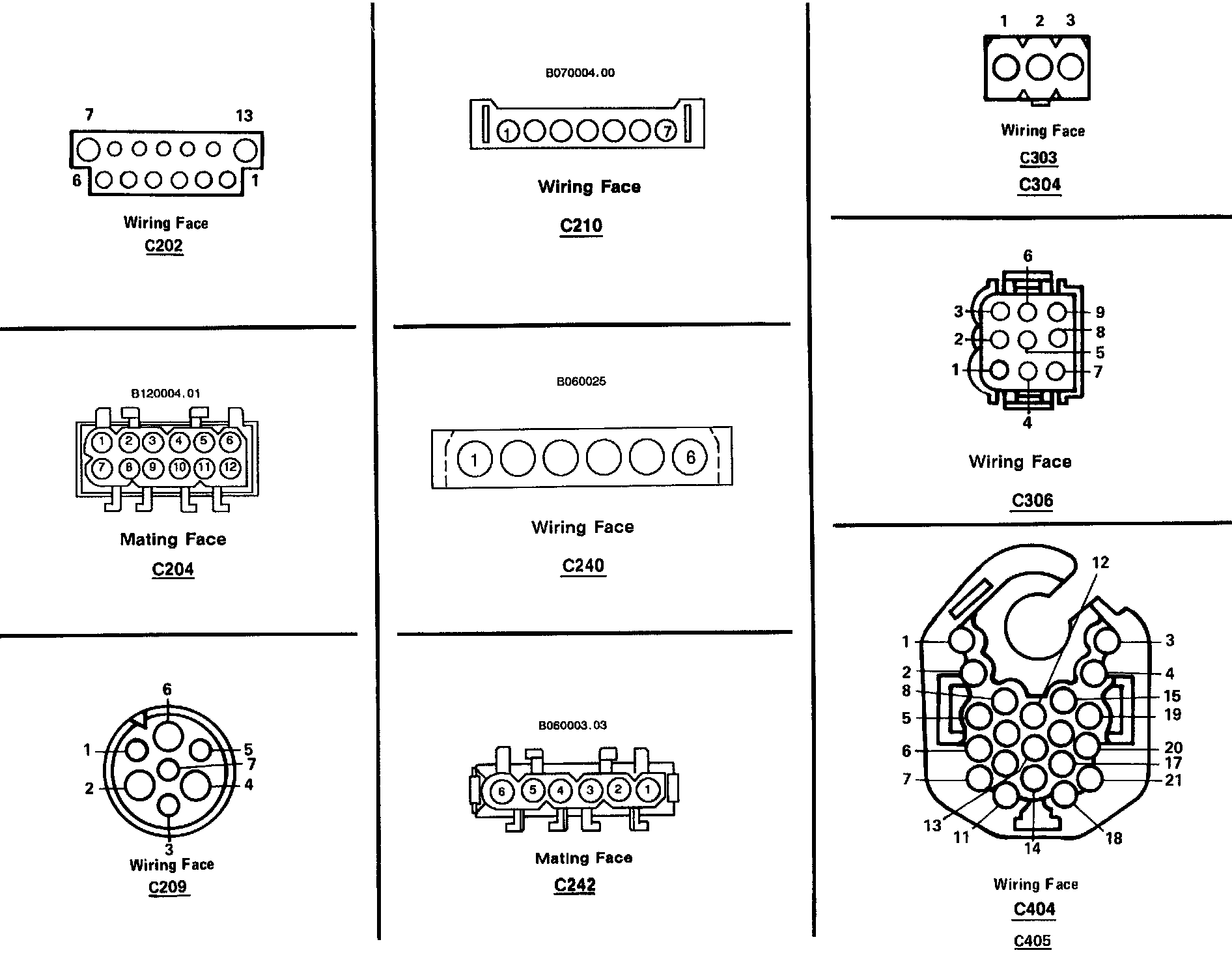

C202 - C405
C202 - C405
C202 - C405:
