Repir Manual - Microfiche Update

89BMW08

Group 00 Maintenance and General Hints
Bulletin Number 00 32 89 (1970) Page 1 of 2
Woodcliff Lake, NJ November 1989 Technical Dept.
SUBJECT: Repair Manual Microfiche Errors

Situation: Please be advised of the following errors on the below stated microfiche.



Error 1: Description Date Part Number

Repair Manual Fiche E30 3/89 01 51 9 750 377

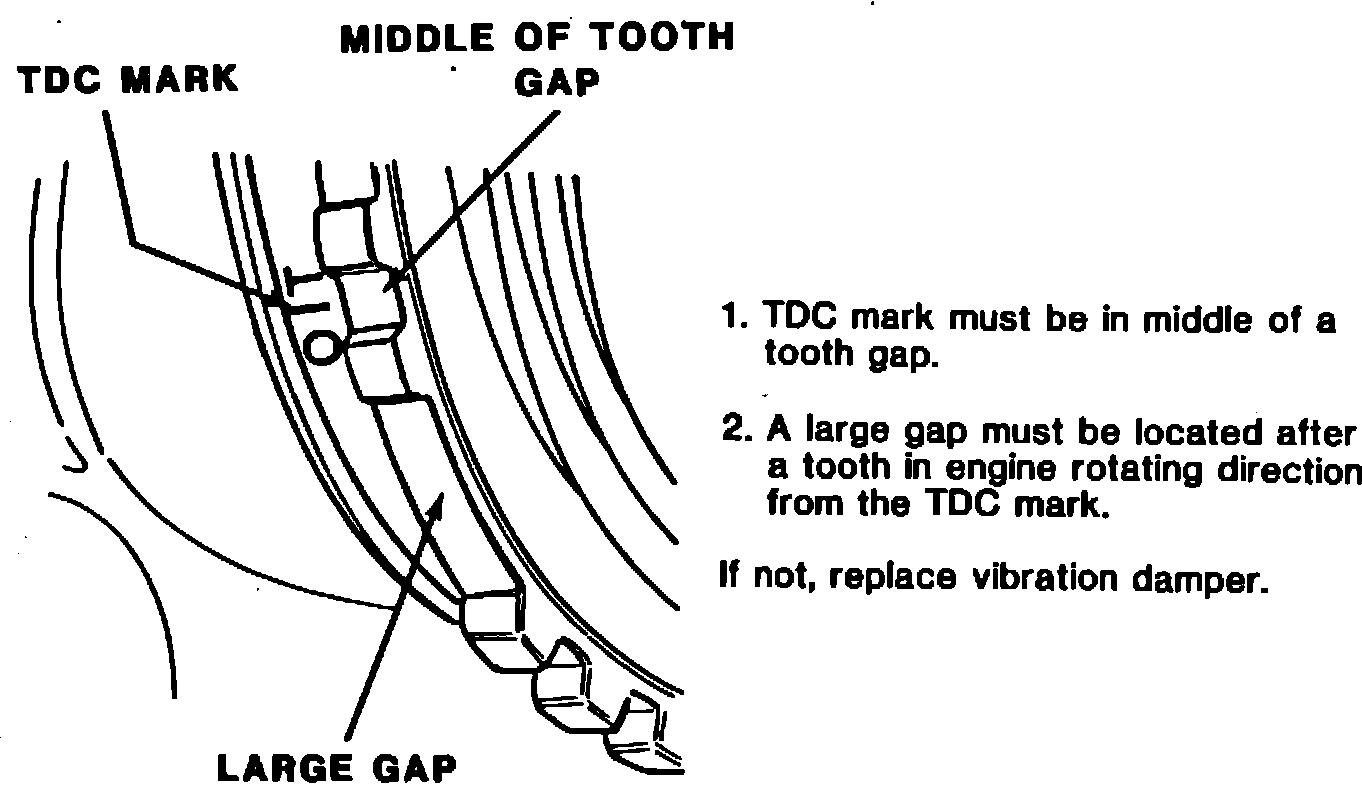

Frame 12-135, Picture number 32 12 145 and accompanying text is incorrect for the M20 motor. The correct picture and text is printed on the reverse side of this bulletin and on a separate sheet. The separate sheet should be kept with the microfiche.
Error 2: Description Date Part Number

Repair Manual Fiche E34 12/88 01 51 9 780 741

Frame 16-11/6 says, "see checking tank venting value in Group 16:". It should say, "See Checking Tank Venting Value in Group 13 frame 13-90/1".
