Active Check Module

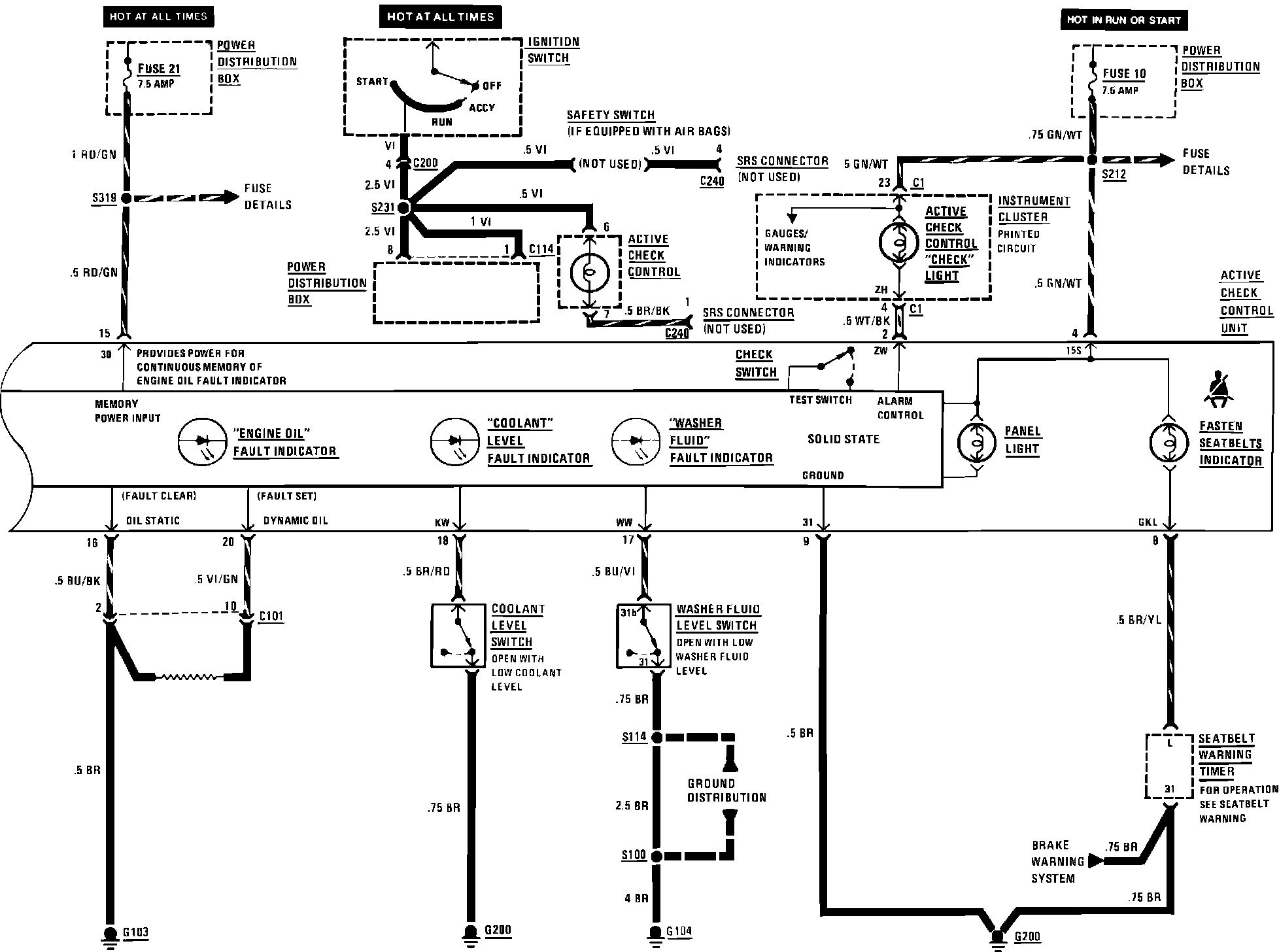

Fig. 32a Active Check Control:

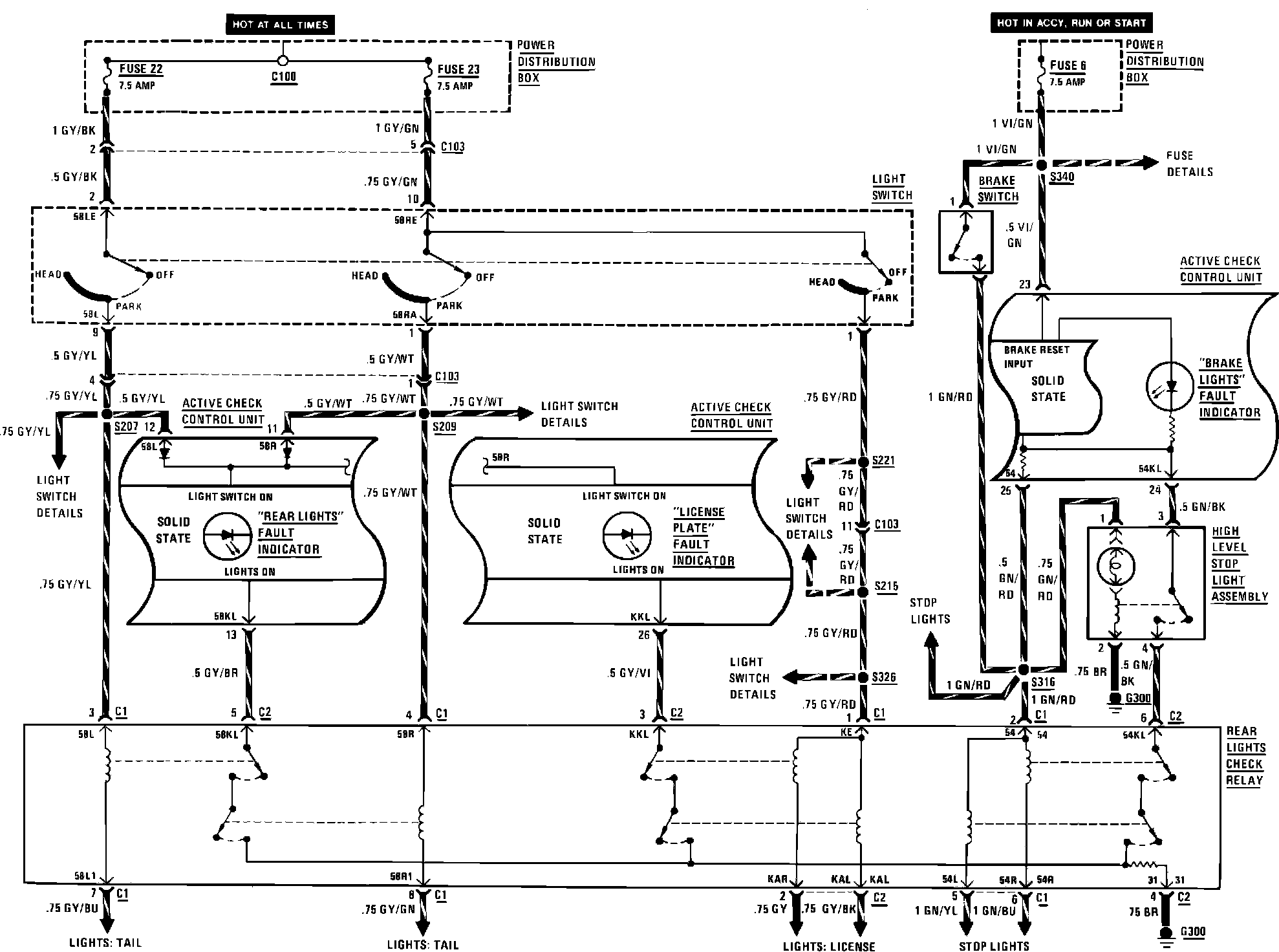

Fig. 32b Active Check Control:

Fig. 32c Active Check Control:
