14.Final Reassembly

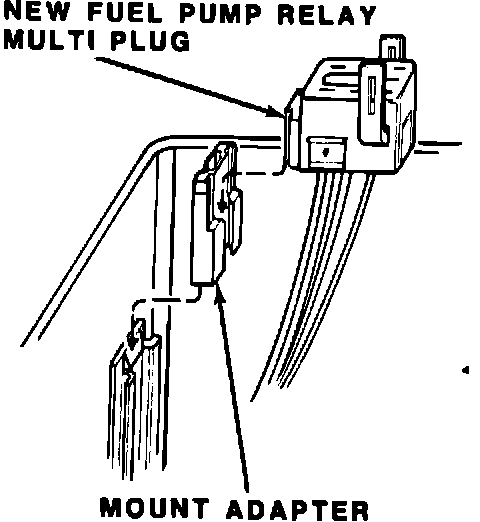

- Position the new relay harness for permanent installation.

- Cut and remove all existing harness wire ties near the new harness routing.

Caution: Only use "Side cutter" type pliers to cut wire ties. Blade type tools may overtravel and damage harnesses.

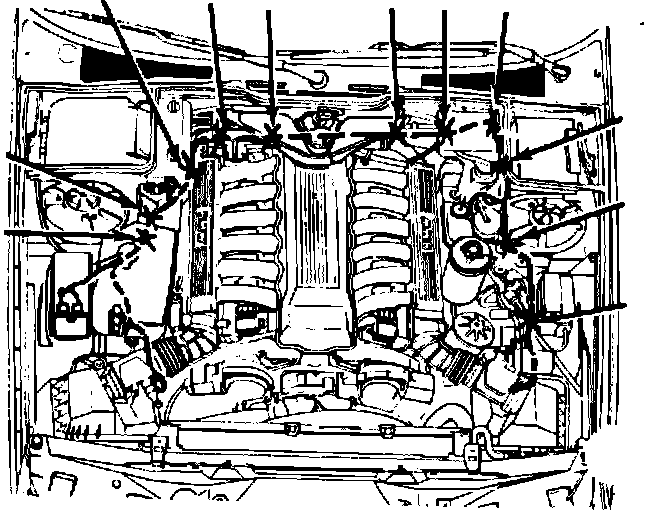

- Wire tie old and new harnesses together (black arrows).

- Reinstall all engine compartment black cosmetic coverings.

- Reinstall coolant expansion tank.

- Reinstall wlndshield washer tanks assembly.

- Reconnect battery ground X497 and plastic cosmetic coverings.
