A/C - Windshield Fogs Up Along Bottom While In Auto
GROUP 64Heating and Air Conditioning
Bulletin Number
64 05 88 (1628)
Montvale, NJ
May 1988
Technical Dept.
This Service Information bulletin supersedes S.I. 64 05 88 (1628) dated April 1988. It further clarifies the Warranty Status.
Please remove and discard S.I. 64 05 88 (1628) dated April 1988 from your S.I. binder.
SUBJECT:
IHKA (Climate Control) Defroster Flap Setting
MODELS:
E32
Situation:
You may receive a customer complaint that the windshield fogs up along the bottom while the system is set on AUTO.
Cause:
The defroster flap may be incorrectly positioned thereby not allowing adequate air flow to the windshield while in this mode.
Correction:
A - Remove trim panels beneath the steering column and on the left side of the center console.
B - Turn ignition to "RUN" and depress the "DEFROST" button.
C - Disconnect the control rod from the defroster lever.

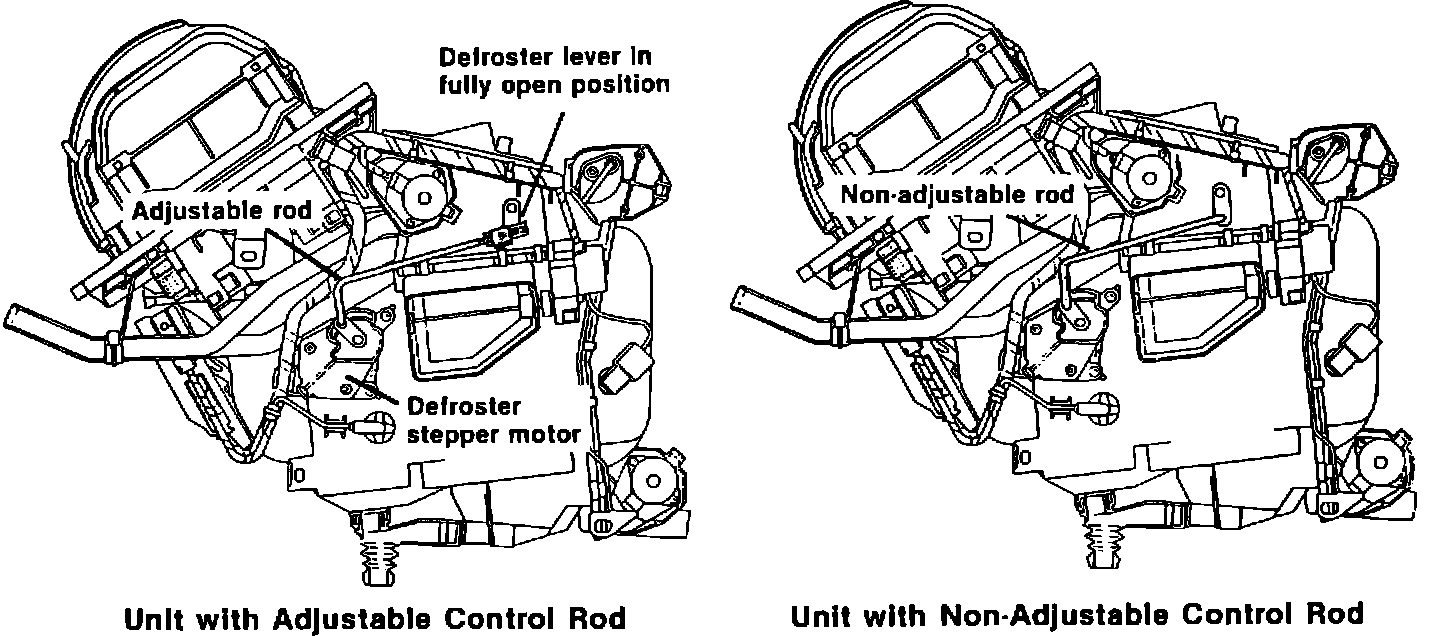

D - Hold the defroster lever in the fully open position (refer to illustration). The end of the control rod should line-up with hole in the defroster lever.
If the control rod is out of adjustment, proceed with the Adjustment Procedure.
Adjustment Procedure:
If the control rod is non-adjustable replace it with a new adjustable rod P/N 64 11 1 388 535.
Hold the defrost flap in the fully open position and adjust the control rod so it corresponds to the hole in the defroster lever.
Warranty Status:
Covered under the BMW New Car Limited Warranty of 3 Years/36,000 Miles.
Main work Associated work
Defect code: 64 11 15 40 00 Defect code: 64 11 15 40 00
Labor operation: 00 50 123 Labor operation: 00 50 690
Labor allowance: 4 FRU Labor allowance: 3 FRU
